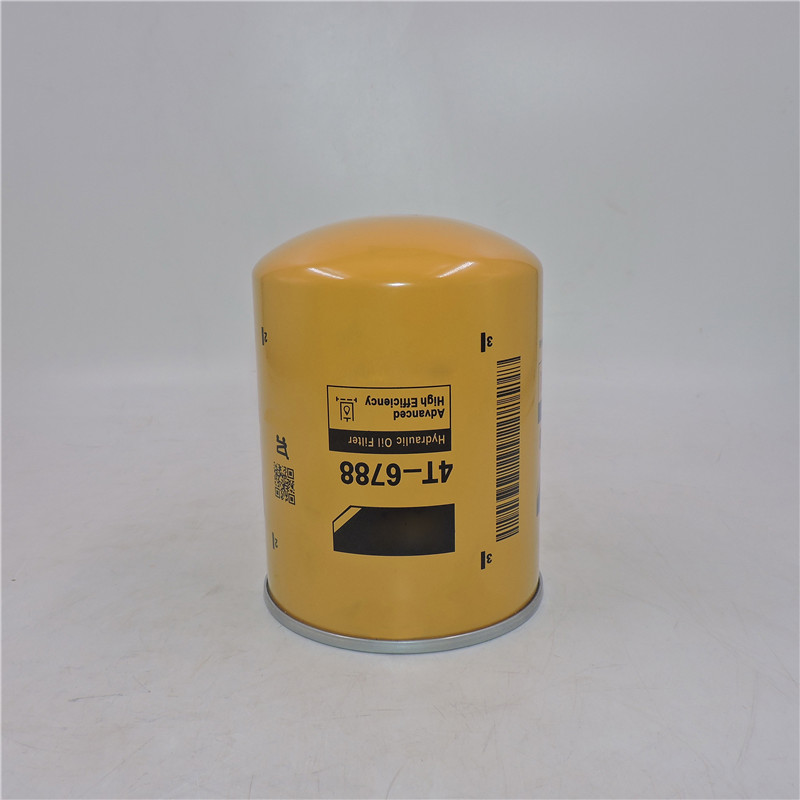

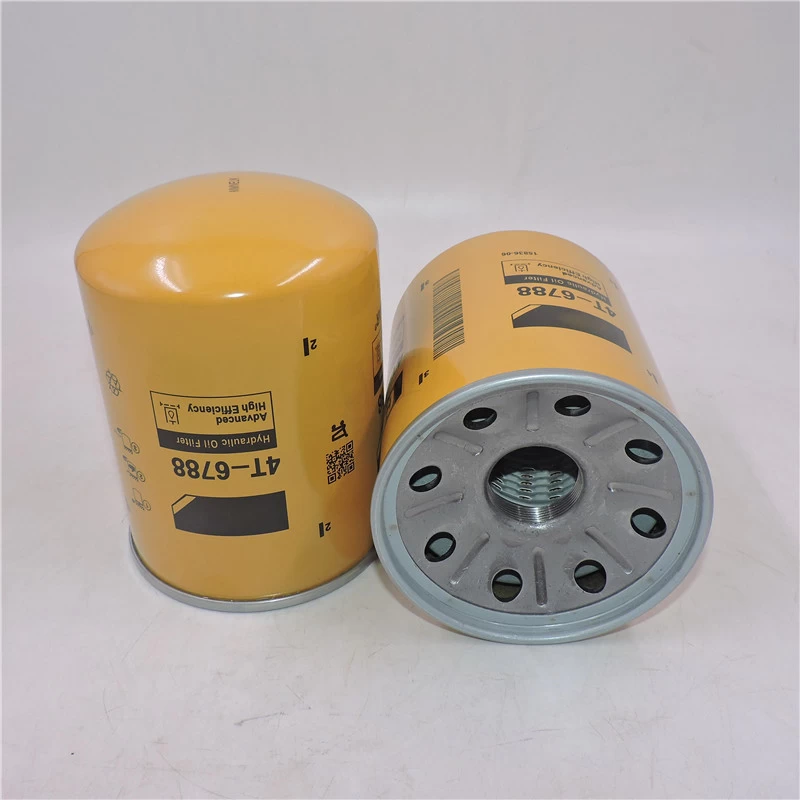

Advanced Efficiency Caterpillar Hydraulic Filter 4T-6788 4T6788
Hydraulic Filter 4T-6788Cross Reference:
CATERPILLAR 9T5664, Fleetguard HF6710, Case 87027972, Champion 13028, Ditch Witch 155-954, Dynamic 1H1234, John Deere AT58368, Michigan Fluid Power 200-0600, New Holland 86542664
Hydraulic Filter 4T-6788 Parameter：
|
Part Number
|
4T-6788, 4T6788
|
|
Parts Name
|
Hydraulic Filter
|
|
Brand
|
Caterpillar
|
|
Overall Height
|
170.41 mm
|
|
Largest OD
|
128.93 mm
|
|
Seam OD
|
128.93 mm
|
|
Thread Size
|
1 1/2-16 UN-2B
|
|
Efficiency Ranting
|
Advanced Efficiency
|
Hydraulic Filter 4T-6788 Advantage:
Cat Advanced Efficiency Hydraulic and Transmission Filters provide increased contamination control without giving up superior dirt-holding. Using improved filter media, our filters offer higher efficiency, improved capacity and lower pressure drop characteristics.
Pleat spacing is rigidly maintained by acrylic beading that prevents bunching and provides maximum filtration surface area throughout the life of the filter. In addition, the integrated seal ensures a separation between the clean and dirty sides of the element.
Hydraulic Filter 4T-6788 has three attributes:
• Unique filter media provides unsurpassed protection
• Increased debris holding capability
• Increased resistance to collapse
