Advanced PVC Garden Hose Production Line
This pvc extrusion profile line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose,middle layer is Terylene fiber network, which has good chemical and physical property.It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery,coal mine, oil, chemical, agriculture irrigation,gas and building.
Quick details:
|
Output (kg/h):
80 - 100 kg/h
|
Condition:
New
|
Application:
Pipe
|
Plastic Processed:
PVC
|
Screw Design:
Single-screw
|
Brand Name:
RELIABLE
|
Voltage:
380V 50HZ 3Phase(Customized)
|
Dimension(L*W*H):
16mx3mx2.2m
|
Weight:
4T
|
High capacity:
high stable
|
Key Selling Points:
High Productivity
|
Automatic Grade:
Automatic
|
Advantage:
1. High efficiency single screw extruder
2. It can produce PVC garden hose or pvc soft hose
3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm
4. This pvc hose is mostly used as home, garden, farm, lawn and so on.
Flow Process:
layer extrusion inner → mould die → spray cooling→ haul off→ fiber winding→ oven dryness→ outer layer extrusion→ mould die → spray cooling→ haul-off→ printer→ winder
Main Composition
|
Item
|
Quantity
|
|

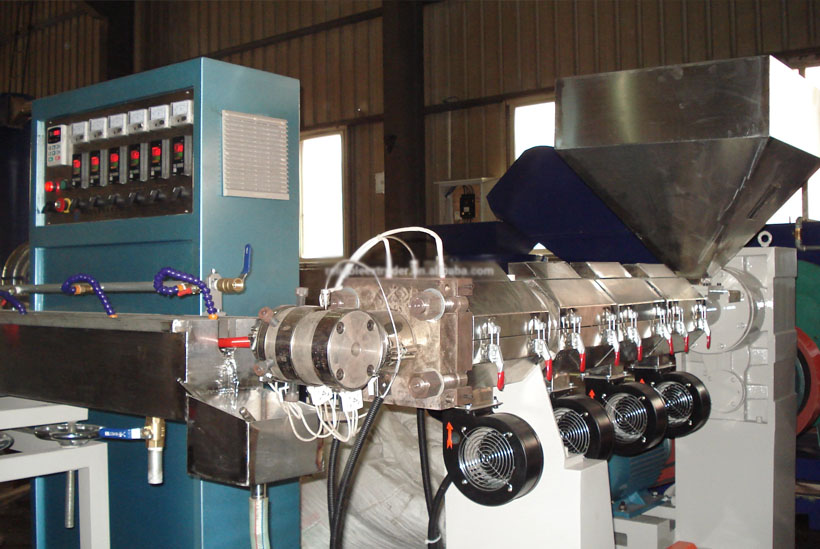

SJ65/30 Single Screw Extruder
|
2sets
|
|
Die and Mold
|
2set
|
|
Stainless steel cooling tank
|
2sets
|
|
Knitting Machine
|
1set
|
|
Oven
|
1set
|
|

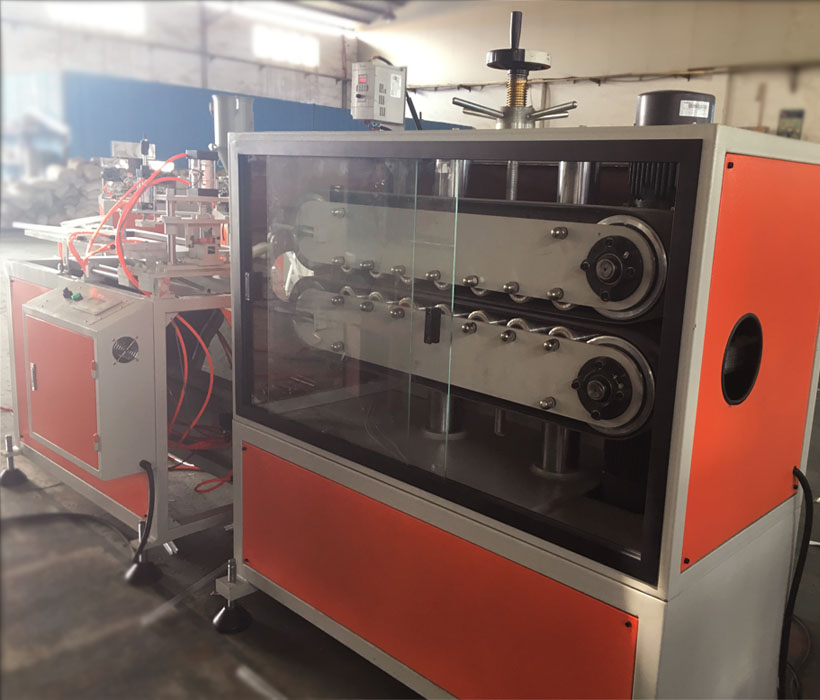

Haul off machine
|
2sets
|
|

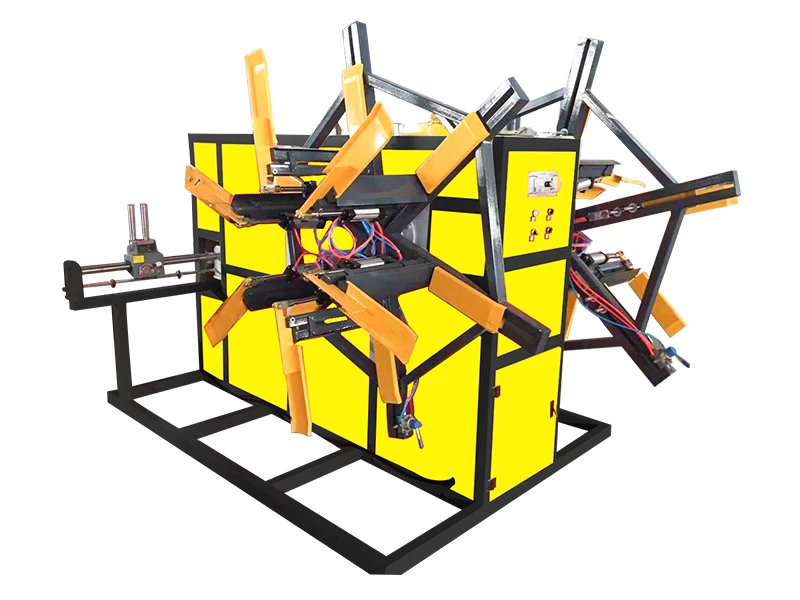

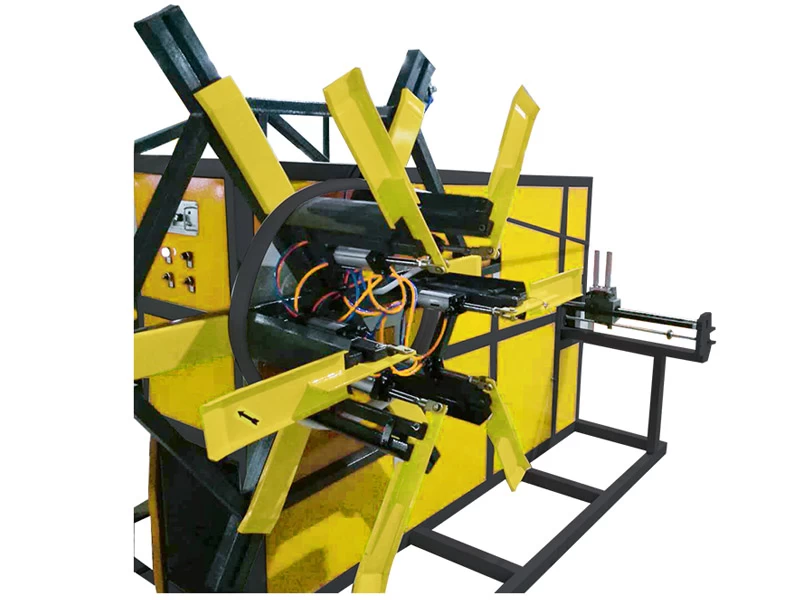

Auto Winder
|
1set
|

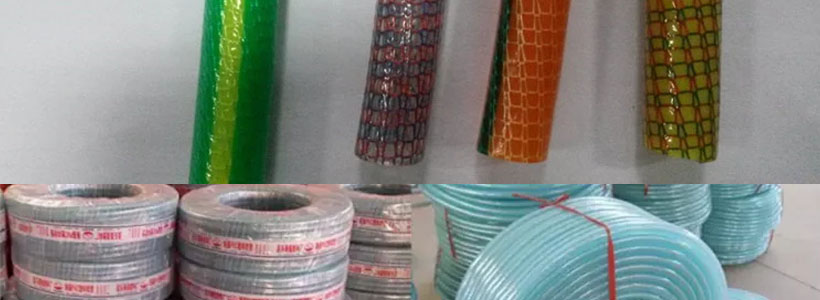

Products details:
Why Choose Us
Team
If you are interested in our plastic pipe extruded machine,Contact now! Tell us the details of your needing.
