P2.5-16SIndoor LED main technical parameters（die-casting aluminum）
|
|
Physical
point Spacing 2.5mm
|
United
board size 160X80㎜
|
Unit
box size 640×640×68㎜
|
|
Physical
density 160000 point/㎡
|
Luminous
color 1R1G1B
|
Unit
borad resolution 64*32=2048 DOTS
|
|
Unit plate weight 0.12㎏
|
|
Box Resolution 256*256
|
Box
area 0.4096m²
|
Die-Cast
Aluminum box weight 10.78KG±0.05KG
|
|
Main technical parameters
|
|
Best
viewing distance 2m～35m
|
Visual
angle level≧160°optional
|
vertical≥160°optional
|
|
Average
power cinsuption ＜1000W/㎡
|
Max
power dissipation＜2000w/㎡
|
Control
method：synchrocontrol
|
|
DVI graphics card
|
Driving
mode 1/6scan
|
Repetition
frequency ≧60Hz
|
|
Refresh frequency ≧2880Hz
|
White
balance brightness ≧1000cd/㎡
|
Frame-changing
frenquency ≧50/60
|
|
Brightness Adjustment
|
Automatic
adjustment of luminance induction
|
Class
16 adjustment
|
|
Software manual adjustment：calss 100 adjustable 100
|
|
Computer operating system
|
|
WIN98、WINXP、WIN2000,etc
|
|
Video signal
|
|
RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION,etc
|
|
cintrol system
|
|
PCTV card（optional）+DVI graphics card+master cintrol
card+optical fibre transmission（optional）
|
|
MTTF ≧5000
hours
|
Life
span 75000～100000 hours
|
Pixel
runaway rate ＜0.0002
piece
|
|
Project classification PH6-8S
|
Encapsulation
form Traid
|
LED
Encapsulation mode 2121
|

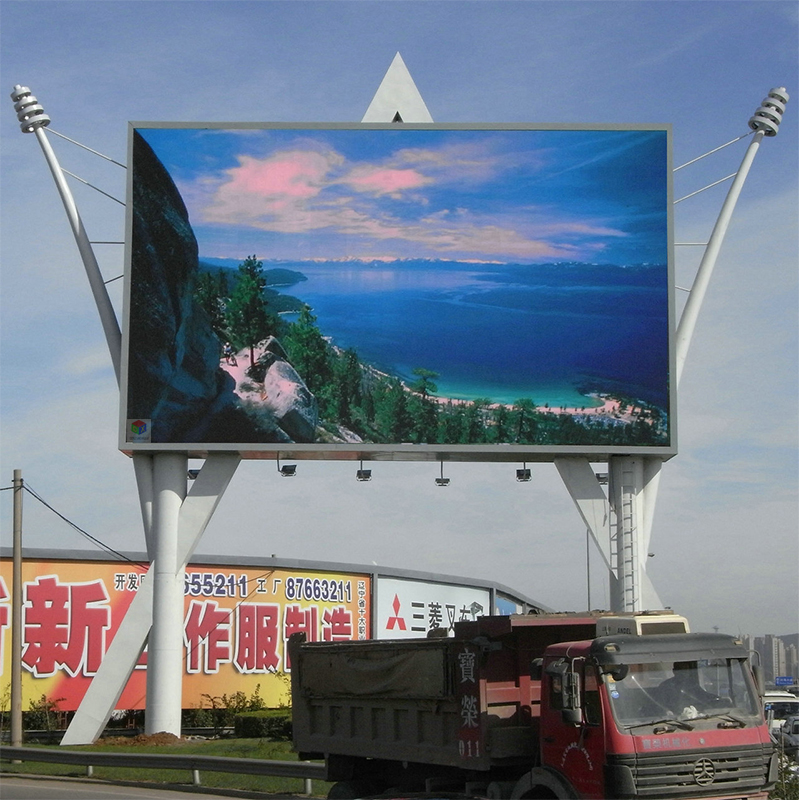

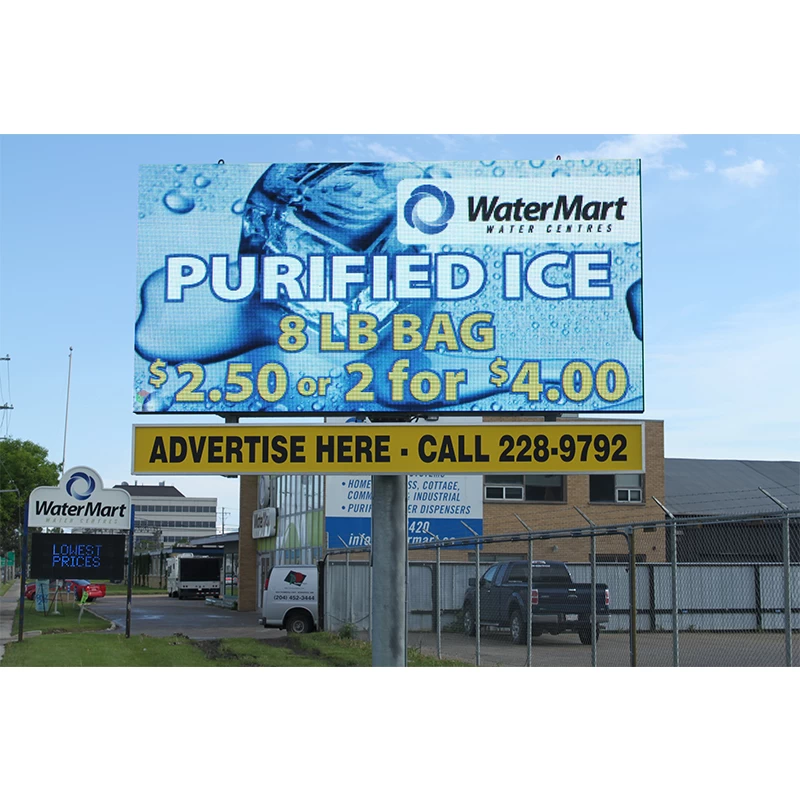

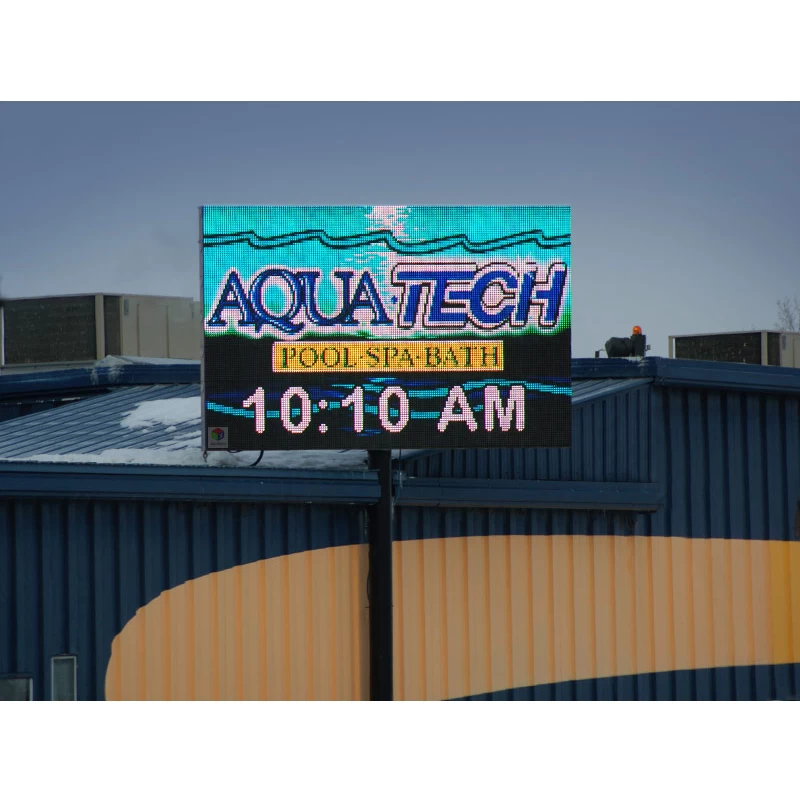

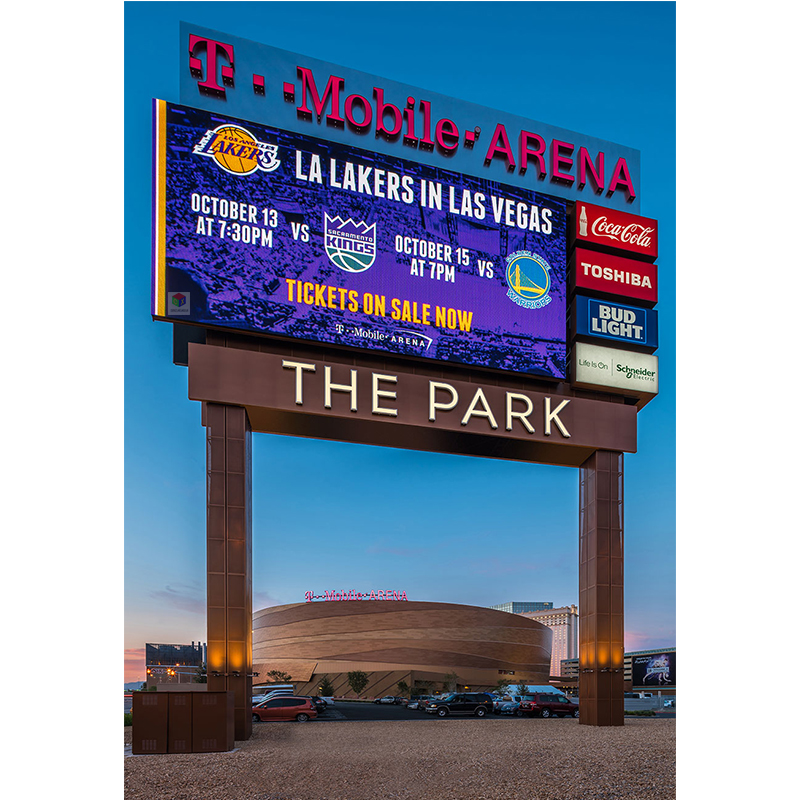

In LED display outdoor series,modular in each unit design is encased to maintain a highest level of water and dust proofing to IP65. The modular design of the LED display (outdoor) enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display (outdoor) series are applied to large public squares. sport centers arenas,urban traffic signage,car dealerships,casino signage,expressway information delivery systems,public service announcement displays,media,commercial promotion and other large scale applications.
<Superb brightness and color uniformity and reproduction. Brightness varaiances within+/-2.5%
<High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection
<Refresh rate is up to 4,200Hz, completely flickering-free for live video
<Proprietary image processing produces sharp, brilliant images unmatched by industry competition
<6000: 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away
<8000 nits guarantees the screen stays brighter longer, providing 100,000 hours of continuous use
