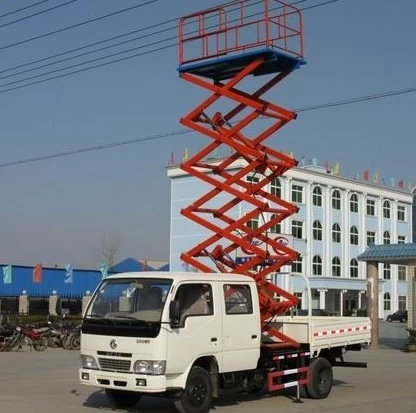

6M~16M Aerial Working Platform Truck Dongfeng



Function:

Aerial Working Truck Isuzu (also called Hydraulic aerial platform truck, overhead working truck, aerial boom lift, aerial lift truck, truck mounted aerial platform, Man lift truck, bucket boom truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.



Features:

---- DONGFENG truck chassis ensures perfect driving performance;
---- YUCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Similar Key Words:  Aerial work platform, bucket crane trucks, Hydraulic beam lifter, Man lift truck, Hydraulic lifting platform, bucket boom trucks


Model Number

Rate load
(kg)

Maximum

height(mm)

Minimum

 height
(mm)

Platform size
(mm)

Overall Dimensions
(mm)

Rise time
(s)

Power supply
(V)

Power(kw)

weight(kg)

SJC0.3-6

300

6000

950

1780×840

3000×1100×1100

35

24

1.5

1450

SJC0.45-6

450

6000

950

1780×840

3000×1100×1100

38

24

1.5

1450

SJC0.45-7.5

450

7500

1350

2100×1000

3500×1350×1550

72

40

1.5

2700

SJC0.3-9

300

9000

1500

2100×1000

3500×1350×1700

84

40

1.5

2800

SJC0.45-9

450

9000

1600

2000×1000

3500×1350×1850

95

40

1.5

2900

SJC0.3-11

300

11000

1600

2100×1200

3500×1350×1850

85

40

1.5

3100

SJC0.45-11

450

11000

1600

2100×1200

4000×1800×2000

93

40

1.5

3100

SJC0.3-14

300

14000

1800

2600×1500

4000×1800×2000

135

40

3

4200

SJC0.45-14

450

14000

1800

2600×1500

4000×1800×2000

200

40

3

4400

SJC0.3-16

300

16000

1980

2600×1500

4000×1800×2180

150

40

3

4700
