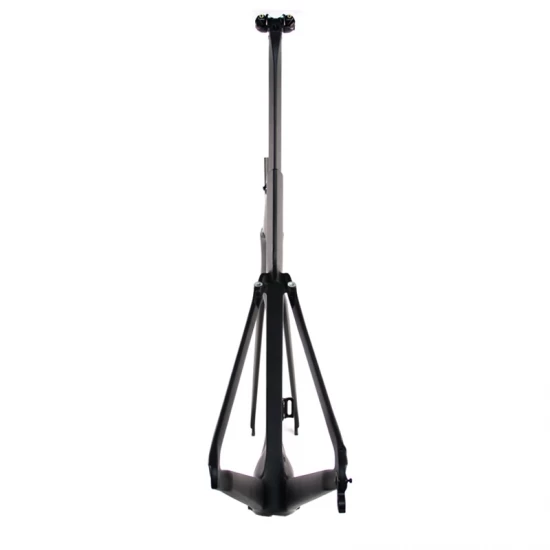

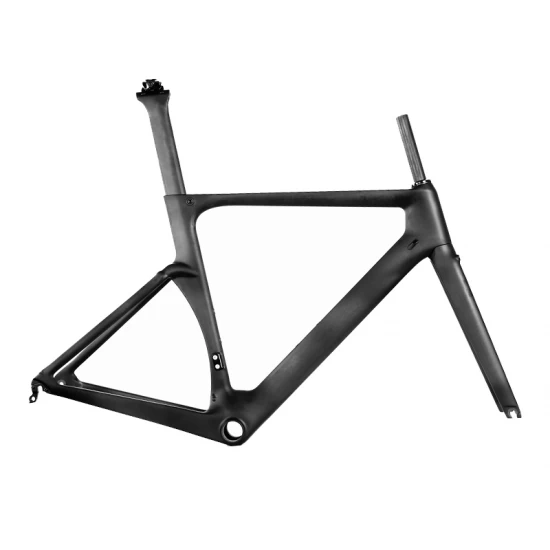

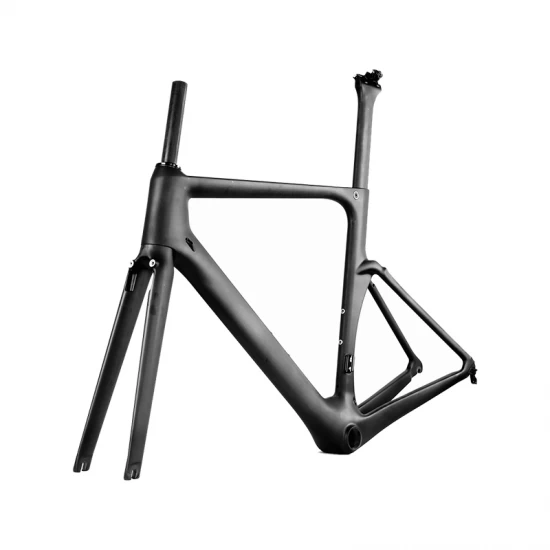

Aero Road Direct Mount Caliper Brake Frame R006-V

- Aerodynamic design tube shape

- Direct mount brake types

Facebook Twitter Pinterest LinkedIn 分享

Description

Frame	Aero road direct mount caliper brake frameset
Material	High modulus Toray T700 carbon fiber
Size	49, 52, 54, 56, 59
Fork	Lightcarbon specify carbon fork
Headtube	Tapered 1 1/8-1 1/2'' head tube
Weight	1150g/54cm
Seatpost	Specify seat post
Bottom bracket	Press fit BB86
Max tire clearance	700*25c

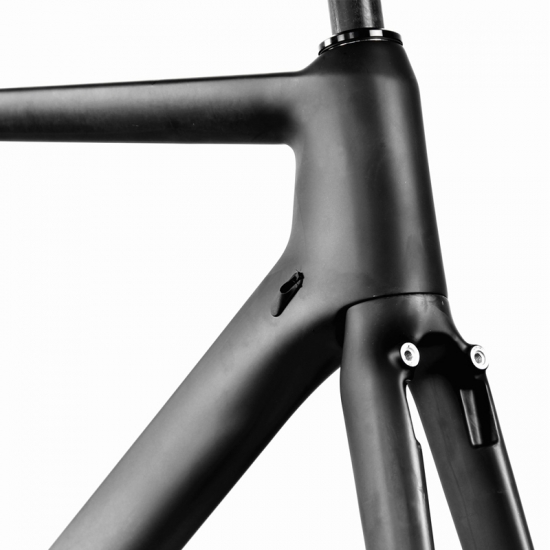

Brake mount type	Direct caliper brake(Shimano 9010/6810/5810-RS)
Dropout	Normal F9100mm QR/R9130mm QR
Groupset	Machanical and Di2 compatible
Test Standard	ISO4210
Warranty	2 years

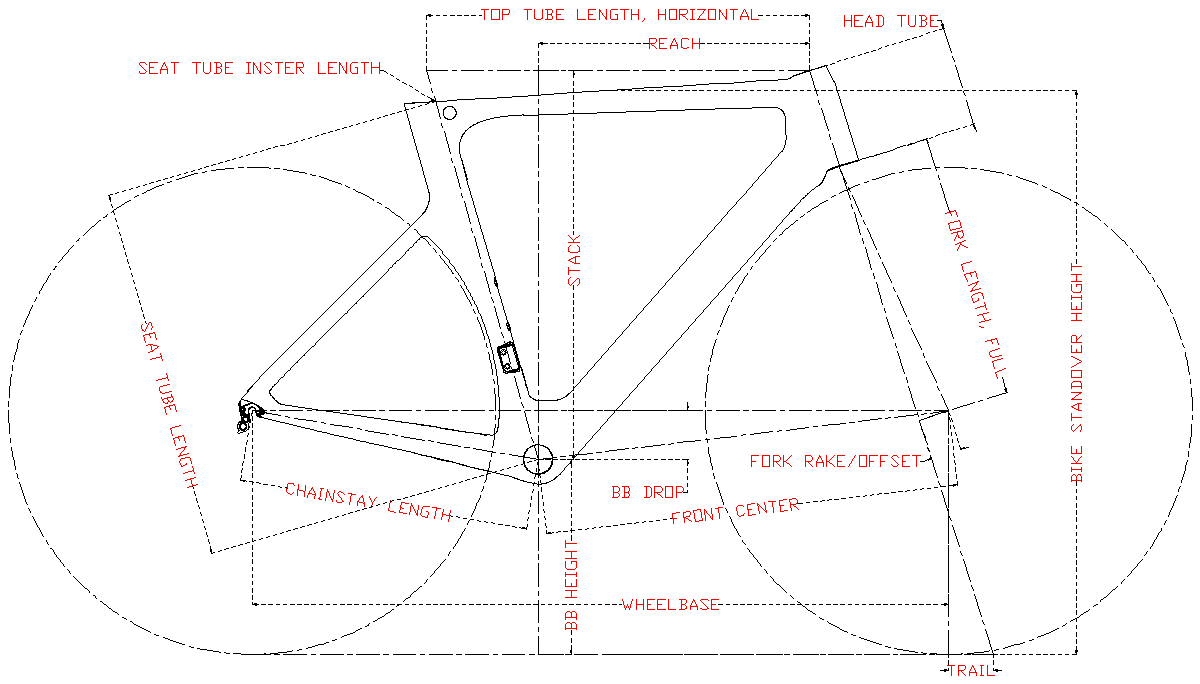

	490	520	540	560	590
SEATPOST INSERT LENGTH	170mm	190mm	210mm	230mm	250mm
REACH	366.9mm	375.4mm	378.6mm	378.9mm	386.8mm
TOP TUBE LENGTH, HORIZONTAL	514mm	524mm	535mm	545mm	560mm
STACK	529.8mm	536.3mm	542.8mm	563.6mm	582.8mm
WHEELBASE	966mm	972mm	972.8mm	973.5mm	988.4mm
CHAINSTAY LENGTH	405mm	405mm	405mm	405mm	405mm
FRONT CENTER	570.8mm	576.8mm	577.6mm	578.3mm	593mm
BB DROP	68mm	68mm	68mm	68mm	68mm
BB HEIGHT	272mm	272mm	272mm	272mm	272mm
SEAT TUBE ANGLE	74.5°	74.5°	74	75°	75°
HEAD TUBE ANGLE	71.5°	72°	72.5°	73°	73°
SEAT TUBE LENGTH	480mm	500mm	520mm	540mm	560mm
HEAD TUBE LENGTH	130mm	135mm	140mm	160mm	180mm
BIKE STANDOVER HEIGHT(700C*28C)	762.2mm	774.8mm	786.9mm	806.3mm	825mm
FORK RAKE/OFFSET	43mm	43mm	43mm	43mm	43mm
FORK LENGTH	370mm	370mm	370mm	370mm	370mm
TRAIL	68.4mm	65.3mm	62.1mm	58.8mm	57.5mm
