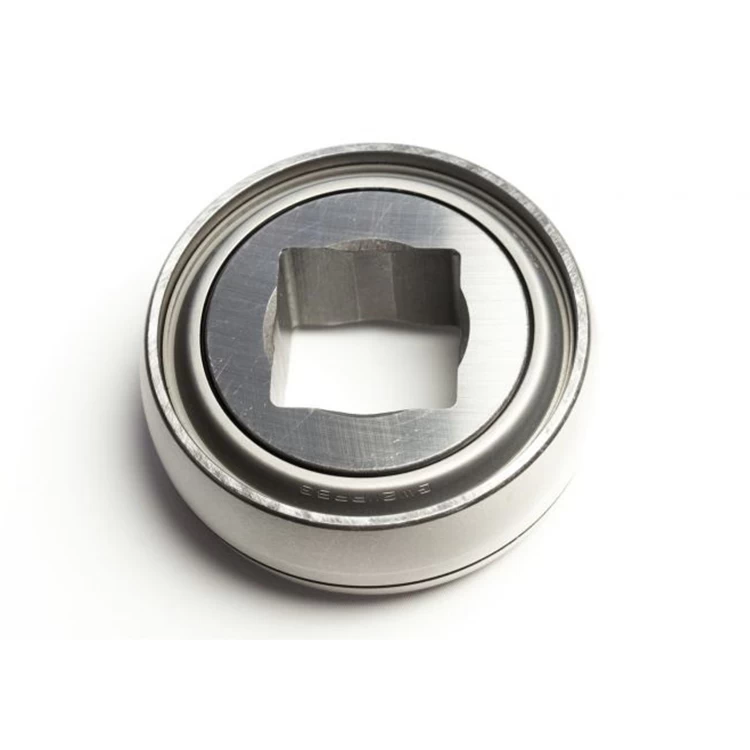

Agricultural Machinery Bearing Square Bore GW208PP17



Agricultural Machinery Bearing are bearings which can use in Agricultural Machinery ,such as disc harrows, planters, mowers,seeding and forage harvester equipment, combines, and other agricultural equipments.



Square Bore Bearing GW208PP17 Specification :


Bearing Number:GW208PP17

OEM No.:DC208TT R17

Brand:Neutral or OEM

Size (mm):29.972 x 85.738 x 36.525 / 30.175

Material GCr15 Chrome steel

Cage:Steel cage

Weight (Kg):0.925

Country of Origin:CHINA


Square Bore Bearing GW208PP17 Features And Benefits:


1.With high quality Chrome steel GCR15, bearing can bear high capacity..

2. High quality Chrome steel GCR15 balls ,th balls have better roundness and long bearing working life.

3. Raceway design,the AG bearing have long life and load carrying capacity.

4. Seal designs  ,the bearings can work at different operating conditions, loads and speeds.


Farm Machinery Bearing Application :

GW208PP17  Bearing can be used at different agriculture equipements ,such as:

Agriculture - Combines, Tillage equipment, Hay Balers, Mower Conditioners, Cotton Strippers, Augers, Planters/Grain Drills, wheel bearings, disc bearings.

Lawn & Garden - Lawn Mowers wheels and spindles.

Conveyors - Grain, Aggregate

Bearing application

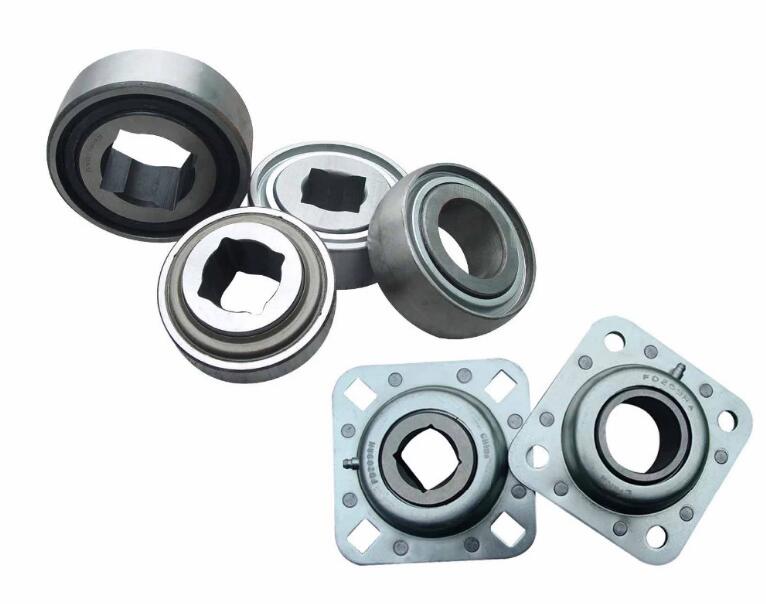

We Can Produce Different Type OFarm Machinery Bearing AG bearing:


  • Round bore Non-relubricable AG bearing
  • Square bore Non-relubricable  AG bearing
  • Round & Square bore Non-relubricable AG bearing
  • Round bore Relubricable Farm Machinery Bearing
  • Square bore Relubricable Farm Machinery Bearing
  • 200 series  Bearing
  • Disc Harrow Disc Harrow


 Farm Machinery Bearing

Here are some our ag bearing number for your reference:

Bearing NO. Dimensions(mm)
H D S B C
W208PP5 29.97 80 36.53 18
W208PP6 26.13 80 36.53 18
W208PP8 29.97 80 36.53 30.18
W208PP9 26.13 80 36.53 30.18
W208PP20 29.97 80 36.53 18
W211PP5 38.89 101.6 44.45 36.53
W208PPB12 29.97 85.738 87.3 36.53 30.18
W208PPB11 22.97 85.738 87.3 36.53 30.18
GW208PP17 29.97 85.738 36.53 30.18
GW210PP4 29.97 90 30.18 30.18
W210PP4 29.97 90 30.18 30.18
GW211PP17 38.89 100 44.45 33.34
GW211PP3 38.89 100 33.34 33.34
W211PP3 38.89 100 33.34 33.34
W216PP2 58.57 140 63.5 30


Round Bore Agricultural Bearing Part Number:

203KRR5 203KRR2 203KR2 203KR2-16 203KRR2-5/8

203JD 203KRR6 203KRR7 203NPP9 203KRR3

204FREN 204RY2 204KR2 204KRR3 204KR


Hex Bore Agricultural Bearing Part Number:

204KRR2 205KRR2 205PPB2 205PP13 205PPB13

206KPP3 206KPPB3 G206KPP4 G206KPPB4 206KRR6

206KRRB6 G206KPPB6 207KPP3 207KPPB3 207KRR9

207KRR12 207KRR17 G207KPPB2 207KPPB 207KRRB9


For more other bearings ,contact with us now !
