Eco-Friendly & Energy-Efficient Air Conditioner Airflow Water Air Conditioner Warehouse Factory Cooling System Retail Stores Workshop Floors
Low-Carbon Life

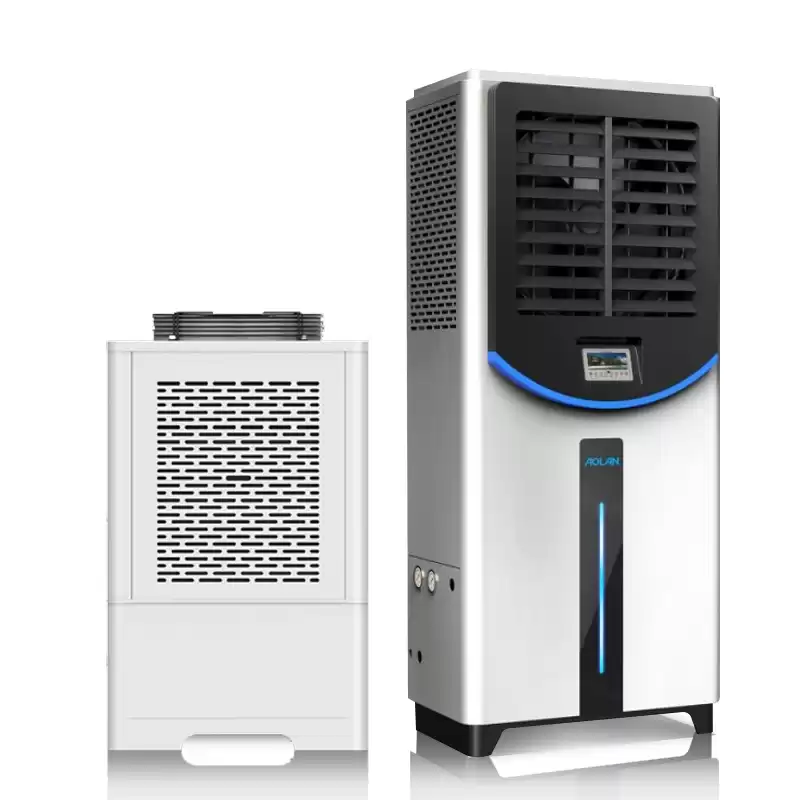

Mini Chiller Air Conditioner Highlights:
1.20-30% Increased Cooling Efficiency - Delivers superior cooling performance with the same compressor capacity.
2.Copper-Free Connection - Eliminates copper piping between units, reducing costs and minimizing energy waste.
3.Extended Installation Range - Supports flexible placement with a maximum distance of 100-200 meters between indoor and outdoor units.
Specification:
| Electric source |
220-240V, 380-415V,50/60HZ
|
| Power |
4.5KW
|
| Cooling Capacity |
25KW
|
| Airflow |
6000m³/h
|
| Type |
Vertical Type
|
| Fan Type |
Axial
|
| Compressor |
5P
|
| Current |
9A
|
| Water Flow (m3/h) |
4
|
| Pipe Diameter |
DN25
|
| Unit |
IDU |
ODU |
| Net Weight (kg) |
150 |
80 |
| Operation Weight (kg) |
155 |
140 |
| Dimensions (LxWxH) |
800*550*1860mm |
800*800*1350mm |
Characteristics:

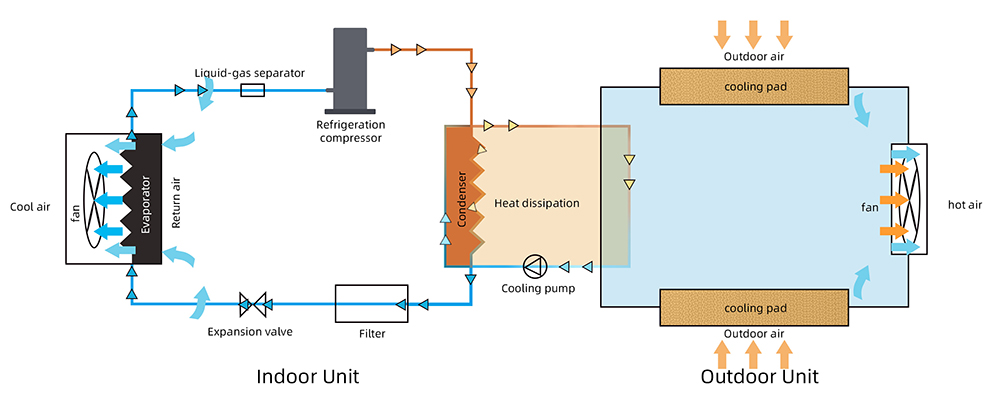

WORKING PRINCIPLE
Eco-Friendly & Energy-Efficient Air Conditioner uses evaporative cooling technology and a combination of water cooling for cooling.
The specific process is that the internal unit of the air conditioner generates heat when it is refrigerated,
and the heat is brought to the external unit by circulating water,
and the heatin thewater is quickly transferred to the outdoor air by using advanced evaporative cooling technology, so as toachieve the entire cooling process.
 |

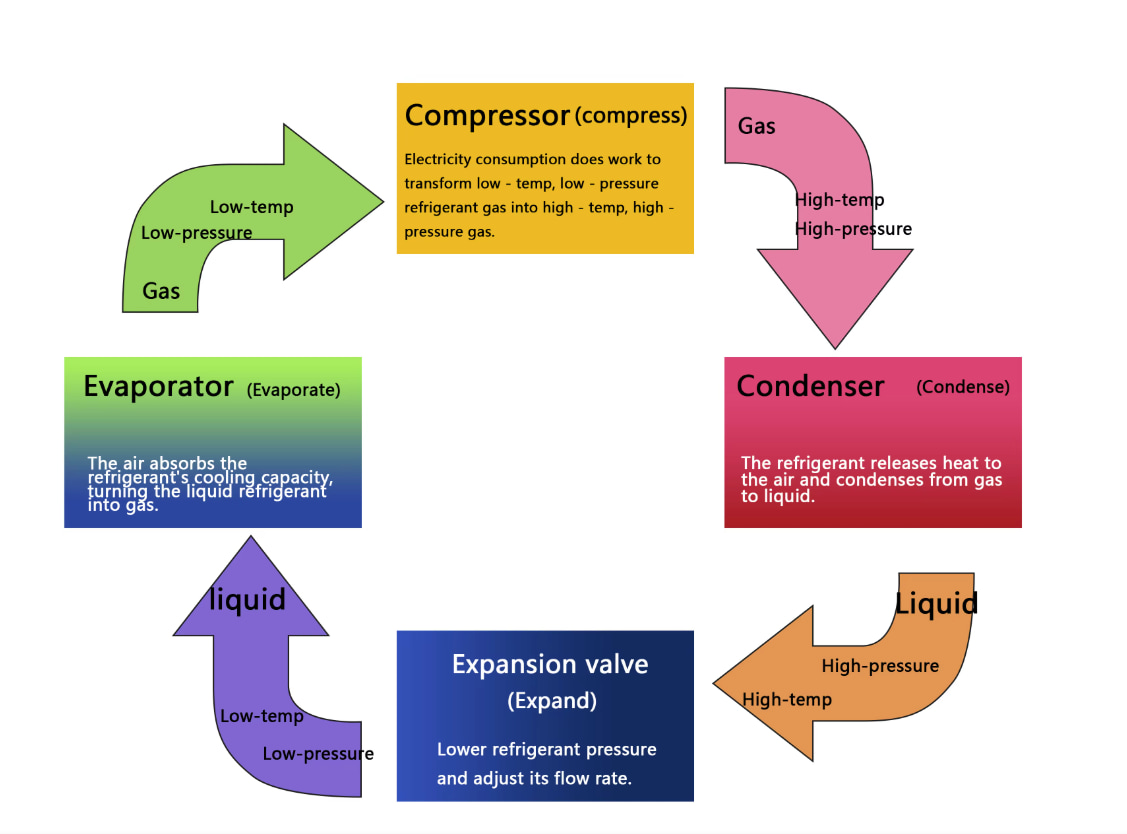

Refrigeration principle of refrigerant system
The compressor compresses gaseous refrigerant into a high - temp, high - pressure gas, sending it to the condenser for cooling, turning it into a medium - temp, high - pressure liquid.
This liquid is filtered and dehumidified in the drying bottle, then throttled and depressurized by the expansion valve into a low - temp, low - pressure gas - liquid mixture.
The mixture absorbs heat via the evaporator, vaporizes, returns to the compressor for re - compression, and the refrigeration cycle repeats.
|

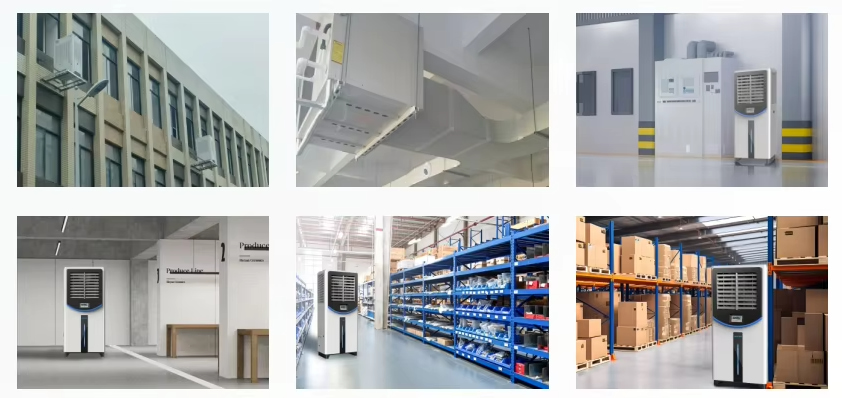

Eco-Friendly & Energy-Efficient Air Conditioner is suitable for various industrial and commercial places,
factory workshops, warehousing and logistics, pharmaceutical manufacturing, etc
