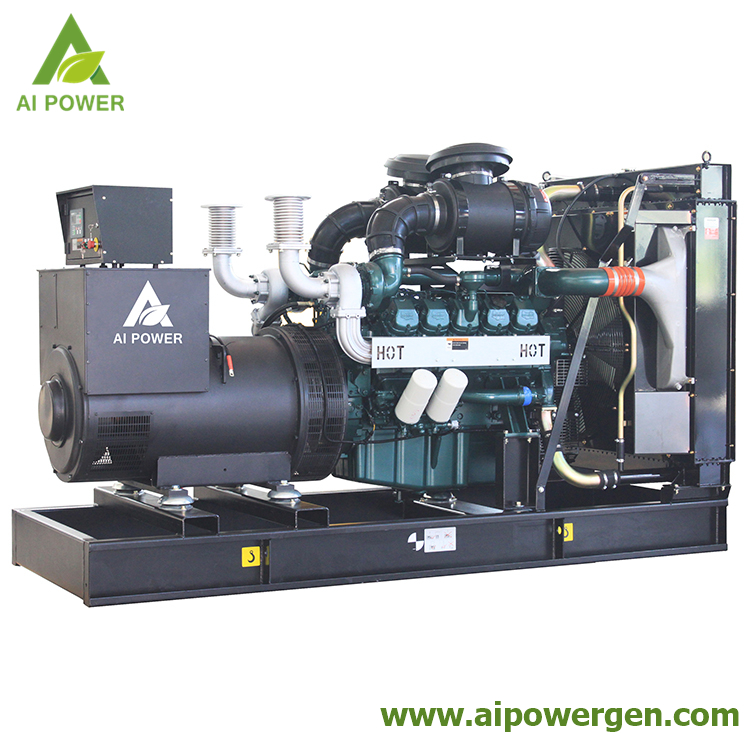

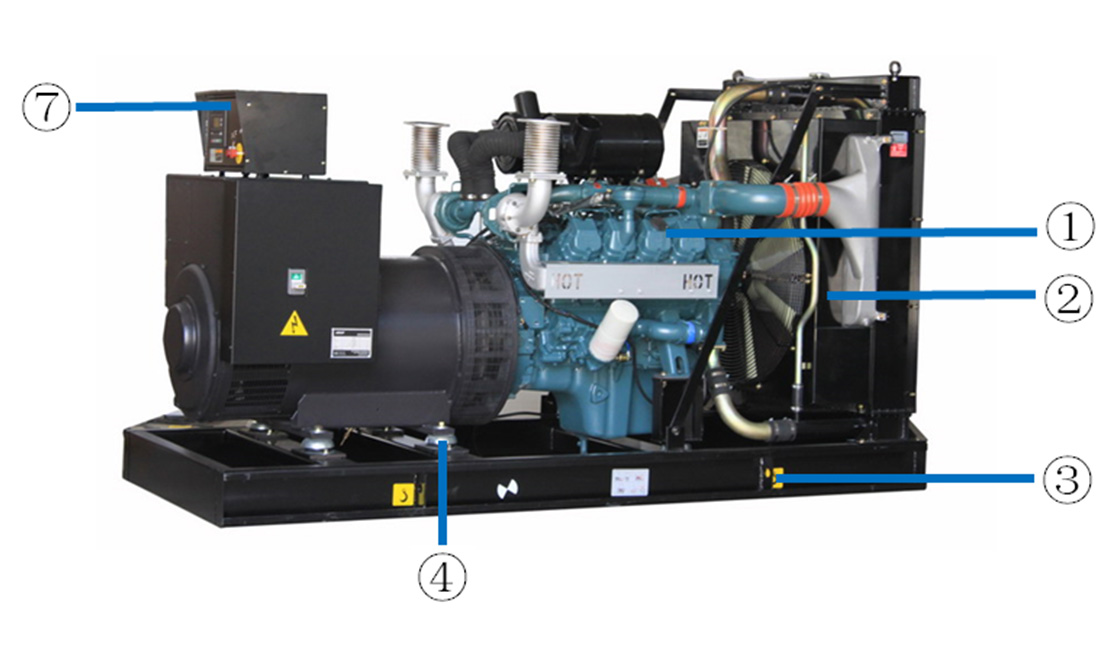

Engine
|
|
GENERAL ENGINE DATA
|
|
Engine manufacture
|
Doosan Infracore Co., Ltd
|
|
Engine brand
|
Doosan
|
|
Engine model
|
DP158LD
|
|
Engine speed (rpm)
|
1500
|
|
Engine output(kWm)
|
|
|
Standby Power
|
510
|
|
Prime Power
|
464
|
|
Engine Type
|
4-Cycle, V-type, 8-Cylinder, Turbo charged & intercooled (air to air)
|
|
Bore x Stroke (mm)
|
128 x 142
|
|
Displacment (litre)
|
14.618
|
|
Compression Ratio
|
15:1
|
|
FUEL SYSTEM
|
|
Type
|
Bosch type in-line pump with integrated, electromagnetic actuator
|
|
Governor
|
Electric type ( all speed control )
|
|
Fuel Consumption (litre/hour)
|
|
|
|
30.3
|
|
|
55.1
|
|
|
83.4
|
|
|
115.1
|
|
EXHAUST SYSTEM
|
|
Maximum Back Pressure (kPa)
|
5.9
|
|
Exhaust gas temp. after turbo. (prime/standby power) (°C)
|
536/561
|
|
Exhaust Gas Flow(prime/standby power) (m3/min)
|
90/98
|
|
AIR INDUCTION SYSTEM
|
|
Maximum Intake Air Restriction (kPa)
|
|
|
|
2.16
|
|
|
6.23
|
|
Intake Air Flow(prime/standby power) (m3/min)
|
30.8/33.1
|
|
COOLING SYSTEM
|
|
Cooling method
|
Fresh water forced circulation
|
|
Coolant capacity
|
Engine Only : Approx. 20 lit., With Radiator : Approx 79 lit.(standard)
|
|
Water Temperature
|
|
|
Maximum for standby and Prime (°C)
|
103
|
|
Before start of full load (°C)
|
40
|
|
Thermostat Type and Range
|
Wax – pellet type, Opening temp. 71°C , Full open temp. 85°C
|
|
LUBRICATION SYSTEM
|
|
Lub. Method
|
Fully forced pressure feed type
|
|
Oil pan capacity
|
Max. 22 liters , Min. 13 liters
|
|
Lub oil pressure (kPa)
|
|
|
Idle Speed Min.
|
100
|
|
Governed Speed Min.
|
250
|
|
Maximum Oil Temperature (°C)
|
120
|
|
ELECTRICAL SYSTE
|
|
Battery Charging Alternator
|
27.5V x 45A alternator
|
|
Starting motor
|
24V x 7.0 kW
|
|
Battery Voltage
|
24V
|
|
Battery Capacity
|
2 x 200 Ah (recommended)
|
