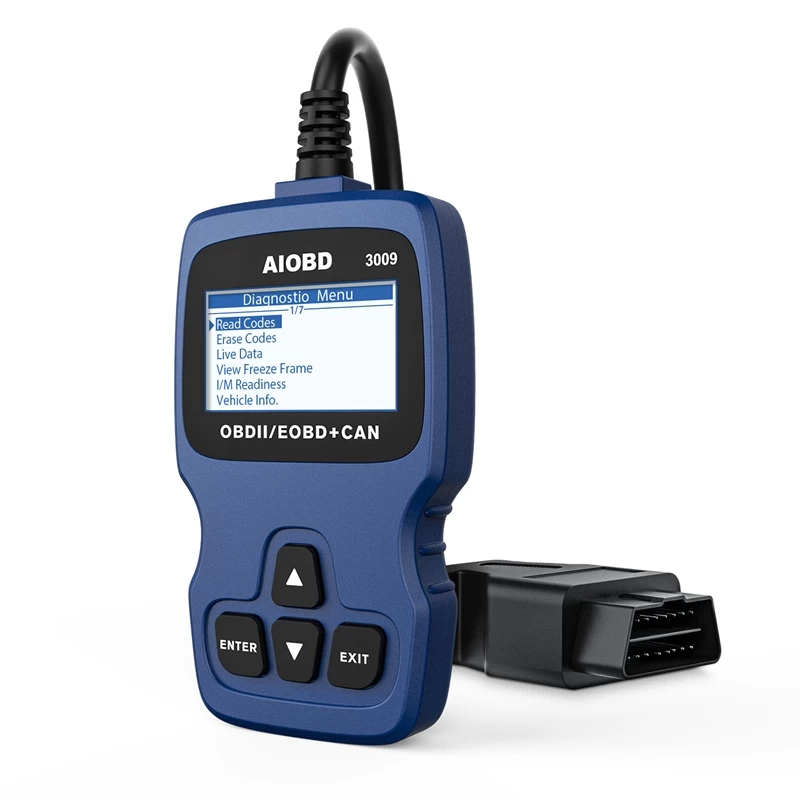

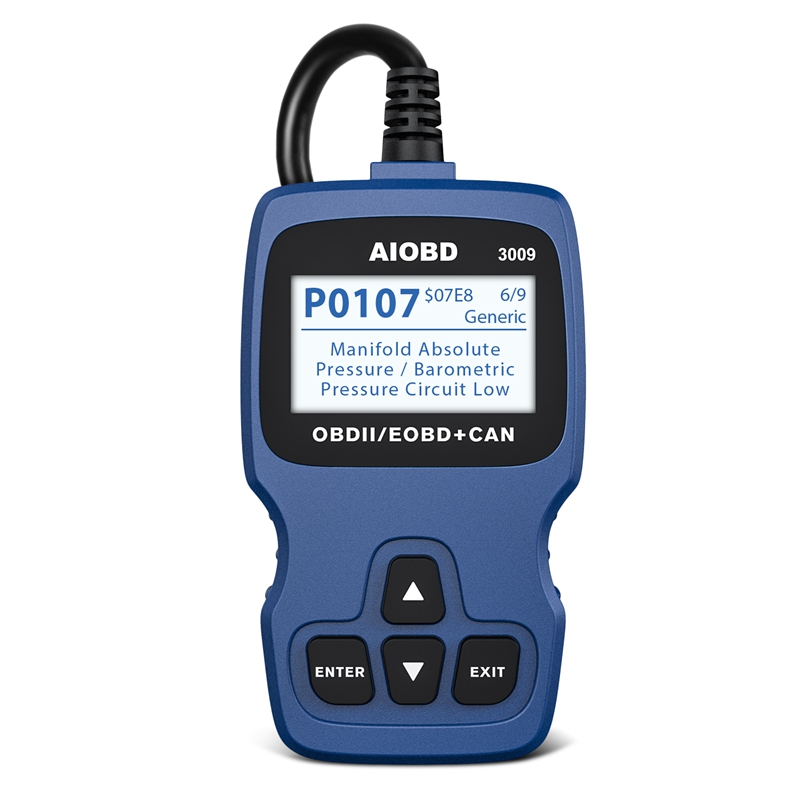

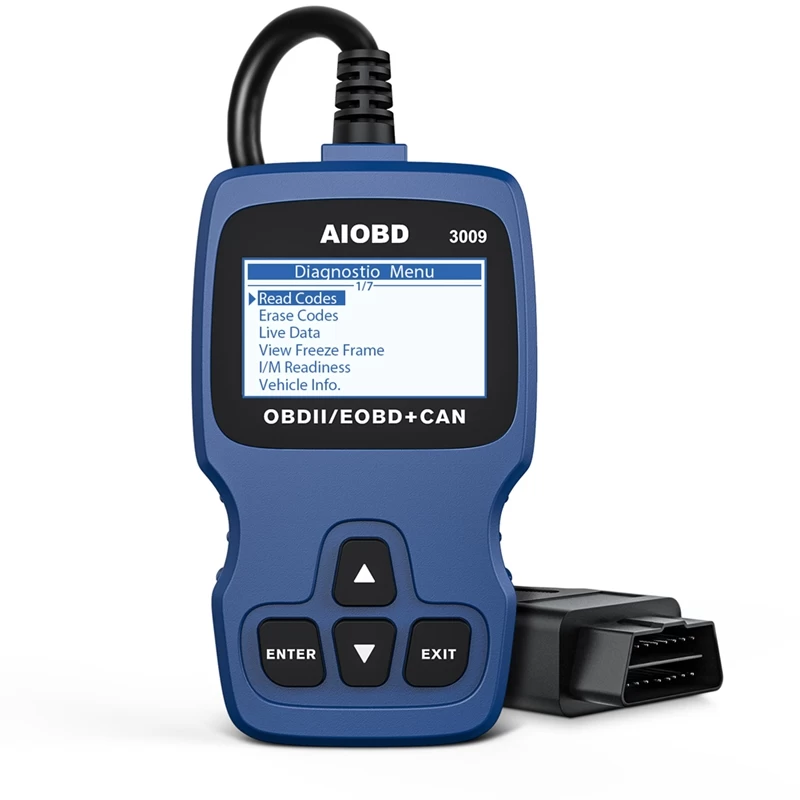

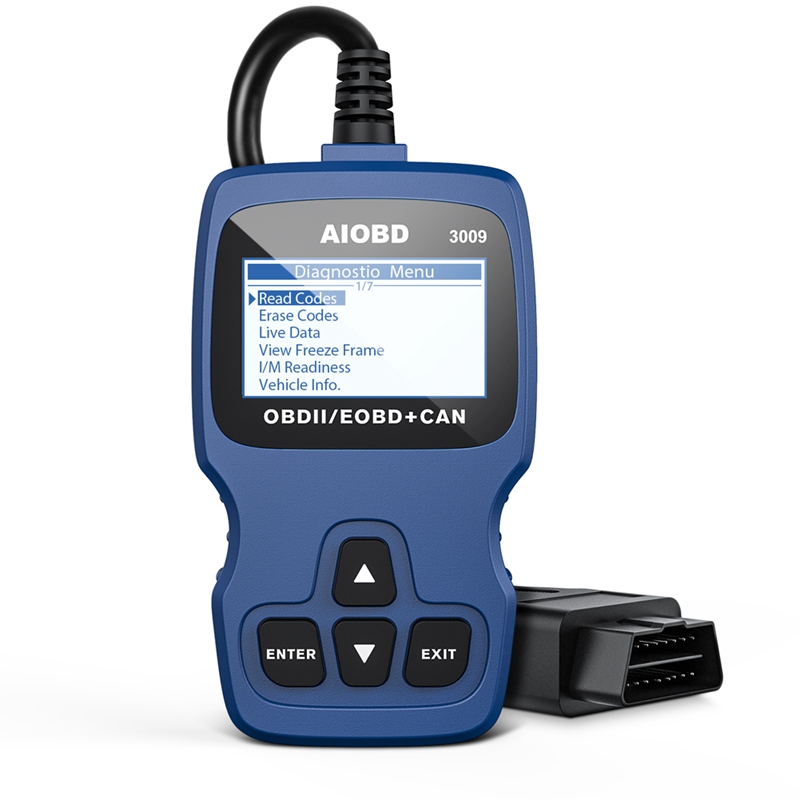

AIOBD 3009 OBD2 Scanner Auto Check Engine Fault Code Reader

AIOBD 3009 OBD2 Scanner Auto Check Engine Fault Code Reader Car Diagnostic Scan Tool with Live Data, I/M readiness and Freeze Frame


  • Size23*17*3cm
  • weight350g

AIOBD 3009 OBD2 Code Scanner Auto Check Engine Fault Code Reader


Why you need us?

 Is there anything that can ruin your day faster than a check engine light turning on in your car unexpectedly? Without a trip to the mechanic, you dont know if youre just in for an oil change or something much more involved. Save yourself some stress by getting your own car code reader. A car code reader allows you to diagnose car problems without necessarily needing a trip to the shop by simply plugging it into your cars computer system and reading the trouble code that it displays.

The AIOBD OBD2 scanner is a professional scan tool, it allows car owners to check the state emission monitor status of the car, and solve basic engine problems quickly and efficiently. It works for 1996 US-Based, 2000 EU-Based and Asian cars from 2006 vehicles; Supports all OBD II protocols: ISO9141, KWP2000, J1850 PWM, J1850 VPW and CAN.




AIOBD 3009 Code Reader Function

1.Reads & clears trouble code: generic codes, pending codes , manufacturer's specific codes
2.Reads live data stream
3.Displays I/M readiness Status
4.Detects Freeze Frame Information
5.Retrieves vehicle information (VIN,CIN and CVN)


AIOBD 3009 Code Reader Features

1)Built-in OBD-II DTC lookup library

2)Multiple languages: English, French, German, Spanish, Dutch, Finnish, Portuguese, Russian.

3)Plug and Play No batteries needed-powered via detachable OBD II cable.

4)Large easy-to-read white backlight LCD screen

5) It is equipped with a 2.5 feet long cable and made of a very thick flexible insulator.

6)Small in size ,fits in your palm.

7)CE, FCC and RoHS.


AIOBD 3009 Code ReadeDescription

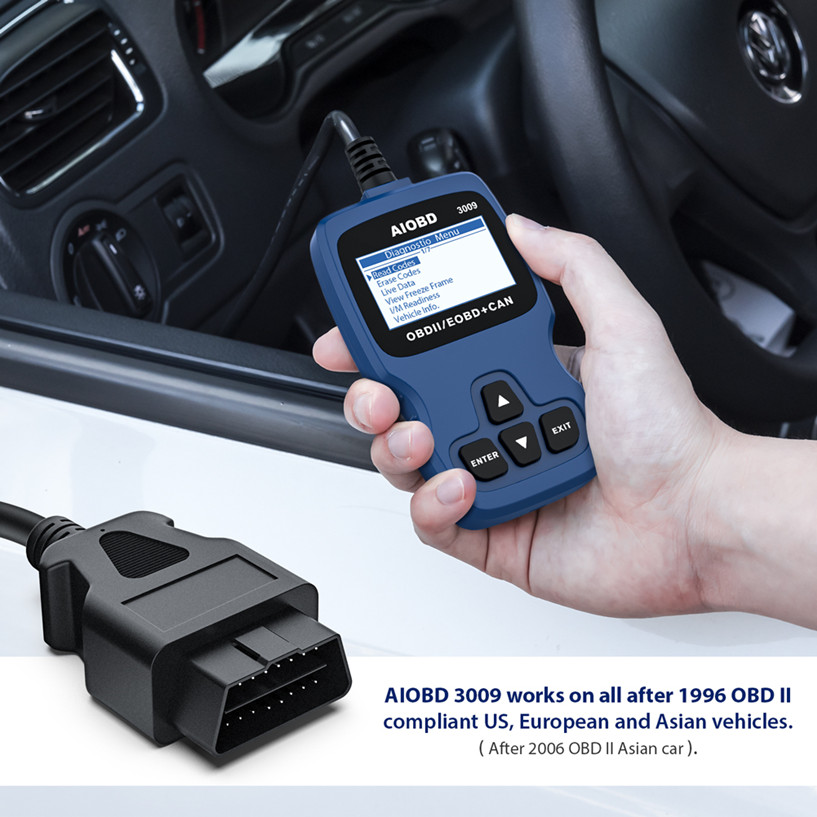

1 [WIDE VEHICLE COVERAGE] Works on MOST 1996 US-Based, 2000 EU-Based and 2006 Asian cars, and newer OBDII & CAN domestic or import vehicles

2 [FULL BASIC FUNCTIONS] Easy to find out the reasons for the engine light trouble codes ,turns off check Engine light, clear codes and resets monitors. I/M monitor readiness test, turn off the MIL (check engine light) as well as view freeze frame data.

3 [LARGE DISPLAY] The automotive scanner is well built with a large LCD display (128 x 64 pixel) that has white backlight and contrast adjustment, indicates test results directly.

4 [USER-FRIENDLY] Built-in OBD-II DTC lookup library, don't need to search online for what the code means. Easy to use for someone with no technical skills

5 [ QUALITY WARRANTY] AIOBD code scanner is certified by RoHS, CE & FC, 100% Full Refund & Return Guarantee and one Years Free Warranty. 24 hours customers service, if you have any problem, please feel free to contact us.


Technical Parameters

DisplayBack-lit, 128 × 64 pixel display with contrast adjustment

Operating Voltage12V DC

Operating Temperature0 to 60°C (32 to 140 F°)

Storage Temperature-20 to 70°C (-4 to 158 F°)

External Power8.0 to 18.0 V power provided via vehicle battery

WeightNW: 0.26kg (0.57lb)

              GW: 0.35kg (0.77lb)
