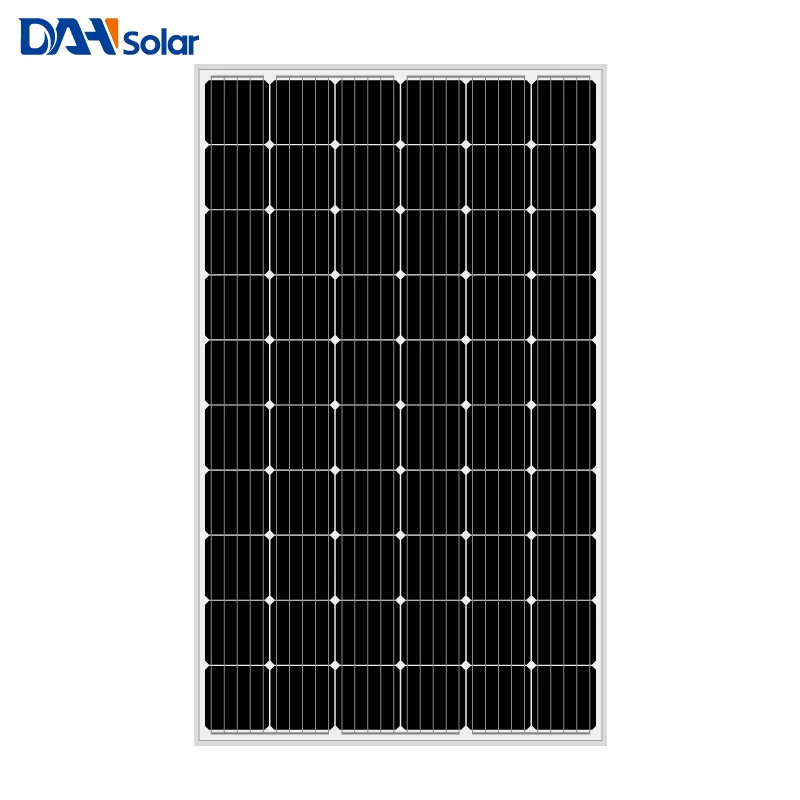

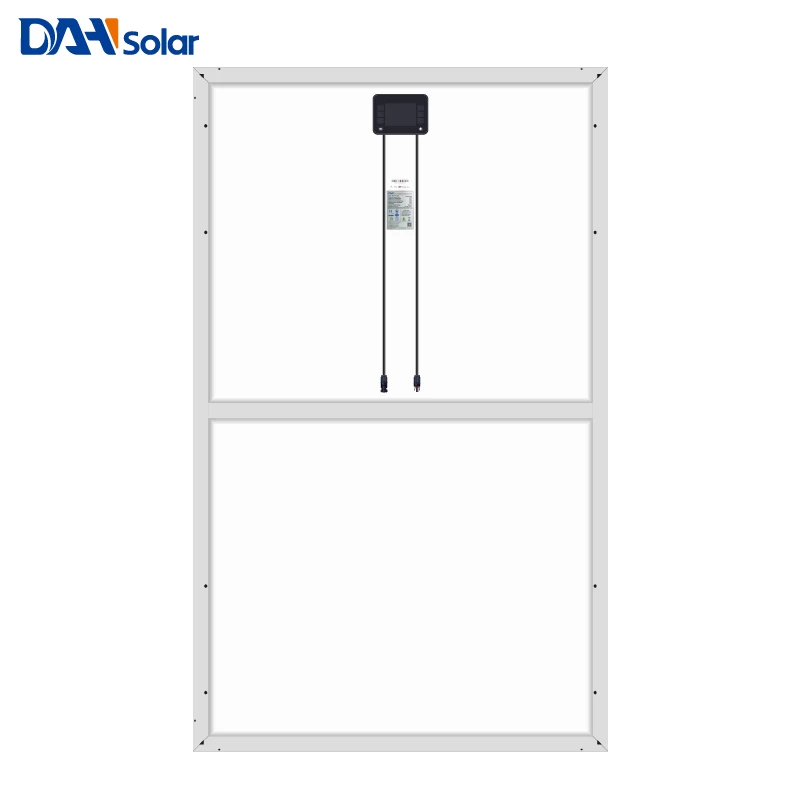

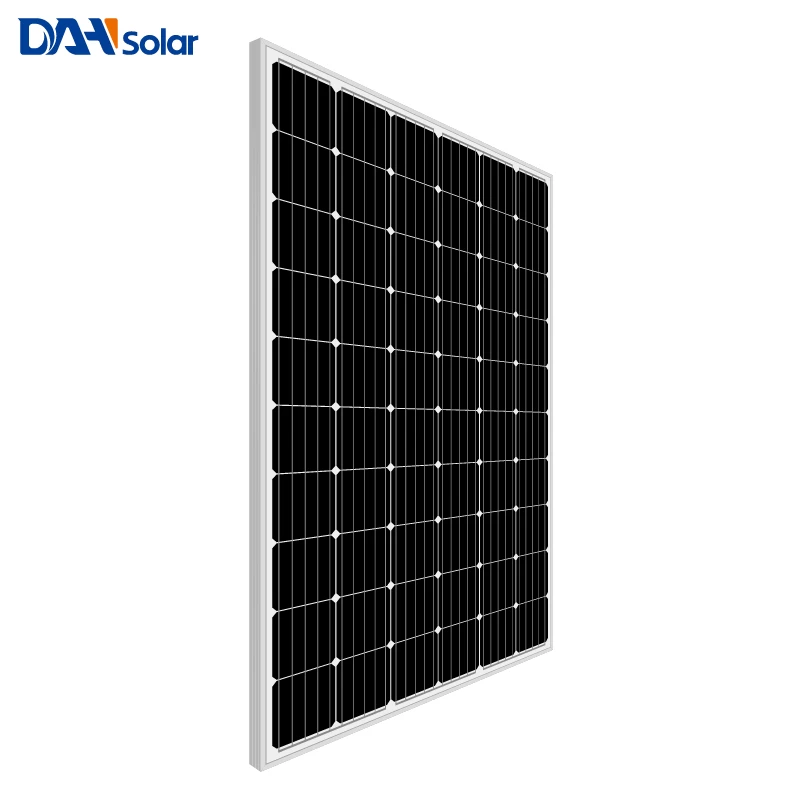

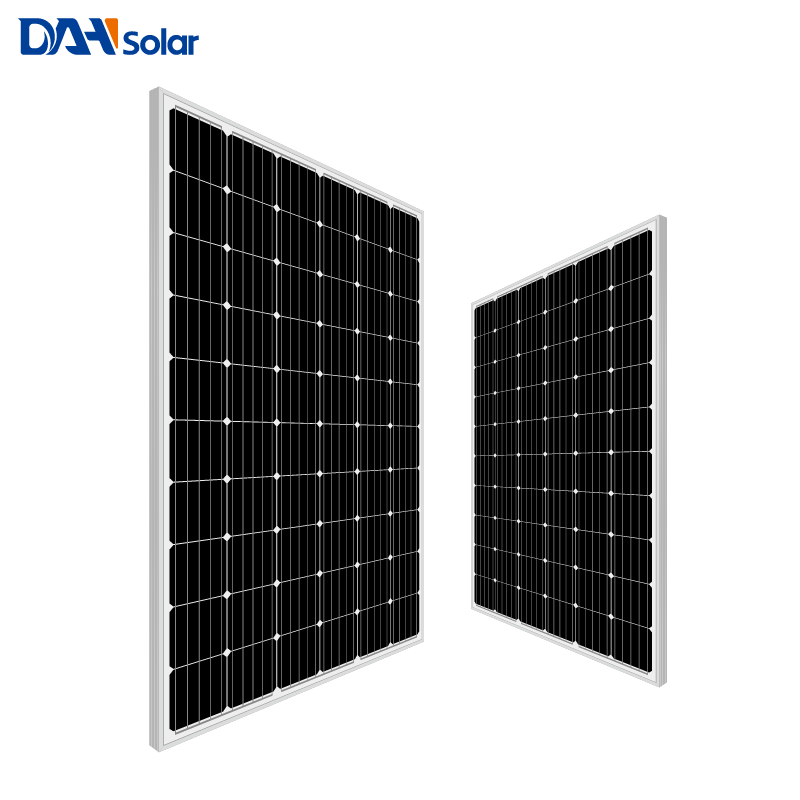

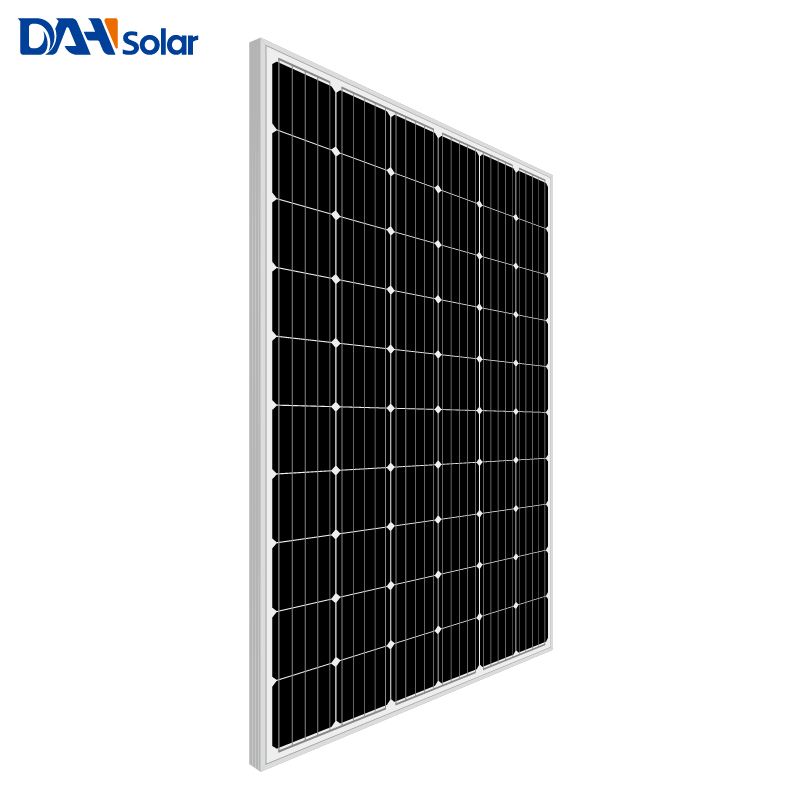

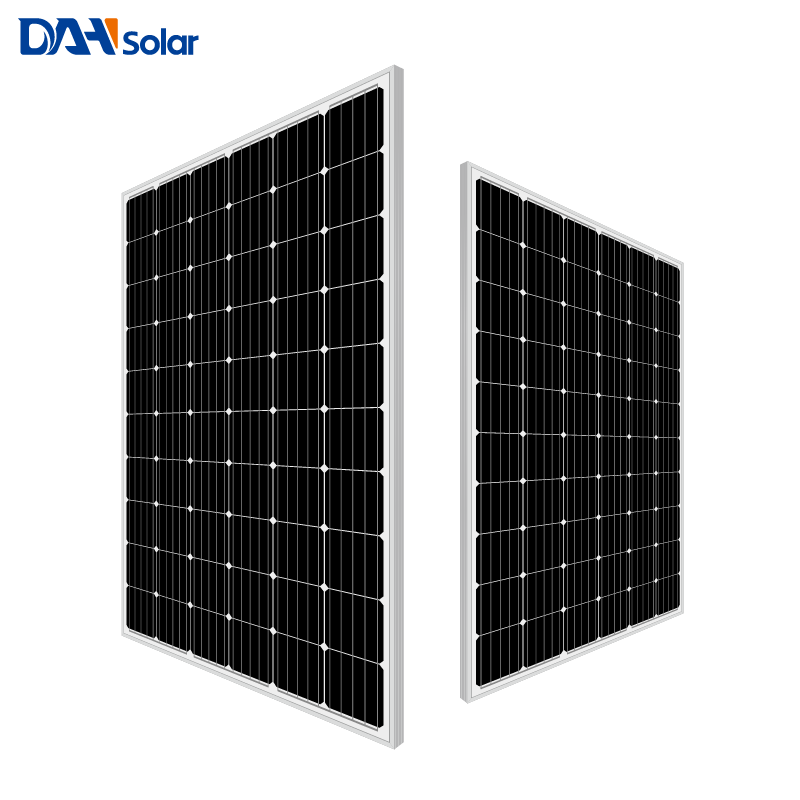

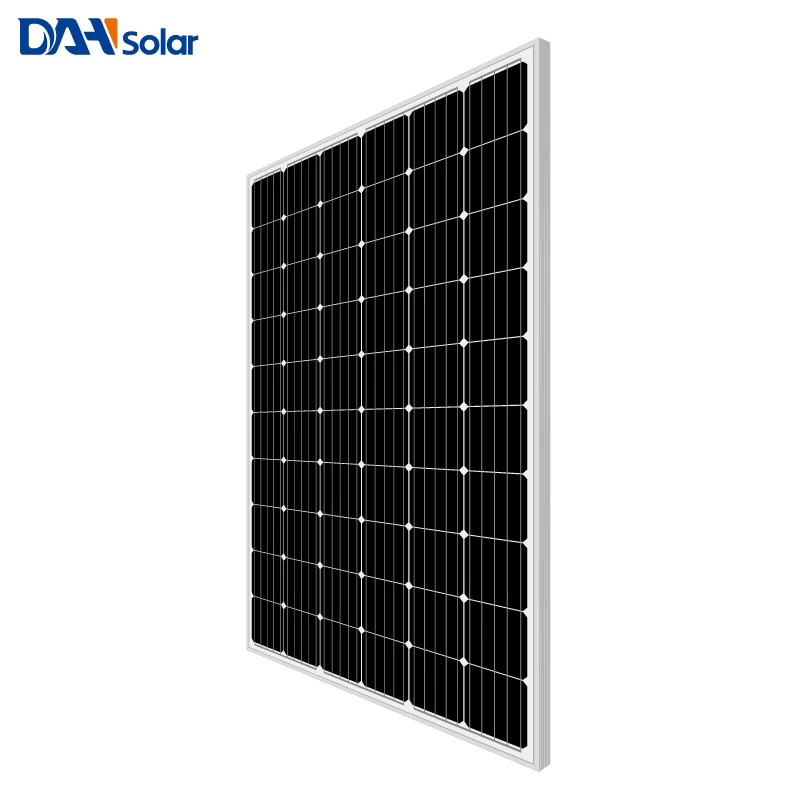

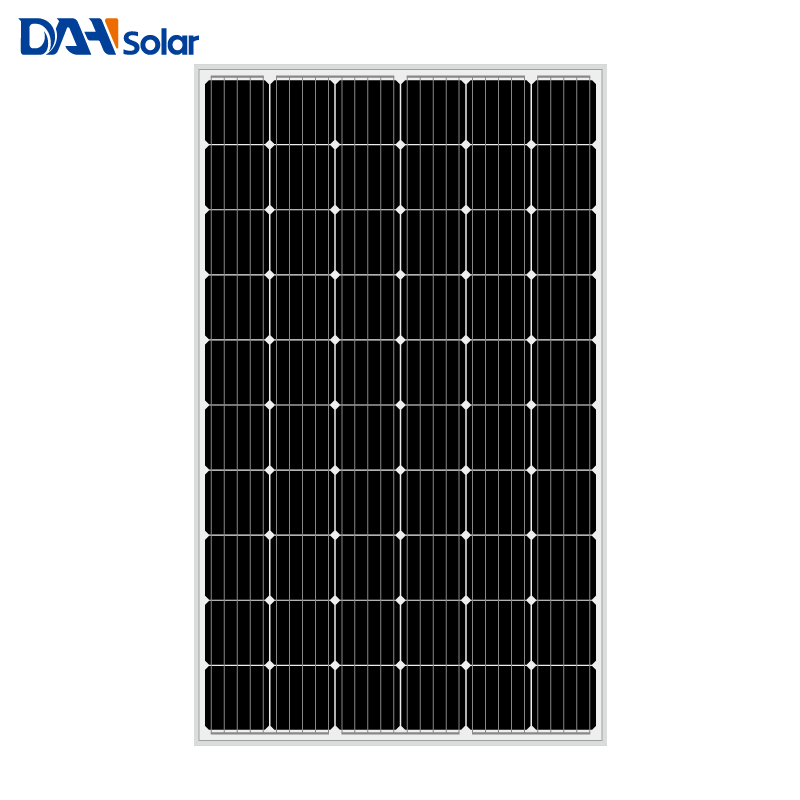

Air Serial Mono Solar Module 60cells 270W-305W Solar Panel

Air Serial 5BB PID Free Mono Solar Panel-60cells


  • Type :Up to 18.79%
  • Max.Power :IP67

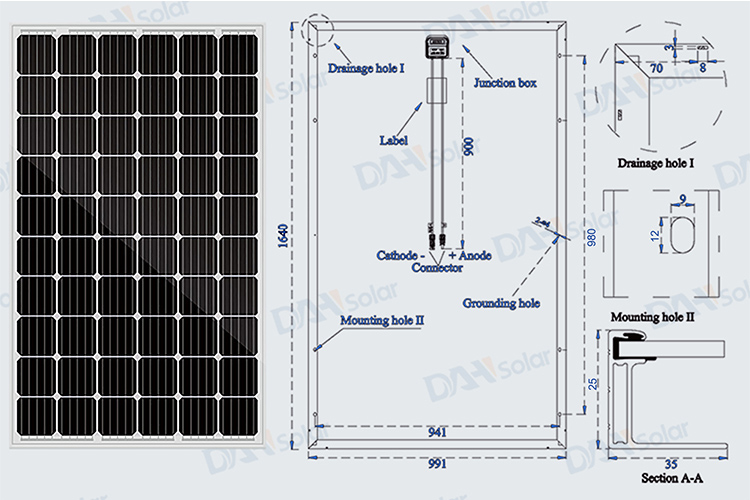

  • Dimensions :1640*990*25mm
  • Certificate :TUV/CE/CEC/INMETRO/SEC/CQC/ISO/FIDE
  • Warranty :25 years
  • Payment :T/T, L/C, Paypal, Western Union
  • Lead Time

Lighter weight, Lower roof load,Higher eficiency, lower shipping cost!


60 cells 5BB air serial mono solar panel 265w-295w all with A Grade for on-grid &  off-grid use for residential and public rooftop & ground mounting PV Power Station


Electrical Characteristics (STC)

Module Type

DHM60-

270

DHM60-
275

DHM60-
280

DHM60-
285

DHM60-
290

DHM60-
295

DHM60-
300

DHM60-
305

Maximum Power (Pmax)

270W

275W

280W

285W

290W

295W

300W

305W

Open-circuit Voltage (Voc)

38.5V

38.8V

39.0V

39.3V

39.5V

39.7V

39.9V

40.2V

Maximum Power Voltage (Vmp)

31.5V

31.6V

31.7V

31.8V

32.2V

32.5V

32.6V

32.9V

Short-circuit Current (Isc)

9.17A

9.25A

9.35A

9.45A

9.50A

9.55A

9.64A

9.74A

Maximum Power Current (Imp)

8.57A

8.70A

8.83A

8.96A

9.01A

9.08A

9.20A

9.27A

Module Efficiency(%)

16.63%

16.94%

17.25%

17.55%

17.86%

18.17%

18.48%

18.79%

Power Tolerance

0~+5W

Standard Test Environment

Irradiance 1000W/m2, Cell Temperature 25Spectrum AM 1.5



60 cells packing details

Container

20GP

40GP

40HC

Pcs/pallet

40

40

40

Pallet/container

14

28

28

Pcs/container

530

1120

1232





First-class solar panel warranty Reliable quality

1.10 years material & technology guarantee
2. 25 years linear power output guarantee
3. 100% Double full EL inspection
4. 0-+5W  Positive power output guarantee


Product Characteristics

· Lighter weight,lower roof load
· Easy to operate, roof load-bearing reduced by 17%
· Higher eficiency, lower shipping cost
· More compact size, increase module efficiency and the packing density, reduce transportation cost by 25%-30%
· Excellent PID free performance.

· Certified anti Salt-mist, anti ammonia corrosion performance, sand and storm test by TUV Rheinland and TUV  Nord.
