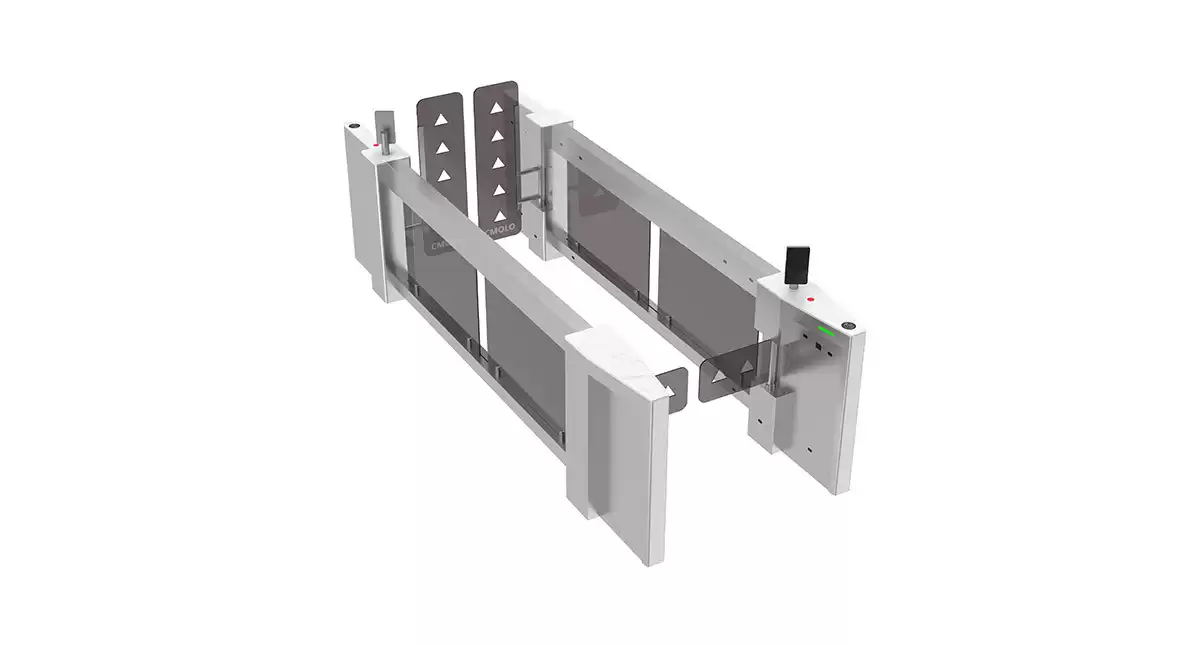

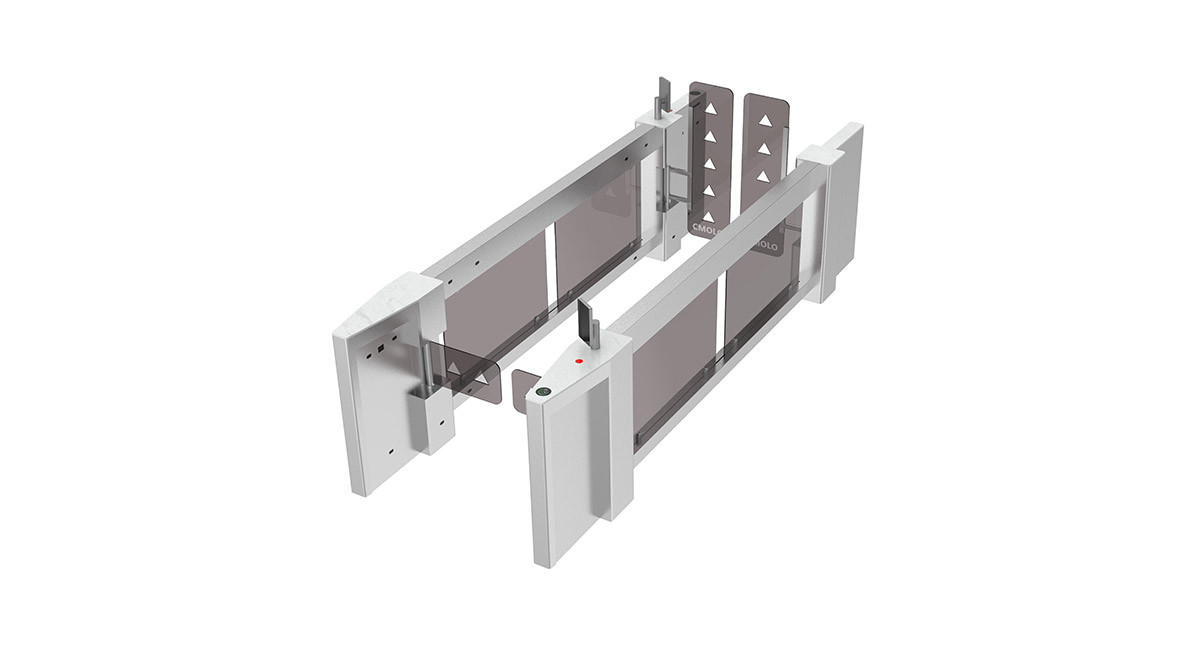

Airport Double-gate Face Recognition Unattended Interlocking Turnstile



Double-gate face recognition unattended interlocking outdoor speed gate turnstile CPW-161Y, combined with multiple recognition methods such as face recognition, card  recognition, QR code recognition etc., carries out the verification for pedestrians, accurately and quickly. Adopted double-gate interlocking design, its anti-tailgating ability is very strong; the second gate is high to prevent pedestrian from jumping and creeping to achieve unattended operation. The pedestrian / vehicle can pass the turnstile together; the turnstile can be used outdoors.

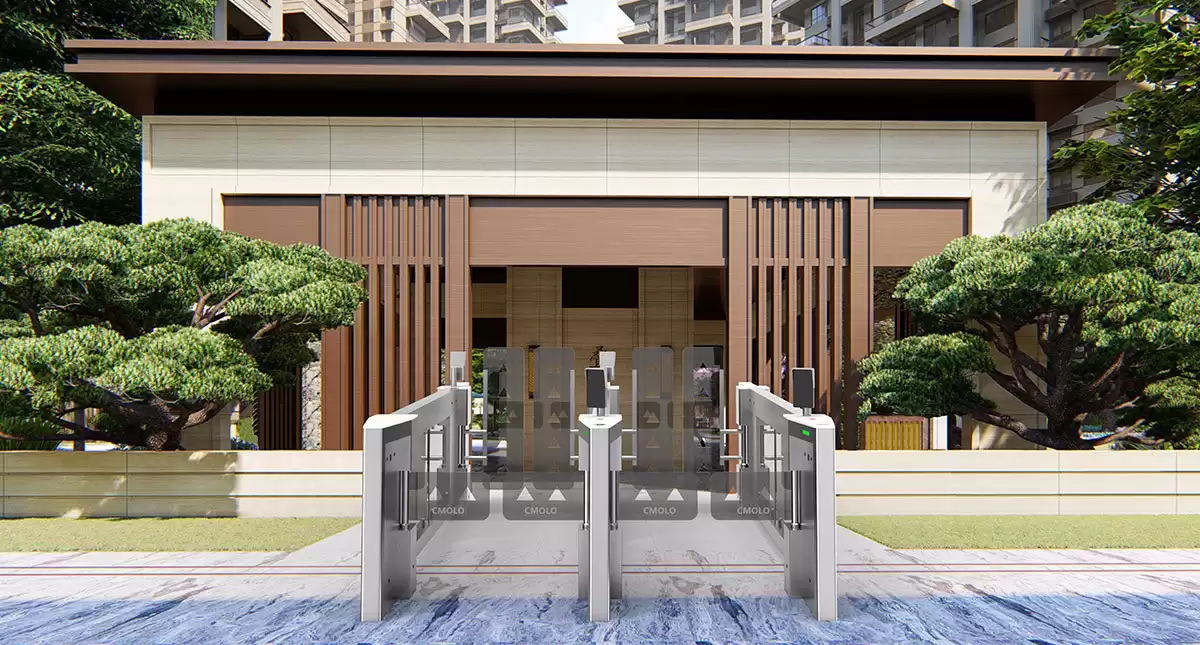

The turnstile is suitable for various indoor & outdoor occasions, such as residential district, school, airport, immigration bureau etc.







advanced core patented technology





high safety, triple anti-pinch





high stability, optimize the mechanism structure





long life, longer than 10 million times





accurate & fast detection





high visitor flow rate usage





modular design, easy maintenance





high compatibility, high integration





interlocking double gate, anti-tailgating





unattended





shared by pedestrian & vehicle





IP65





high temperature resistance





low temperature resistance



condensation resistance







Unique Features of Double-gate Face Recognition Unattended Interlocking Outdoor Speed Gate Turnstile

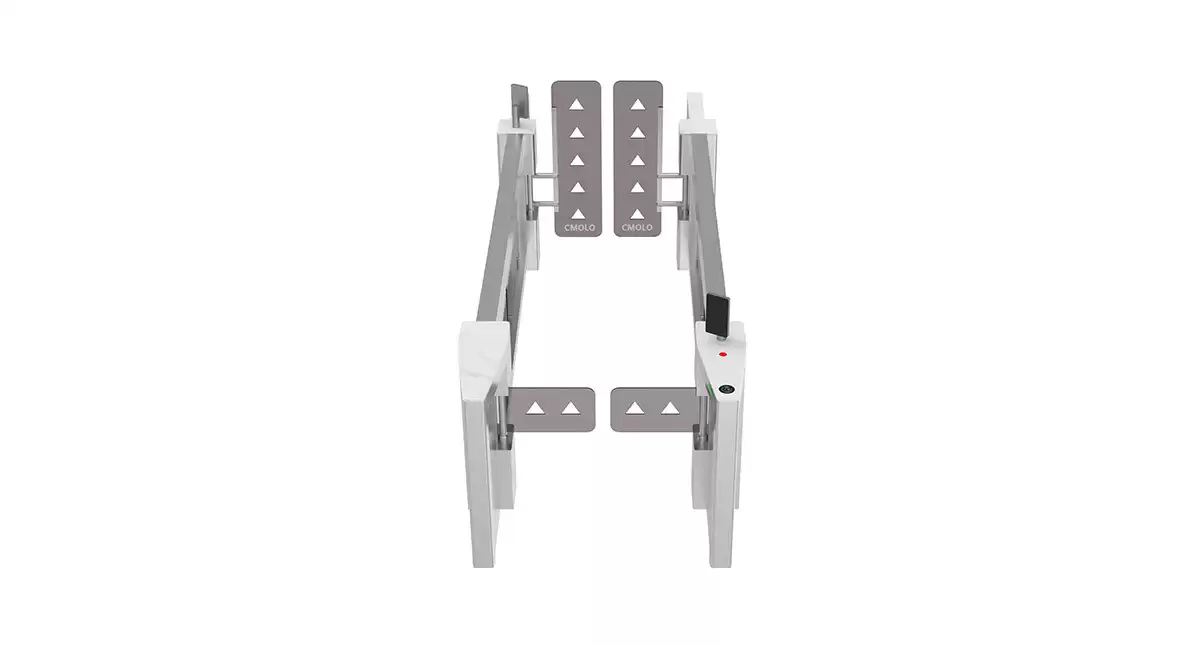

Two gates are interlocked

When A/B gates are opened, B/A gates are closed. Pedestrian is allowed to access after passing the verification of two gates, so the security level is very high.


Unattended guard

The gate of the second gate is high panel, to avoid jumping and creeping to realize unattended guard.


Pedestrian and vehicle shared

Pedestrian can pass the turnstile with bicycle, electric vehicle, baby carriage, wheelchair, trolley, pet, luggage etc.


Outdoor features

IP65, high temperature resistance, low temperature resistance, condensation resistance, and high environmental weather resistance.



Strong & Stable Turnstile Control Core



Core logic algorithm

The double-gate face recognition unattended interlocking outdoor turnstile adopts advanced servo control system and DSP+ARM motor control technology, combined with CMOLO's original motor control algorithm, to achieve precise control and positioning of the obstacle and maintain stable performance.



The turnstile adopts CMOLO® patented passing detection algorithm and matrix photoelectric stereo detection technology, which can sensitively detect illegal intrusions such as reverse passing and tailgating, and can issue warnings in the form of sound and light, and can be linked with other security systems.



Strong mechanism structure

The lossless modular mechanism structure independently developed by CMOLO and the full CNC processing technology ensure the precision, strength, concentricity of the mechanism, and the transmission ratio are accurate, efficient and stable, which can precisely control the rotation angle of the gate and reduce the loss to ensure the reliability of the mechanism, and enhance the service life of the mechanism.



Long service life

The mechanism and control system of the double-gate face recognition unattended interlocking outdoor turnstile have passed 10 million times life tests.





All-around Pedestrian Safety Protection



Triple anti-clamping

With triple anti-clamping technologies such as infrared anti-clamping, mechanical anti-clamping and anti-collision by advanced electric current detection, the double-gate face recognition unattended interlocking outdoor turnstile can protect pedestrian safety more comprehensively.



Over-force feedback control

When the gate is momentarily subjected to an impact force beyond the safe range, the gate can be slowly pushed for a certain distance to buffer the impact force on the mechanism and the reverse impact force on pedestrians.



Anti-electric shock

All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.



Turnstile opens when power failure

With the independently developed advanced mechanical structure, the turnstile will automatically unlock the gate when the power is off, and the gate can be manually pushed to open, which is convenient for pedestrian evacuation.



Emergency open

The turnstile equips with emergency escape control device, to make the system automatically open the gate to evacuate pedestrian.





Customization



Appearance Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized.
Lane width The maximum lane width of turnstile is 900mm, and the cabinet length will be increased accordingly.
System integration

Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.

Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.

Integrate with card collection system, and customize card collection device
