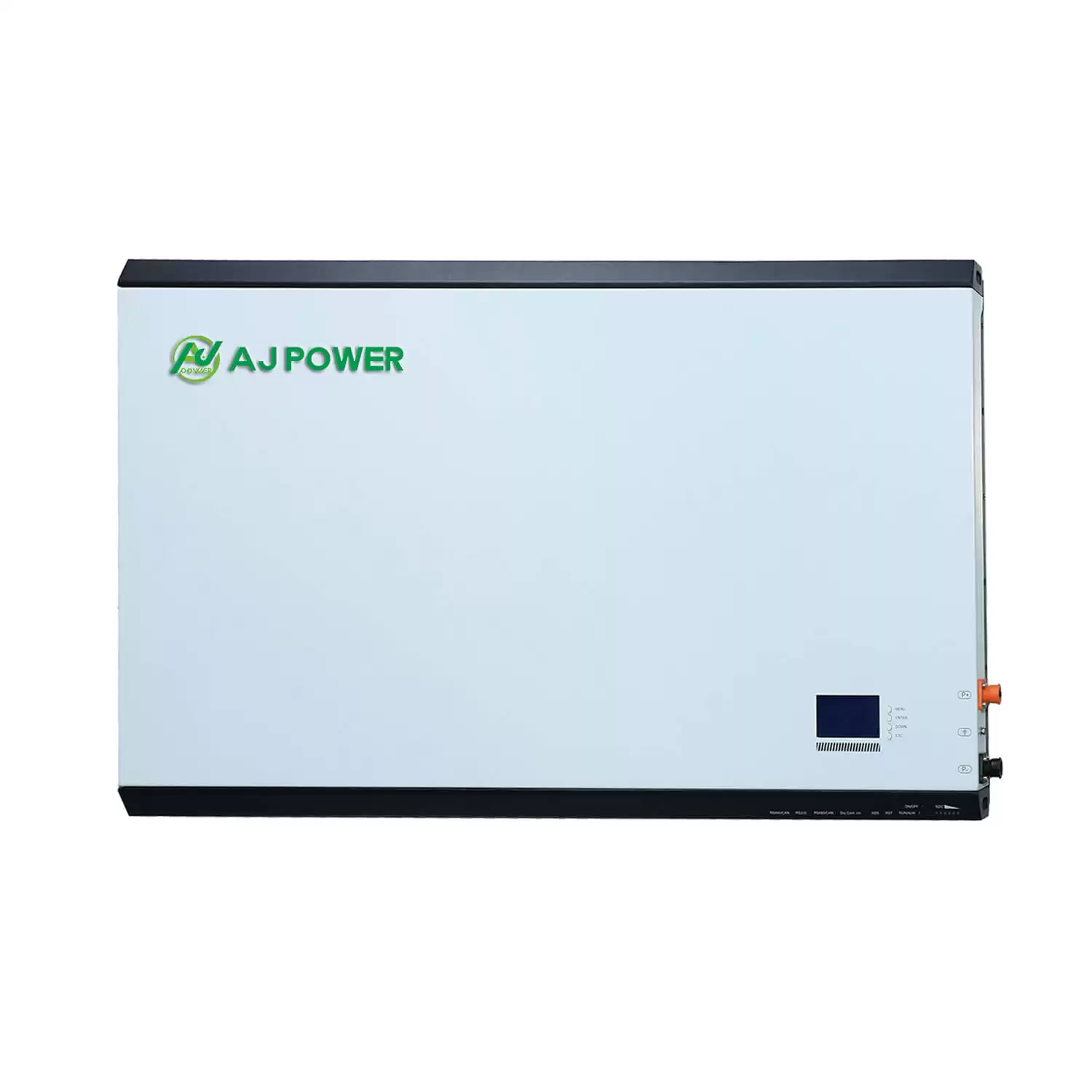

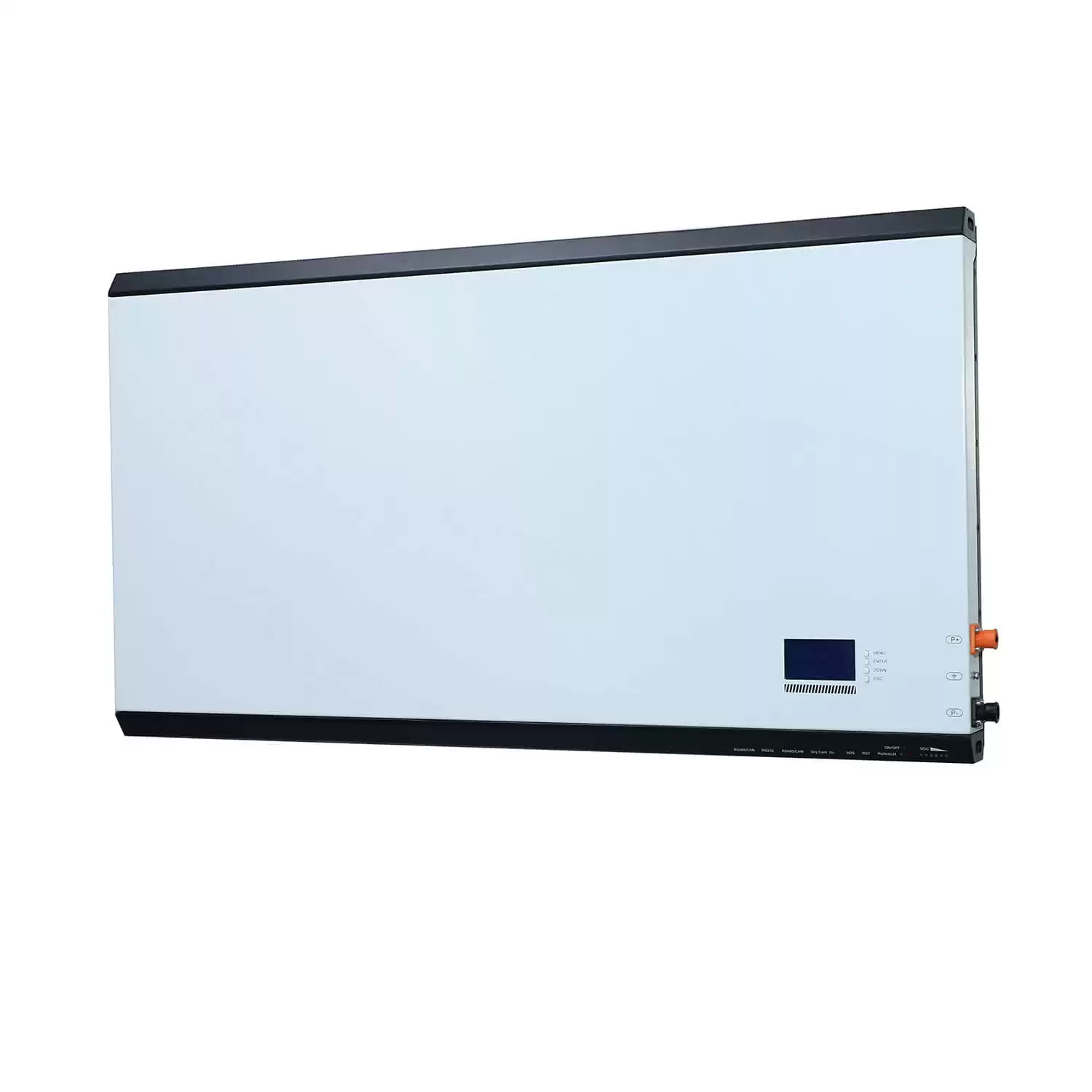

AJP7A 51.2V 135AH Wall-mounted home energy storage LiFePO4 battery
High Energy Capacity: The AJP7A 51.2V 135AH 7kWh Wall-mounted home energy storage LiFePO4 battery boasts a substantial energy capacity, providing ample power storage for residential use.

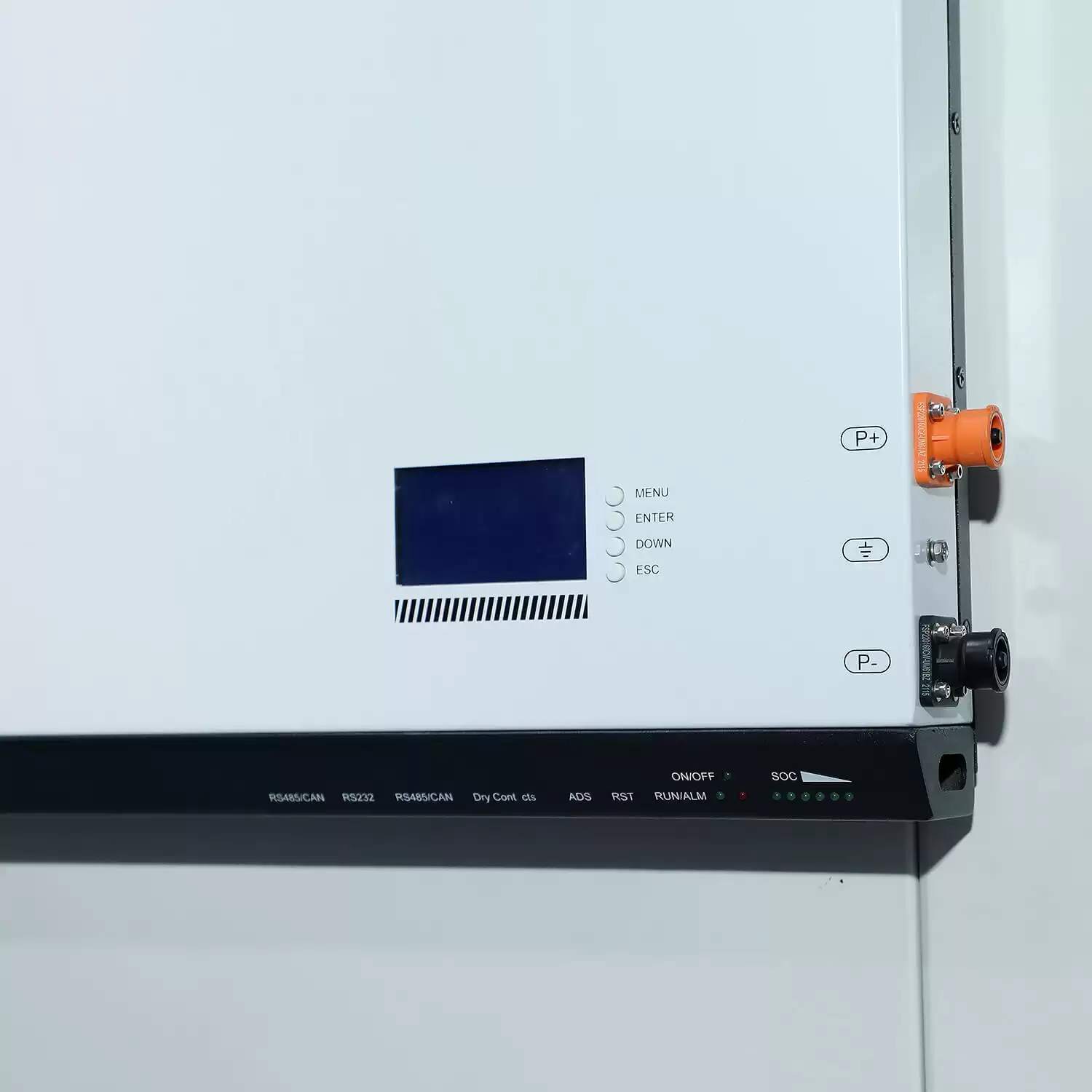

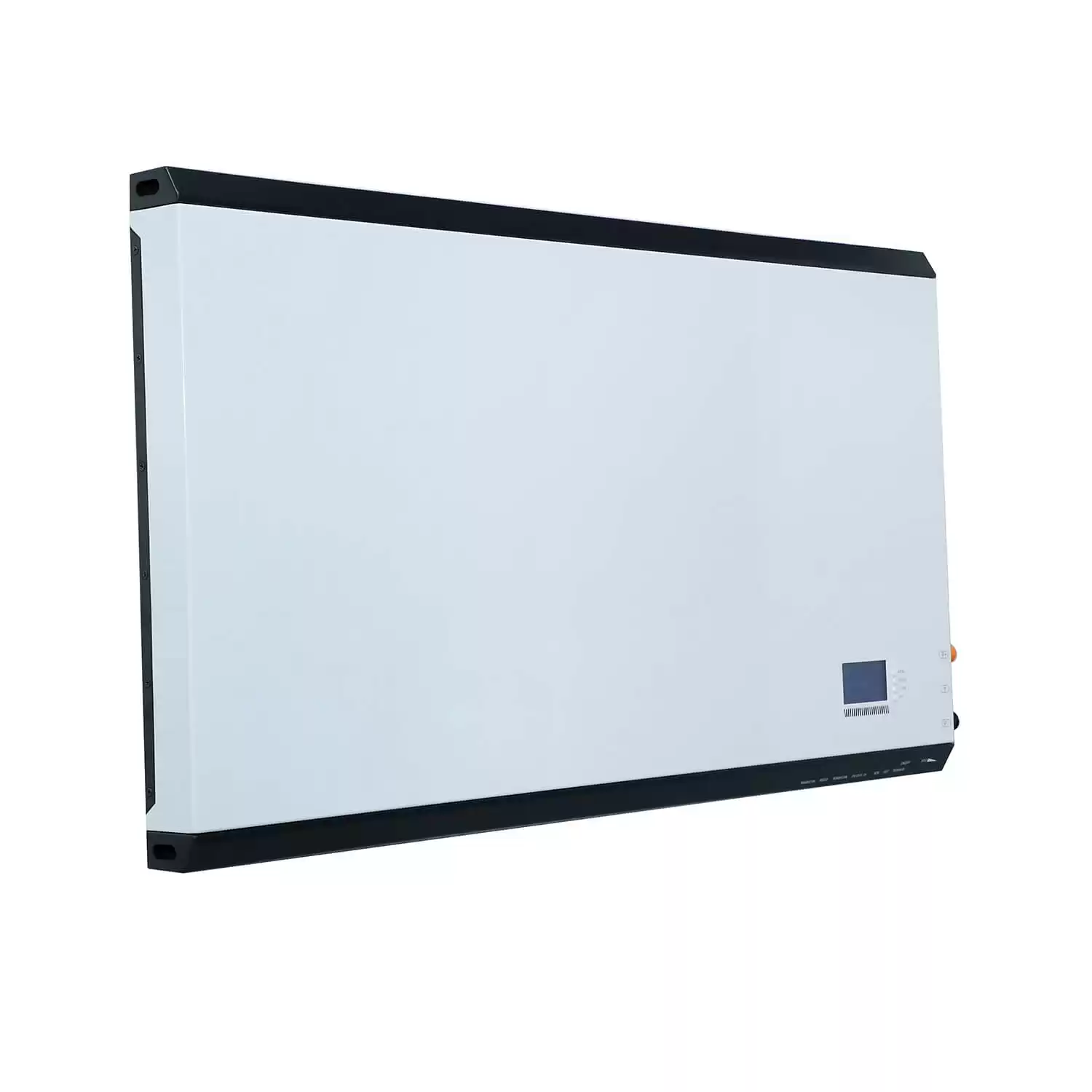

Space-efficient Design: With its wall-mounted configuration, this battery optimizes space utilization within homes, allowing for convenient installation and efficient use of available space.
Long-lasting Performance: Built with LiFePO4 technology, the AJP7A battery offers excellent cycle life and durability, ensuring prolonged performance and minimizing the need for frequent replacements.
Reliable Backup Power: This home energy storage battery provides reliable backup power during outages, enabling homeowners to maintain essential appliances and devices when the grid is down.
Safety and Stability: LiFePO4 chemistry provides inherent safety features, making the AJP7A battery stable, resistant to thermal runaway, and ensuring the overall safety of the home energy storage system.
Technical Parameters
| Model |
Energy |
Battery Type |
Capacity |
| AJP7A |
6912Wh |
LiFePO4 |
135AH |
| Rated Voltage |
Max Charge Current |
Working Voltage Range |
Max Discharge Current |
| 51.2V |
100A |
40~58.4V |
100A |
| Standard Charge Current |
DOD |
Standard Discharge Current |
Max Parallel Quantity |
| 50A |
100% |
100A |
15 |
| Designed Life-span[1] |
Operation Humidity |
Operating Temperature[2] |
Nominal Operation Altitude |
| 6000 cycles |
5~95% |
Charge:0~60℃ Discharge:-10~60℃ |
＜3000m |
| IP Rating |
Communication |
Installation Method |
Certification |
| IP65 |
RS485/CAN |
Wall-Mount |
MSDS UN38.3 |
| Net Weight |
Dimension(L*W*H) |
[1] Test conditions:100%DOD,0.2C charge&discharge at +25 ℃ |
| 63.3kg |
1028*78*545 mm |
[2] -10 ℃ to 10 ℃ will be derating |
Safety: The excellent safety features and trustworthy protective systems of the AJP7A Wall-mounted Home Energy Storage LiFePO4 Battery put safety first and guarantee secure operation for home energy storage.
Energy Storage Capacity: This battery has a storage capacity of 135AH and 7kWh, which is more than enough to power your house when there is little or no electricity available.
Power Output: The battery has a strong power output and can supply enough energy to run a variety of electronics and home appliances.
Efficiency: High energy efficiency is demonstrated by the AJP7A battery during storage and discharge, which maximizes energy use and reduces waste.
Integration with Solar Systems: By seamlessly integrating with solar panels, this battery enables households to store extra solar energy produced during the day and use it at night or at times when there is little solar output.

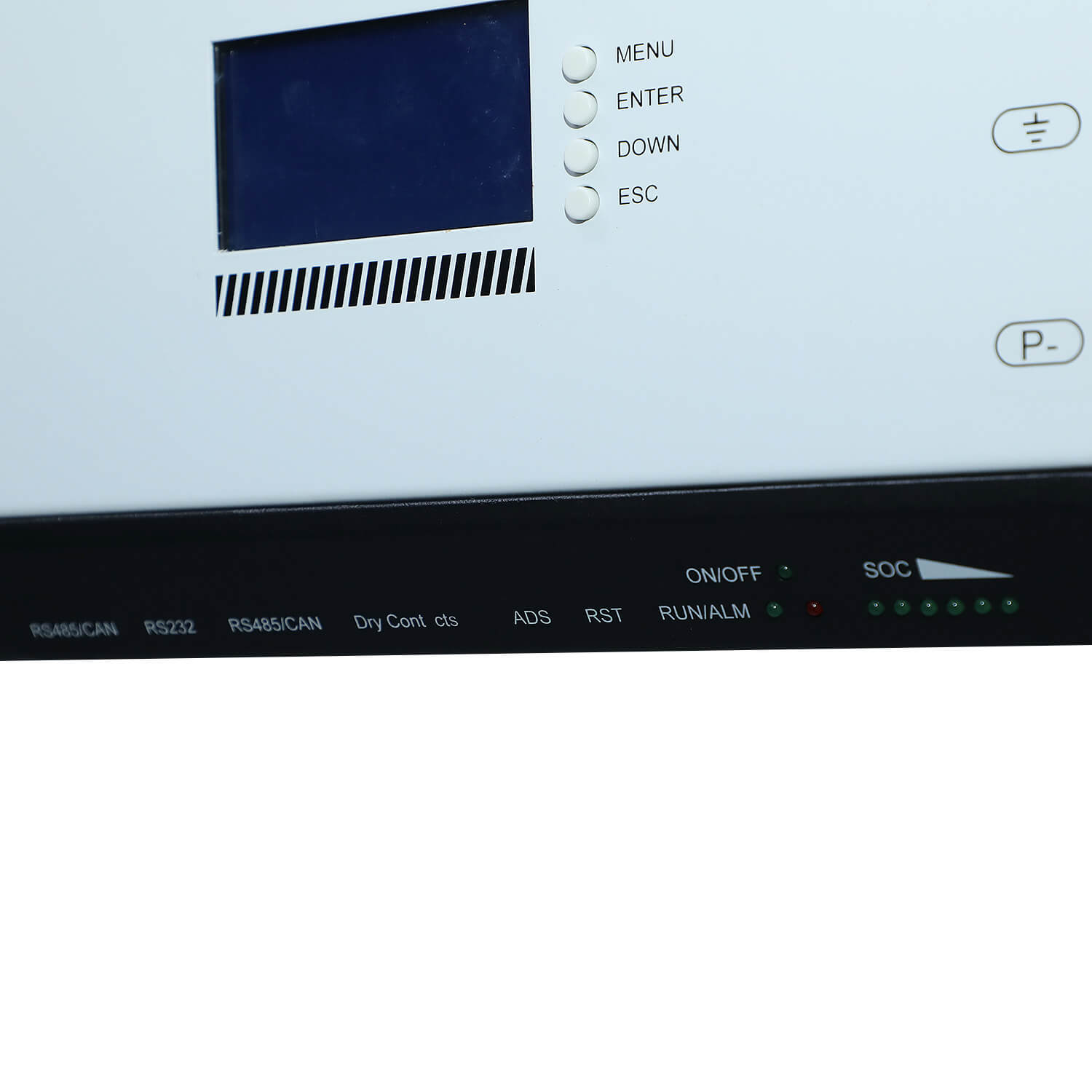

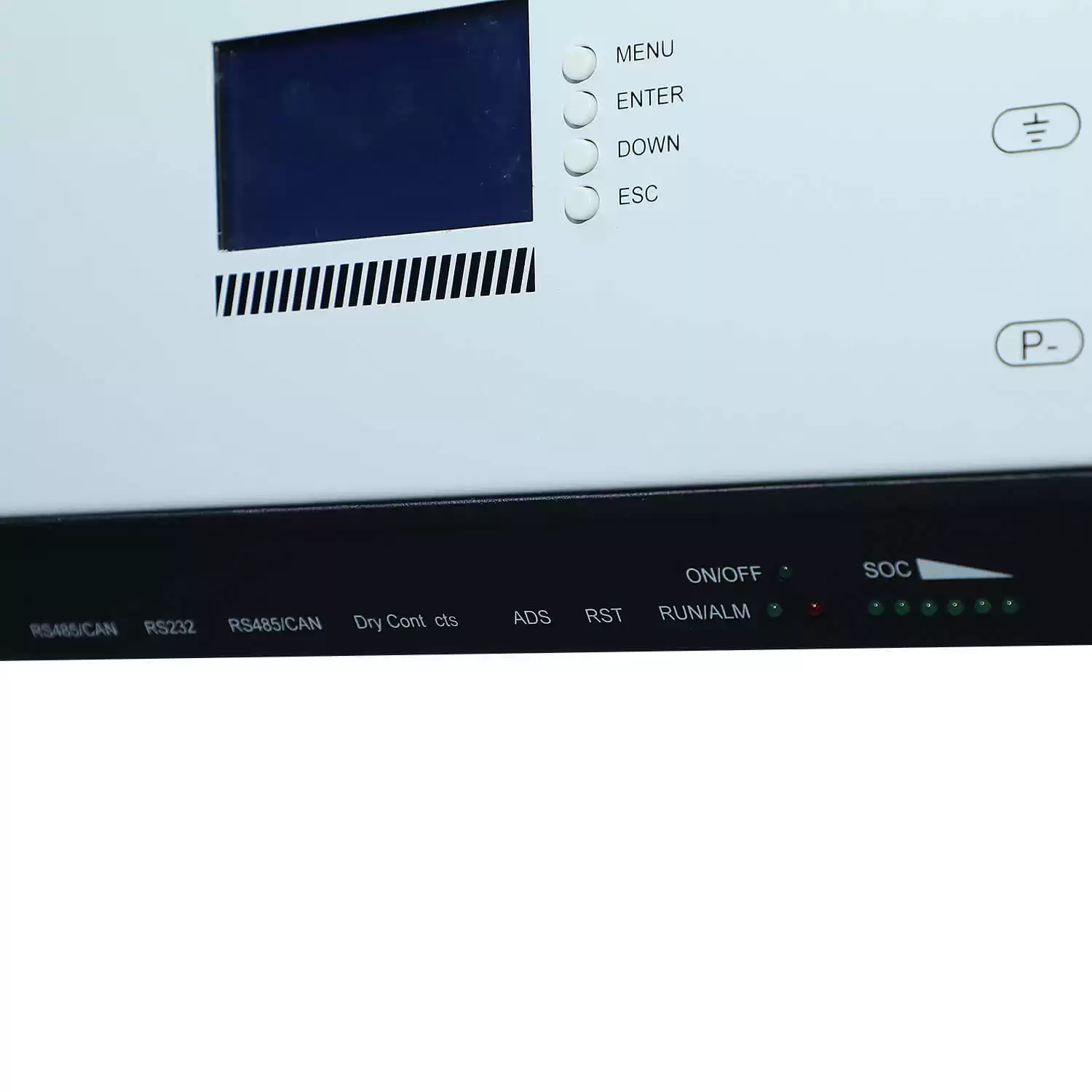

Monitoring and Control: Homeowners can monitor energy use, check the battery's state, and regulate the charging and discharging procedures thanks to the battery's monitoring and management functions.
Savings: Homeowners may be able to save money on their power costs by reducing their dependency on the grid by using the AJP7A Wall-mounted Home Energy Storage LiFePO4 Battery.
Sustainable Energy Solution: By enabling homes to capture and store renewable energy, lowering their reliance on non-renewable sources, and contributing to a more sustainable energy future, this battery encourages sustainable energy practices.
Since its inception, TUV Rheinland has granted ISO9001 certification to AJ POWER, a provider of complete energy solutions.
Our broad range of products includes power battery systems, energy storage systems for homes and RVs, portable power stations, and a number of accessories. Thanks to our strong and dedicated R&D team, we are able to provide both conventional goods and solutions that are especially tailored to your needs.
Whether you need conventional or specialized solutions, AJ POWER is your trustworthy partner for all of your energy demands.
