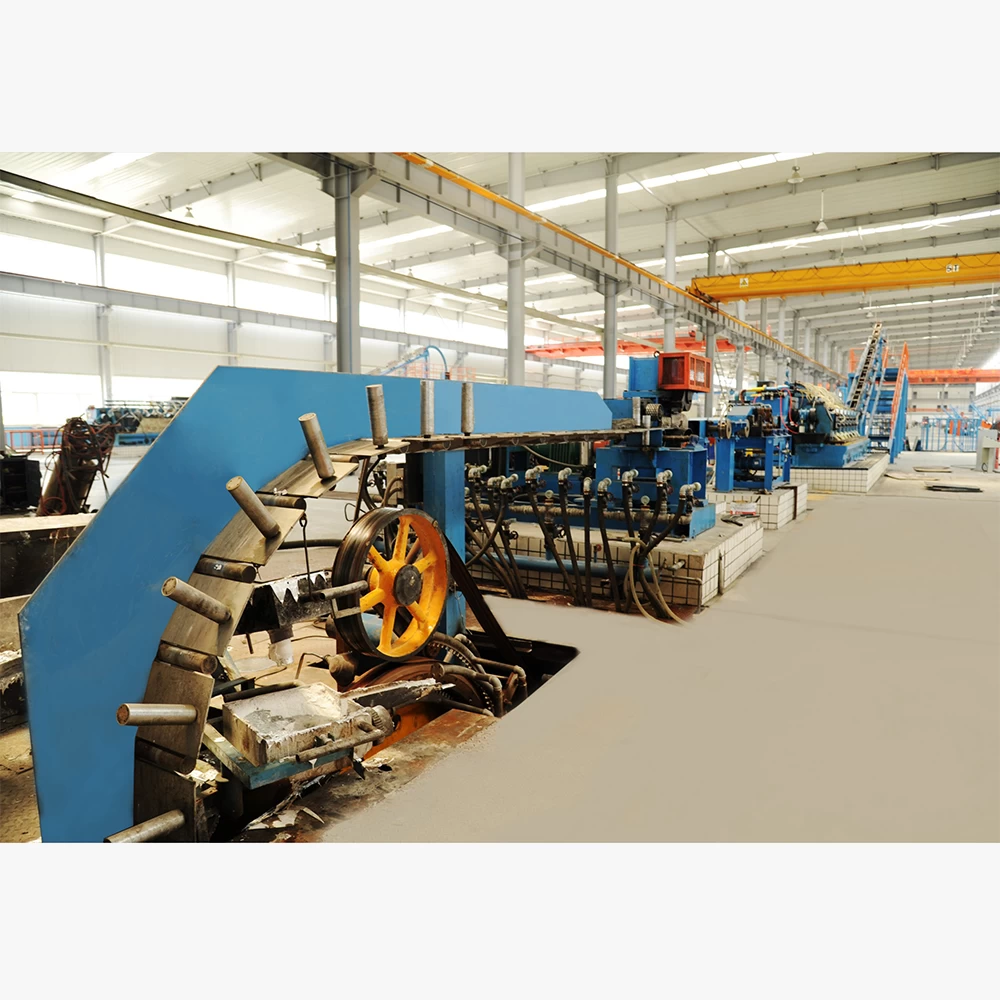

AL/AL-Alloy Rod Continuous Casting & Rolling Line Type LZLZ-1600+255/14
Product Description:
Aluminum rod continuous casting and rolling line can produce three kinds of conductive aluminum rods of 15, 12, 9.5mm. 15mm aluminum rod is produced by 11 rolling stands; 12mm aluminum rod is produced by 13 rolling stands and 9.5mm aluminum rod is produced by 15 rolling stands.
Working principle:
Pure aluminum→melting furnace→launder→holding furnace (charging alloy elements) →launder and tundish→casting machine → pulling to rotary shears → oil hydraulic shears →straightener→induction heater →continuous rolling machine → quenching with water →rear pulling→coiling→take-up.
Specification Parameters:
Cross-sectional area of casting
|
2300mm2
|
Diameter of output rod
|
∮9.5mm±0.5mm
|
Output capacity
|
Max. 5t/h
|
Overall dimension
|
38000×7800×5600mm (not including melting furnace, holding furnace, lubricating system, cooling system and emulsion tank)
|
Features:
1. The line adopts double-wheel casting machine featuring simple structure and strong practicality.
2. Rolling Mill is composed of 2-high mould rolling stand and Y-type 3-high mould rolling stand.
3. Main transmission is driven by 250KW DC motor, the transmission for gear box has advantage of low noise and stable drive.
4. The coil's downline stand is mainly made up of meatus, rod winding device and other parts.
5. The whole line is controlled by DC device, with the function of protection and fault diagnosis.
In 2003, Ito-sin(DeYang) Wire & Cable Equipment Co.,Ltd. was awarded the certificate of quality administration system issued by Britain DAS authority and the certificate of quality administration system approved by Britain UKAS authority. In 2005, it was approved by the international wire & cable association as one of the standing members.
Application and composition:
1. The production line mainly consists of melting furnace, holding furnace, double-wheel continuous casting machine, haul-off for rotary shears, oil hydraulic shears, straightener, induction heater, continuous rolling machine, take-up, electric control, and etc.
2. The line is used for manufacturing high-strength conductive aluminum and alloy pole.
FAQ:
Q1. What information should I let you know if I want to get a quotation?
A: Item Name,Size,Initial Quality you require.
Q2. How to make the payment?
A: T/T
Q3. When will you deliver the machine?
A: Delivery Time for 30-40 days.
