Alcohol Refractometer ATC, Baume and Alcohol Meter for Wine Beer

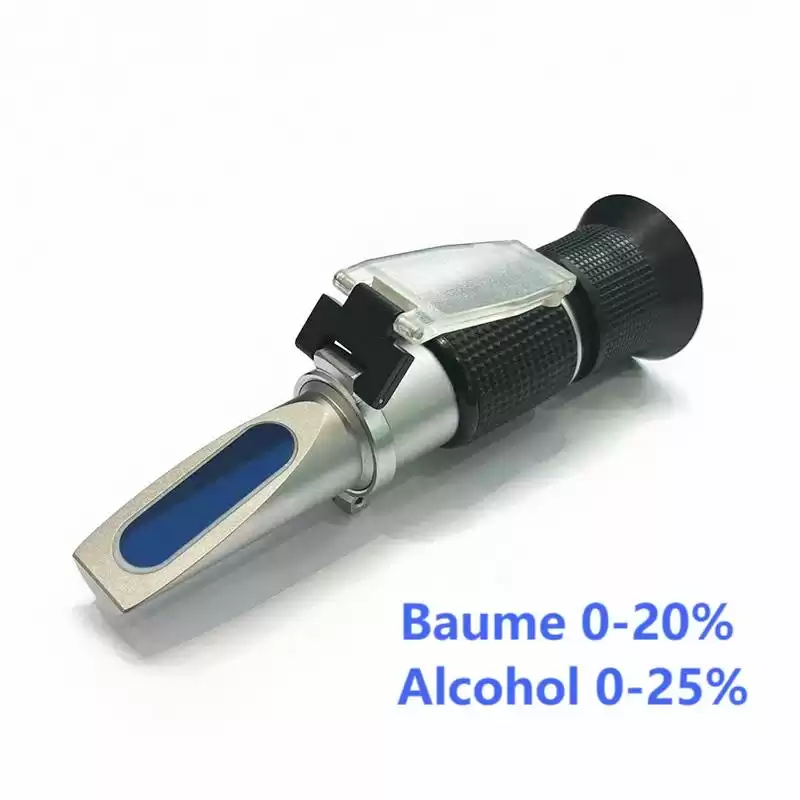

The RHW-25A handheld alcohol and wine refractometer is suitable for measuring the Alcohol persentage and Baume value in wines, with a measurement range of 0-20% Baume and 0-25% Alcohol.



  • This model can be used in the wine-making process for grape maturity and wine quality control.
  • The main body of the instrument is made of copper materials to maximize measurement accuracy and durability.
  • This model has Automatic Temperature Compensation (ATC). Models without ATC are also available for a lower cost.



Measurement Specifications

Scale(s) Ranges Resolution Accuracy
Alcohol
0 to 25%
0.2%
±0.2%
Baume
0 to 20
0.2
±0.2

Facebook Twitter Pinterest LinkedIn 分享
Product Description
The RHW-25aA Alcohol Refractometer is used to detect the sugar content of grape must during the wine-making process, so as to infer the alcohol content of the wine. The wine refractometer can detect the sugar content of the original grape juice and the alcohol content of the wine brewed from the original grape juice. It also helps to control the maturity period of the grapes. It is the first choice for scientific research, food industry production, and the purchase and operation of alcoholic beverages.


Product Features

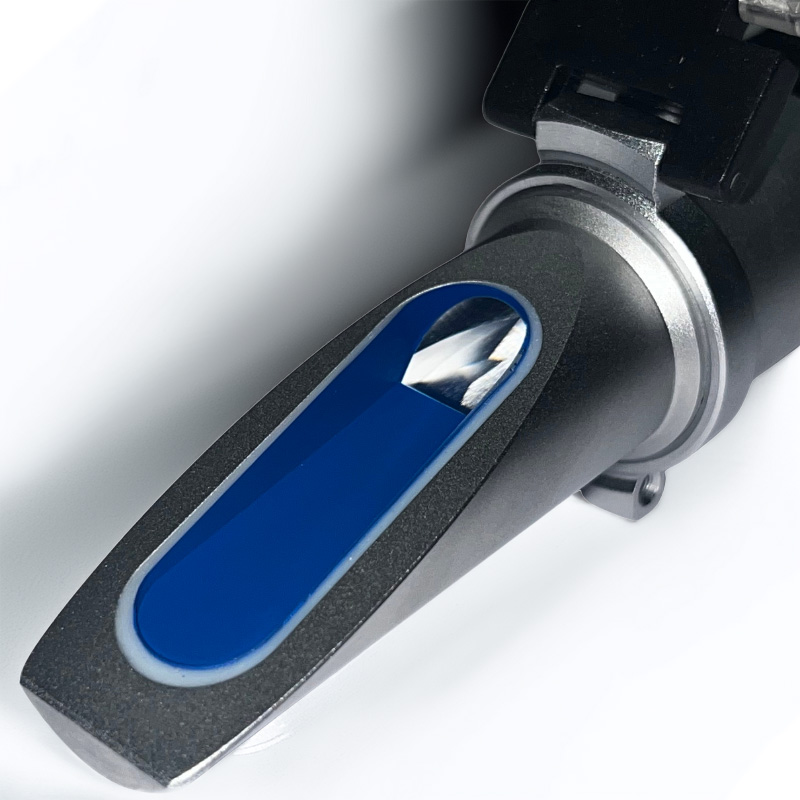

Refractometer Prism

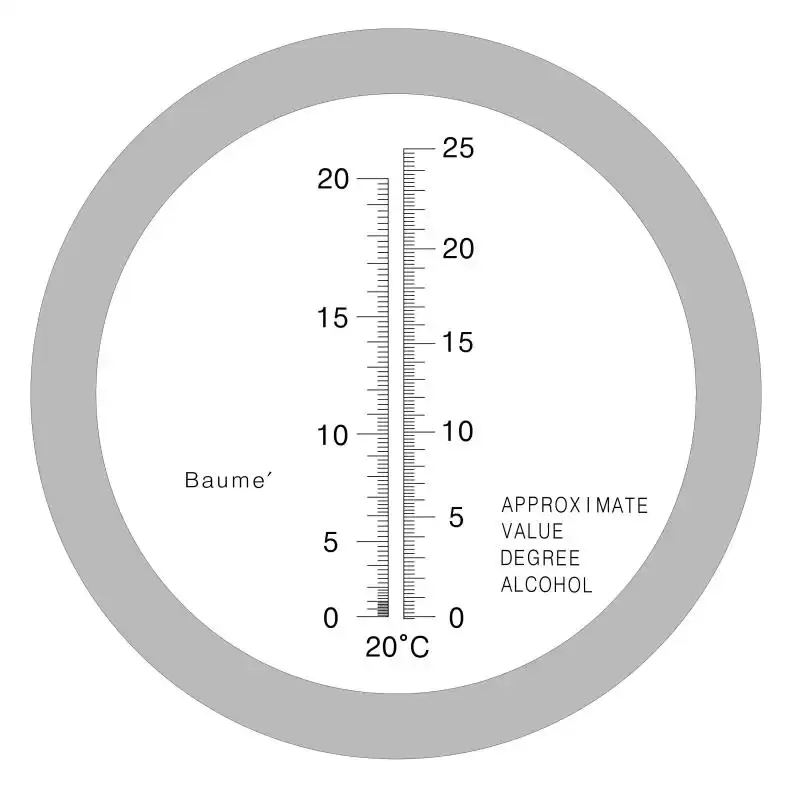

Dual-Scale Refractometer

 Measures alcohol percentage and Baume value—ideal for monitoring fermentation and density in winemaking.



Automatic Temperature Compensation

 Maintains measurement accuracy across different environmental temperatures without manual adjustments.



Copper Alloy Body

 Durable, thermally stable construction enhances long-term accuracy in winery, vineyard, or lab settings.







Typical Applications

- Alcohol Content Testing in Wines

 Determine alcohol percentage during or after fermentation to meet product specifications.

- Baume Value Monitoring

 Track sugar density and fermentation progress with Baume scale readings.

- Grape Maturity Assessment

 Used to determine harvest timing by measuring potential alcohol from grape must density.

- Small Wineries & Craft Winemaking

 Essential tool for small-scale producers needing fast, reliable alcohol and density data.





Product Parameters
Model RHW-25aA
Net Weight 0.23kg
Length 160mm
Diameter 29mm
Temperature Range

10℃ to 30℃ with ATC

20℃ without ATC





Packaging
We have three packaging options: leather, plastic, or cardboard. The cost per unit vary with different packaging.
If you have a preferred packaging option or require customized packaging with your own text or logo, please feel free to send us an inquiry.

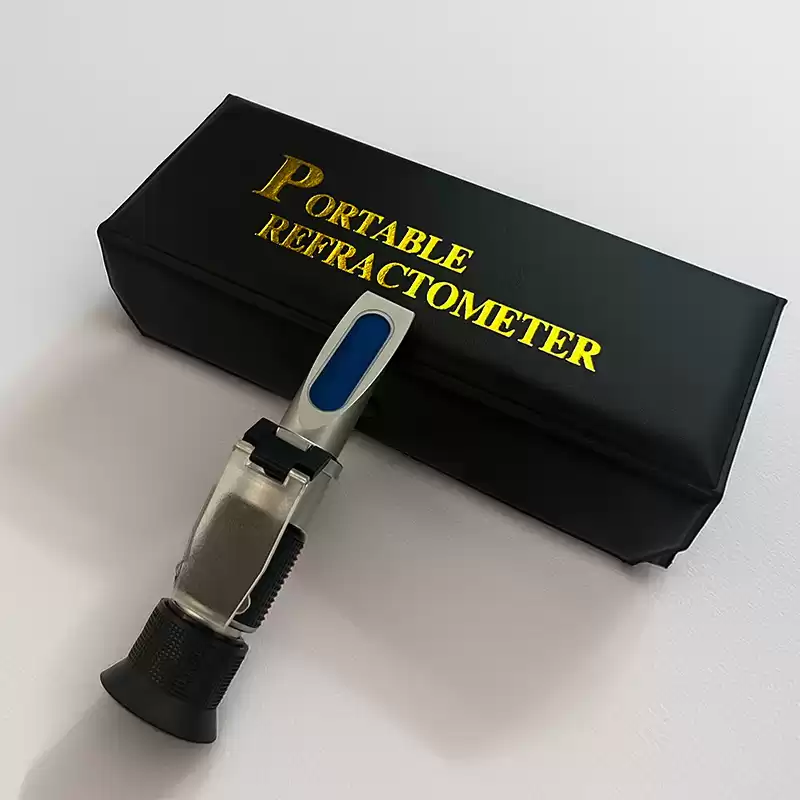

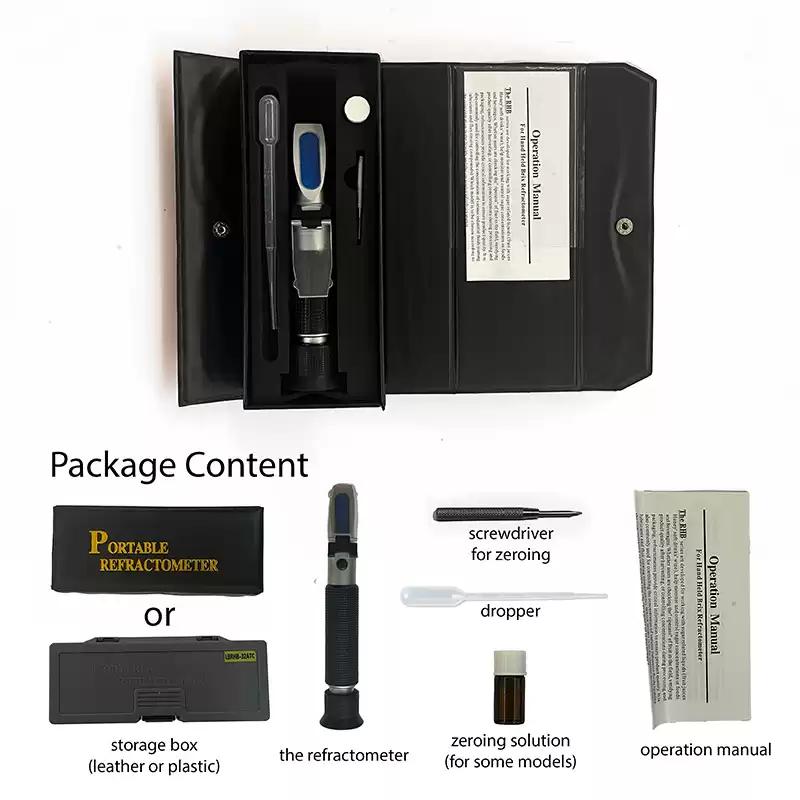

Handheld Refractometer Packaging Options and Content







Instruction of Use

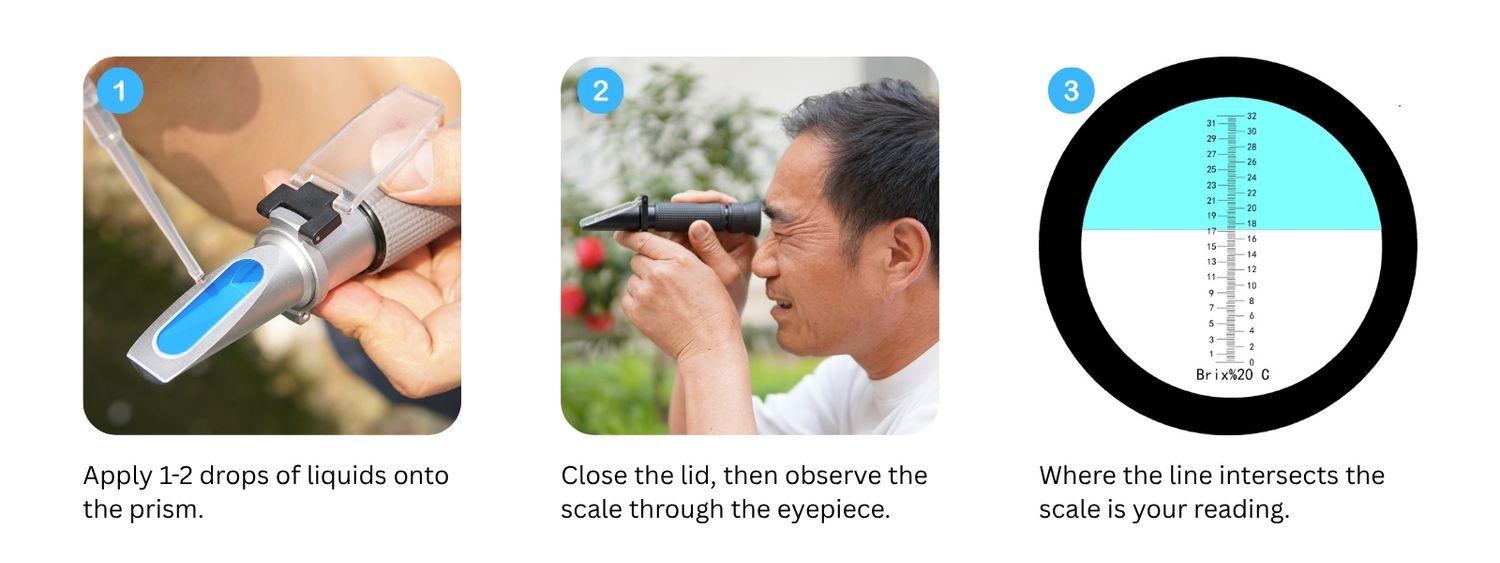

Handheld Refractometer Instruction of Use

After-Sale Services

At Lindian Technology, we take pride in providing only premium-quality refractometers. If any of our products is found to be defective upon arrival, we will replace the defective unit free of charge.

In addition, we offer a free replacement warranty for a period of three years, along with free lifetime maintenance and calibration services.
