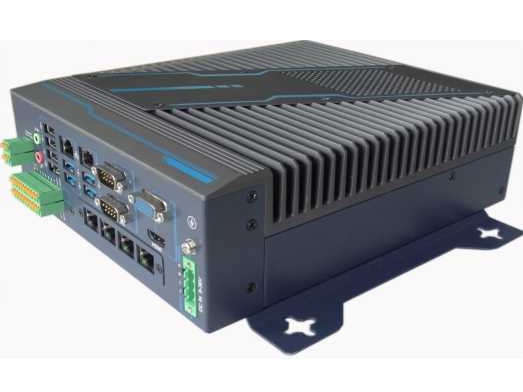

All-Aluminum Fan-Embedded Industrial Box PC for 4th-9th Gen CPU with Optional Expansion Slots
Product Introduction
All-Aluminum Fan-Embedded Industrial Box PC for 4th-9th Gen CPU with Optional Expansion Slots" is a versatile and rugged industrial computing solution. This industrial box PC is built with an all-aluminum chassis. Aluminum is known for its durability and resistance to environmental factors, making it ideal for industrial settings where reliability is crucial. This industrial box PC is likely to find applications in various industrial environments where ruggedness, cooling efficiency, and compatibility with a range of CPU generations are essential. The optional expansion slots provide additional versatility, allowing it to be tailored to specific industrial computing requirements.
Product Features
■All-aluminum with fan and teeth design , fully sealed inside
■Support 4th/6th/7th/8th/9th generation desktop CPU
■2LAN Intel GbE，8USB（4USB3.0)
■2RS232/RS422/RS485, customizable 6COM
■Support M.2+ 2.5-inch dual hard drive
■Support VGA+HDMI display
■Modular design, there are the following modules to choose from:
1. MXM module:optional 2LAN or 4LAN,4USB3.0
2.Power supply module：12V input or 9~36V wide voltage input
3.GPIO module： optional 16-bit optically isolated GPIO
4.Expansion module: 2-slot expansion: PCIEx16+PCIEx4; PCIEx16+PCI
| Specification |
Optional specification |
| Chassis |
All-aluminum with fan and teeth design , fully sealed inside
|
|

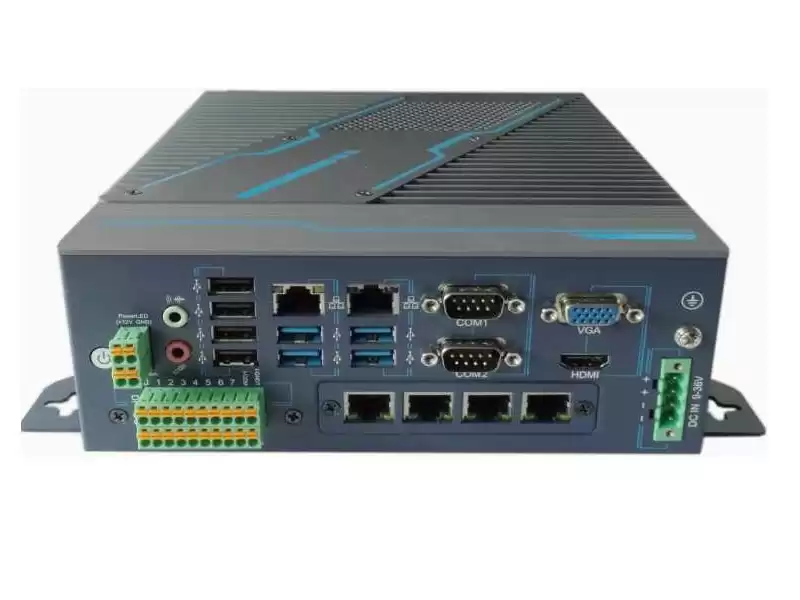

| Panel I/O |
Switch with light; Switch and indicator light lead terminal; 2Audio jack; 4USB2.0; 2LAN+4USB3.0; 2COM; VGA+HDMI; Power board module; GPIO module (optional); MXM module (optional); Expansion module (optional) |
| hard drive rack |
11 x 2.5" hard disk drive rack |
|
| Motherboard |
Specialized motherboards |
Optional H81/Q85/H110/Q170 chipset motherboards |
| Graphic card |
CPU integrated,support VGA+HDMI display |
|
| NIC |
2LAN Intel GbE，Expandable to 2LAN or 4LAN via MXM module and 2LAN,4LAN,6LAN or 8LAN ports via expansion slots |
| CPU/GPU |
Intel i7 7700 |
Optional 4th/6th/7th/8th/9th generation desktop CPU |
| Memory |
8G DDR4 |
Optional 4G/16G/32G laptop memory |
| Storage |
512G SSD |
Optional SSD and 2.5-inch HDD in various capacities |
| Size |
192*230*77mm（No expansion）；192*230*127mm（2-slot expansion）；192*230*177（4-slot expansion） |
| Adapter |
Optional 12V@10A; 12V@12.5A; 19V@9.47A |
| Expansion |
MINI PCIE; MXM module；power supply module；GPIO module；2-slot expansion module；4-slot expansion mogule |
| Installation |
Bracket installation |
| Work & Environment |
| Working temperature |
-10～60℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity,no-condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |
| Order information |
| MIS-EPIC10-Q85 Q85 chip，support 4th generation desktop CPU，Supports all expansion modules |
| MIS-EPIC10-H110 H110 chip，support 6th/7th/8th/9th generation desktop CPU，MXM module with 2LAN support and all other expansion modules |
| MIS-EPIC10-Q170 Q170 chip，support 6th/7th/8th/9th generation desktop CPU，Supports all expansion modules |
| MXM module：2LAN Intel GbE module；4LAN Intel GbE module；4USB3.0 module |
| Expansion module： PCIEx16+PCIEx4 expansion module；PCIEx16+PCI expansion module；PCIEx16+3PCI expansion module |
| 16-bit optically isolated GPIO module；9~36V wide voltage module |
