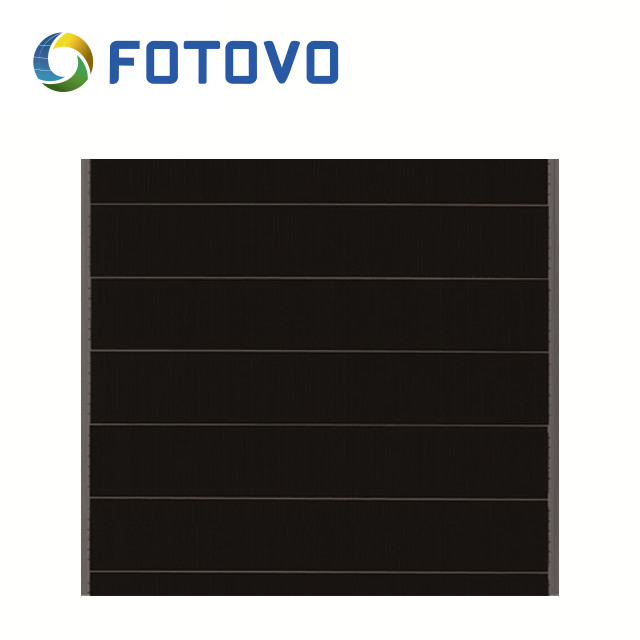

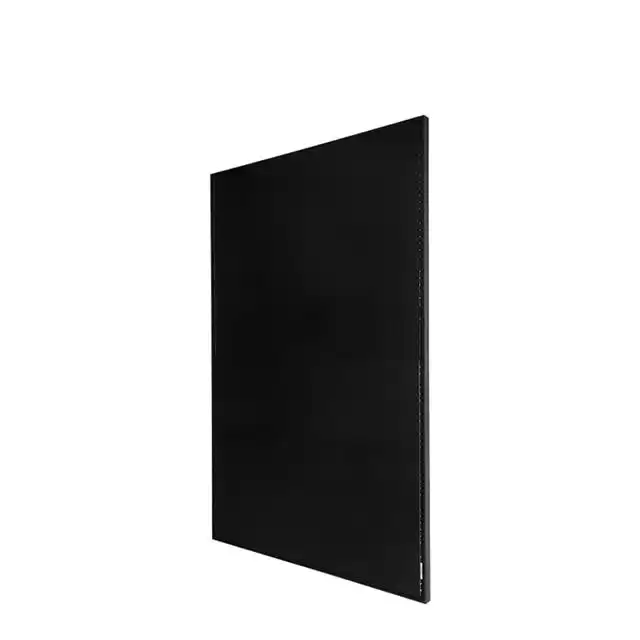

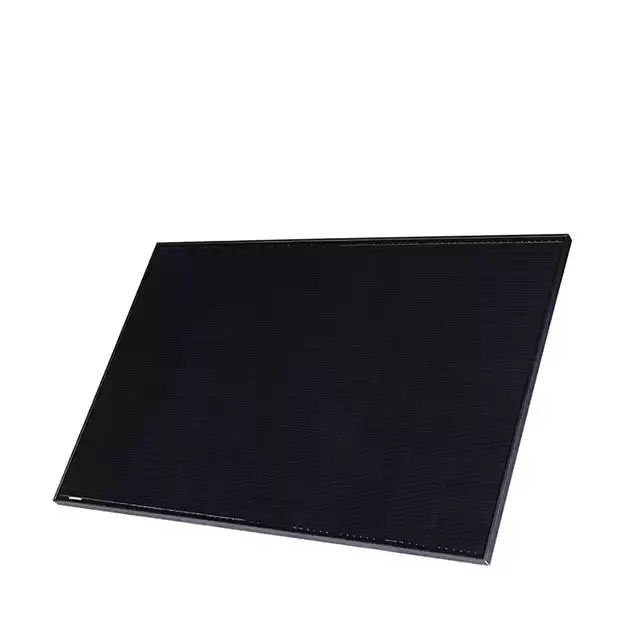

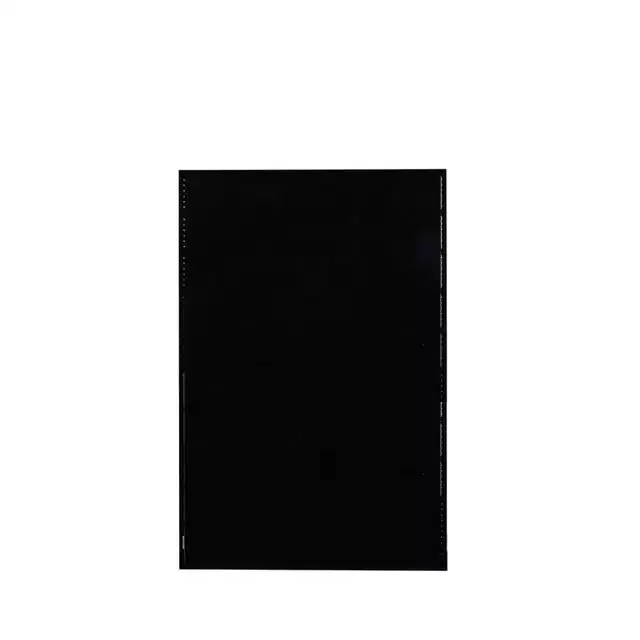

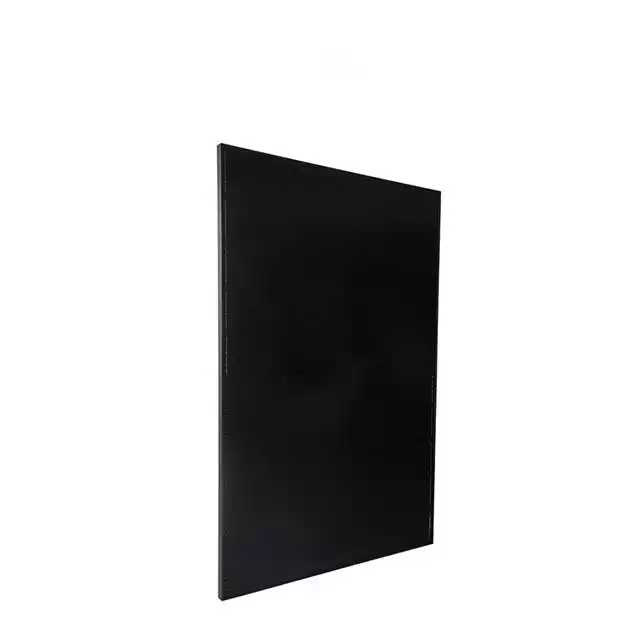

All Black Solar Panel Shingled Mono Solar Panels

All black solar panels have a beautiful appearance which can be applied to architectural integration. Full black solar panels are popular with European customers.


  • CertificateTUV, CE, IEC, Inmetro
  • Warranty25 years linear power warranty

FOTOVO All Black Solar Panel 410W Shingled Mono Solar Panels 400 Watt 410W Europe Solar Panels For Home




Features

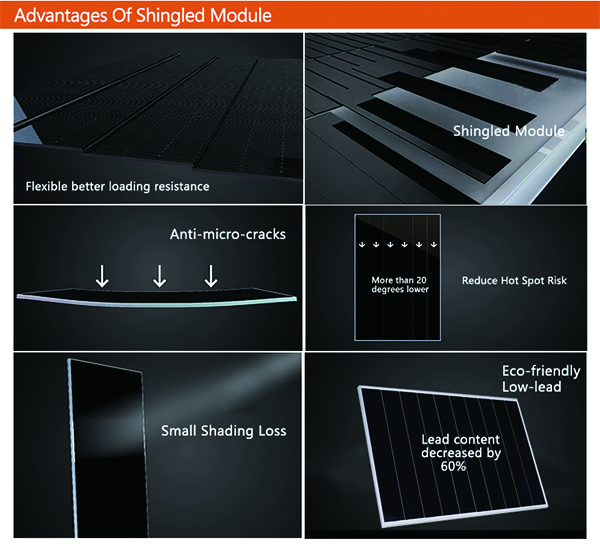

1.Shingled technology connects the cell slices with conductive glue, eliminates the need for soldering, reduces the shading area and line loss, saves space, and encapsulates 13% more cells than the conventional 60-type module, and the power is increased by more than 20W, which is significantly higher than Half-chip, MBB and other technologies. However, the cost needs to be further reduced compared with traditional components.

2.In terms of reliability, the connection method of the laminations can decompose the stress on the cells, and can withstand mechanical loads better than traditional components, and has fewer cracks. In addition, the shingled components have stronger resistance to shadow occlusion and lower operating temperature.


Product Specification

MECHANICAL CHARACTERISTICS
Solar Cells Monocrystalline silicon
NO. of Cells 340(34*10)
Dimensions 1719*1140*35mm
Weight 22kg

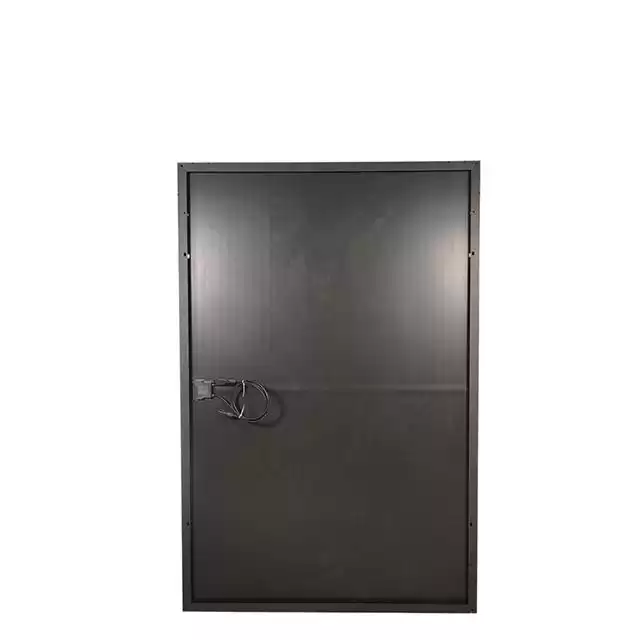

Junction Box IP68, two diodes
Front Glass  AR coating tempered glass, 3.2mm
Frame Anodized aluminum profile
Output Cables 4.0mm²,1000mm(Be customized by customers)
Connectors
ELECTRICAL PARAMETERS

410 405 400 395 390 385
Rated Maximum Power (Pmax) [Wp] 410 405 400 395 390 385
Open Circuit Voltage (Voc) [V] 46.6 46.5 46.4 46.3 46.3 46.2
Short Circuit Current (Isc) [A] 11.07 11.02 10.97 10.92 10.87 10.82
Maximum Power Voltage (Vmp) [V] 38.8 38.7 38.6 38.5 38.5 38.4
Maximum Power Current (Imp) [A] 10.57 10.47 10.36 10.26 10.13 10.03
Module Efficiency [%] 20.9 20.7 20.4 20.2 19.9 19.6
Working Temperature [°C] -40°C ~ +85°C
Maximum System Voltage DC 1500 /1000 (IEC)
Maximum Series Fuse Rating  20
Application Class Class A
Maximum Surface Load Capacity[Pa] 5400

AQ

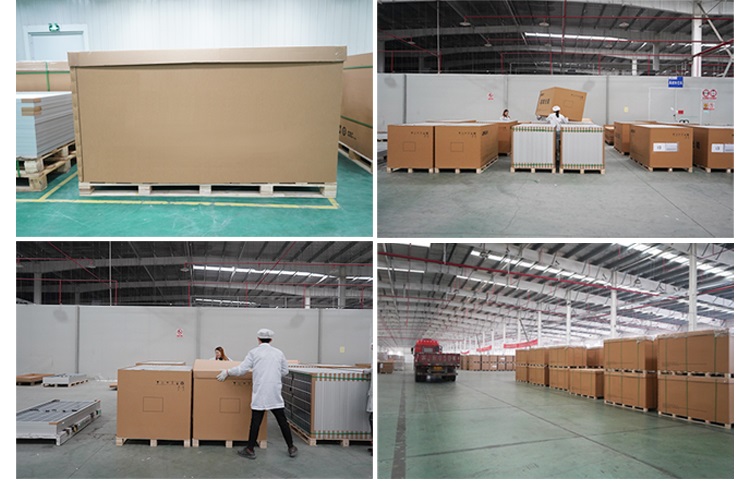

Package


Projects

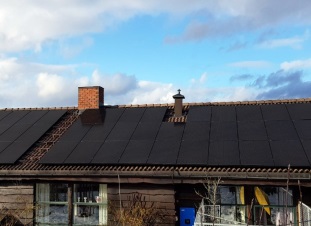

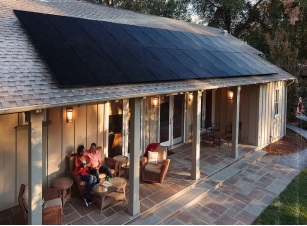

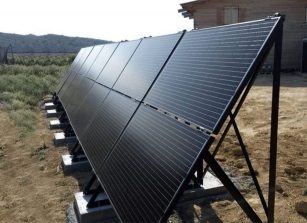

        24kw on-grid solar system in US        15.8kw off-grid solar system in Brazil                     18kw in Saudi Arabia


FAQ

Q1: Does your company accept LOGO customization?

A1: Sure, we could print your company LOGO on the products and package.


Q2: Do you accept customization on the size?

A2: Yea, if the size is reasonable.


Q3: What's types of solar panels do you supply?

A3: Mono-crystalline, Poly-crystalline, bifacial dual glass, shingled, flexible type, from 270W~550W.


Q4: Do you sell solar cell and glass separately?

A4: Yes, just feel free to leave a message.


Q5: Is it possible for me to get a sample before production?

A5: Of course, samples could be offered for your evaluating the quality first.
