Hot Dip Galvanized Ground Mounting

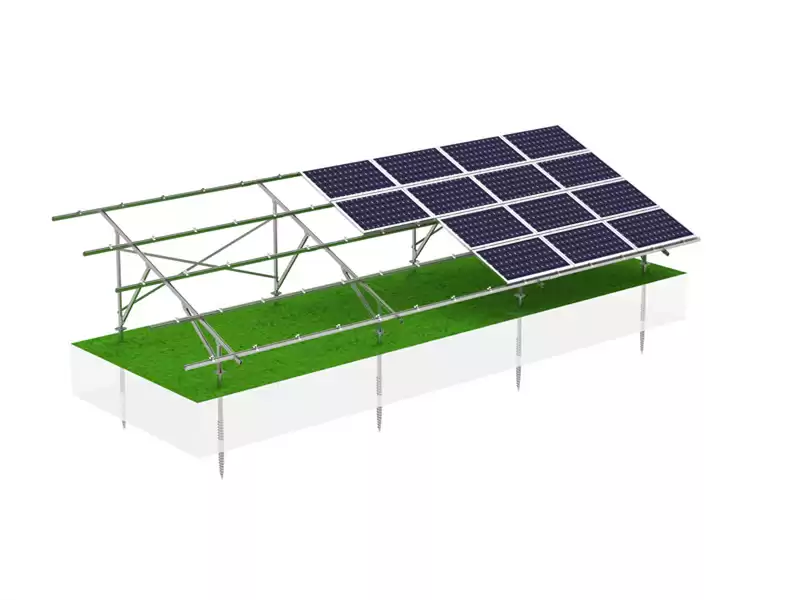

What's the PandaSolar GM3 System?
GM3 is the No.3 ground structure design developed by PandaSolar, which is made of fully hot-dip galvanized steel.
The thickness of hot-dip galvanizing reaches 80μm, which meets the environmental conditions of most countries
The structural frame has continuous rows of holes, the installation fault tolerance rate is large, and the installation is simple and greatly reduces the construction cost.

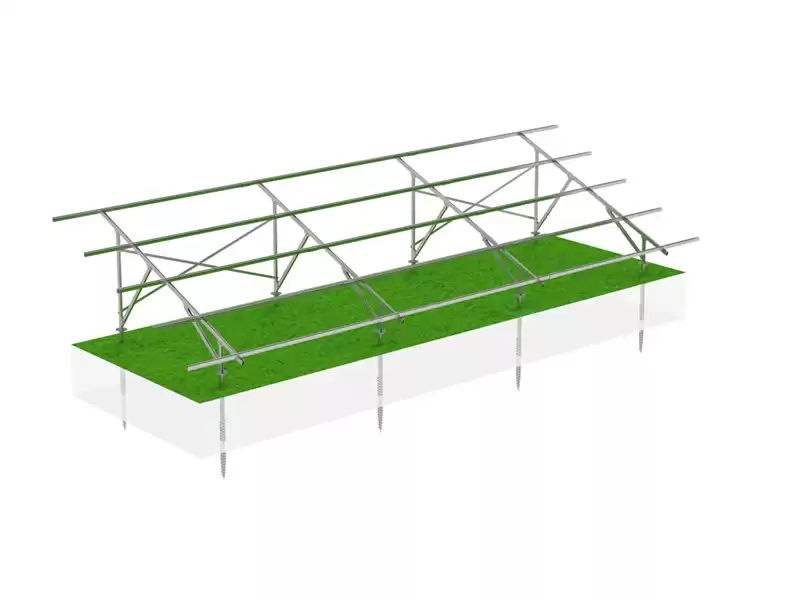

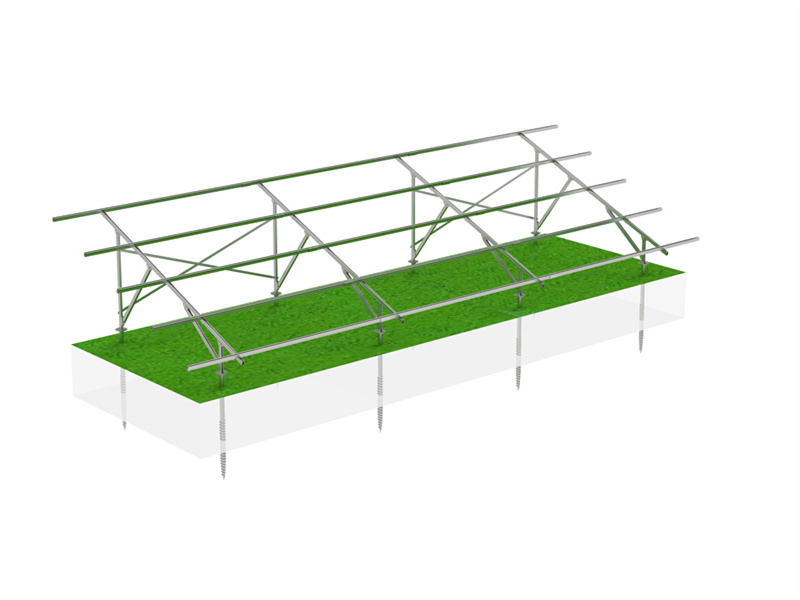

GM3 hot-dip galvanized ground structure system is usually use ground screw foundation, 1200mm, 1600mm, 1800mm or 2000mm height to meet different geological conditions.
Structural features:
- Ground screw foundation design: Ground screw with adjustable flange plate
- Quick installation
- Pre-assembled base and adjustable flange plate, both realize the front-rear-left-right of the aluminum mounting bracket is adjustable, which is very convenient for installation.

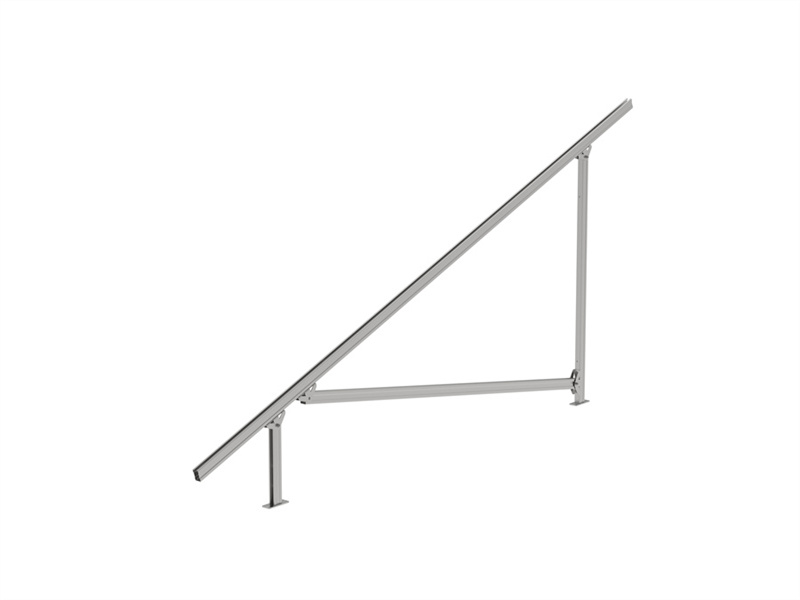

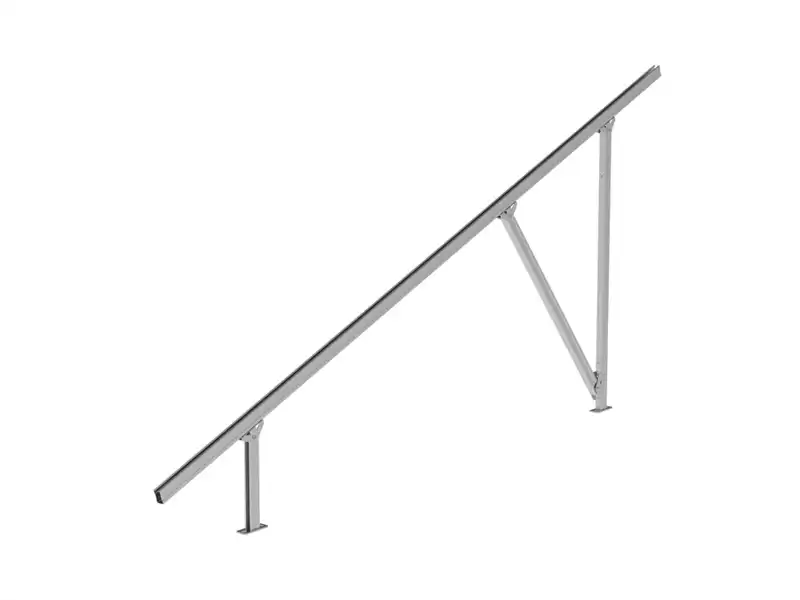

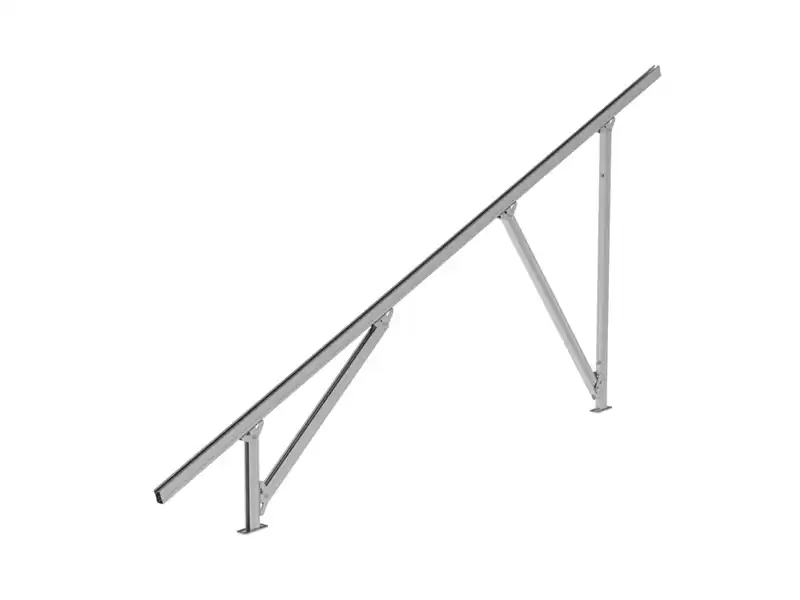

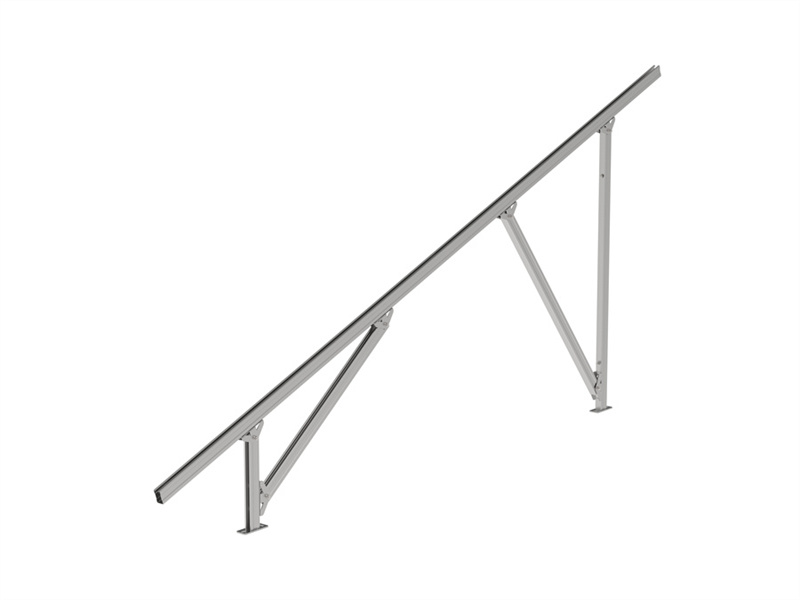

- Have different solar structure design for choose: N shape, VI shape and W shape
|
Material
|
Structure:HDG steel Components: HDG & AI6005-5(Anodized）
|
|
Application
|
Commercial and Residential installation
|
|
Tilt Angle
|
0-60°
|
|
Wind Speed
|
0-60 m/s
|
|
Snow Load
|
0-150cm
|
|
Ground Clearance
|
0-1m
|
|
Design Standard
|
AS/NZS 1170, DIN 1055, JIS C8955: 2017, International Building Code IBC 2009
|
|
Warranty
|
12 years
|
FAQ:
♥: What's your delivery time?
A: 12-15days.
♥: Can you send the samples?
A: Yes, we provide free samples for your test.
♥: Are you manufacture?
A: Yes, Our production experience is more than 12 years.
♥: Do you have OEM service?
A: Yes, we accept OEM service.
♥: How can I get the best price?
A: Send an inquiry to us and a professional will quote you.
