All-In-One Automatic 360 Degree Screen Printing and Hot-Stamping Machine For Sale

This machine design philosophy is to do all-purpose screen printing or hot stamping, it can do partial or 360 degree screen printing or hot stamping for conical, oval, square, irregular products.



Features

This machine is full servo system, can save very much labor for changing different products, shorten the adjustment time, working would be more easier.

This machine adopts module design, can combine screen printing and hot stamping according to customer specific need.
PLC adopts the latest wireless Bluetooth technology, making operator be able to control it easily in long distance, reduce the labor intensity, increase working efficiency.

Vision positioning mechanism is optional according to customer's requirement.


Technical Data

SF-MP310  Three color screen printer or two color screen printer plus hot stamping

Product size: (25-100)x(25-100)xH(40-300)mm

Max.speed:50pcs/min

Air pressure:5-7bar

Power:380V 50/60Hz 35Kw

Dimensions:2900x2600x2350mm


SF-MP412   Four color screen printer or three color screen printer plus hot stamping

Product size: (25-100)x(25-100)xH(40-300)mm

Max.speed:50pcs/min

Air pressure:5-7bar

Power:380V 50/60Hz 45Kw

Dimensions:3200x3000x2350mm


Details:

Four color screen printer or three color screen printer plus hot stamping


360º Three color screen printing


360º Four color screen printing






Loading Device

Loading Device


Loading Device

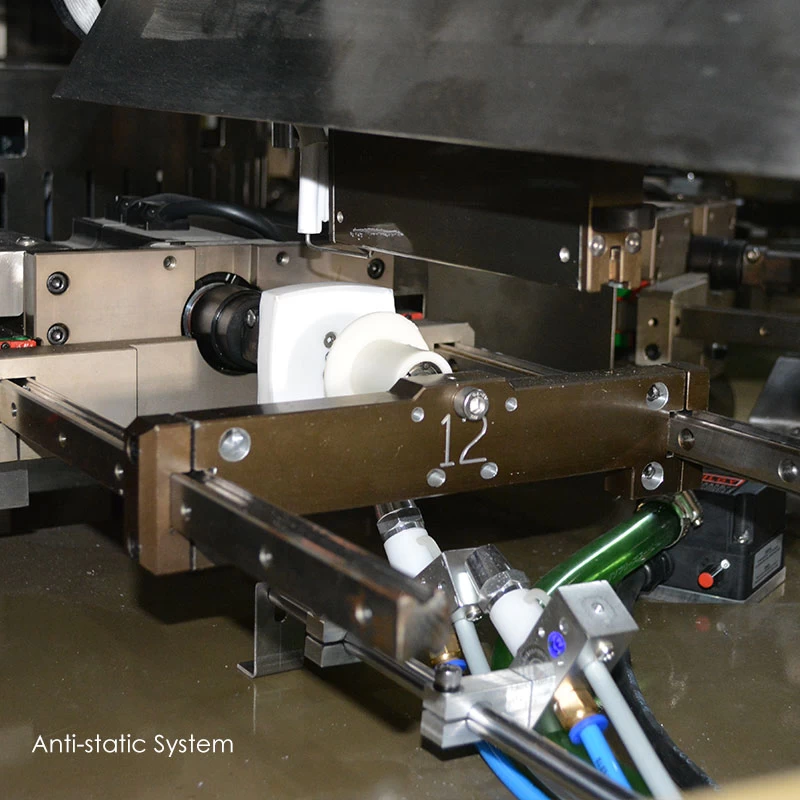

Anti-static/Flaming System

Anti-static/Flaming System


Screen Printing System

Screen Printing System


Hot-stamping System

Hot-stamping System


Video 1


Video 2
