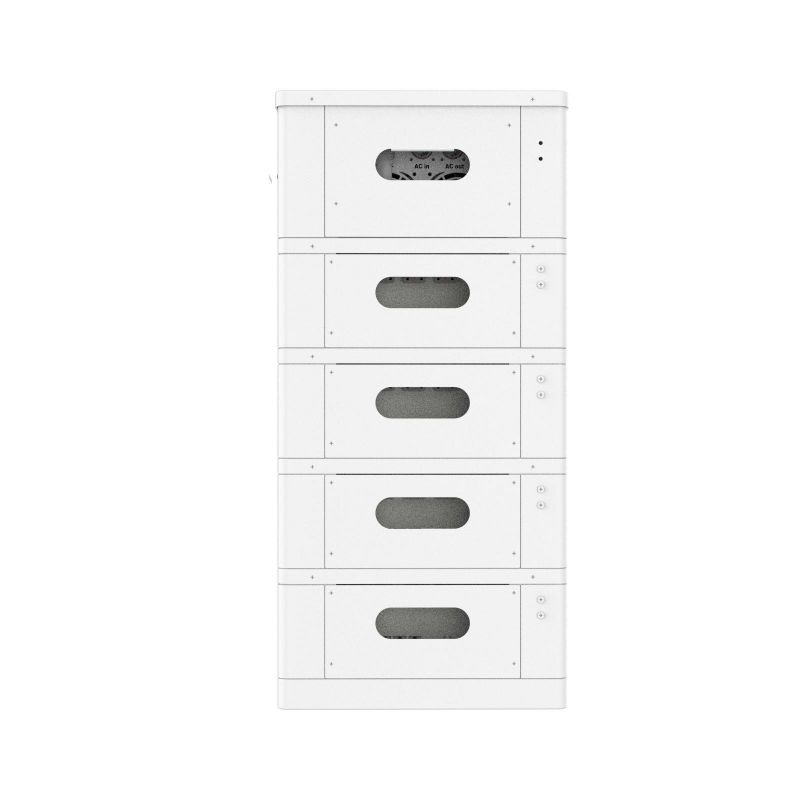

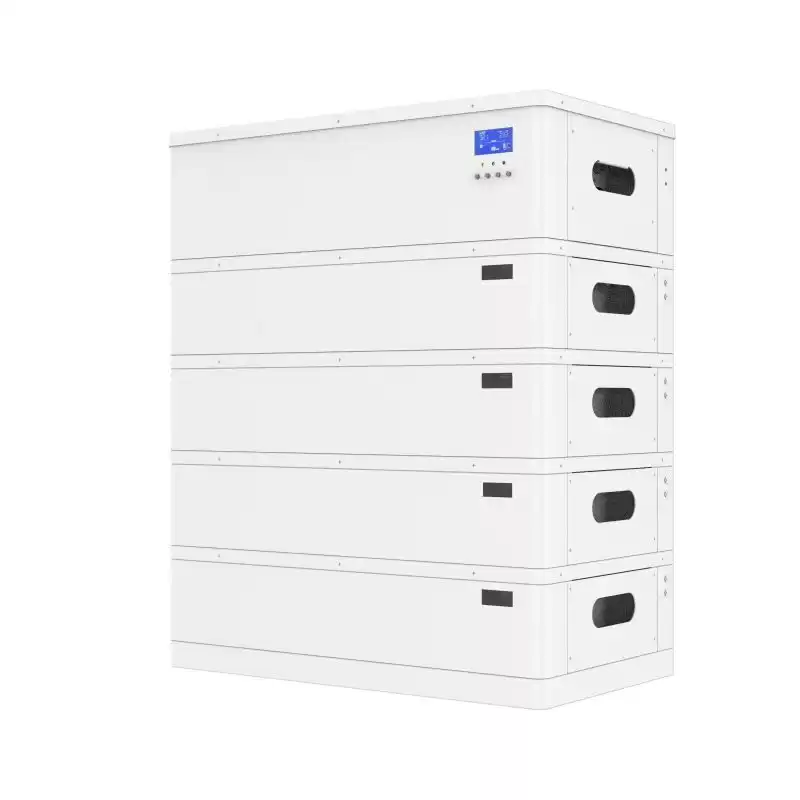

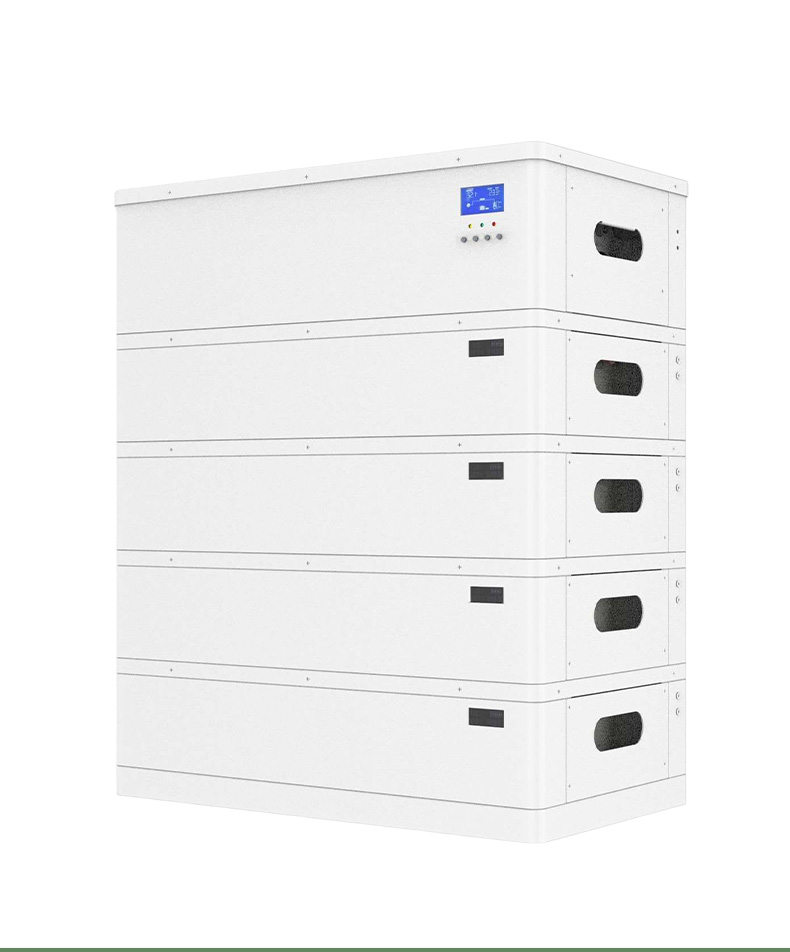

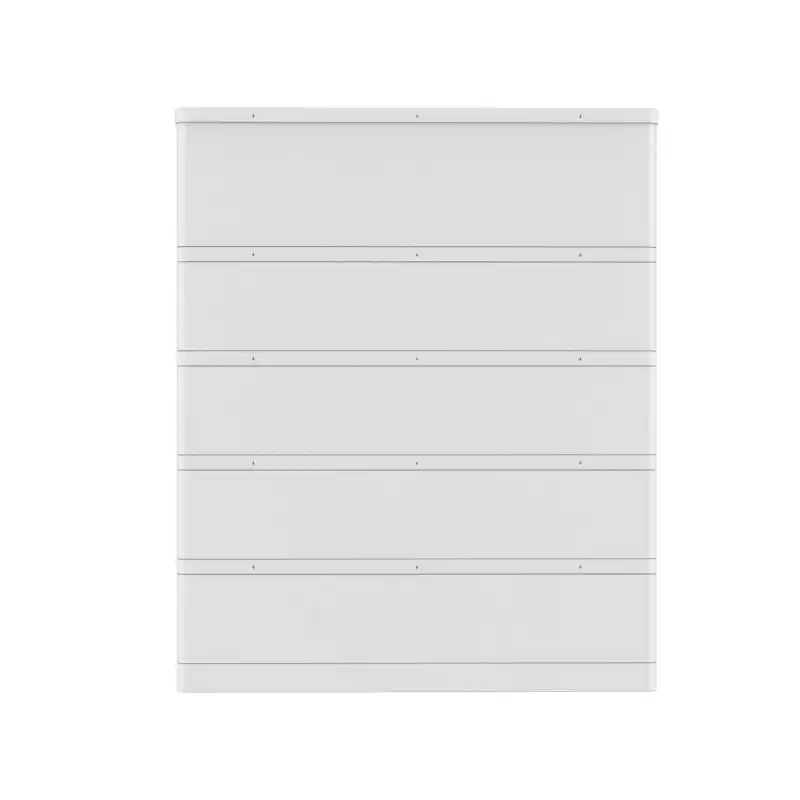

All-in-One Stack Storage Battery LiFePO4 Lithium Ion Battery

The product is an smart storage battery with LiFeCoPO4 lithium-ion batteries for communication home energy storage power products. Expandable battery modular design (flexible combination of 1 to 8 modules). White household appliances design, simple and beautiful. With RS485 interface, data transmission and parallel networking can be realized. Accurate measurement of SOC (residual capacity / full capacity) and SOH(discharge capacity / nominal capacity). Provide strong power for household power supply.


  • CertificateCE FCC ROHS ISO9001 UN38.3
  • Warranty5 years

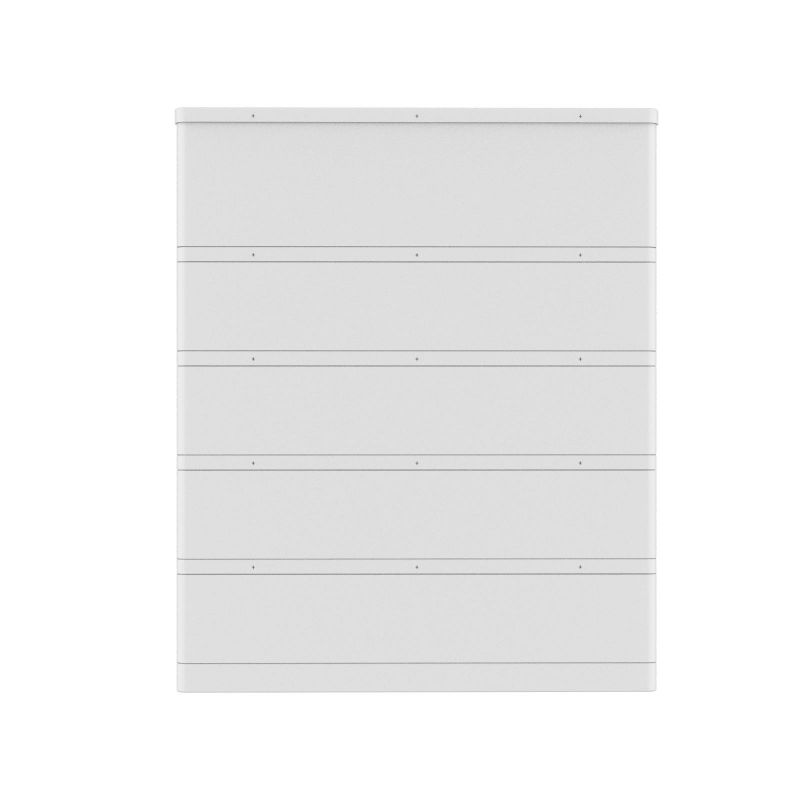

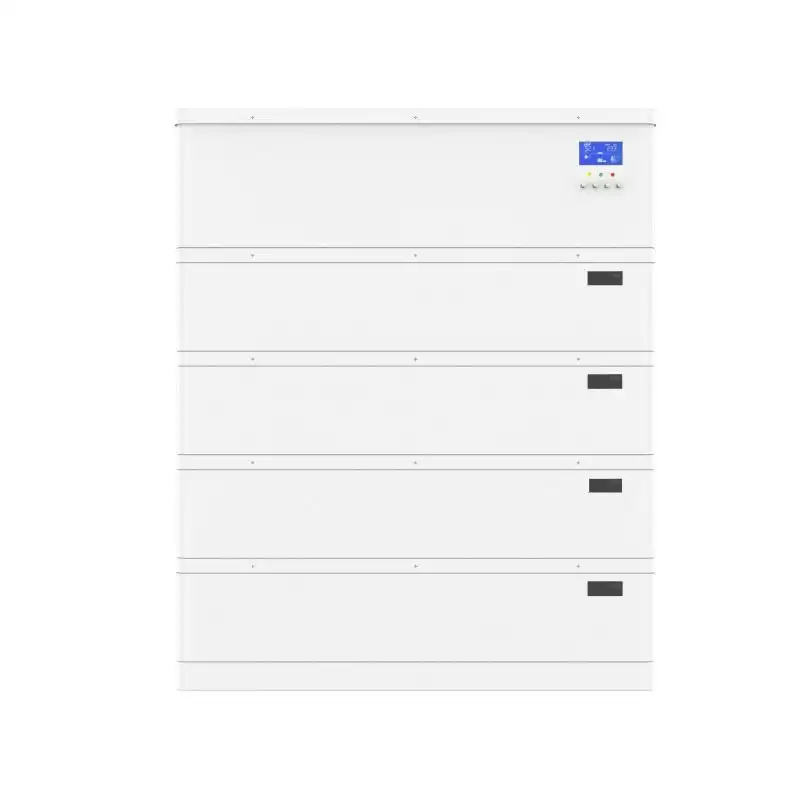

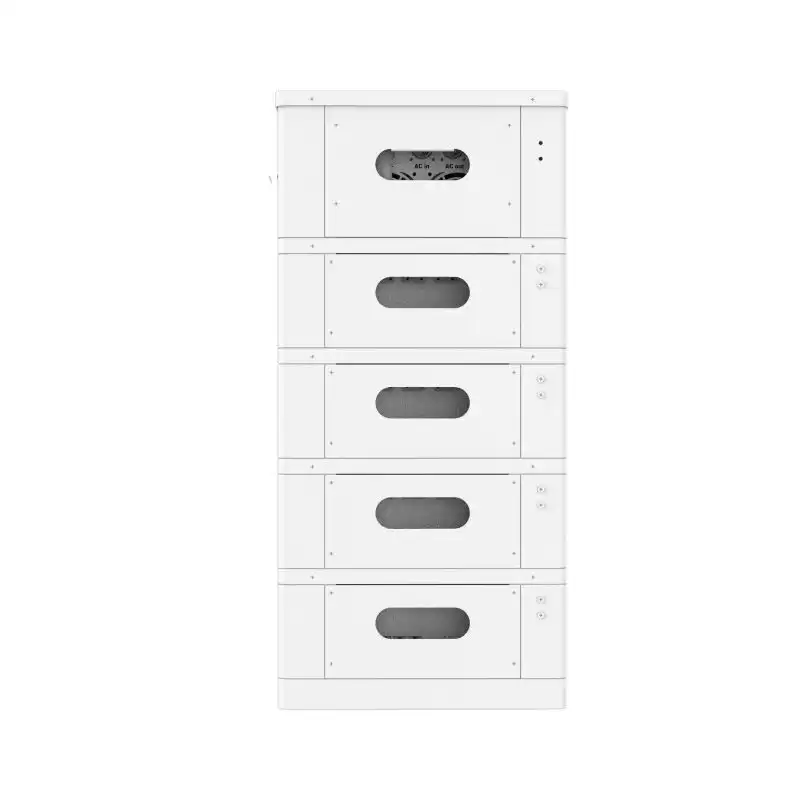

Details Images
Product Paramenters




Basic parameters
Product model
FLB-Z15-YH-MP
FLB-Z15-YH-MS
Type of electric core
Yiwei LFP square electric core - 3.2V100Ah
Rated capacity
100Ah
100Ah
Rated total energy
5.12-40.96kWh
5.12-40.96kWh
Rated voltage
51.2V (single box)
Voltage range
43.2-58.4V
345.6-467.2V


AC side parameters
Rated output power
5000W
Rated output voltage
230Vac(200/208/220/24Vac can be set) ±5%
Output frequency range
50Hz±0.3Hz
60Hz±0.3 Hz
Efficiency
 input>95%, output>90%

PV power generation parameters
Maximum output power
5000W
MPPT voltage range
120~450V
Solar charging current
0~80A settable








system parameter
Weight
single battery box/control box
40kg/15kg
40kg/12kg
Single battery box size (H * W * D)
675*375*160mm
Single control box size (H * W* D)
675*375*190mm
675*375*140mm
Protection grade
 IP54
Cooling mode
natural cooling


Operating environment
Charging
0℃-55℃
Discharge
-20℃-60℃
Storage
-10℃-45℃
Installation type
stacked
Communication mode
CAN,RS485,RS232
Products Description

FAQ

1. Warranty period and spare parts replacement?
      Our products are guaranteed for 3 years, and spare parts can be replaced.

2. Agency market, how to help customers build brands
         We have a mature marketing team and our own independent station, which can help our clients to develop targeted markets.

 3.  Is it possible to OEM? Do you have R&D capability? and non-disclosure agreement
        Yes, OEM can be carried out, and R&D can be carried out according to customer requirements. For products developed by customers, we will have relevant confidentiality agreements to ensure the security of customers' intellectual property rights.

4. How to get samples? Ordinary sample cycle, custom sample cycle?
       For conventional samples, our lead time is 3 days. If you need OEM or research and development, you need to negotiate.
    When price is negotiated, you can consider taking samples, and we will charge the sample fee and shipping fee. These fees will be refunded in bulk


 5.Shipping problem
      1. We will pack the goods perfectly and rent compliant cabins for transportation. We have cooperative and mature customs brokers and freight forwarding companies, as well as mature insurance companies, to ensure the safe transportation of goods in an all-round way.

 6.How To Ask for support if products failure in warranty?
       1. Email us about PI number, serial number,Product S/N number, show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one.
       2. we will submit your case to our local team and solve it in 24 hours.
