Unit No.
|
Shaft Dia
|

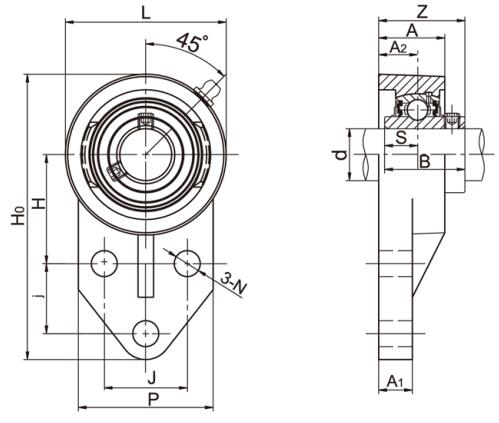

Dimensions(mm)
|
Boit Size (mm)
|
Weight
|
|
d
|
Ho
|
H
|
J
|
j
|
A2
|
A1
|
A
|
N
|
L
|
P
|
B
|
S
|
Z
|
(kg)
|
|
(in)
|
(mm)
|
|
SSUCFB204A
|
|
20
|
108
|
42.9
|
38.1
|
22.2
|
15.9
|
9.5
|
25.4
|
10
|
63.5
|
60.3
|
31
|
12.7
|
34.2
|
M8
|
0.58
|
|
SSUCFB204- 12A
|
3/4
|
|
108
|
42.9
|
38.1
|
22.2
|
15.9
|
9.5
|
25.4
|
10
|
63.5
|
60.3
|
31
|
12.7
|
34.2
|
M8
|
0.58
|
|
SSUCFB205A
|
|
25
|
120.7
|
46
|
41.6
|
28.6
|
16.7
|
11.1
|
29.4
|
10
|
69.1
|
63.5
|
34.1
|
14.3
|
36.4
|
M8
|
0.73
|
|
SSUCFB205-14A
|
7/8
|
|
120.7
|
46
|
41.6
|
28.6
|
16.7
|
11.1
|
29.4
|
10
|
69.1
|
63.5
|
34.1
|
14.3
|
36.4
|
M8
|
0.73
|
|
SSUCFB205-15A
|
15/16
|
|
120.7
|
46
|
41.6
|
28.6
|
16.7
|
11.1
|
29.4
|
10
|
69.1
|
63.5
|
34.1
|
14.3
|
36.4
|
M8
|
0.73
|
|
SSUCFB205-16A
|
1
|
|
120.7
|
46
|
41.6
|
28.6
|
16.7
|
11.1
|
29.4
|
10
|
69.1
|
63.5
|
34.1
|
14.3
|
36.4
|
M8
|
0.73
|
|
SSUCFB206A
|
|
30
|
136.5
|
52.4
|
47.6
|
31.8
|
18.7
|
11.1
|
33.3
|
10
|
82.6
|
70
|
38.1
|
15.9
|
40.8
|
M8
|
1.13
|
|
SSUCFB206-17A
|
1-1/16
|
|
136.5
|
52.4
|
47.6
|
31.8
|
18.7
|
11.1
|
33.3
|
10
|
82.6
|
70
|
38.1
|
15.9
|
40.8
|
M8
|
1.13
|
|
SSUCFB206-18A
|
1-1/8
|
|
136.5
|
52.4
|
47.6
|
31.8
|
18.7
|
11.1
|
33.3
|
10
|
82.6
|
70
|
38.1
|
15.9
|
40.8
|
M8
|
1.13
|
|
SSUCFB206-19A
|
1-3/16
|
|
136.5
|
52.4
|
47.6
|
31.8
|
18.7
|
11.1
|
33.3
|
10
|
82.6
|
70
|
38.1
|
15.9
|
40.8
|
M8
|
1.13
|
|
SSUCFB206-20A
|
1-1/4
|
|
136.5
|
52.4
|
47.6
|
31.8
|
18.7
|
11.1
|
33.3
|
10
|
82.6
|
70
|
38.1
|
15.9
|
40.8
|
M8
|
1.13
|
|
SSUCFB207A
|
|
35
|
155.6
|
60.3
|
50.8
|
31.8
|
21
|
14.3
|
37.3
|
13
|
94.5
|
82.6
|
42.9
|
17.5
|
46.4
|
M10
|
1.70
|
|
SSUCFB207-20A
|
1-1/4
|
|
155.6
|
60.3
|
50.8
|
31.8
|
21
|
14.3
|
37.3
|
13
|
94.5
|
82.6
|
42.9
|
17.5
|
46.4
|
M10
|
1.70
|
|
SSUCFB207-21A
|
1-5/16
|
|
155.6
|
60.3
|
50.8
|
31.8
|
21
|
14.3
|
37.3
|
13
|
94.5
|
82.6
|
42.9
|
17.5
|
46.4
|
M10
|
1.70
|
|
SSUCFB207-22A
|
1-3/8
|
|
155.6
|
60.3
|
50.8
|
31.8
|
21
|
14.3
|
37.3
|
13
|
94.5
|
82.6
|
42.9
|
17.5
|
46.4
|
M10
|
1.70
|
|
SSUCFB207-23A
|
1-7/16
|
|
155.6
|
60.3
|
50.8
|
31.8
|
21
|
14.3
|
37.3
|
13
|
94.5
|
82.6
|
42.9
|
17.5
|
46.4
|
M10
|
1.70
|
Notes: 1.Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example SSUCFB204-12A CC.
2.Lubricated with food grade grease.
