Unit No.
|
Shaft Dia
|

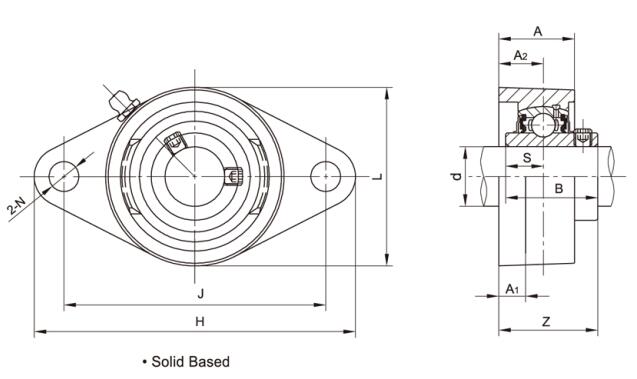

Dimensions(mm)
|
Bolt Size (mm)
|
Weight
|
|
d
|
H
|
J
|
A2
|
A1
|
A
|
N
|
L
|
z
|
B
|
S
|
(kg)
|
|
(in)
|
(mm)
|
|
SSUCFL204A
|
|
20
|
113
|
90
|
15
|
11
|
27
|
12
|
60
|
33.3
|
31
|
12.7
|
M10
|
0.50
|
|
SSUCFL204-12A
|
3/4
|
|
113
|
90
|
15
|
11
|
27
|
12
|
60
|
33.3
|
31
|
12.7
|
M10
|
0.50
|
|
SSUCFL205A
|
|
25
|
130
|
99
|
16
|
13
|
28
|
12.5
|
68
|
35.8
|
34.1
|
14.3
|
M14
|
0.71
|
|
SSUCFL205-14A
|
7/8
|
|
130
|
99
|
16
|
13
|
28
|
12.5
|
68
|
35.8
|
34.1
|
14.3
|
M14
|
0.71
|
|
SSUCFL205-15A
|
15/16
|
|
130
|
99
|
16
|
13
|
28
|
12.5
|
68
|
35.8
|
34.1
|
14.3
|
M14
|
0.71
|
|
SSUCFL205-16A
|
1
|
|
130
|
99
|
16
|
13
|
28
|
12.5
|
68
|
35.8
|
34.1
|
14.3
|
M14
|
0.71
|
|
SSUCFL206A
|
|
30
|
148
|
117
|
18
|
13
|
31
|
12.5
|
79
|
40.2
|
38.1
|
15.9
|
M14
|
1.04
|
|
SSUCFL206-17A
|
1-1/16
|
|
148
|
117
|
18
|
13
|
31
|
12.5
|
79
|
40.2
|
38.1
|
15.9
|
M14
|
1.04
|
|
SSUCFL206-18A
|
1-1/8
|
|
148
|
117
|
18
|
13
|
31
|
12.5
|
79
|
40.2
|
38.1
|
15.9
|
M14
|
1.04
|
|
SSUCFL206-19A
|
1-3/16
|
|
148
|
117
|
18
|
13
|
31
|
12.5
|
79
|
40.2
|
38.1
|
15.9
|
M14
|
1.04
|
|
SSUCFL206-20A
|
1-1/4
|
|
148
|
117
|
18
|
13
|
31
|
12.5
|
79
|
40.2
|
38.1
|
15.9
|
M14
|
1.04
|
|
SSUCFL207A
|
|
35
|
161
|
130
|
19
|
14
|
34
|
14
|
90
|
44.4
|
42.9
|
17.5
|
M14
|
1.38
|
|
SSUCFL207-20A
|
1-1/4
|
|
161
|
130
|
19
|
14
|
34
|
14
|
90
|
44.4
|
42.9
|
17.5
|
M14
|
1.38
|
|
SSUCFL207-21A
|
1-5/16
|
|
161
|
130
|
19
|
14
|
34
|
14
|
90
|
44.4
|
42.9
|
17.5
|
M14
|
1.38
|
|
SSUCFL207-22A
|
1-3/8
|
|
161
|
130
|
19
|
14
|
34
|
14
|
90
|
44.4
|
42.9
|
17.5
|
M14
|
1.38
|
|
SSUCFL207-23A
|
1-7/16
|
|
161
|
130
|
19
|
14
|
34
|
14
|
90
|
44.4
|
42.9
|
17.5
|
M14
|
1.38
|
|
SSUCFL208A
|
|
40
|
175
|
144
|
21
|
15
|
36
|
14
|
100
|
51.2
|
49.2
|
19
|
M14
|
1.73
|
|
SSUCFL208-24A
|
1-1/2
|
|
175
|
144
|
21
|
15
|
36
|
14
|
100
|
51.2
|
49.2
|
19
|
M14
|
1.73
|
|
SSUCFL208-25A
|
1-9/16
|
|
175
|
144
|
21
|
15
|
36
|
14
|
100
|
51.2
|
49.2
|
19
|
M14
|
1.73
|
|
SSUCFL209A
|
|
45
|
187
|
148
|
22
|
16
|
38
|
16
|
108
|
52.2
|
49.2
|
19
|
M16
|
2.07
|
|
SSUCFL209-26A
|
1-5/8
|
|
187
|
148
|
22
|
16
|
38
|
16
|
108
|
52.2
|
49.2
|
19
|
M16
|
2.07
|
|
SSUCFL209-27A
|
1-11/16
|
|
187
|
148
|
22
|
16
|
38
|
16
|
108
|
52.2
|
49.2
|
19
|
M16
|
2.07
|
|
SSUCFL209-28A
|
1-3/4
|
|
187
|
148
|
22
|
16
|
38
|
16
|
108
|
52.2
|
49.2
|
19
|
M16
|
2.07
|
|
SSUCFL210A
|
|
50
|
195
|
157
|
22
|
16
|
40
|
16
|
115
|
54.6
|
51.6
|
19
|
M16
|
2.47
|
|
SSUCFL210-30A
|
1-7/8
|
|
195
|
157
|
22
|
16
|
40
|
16
|
115
|
54.6
|
51.6
|
19
|
M16
|
2.47
|
|
SSUCFL210-31A
|
1-15/16
|
|
195
|
157
|
22
|
16
|
40
|
16
|
115
|
54.6
|
51.6
|
19
|
M16
|
2.47
|
|
SSUCFL210-32A
|
2
|
|
195
|
157
|
22
|
16
|
40
|
16
|
115
|
54.6
|
51.6
|
19
|
M16
|
2.47
|

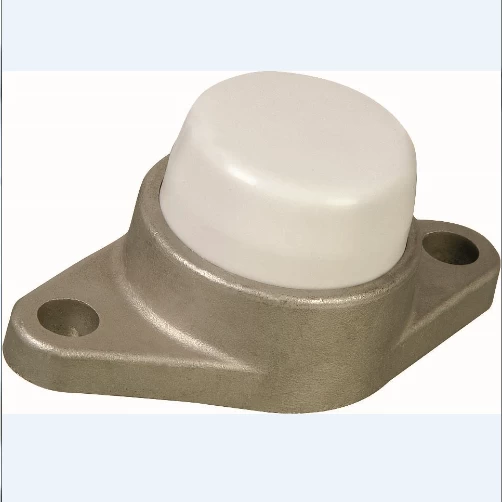

Notes:1.Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example SSUCFL204-12A CC.
2.Back seal is available when mounted with SSB inserts.
3. Hand polishing surface housing available upon request. Ordering example SSUCFL204-12A HP
4.Lubricated with food grade grease.
