Unit No.
|
Shaft Dia
|

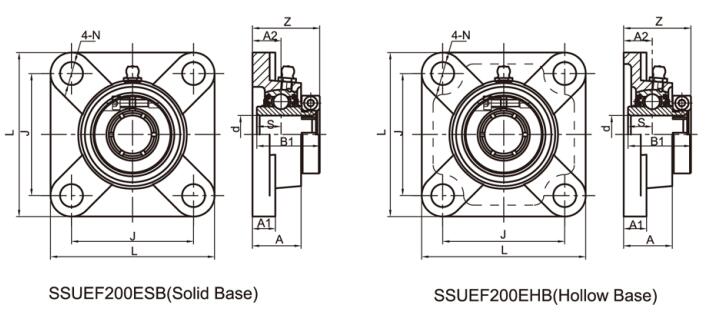

Dimensions(mm)
|
Bolt
Size (mm)
|
Weight
(kg)
|
|
Hollow Base Housing
|
Solid
Base Housing
|
d
|
L
|
J
|
A2
|
A1
|
A
|
N
|
Z
|
B1
|
S
|
|
(in)
|
(mm)
|
|
SSUEF204EHB
|
SSUEF204ESB
|
|
20
|
86
|
64
|
15
|
12
|
25.5
|
12
|
35.3
|
33
|
12.7
|
M10
|
0.72
|
|
SSUEF204-12EHB
|
SSUEF204-12ESB
|
3/4
|
|
86
|
64
|
15
|
12
|
25.5
|
12
|
35.3
|
33
|
12.7
|
M10
|
0.72
|
|
SSUEF205EHB
|
SSUEF205ESB
|
|
25
|
95
|
70
|
16
|
14.3
|
27
|
12
|
37.1
|
35.4
|
14.3
|
M10
|
0.99
|
|
SSUEF205-14EHB
|
SSUEF205-14ESB
|
7/8
|
|
95
|
70
|
16
|
14.3
|
27
|
12
|
37.1
|
35.4
|
14.3
|
M10
|
0.99
|
|
SSUEF205-15EHB
|
SSUEF205-15ESB
|
15/16
|
|
95
|
70
|
16
|
14.3
|
27
|
12
|
37.1
|
35.4
|
14.3
|
M10
|
0.99
|
|
SSUEF205-16EHB
|
SSUEF205-16ESB
|
1
|
|
95
|
70
|
16
|
14.3
|
27
|
12
|
37.1
|
35.4
|
14.3
|
M10
|
0.99
|
|
SSUEF206EHB
|
SSUEF206ESB
|
|
30
|
108
|
83
|
18
|
14
|
31
|
12
|
41.9
|
39.8
|
15.9
|
M14
|
1.33
|
|
SSUEF206-17EHB
|
SSUEF206-17ESB
|
1-1/16
|
|
108
|
83
|
18
|
14
|
31
|
12
|
41.9
|
39.8
|
15.9
|
M14
|
1.33
|
|
SSUEF206-18EHB
|
SSUEF206-18ESB
|
1-1/8
|
|
108
|
83
|
18
|
14
|
31
|
12
|
41.9
|
39.8
|
15.9
|
M14
|
1.33
|
|
SSUEF206-19EHB
|
SSUEF206-19ESB
|
1-3/16
|
|
108
|
83
|
18
|
14
|
31
|
12
|
41.9
|
39.8
|
15.9
|
M14
|
1.33
|
|
SSUEF206-20EHB
|
SSUEF206-20ESB
|
1-1/4
|
|
108
|
83
|
18
|
14
|
31
|
12
|
41.9
|
39.8
|
15.9
|
M14
|
1.33
|
|
SSUEF207EHB
|
SSUEF207ESB
|
|
35
|
117
|
92
|
19
|
15.9
|
34
|
14
|
43.4
|
43.9
|
17.5
|
M14
|
1.81
|
|
SSUEF207-20EHB
|
SSUEF207-20ESB
|
1-1/4
|
|
117
|
92
|
19
|
15.9
|
34
|
14
|
43.4
|
43.9
|
17.5
|
M14
|
1.81
|
|
SSUEF207-21EHB
|
SSUEF207-21ESB
|
1-5/16
|
|
117
|
92
|
19
|
15.9
|
34
|
14
|
43.4
|
43.9
|
17.5
|
M14
|
1.81
|
|
SSUEF207-22EHB
|
SSUEF207-22ESB
|
1-3/8
|
|
117
|
92
|
19
|
15.9
|
34
|
14
|
43.4
|
43.9
|
17.5
|
M14
|
1.81
|
|
SSUEF207-23EHB
|
SSUEF207-23ESB
|
1-7/16
|
|
117
|
92
|
19
|
15.9
|
34
|
14
|
43.4
|
43.9
|
17.5
|
M14
|
1.81
|
|
SSUEF208EHB
|
SSUEF208ESB
|
|
40
|
130
|
102
|
21
|
15.9
|
36
|
16
|
52.2
|
50.2
|
19
|
M14
|
2.2
|
|
SSUEF208-24EHB
|
SSUEF208-24ESB
|
1-1/2
|
|
130
|
102
|
21
|
15.9
|
36
|
16
|
52.2
|
50.2
|
19
|
M14
|
2.2
|
|
SSUEF208-25EHB
|
SSUEF208-25ESB
|
1-9/16
|
|
130
|
102
|
21
|
15.9
|
36
|
16
|
52.2
|
50.2
|
19
|
M14
|
2.2
|
|
SSUEF209EHB
|
SSUEF209ESB
|
|
45
|
137
|
105
|
22
|
16.7
|
38
|
16
|
53.2
|
50.2
|
19
|
M14
|
2.72
|
|
SSUEF209-26EHB
|
SSUEF209-26ESB
|
1-5/8
|
|
137
|
105
|
22
|
16.7
|
38
|
16
|
53.2
|
50.2
|
19
|
M14
|
2.72
|
|
SSUEF209-27EHB
|
SSUEF209-27ESB
|
1-11/16
|
|
137
|
105
|
22
|
16.7
|
38
|
16
|
53.2
|
50.2
|
19
|
M14
|
2.72
|
|
SSUEF209-28EHB
|
SSUEF209-28ESB
|
1-3/4
|
|
137
|
105
|
22
|
16.7
|
38
|
16
|
53.2
|
50.2
|
19
|
M14
|
2.72
|
|
SSUEF210EHB
|
SSUEF210ESB
|
|
50
|
143
|
111
|
22
|
15.9
|
40
|
16
|
55.6
|
52.6
|
19
|
M16
|
2.96
|
|
SSUEF210-30EHB
|
SSUEF210-30ESB
|
1-7/8
|
|
143
|
111
|
22
|
15.9
|
40
|
16
|
55.6
|
52.6
|
19
|
M16
|
2.96
|
|
SSUEF210-31EHB
|
SSUEF210-31ESB
|
1-15/16
|
|
143
|
111
|
22
|
15.9
|
40
|
16
|
55.6
|
52.6
|
19
|
M16
|
2.96
|
|
SSUEF210-32EHB
|
SSUEF210-32ESB
|
2
|
|
143
|
111
|
22
|
15.9
|
40
|
16
|
55.6
|
52.6
|
19
|
M16
|
2.96
|
|
SSUEF211EHB
|
SSUEF211ESB
|
|
55
|
162
|
130
|
25
|
18
|
43
|
19
|
59.4
|
56.6
|
22.2
|
M16
|
4.21
|
|
SSUEF211-32EHB
|
SSUEF211-32ESB
|
2
|
|
162
|
130
|
25
|
18
|
43
|
19
|
59.4
|
56.6
|
22.2
|
M16
|
4.21
|
|
SSUEF211-34EHB
|
SSUEF211-34ESB
|
2-1/8
|
|
162
|
130
|
25
|
18
|
43
|
19
|
59.4
|
56.6
|
22.2
|
M16
|
4.21
|
|
SSUEF211-35EHB
|
SSUEF211-35ESB
|
2-3/16
|
|
162
|
130
|
25
|
18
|
43
|
19
|
59.4
|
56.6
|
22.2
|
M16
|
4.21
|
|
SSUEF212EHB
|
SSUEF212ESB
|
|
60
|
175
|
143
|
29
|
18
|
48
|
19
|
70.2
|
66.6
|
25.4
|
M16
|
5.23
|
|
SSUEF212-36EHB
|
SSUEF212-36ESB
|
2-1/4
|
|
175
|
143
|
29
|
18
|
48
|
19
|
70.2
|
66.6
|
25.4
|
M16
|
5.23
|
|
SSUEF212-38EHB
|
SSUEF212-38ESB
|
2-3/8
|
|
175
|
143
|
29
|
18
|
48
|
19
|
70.2
|
66.6
|
25.4
|
M16
|
5.23
|
|
SSUEF212-39EHB
|
SSUEF212-39ESB
|
2-7/16
|
|
175
|
143
|
29
|
18
|
48
|
19
|
70.2
|
66.6
|
25.4
|
M16
|
5.23
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Notes: 1.Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example SSUEF204-12ESB CC.
2.Lubricated with food grade grease.
