Unit No.
|
Shaft Dia
|

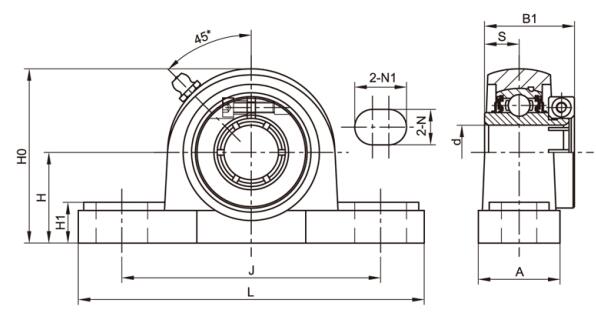

Dimensions(mm)
|
Bolt Size (mm)
|
Weight
|
|
d
|
H
|
L
|
J
|
A
|
N
|
N1
|
H1
|
Ho
|
B1
|
S
|
(kg)
|
|
(in)
|
(mm)
|
|
SSUEP204 ESB
|
|
20
|
33.3
|
127
|
95
|
38
|
13
|
19
|
15
|
64
|
33
|
12.7
|
M10
|
0.81
|
|
SSUEP204-12
ESB
|
3/4
|
|
33.3
|
127
|
95
|
38
|
13
|
19
|
15
|
64
|
33
|
12.7
|
M10
|
0.81
|
|
SSUEP205 ESB
|
|
25
|
36.5
|
140
|
105
|
38
|
13
|
19
|
16.5
|
70
|
35.4
|
14.3
|
M10
|
0.98
|
|
SSUEP205-14
ESB
|
7/8
|
|
36.5
|
140
|
105
|
38
|
13
|
19
|
16.5
|
70
|
35.4
|
14.3
|
M10
|
0.98
|
|
SSUEP205-15
ESB
|
15/16
|
|
36.5
|
140
|
105
|
38
|
13
|
19
|
16.5
|
70
|
35.4
|
14.3
|
M10
|
0.98
|
|
SSUEP205-16 ESB
|
1
|
|
36.5
|
140
|
105
|
38
|
13
|
19
|
16.5
|
70
|
35.4
|
14.3
|
M10
|
0.98
|
|
SSUEP206 ESB
|
|
30
|
42.9
|
165
|
121
|
48
|
17
|
21
|
18
|
82
|
39.8
|
15.9
|
M12
|
1.53
|
|
SSUEP206-17 ESB
|
1-1/16
|
|
42.9
|
165
|
121
|
48
|
17
|
21
|
18
|
82
|
39.8
|
15.9
|
M12
|
1.53
|
|
SSUEP206-18 ESB
|
1-1/8
|
|
42.9
|
165
|
121
|
48
|
17
|
21
|
18
|
82
|
39.8
|
15.9
|
M12
|
1.53
|
|
SSUEP206-19 ESB
|
1-3/16
|
|
42.9
|
165
|
121
|
48
|
17
|
21
|
18
|
82
|
39.8
|
15.9
|
M12
|
1.53
|
|
SSUEP206-20 ESB
|
1-1/4
|
|
42.9
|
165
|
121
|
48
|
17
|
21
|
18
|
82
|
39.8
|
15.9
|
M12
|
1.53
|
|
SSUEP207 ESB
|
|
35
|
47.6
|
167
|
127
|
48
|
17
|
21
|
19
|
92
|
43.9
|
17.5
|
M12
|
2.03
|
|
SSUEP207-20 ESB
|
1-1/4
|
|
47.6
|
167
|
127
|
48
|
17
|
21
|
19
|
92
|
43.9
|
17.5
|
M12
|
2.03
|
|
SSUEP207-21 ESB
|
1-5/16
|
|
47.6
|
167
|
127
|
48
|
17
|
21
|
19
|
92
|
43.9
|
17.5
|
M12
|
2.03
|
|
SSUEP207-22 ESB
|
1-3/8
|
|
47.6
|
167
|
127
|
48
|
17
|
21
|
19
|
92
|
43.9
|
17.5
|
M12
|
2.03
|
|
SSUEP207-23 ESB
|
1-7/16
|
|
47.6
|
167
|
127
|
48
|
17
|
21
|
19
|
92
|
43.9
|
17.5
|
M12
|
2.03
|
|
SSUEP208 ESB
|
|
40
|
49.2
|
184
|
137
|
54
|
17
|
22
|
19
|
99
|
50.2
|
19
|
M12
|
2.38
|
|
SSUEP208-24 ESB
|
1-1/2
|
|
49.2
|
184
|
137
|
54
|
17
|
22
|
19
|
99
|
50.2
|
19
|
M12
|
2.38
|
|
SSUEP208-25 ESB
|
1-9/16
|
|
49.2
|
184
|
137
|
54
|
17
|
22
|
19
|
99
|
50.2
|
19
|
M12
|
2.38
|
|
SSUEP209 ESB
|
|
45
|
54
|
190
|
146
|
54
|
17
|
22
|
20
|
108
|
50.2
|
19
|
M12
|
2.83
|
|
SSUEP209-26
ESB
|
1-5/8
|
|
54
|
190
|
146
|
54
|
17
|
22
|
20
|
108
|
50.2
|
19
|
M12
|
2.83
|
|
SSUEP209-27
ESB
|
1-11/16
|
|
54
|
190
|
146
|
54
|
17
|
22
|
20
|
108
|
50.2
|
19
|
M12
|
2.83
|
|
SSUEP209-28 ESB
|
1-3/4
|
|
54
|
190
|
146
|
54
|
17
|
22
|
20
|
108
|
50.2
|
19
|
M12
|
2.83
|
|
SSUEP210 ESB
|
|
50
|
57.2
|
206
|
159
|
60
|
20
|
25
|
22
|
112
|
52.6
|
19
|
M16
|
3.39
|
|
SSUEP210-30
ESB
|
1-7/8
|
|
57.2
|
206
|
159
|
60
|
20
|
25
|
22
|
112
|
52.6
|
19
|
M16
|
3.39
|
|
SSUEP210-31
ESB
|
1-15/16
|
|
57.2
|
206
|
159
|
60
|
20
|
25
|
22
|
112
|
52.6
|
19
|
M16
|
3.39
|
|
SSUEP210-32 ESB
|
2
|
|
57.2
|
206
|
159
|
60
|
20
|
25
|
22
|
112
|
52.6
|
19
|
M16
|
3.39
|
|
SSUEP211 ESB
|
|
55
|
63.5
|
219
|
171
|
60
|
20
|
25
|
23
|
124
|
56.6
|
22.2
|
M16
|
4.06
|
|
SSUEP211-32
ESB
|
2
|
|
63.5
|
219
|
171
|
60
|
20
|
25
|
23
|
124
|
56.6
|
22.2
|
M16
|
4.06
|
|
SSUEP211-34
ESB
|
2-1/8
|
|
63.5
|
219
|
171
|
60
|
20
|
25
|
23
|
124
|
56.6
|
22.2
|
M16
|
4.06
|
|
SSUEP211-35 ESB
|
2-3/16
|
|
63.5
|
219
|
171
|
60
|
20
|
25
|
23
|
124
|
56.6
|
22.2
|
M16
|
4.06
|
|
SSUEP212 ESB
|
|
60
|
69.9
|
238
|
184
|
70
|
20
|
25
|
25
|
137
|
66.6
|
25.4
|
M16
|
5.68
|
|
SSUEP212-36
ESB
|
2-1/4
|
|
69.9
|
238
|
184
|
70
|
20
|
25
|
25
|
137
|
66.6
|
25.4
|
M16
|
5.68
|
|
SSUEP212-38
ESB
|
2-3/8
|
|
69.9
|
238
|
184
|
70
|
20
|
25
|
25
|
137
|
66.6
|
25.4
|
M16
|
5.68
|
|
SSUEP212-39 ESB
|
2-7/16
|
|
69.9
|
238
|
184
|
70
|
20
|
25
|
25
|
137
|
66.6
|
25.4
|
M16
|
5.68
|
Notes:1.Grease fittings also available at 90° positions.
2.Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example: SSUEP204-12ESB CC.
3.Lubricated with food grade grease.
