Product Details:

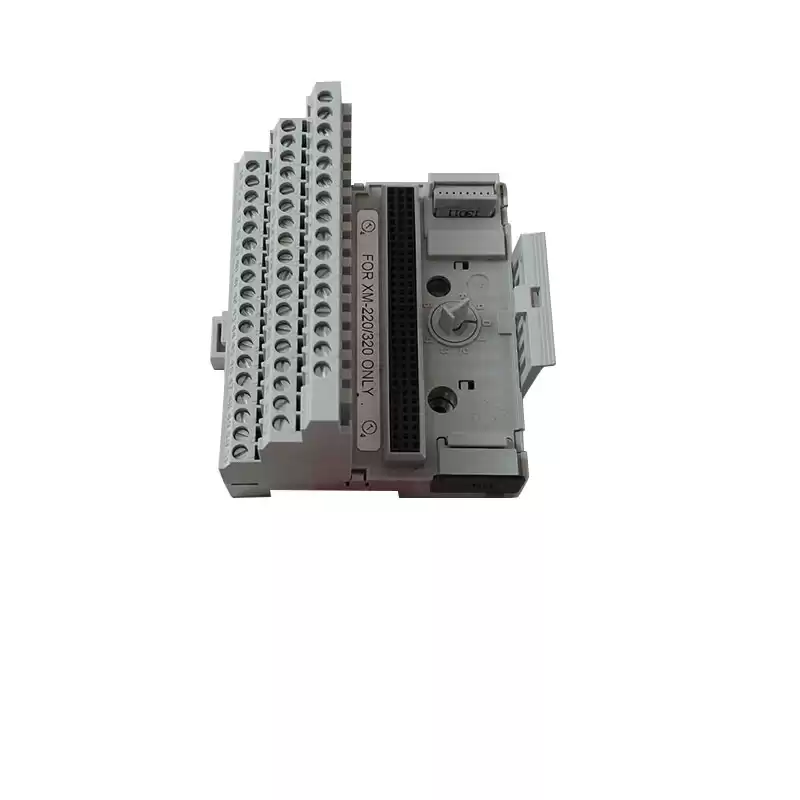

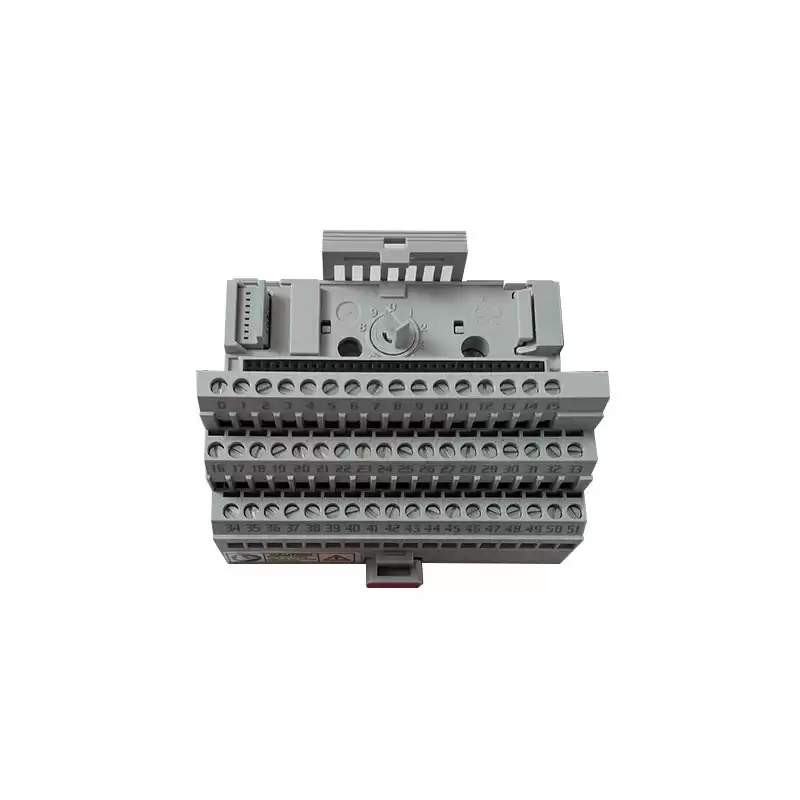

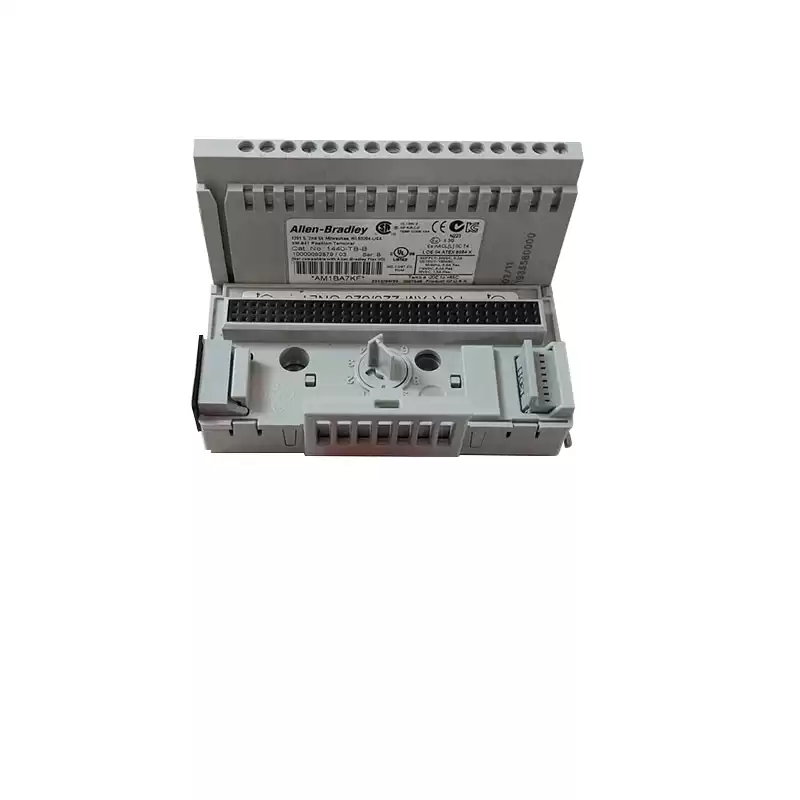

- 1440 Series Terminal Base B
- Screw clamp base for use with all 1440-xx- 01RB measurement modules
- Size (WxDxH): 3 875 x 3.75 x 2.25 inches / 98.4 x 95.3 x 57.2mm
- Temperature Range: -20°C to +65°C
- Requires Class 2 21.6 to 26.4VDC Power Supply
- Number of slots: 1
- With integrated power supply: No
- Front built-in possible: No
- Input voltage at DC : 24 V
- Type of voltage (input voltage): DC
- Terminal screw torque: 0.8 Nm
- Side connector: Interconnect to adjacent modules passes primary power (3 A max), DeviceNet protocol and power (300 mA max), and the circuits necessary to support expansion modules.
- Operating temperature: -20 °C
- Relative humidity: 95% noncondensing
- Storage temperature: -40 °C
- Supported XM Modules: XM-220, XM-320
