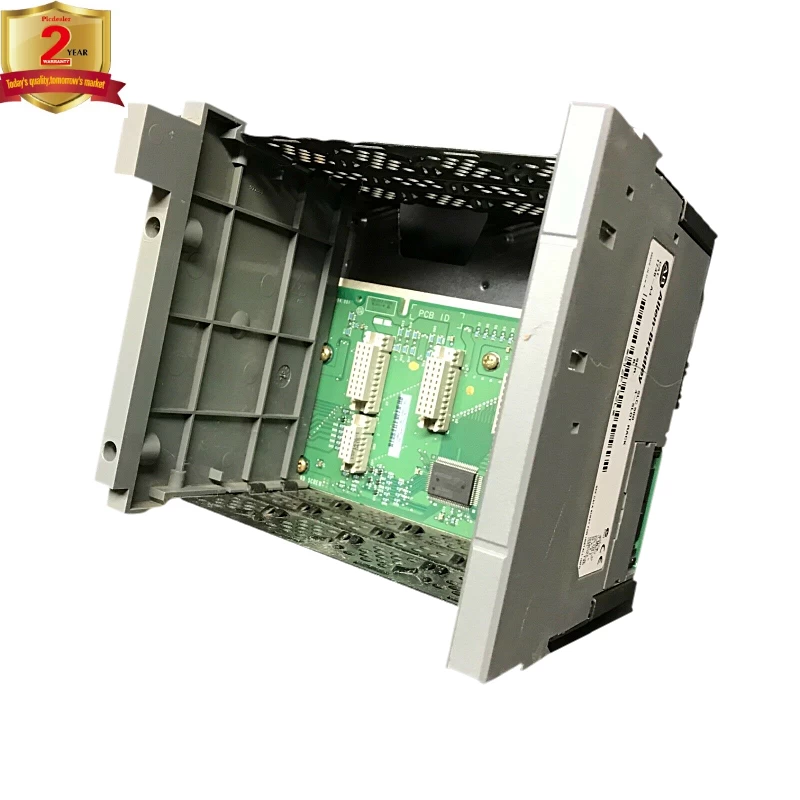

The Allen Bradley 1746-A4 is a four-slot
chassis that is made to house processors from the SLC 500 family of
programmable controllers. The 1746-A4 must have its own power
supply, which can be mounted on the left side of the chassis. The 1746-A4 modular
chassis holds the processor or I/O adapter module and the I/O modules. The
modular chassis offers advanced flexibility during system configuration. For
extension, three I/O chassis can be interconnected using chassis interconnect
cables. The 1746-C7, 1746-C9, and 1746-C16 cables can
be used for interconnecting.
The modules inside
the 1746-A4 can be arranged in any order and in any side of
the chassis. The required spacing for the modules inside the 1746-A4 is
a minimum of 6.0 inches between the modules and the upper part of the chassis,
a minimum of 4.0 inches between the modules and the right/left sides of the
chassis, and 6.0-8.0 inches between chassis when more than one chassis is used.
When installing
the 1746-A4 chassis, make holes in the enclosure’s back panel to
introduce chassis mounting. Install the hardware for the top mounting tabs.
Slide the chassis over the installed hardware and tighten the screws. Install
the remaining hardware tab leaving the far right and left tabs open to cater
for grounding. The 1746-A4 has a maximum backplane current of
10A. The chassis weighs 0.75kg when not loaded. Dimensions for the 1746-A4 are
177mm x 68mm x 145mm. The 1746-A4 has 0° C minimum operating
temperature and 60° C maximum operating temperature.
