Allen-Bradley 1746-ITB16 SLC 500 Series C Input Module
Contact: Miya
Job Title: Sales Manager
Skype: live:miyazheng520
Email: sales@amikon.cn
Tel: 86-18020776792(Whats App )
QQ :2851195450
ATTENTION!
PAYMENT: T/T 100% IN ADVANCE
Lead Time : 3-5 Days
Minimum Order Quantity : 1 Piece
Warranty : 1 Year
Shipment: DHL,UPS,FEDEX,ARAMAX,TNT,etc.
1746-ITB16
Brand Name AB
Product reference 1746-ITB16
Input Catalog Numbers 1746-IA4, 1746-IA8, 1746-IA16, 1746-IB8, 1746-IB16, 1746-IC16, 1746-IG16, 1746-IH16, 1746-IM4, 1746-IM8, 1746-IM16, 1746-IN16, 1746-ITB16, 1746-ITV16, 1746-IV8, 1746-IV16 Output Catalog Numbers 1746-OA8, 1746-OA16, 1746-OAP12, 1746-OB8, 1746-OB6EI, 1746-OB16, 1746-OB16E, 1746-OBP8, 1746-OBP16, 1746-OG16, 1746-OV8, 1746-OV16, 1746-OVP16, 1746-OW4, 1746-OW8, 1746-OW16, 1746-OX8 Combination Input/Output Catalog Numbers 1746-IO4, 1746-IO8, 1746-IO12, 1746-IO12DC

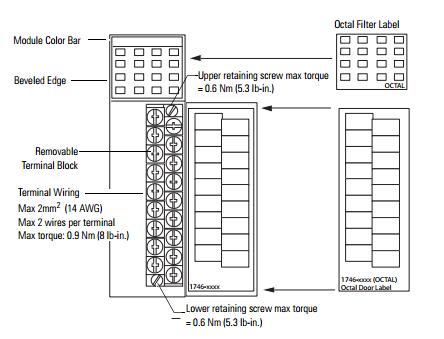

The octal label kit consists of an octal filter label and a door label. Use these octal labels to replace the decimal labels that are attached to the I/O modules. Apply the Octal Filter Label 1. Remove the octal filter label from its paper carrier. 2. Align the octal filter label numbers horizontally to the module color bar and over the decimal filter numbers. Refer to Installing Octal Labels on page 7 for filter label placement. 3. Apply the octal label to the filter. 4. Press firmly to be sure that the label adheres properly. Apply the Octal Door Label 1. Remove the octal door label from its paper carrier. 2. Align the octal label directly over the decimal door label on the inside of the door. Refer to Installing Octal Labels on page 7 for door label placement. 3. Press firmly to be sure that the label adheres properly. Removable Terminal Blocks Colored terminal blocks are removable by loosening the upper and lower retaining screws. Black terminal blocks are not removable. TIP The octal label kit can be obtained from your Allen-Bradley distributor. The octal kit is ordered based on the catalog number of the I/O module. Please refer to the SLC 500 Modular Hardware Style User Manual, publication 1747-UM011, for a listing of octal label kit catalog numbers.
