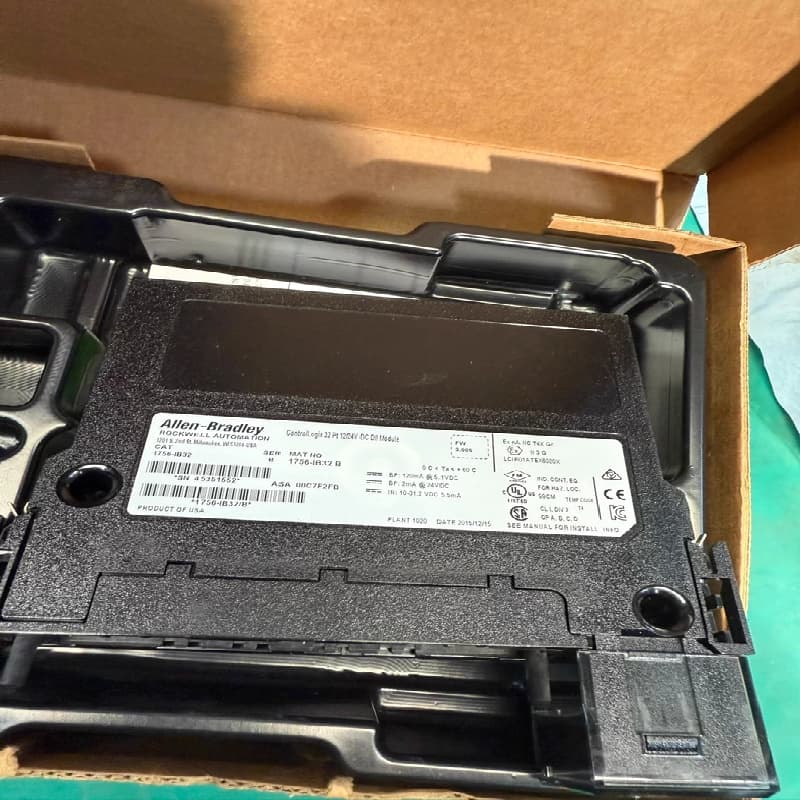

Q: What types of field devices can the 1756-IB32 connect to?
A: It can connect to various digital output devices, such as limit switches, proximity switches, photoelectric sensors, pushbuttons, selector switches, relay contacts, etc. It converts the ON/OFF state of these devices into logic signals that the controller can read.
Q: How do I set the input filter time on the 1756-IB32? What is its purpose?
A: The input filter time can be configured individually for each input group using programming software (such as Studio 5000). Optional filter times include 0, 1, and 2 ms (rising edge) and additional 9 and 18 ms (falling edge). Setting the filter time can effectively eliminate erroneous signals caused by switch bounce or electrical noise, ensuring stable and reliable input signals. For fast-response applications, a shorter filter time can be selected; for environments with interference, a longer filter time should be selected.
Q: In which racks can the 1756-IB32 be installed? What accessories are required?
A: It has good compatibility. This module occupies one slot and can be installed in any standard ControlLogix 1756 series rack (including 1756-A17, A13, A10, A7, A4, etc.). A removable terminal block (RTB), model 1756-TBCH or 1756-TBS6H, is required for installation to connect field signal cables.
