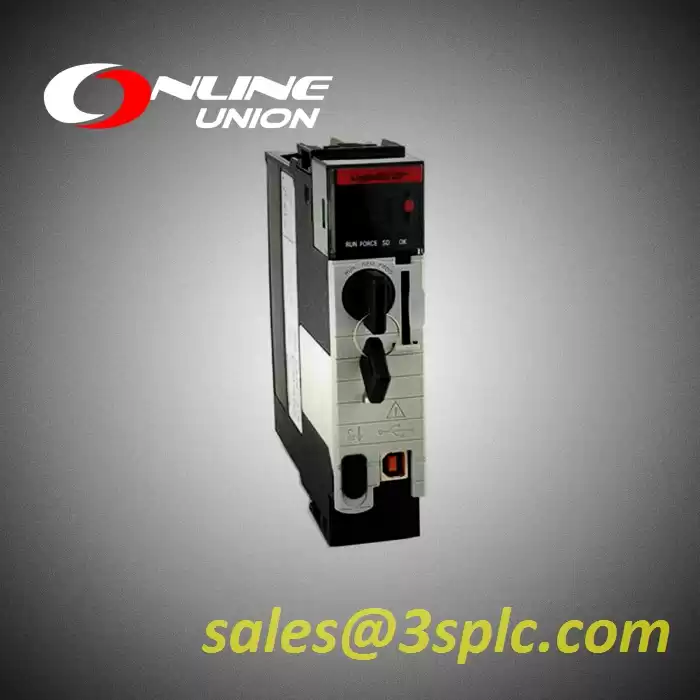

ALLEN BRADLEY 1756-L73S is a 5570 GuardLogix Programmable Automation Controller

ALLEN BRADLEY 1756-L73S controller features standard and integrated safety functions, embedded with 8 MB user memory



ALLEN BRADLEY 1756-L73S is a 5570 GuardLogix Programmable Automation Controller

The 1756-L73S comes with 8 MB standard user memory, Safety memory amounting to 4MB, and I/O memory of 0.98 MB. It ships with 1756-SD1 Secure Digital (SD) card with memory size amounting to 1 GB non-volatile memory. The embedded communication port of the 1756-L71S is a single USB communication port that may be used only for programming, hardware configuration and online editing, it cannot be used for industrial communication. With the embedded memory capability, the 1756-L73S supports maximum of 128,000 Discrete I/O points and 4000 Analog I/O points.

The 1756-L73S is an environmentally friendly processor as it is installed with 1756-ESMCAP capacitor energy storage module which is removable and pre-installed within every controller. It may be replaced with 1756-ESMNSE or 1756-ESMNRM. All this energy storage module are capacitor based, eliminating the need of Lithium batteries.

The 1756-L73S when used with the appropriate partner controller, is certified SIL 3 and PLe, compatible for similarly safety rated applications. Standard controller functions may be programmed using Relay Ladder Logic (RLL), Structured Text, Function Block Diagram, Sequential Function Chart (SFC) while for ssafety task, only Relay Ladder Logix is permitted.

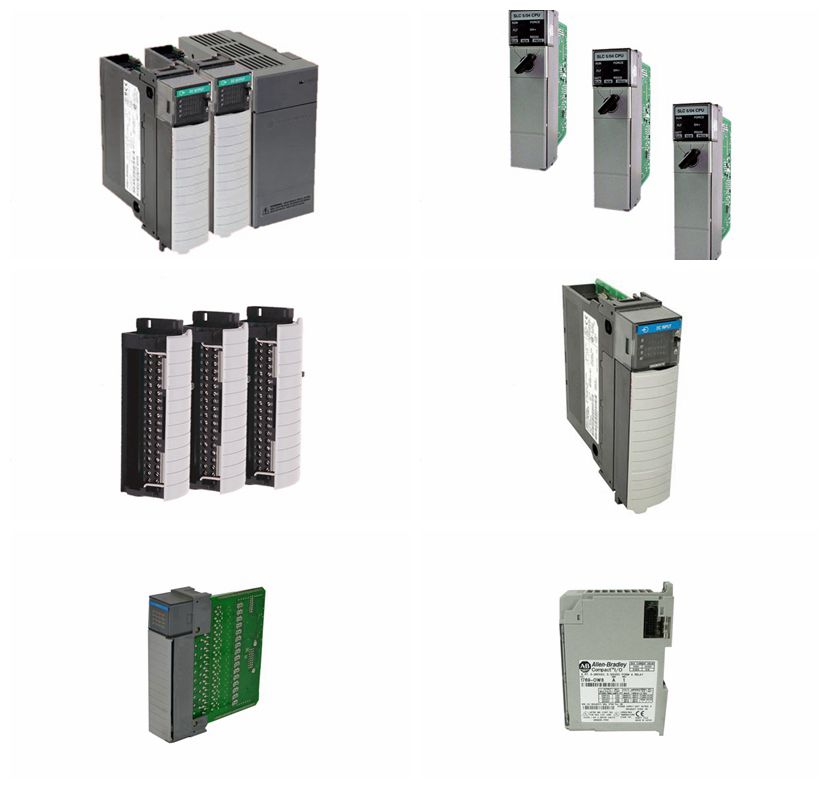

Allen Bradley Main Products:

SLC500:1747/1746 series
2.MicroLogix: 1761/1763/1762/1766/1764 series
3.CompactLogix: 1769/1768 series
4. The ControlLogix: 1756/1794/1760/1788 series
5. PLC-5:1771/1785 series
6.2711,2711P PanelView man-machine interface, touch screen, operation panel
7. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150



1746SC-IN04VI 07KT92  T8449
1769-L36ERMS 07KT92 GJR5250500R0262  T9110
1756-CN2 07KT92 GJR5250500R0902  T8153
1784-PM16SE 07KT93  T3481
1756-IB16I 07KT94 GJR5252100R3261  T8200
1734-OB4E 07KT97  T8448
1771-IB 07KT97 GJR5253000R0200  T8805
1747-L543 07KT97 GJR5253000R0276  T8314
1769-OF8V 07KT97 WT97 GJR5253000R0270  T8220
2711C-T4T 07KT97 WT97 GJR5253000R4270  T8433
1756-L71 07KT97B GJR5253000R0262  T8272
2711-T5A10L1 07KT97B GJR5253000R0268  T9802
1769-L23E-QB1B 07KT97B GJR5253000R0277  T8122
