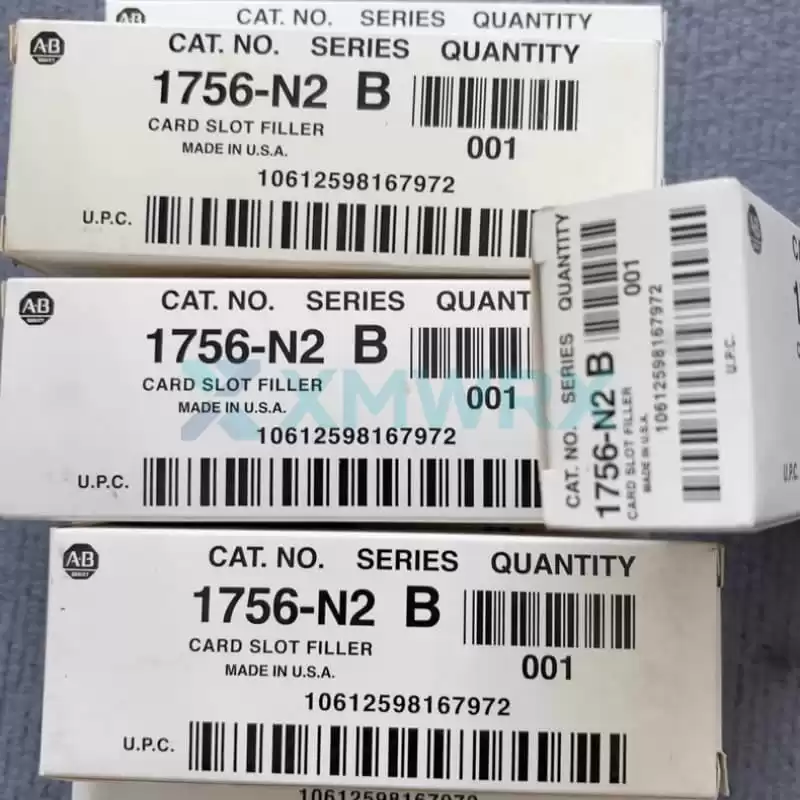

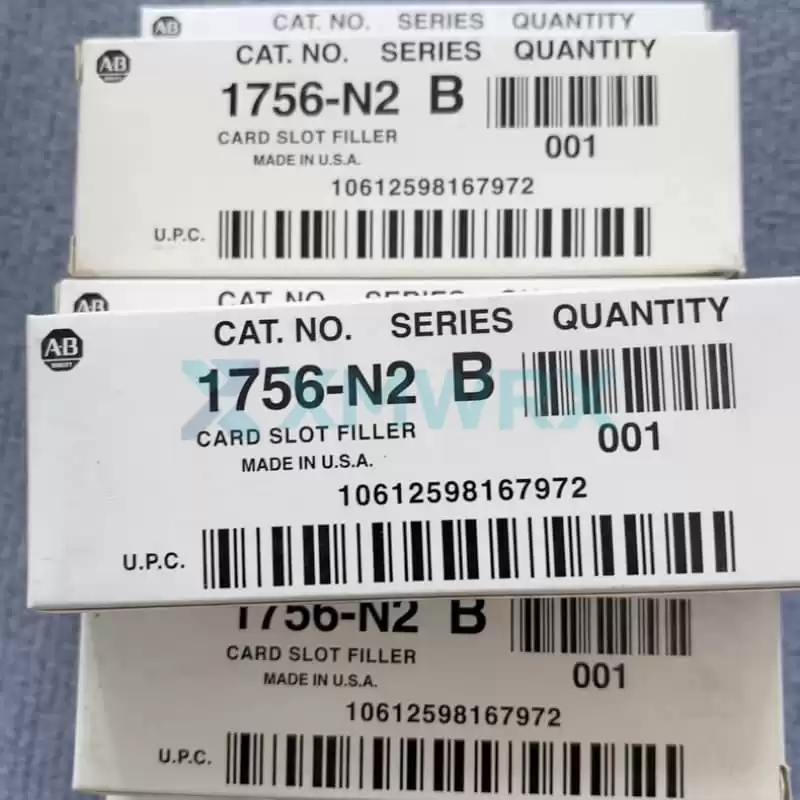

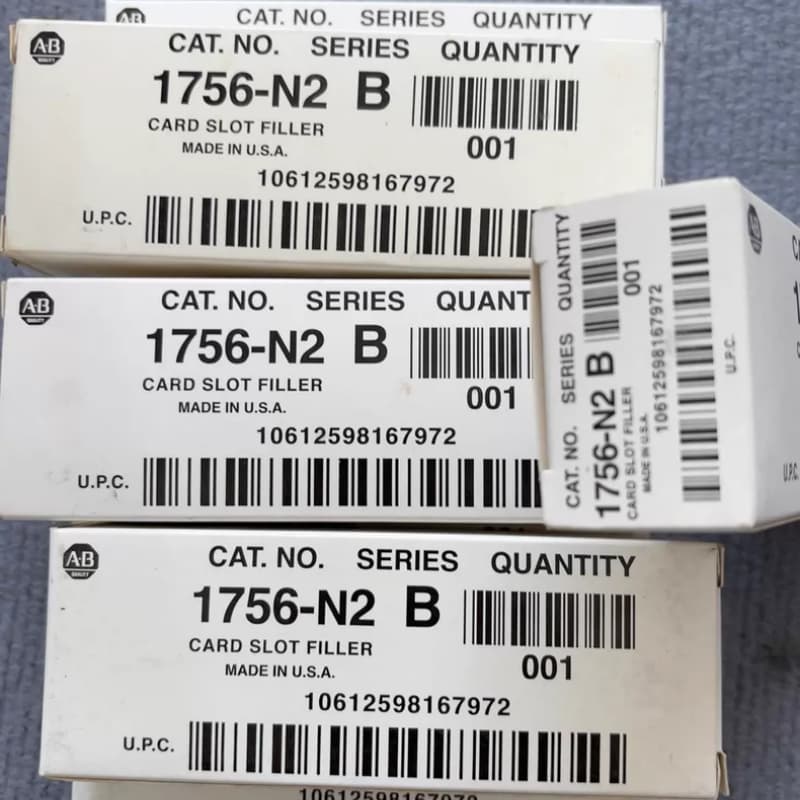

Q: What is the practical purpose of the 1756-N2 empty slot filler module? Is it okay not to install it?
A: Installation is recommended. Although empty slots in ControlLogix racks can be used without any modules, this exposes the backplane connectors. In industrial environments, dust, conductive debris, or corrosive gases can enter and damage these high-precision contacts, leading to poor contact issues during future module installations. Furthermore, empty slots disrupt airflow within the rack, potentially affecting heat dissipation for adjacent modules. Using the 1756-N2 cover is an industry-recommended best practice, effectively ensuring long-term system reliability.
Q: Does the 1756-N2 consume backplane current? Will it affect the rack power budget?
A: It has virtually no impact. The 1756-N2 is a passive module containing no electronic circuitry, therefore its backplane current consumption is extremely low (some sources show "no current consumption"). Even if some technical manuals specify an 800mA @ 5V current rating, this value is completely negligible in the overall power budget of a ControlLogix rack. You do not need to reserve any significant power margin for the 1756-N2 when designing your power load.
Q: In which racks can the 1756-N2 be installed?
A: Extremely wide compatibility. The 1756-N2 is designed with a standard single-slot width and can be installed in any empty slot of any 1756 series ControlLogix rack, including the 1756-A17, A13, A10, A7, and A4 models you mentioned earlier. Installation is simple: just push it into the empty slot until it locks in place; no tools are required. Hot-swapping is also supported without disconnecting the system power.
