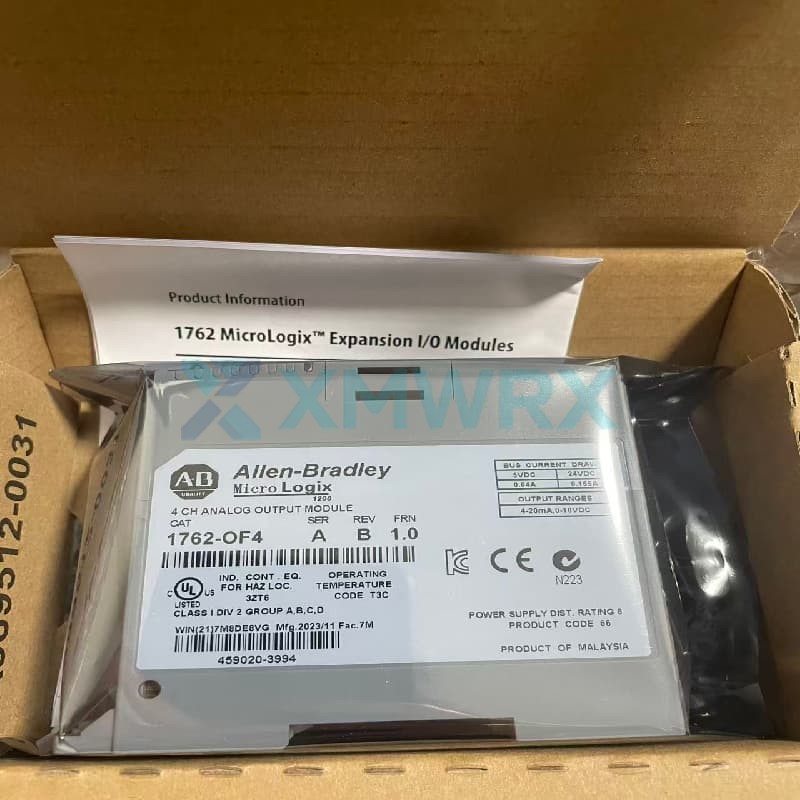

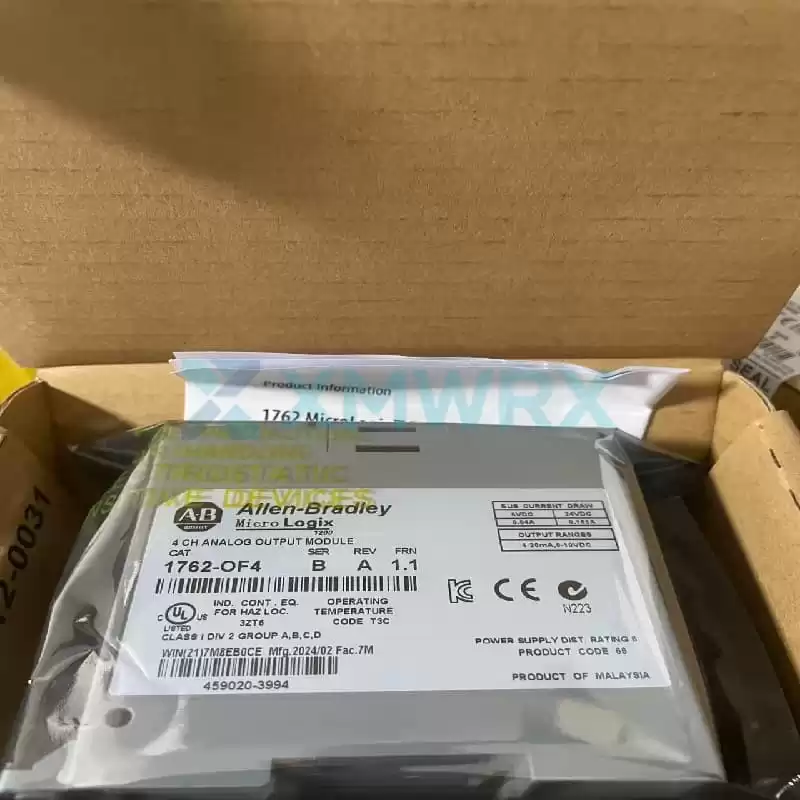

Q: Can the 1762-OF4/A be used to control frequency converters?
A: Yes. The 4-20mA current output of this module is the most commonly used control signal type for industrial frequency converters. Simply connect the output channel to the analog input terminal of the frequency converter, and the PLC program can output a 4-20mA signal to control the motor speed. Note that the load range for the current output is 0-500Ω; ensure the frequency converter's input impedance is within this range.
Q: Can voltage and current outputs be used simultaneously?
A: Yes. Each channel of the 1762-OF4/A can be independently configured as either a voltage or current output without additional jumpers or hardware modifications. For example, channel 0 can be configured to control one device with 0-10V, and channel 1 can be configured to control another device with 4-20mA, achieving mixed output.
Q: How many modules can the 1762-OF4/A expand with?
A: The number of expansion modules depends on the controller model used:
With MicroLogix 1100: Up to 4 expansion modules
With MicroLogix 1200: Up to 6 expansion modules
With MicroLogix 1400: Up to 7 expansion modules
During installation, ensure that the distance between the modules and the system power supply does not exceed 6 module slots, and ensure that the total current consumption does not exceed the controller's bus power supply capacity.
