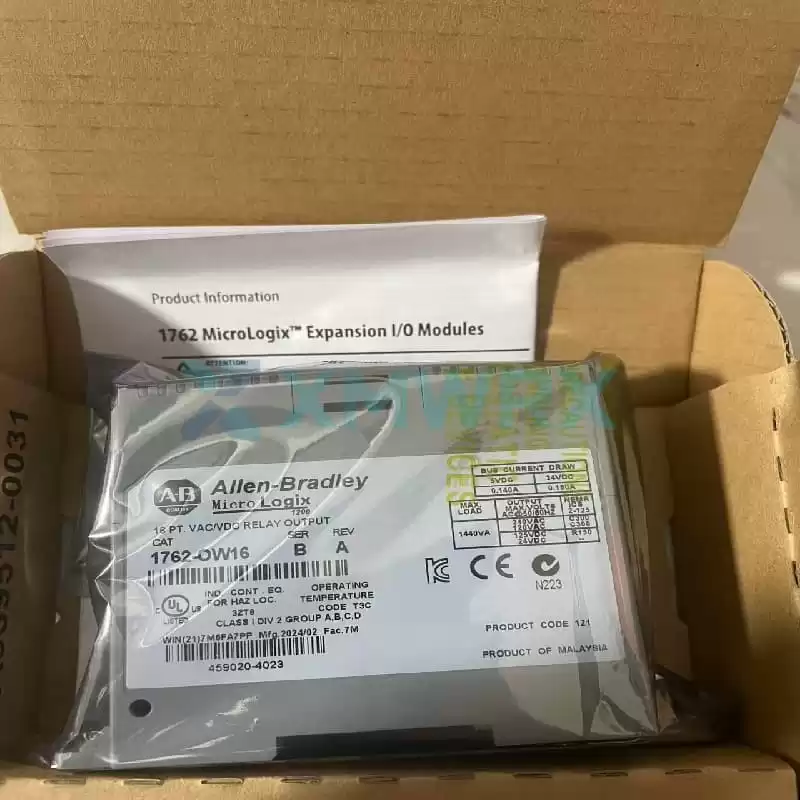

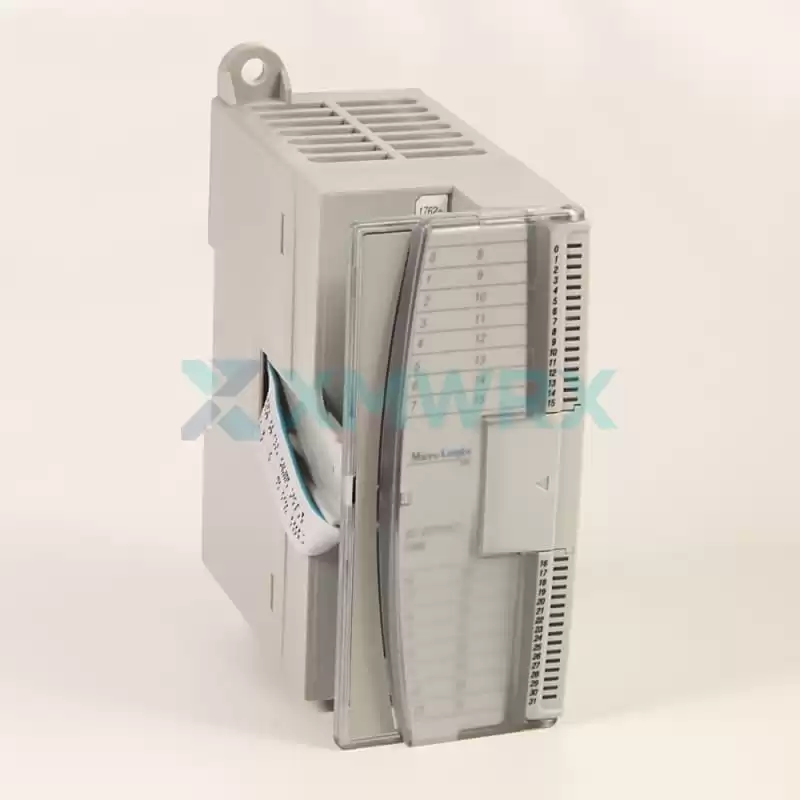

Q: What types of loads is the 1762-OW16/B suitable for controlling?
A: This module is ideal for controlling various AC or DC loads, such as motor contactors, solenoid valves, indicator lights, relays, and indicator lights. The 2.5A contact capacity per channel is sufficient to directly drive small to medium-sized equipment. However, for high-current loads (such as large motors), it is recommended to use this module to control an external high-capacity contactor for indirect control to extend the module's contact life.
Q: The module's output indicator light is on, but the load is not moving. What could be the reason?
A: An on output indicator light only indicates that the PLC logic is connected, but it does not mean that the external circuit is conducting. Common causes include: ① Lack of external power supply (check if the common terminal is connected to power); ② Loose or incorrect wiring; ③ Burnt-out contacts (especially when frequently switching inductive loads). Field cases show that a faulty relay contact supplying power to the module can also cause this phenomenon. It is recommended to use a multimeter to measure the continuity across the output contacts to quickly locate the problem.
Q: Which PLC controllers can the 1762-OW16/B be used with? What is the maximum number of expansion slots?
A: This module is compatible with MicroLogix 1100, 1200, and 1400 series controllers. The number of expansion slots depends on the controller model and power supply load capacity: a maximum of 4 can be installed with MicroLogix 1100, a maximum of 6 with MicroLogix 1200, and the strongest expansion capability is achieved with MicroLogix 1400. During installation, ensure that the distance between the module and the power supply does not exceed 6 module slots.
