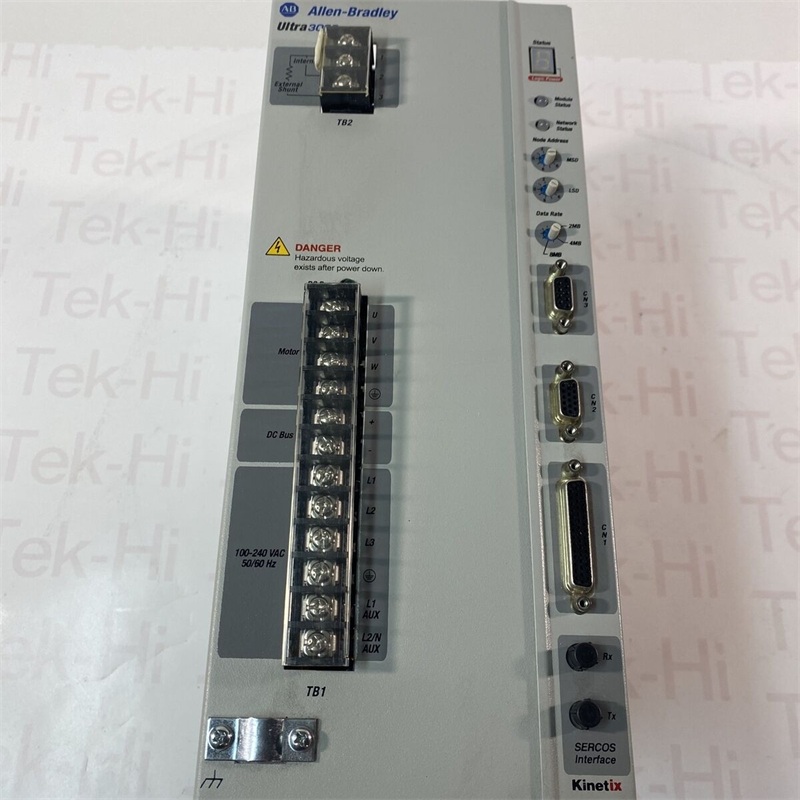

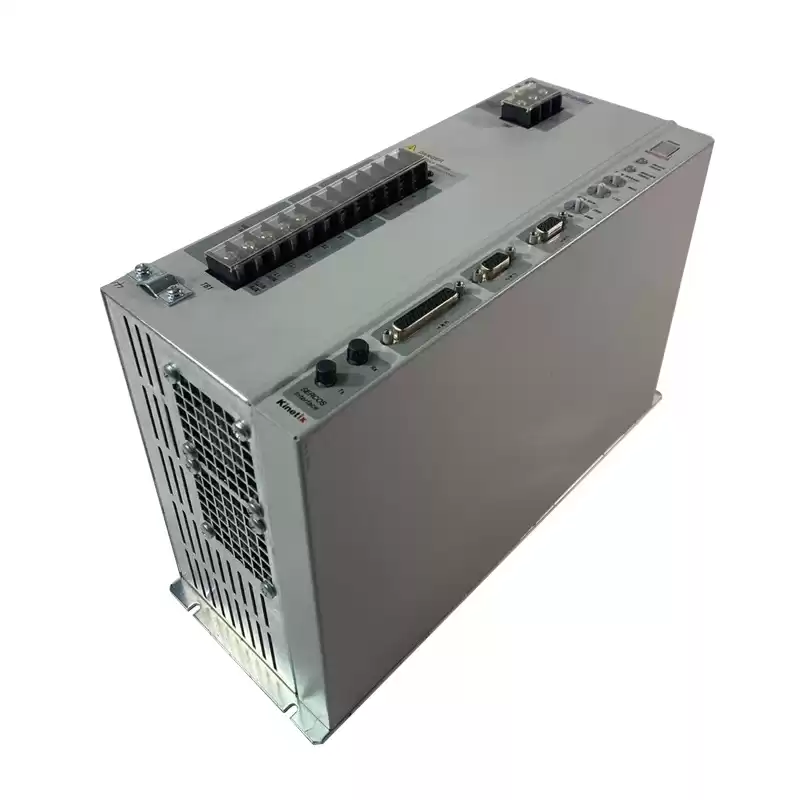

About 2098-DSD-075-SE

* The Allen-Bradley 2098-DSD-075-SE is a member of to the Ultra3000 series of servo drives with the SERCOS interface. The term “SE” in 2098-DSD-075-SE indicates this drive system works on a SERCOS drive interface with FNQ-R-30 as the recommended fuse type. The 2098-DSD-075-SE supports many machine control architectures such as SLC and Logix devices, it is one of the most popular motion control systems in the industry today. Whether it is single-point indexing or multipoint, the 2098-DSD-075-SE has the ability to perform functions with ease. Make sure the motor connected to it is load-free and not resisted by any external force.

 *The communication requirements in the 2098-DSD-075-SE are met by dedicated RS-232 and RS-485 slots that support DeviceNet as the interface. It can create a digital interface between different control architectures, and it has the ability to perform well when augmented controls are required. This servo drive is a Bulletin 2098 device with 240V AC power input.  Use all the connectors with the acceptable codes and the proper circuit breakers due to the variable power supply.

* Measuring 5.4 x 3.5 x 0.9 inches, it is easy to transport and install the 2098-DSD-075-SE in a remote location, and there are easy instructions for different mountings. It is hazardous location-approved, and it can work in a temperature range of 0-50 degrees Celsius. Upon startup, pay attention to the input voltage because the 2098-DSD-075-SE may have a high current which can be hazardous to the drive and to the nearby personnel.

* The Allen-Bradley 2098-DSD-075-SE is a strong drive with an Input Voltage (AC) of 230-480 Volts Root Means Square (Three Phase), an Input Frequency (AC) of 47-63 Hertz, and a Nominal Input Current (AC) of 30 Amperes Root Means Square. It also has a healthy 35 Amperes (0-peak) Continuous Output Current and 75 Amperes (0-peak) Intermittent Output Current.
