About 2198-H008-ERS

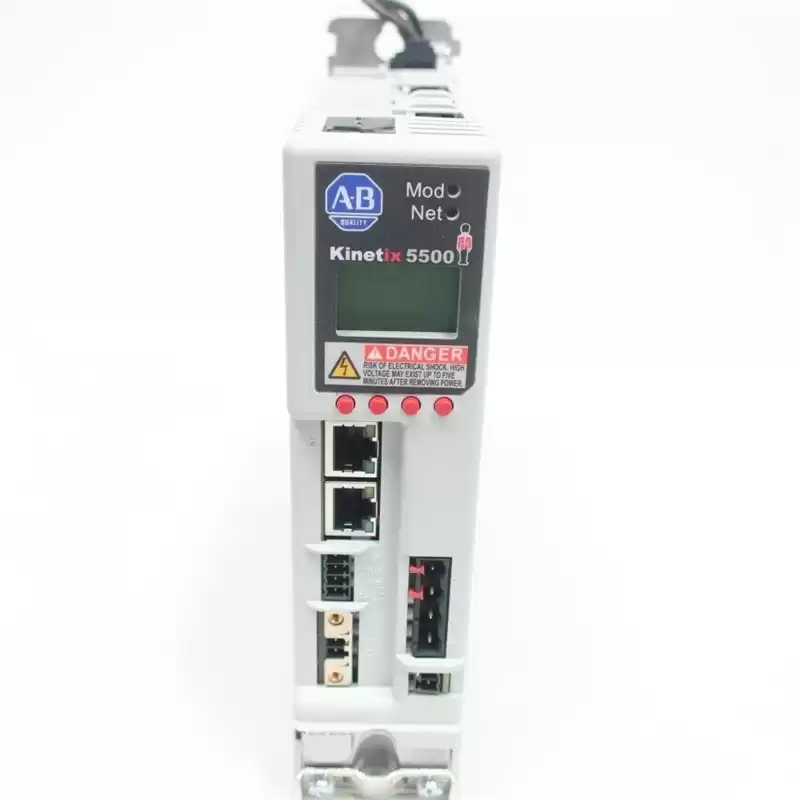

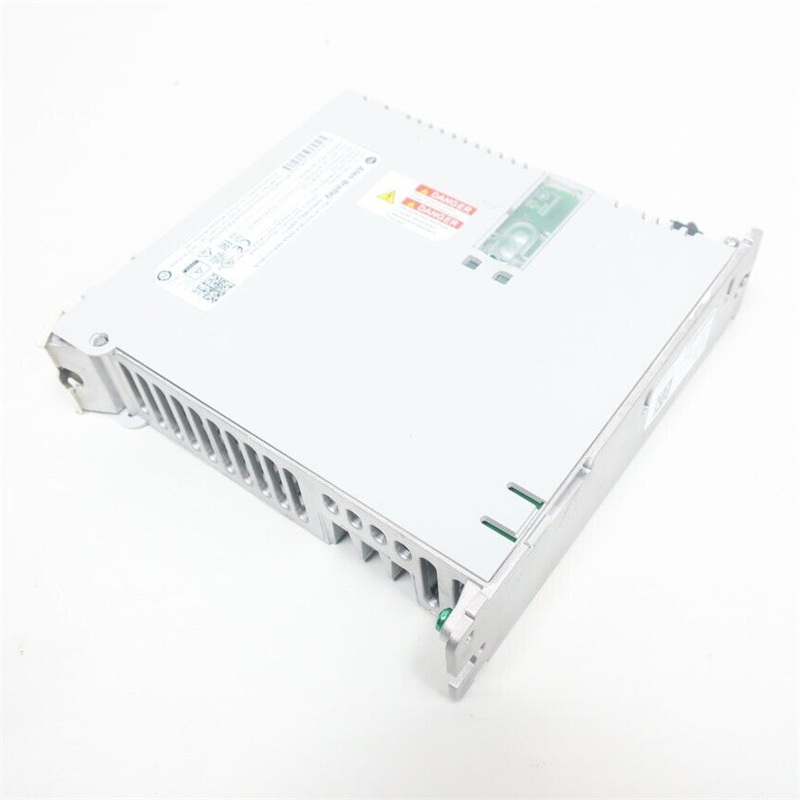

    The 2198-H008-ERS is an Allen-Bradley is a Kintetix 5000 Servo drive. This servo drive is operated by an input supply voltage range of 195-264V rms, 1-phase with 240VAC, 1-Phase nominal supply; 195-264V rms, 3-phase with 240V nominal supply and 324-528V rms, 3-phase with 480VAC nominal voltage. This servo drive delivers a continuous output current (rms) of 3.5 A, peak output Current of 11.3 A and output power of 0.5 kW @ 195…264V rms, 1-phase; 0.8 kW @ 195…264V rms, 3-phase and 1.6 kW @ 324…528V rms, 3-phase.

    When operating in stand-alone drive systems, recommended branch circuit components for 240VAC, 1-Phase supply and UL rated applications include KTK-R-5 busmann fuse and 140U-D6D2-B20 molded case C; For 240VAC, 1-Phase supply and IEC or non UL applications recommended components are a 6A fuse and 140U-D6D2-B20 molded case CB; For 240VAC / 480VAC, 3-Phase and UL rated application, recommended busman fuse is KTK-R-7 and 140U-D6D3-B60; For 240VAC / 480VAC, 3-Phase and IEC (non-UL) application, recommended fuse is a 6A fuse and 140U-D6D3-B60 molded case circuit braker.

    The 2198-H008-ERS supports a hardwired version of Safe Torque Off (STO) functionality. To implement this features with this drive, it requires integration to a ControlLogix® 5570, ControlLogix 5580, CompactLogix™ 5370, or CompactLogix 5380. The dedicated STO connector located on the drive’s front panel is used. The STO feature enables this drive to be used in safety-related application that require up to ISO 13849-1, Performance Level d (PL d) and Category 3, SIL CL 2 per IEC 61508, IEC 61800-5-2, and IEC 62061 Safety levels.
