FAQ for 22F-A2P5N103

　　1. What are the available I/Os to the terminals of the 22F-A2P5N103?

　　Embedded I/Os include Five (5) 24 VDC discrete inputs configurable as Sink / Source inputs; One (1) Form C Relay output channels; One (1) 0-10 VDC and One (1) 4-20 mA analog input channels.

　　2. Does the 22F-A2P5N103 come with a built-in IGBT brake?

　　No. It does not an internall installed IGBT brake.

　　3. What I the Frame type of the 22F-A2P5N103?

　　The 22F-A2P5N103 is a Frame A drive.

　　Technical Description of 22F-A2P5N103

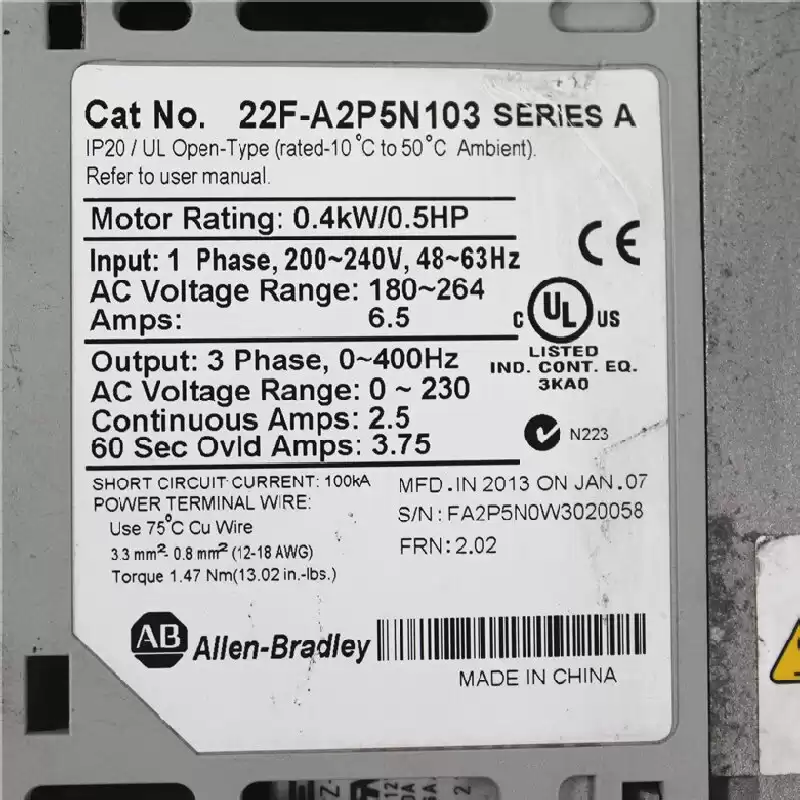

　　The Allen-Bradley 22F-A2P5N103 drive is a PowerFlex 4M drive with 1-phase input voltage and 3-phase output voltage. Its input voltage range is from 200 to 240 Volts AC (+/-10%) and its output voltage range is from 0 to 230 Volts AC. The 22F-A2P5N103 drive can support 10 fuses. Its rated 1-phase input voltage is 240 Volts AC at 50 to 60 Hertz. The 22F-A2P5N103 drive only generates 1 Horsepower of maximum output power.
