Technical Brief: Allen-Bradley 2711PC-T6C20D8 PanelView Plus 6 Compact 600
Core Identity

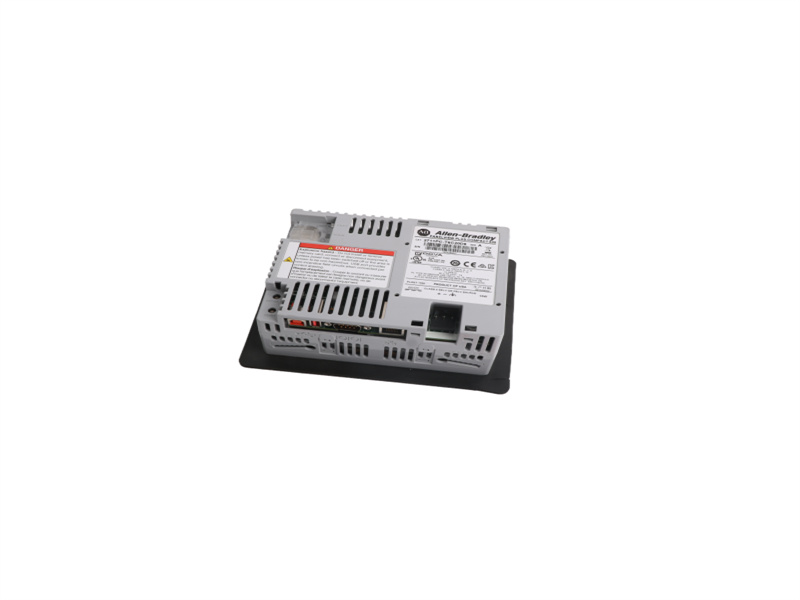

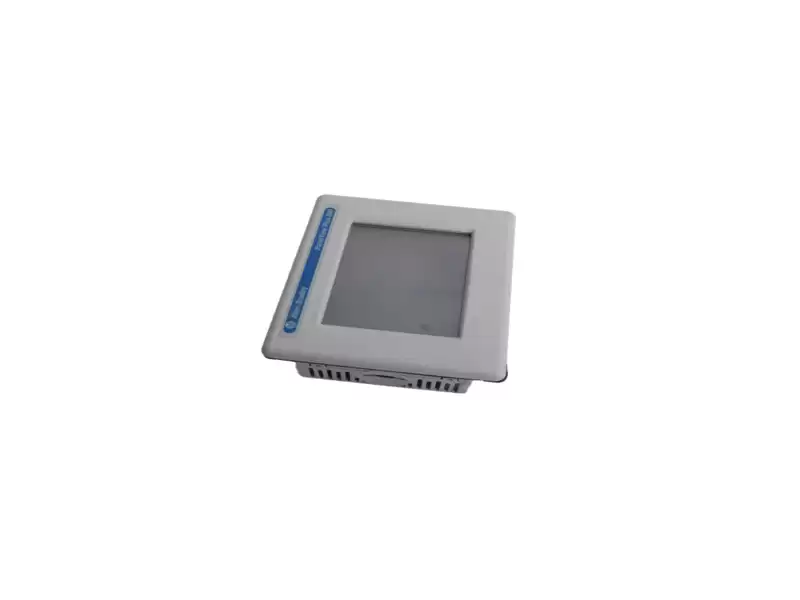

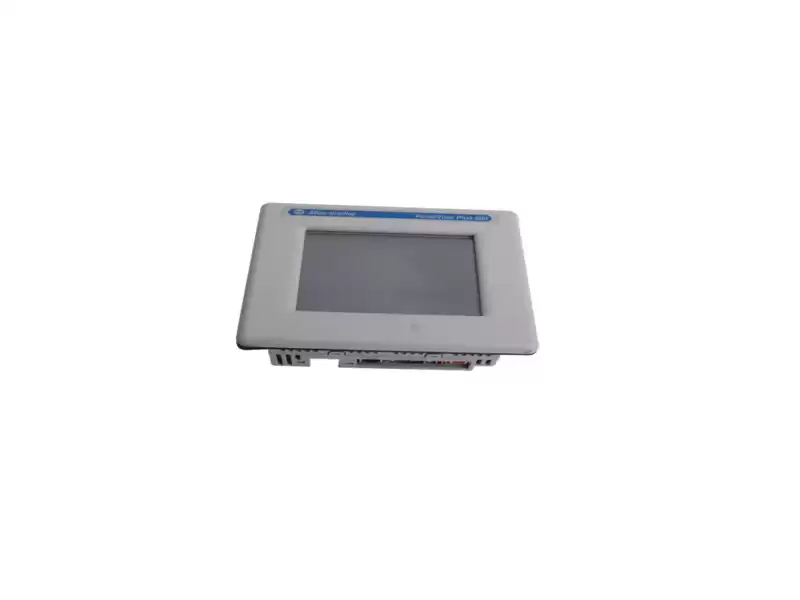

2711PC-T6C20D8 is a 6-inch compact operator terminal in the PanelView Plus 6 family.
Equipped with a color TFT LCD and resistive touchscreen, it delivers Windows CE–based visualization and control in a footprint that fits the tightest panels.
Technical Specifications
• Display: 6″ color TFT, 800 × 480 WVGA, 18-bit color
• Touch: Analog-resistive, 1 million actuations, 10–110 g force
• Processor: ARM Cortex-A8 600 MHz
• Memory: 512 MB RAM, 512 MB Flash application storage
• OS: Windows CE 6.0 (standard edition)
• Communications: 1× 10/100 Ethernet (RJ-45), 1× RS-232 (DB-9)
• Power: 24 V DC (18–32 V), 15 W max
• Operating: 0 °C … 55 °C, 5–95 % RH non-condensing
• Front Rating: NEMA 4X / IP66
• Mounting: Panel cut-out 138 × 126 mm, depth 65 mm
• Weight: 0.8 kg
Typical Applications
• Compact packaging machines
• Injection-molding cells
• Water/wastewater skids
• Remote pump stations
Compatible Allen-Bradley Products
Cables & Adapters
• 2711-NC13 – 5 m RS-232 cable to SLC 5/03-5/05
• 2711-NC21 – 5 m RS-232 cable to MicroLogix 1000/1200
• 2711-NC14 – 9 m RS-232 cable to PLC-5 DH-485
Expansion & Spares
• 2711-PR3 – Programming cable (RS-232 to PC)
• 2711-ND3 – Touch overlay kit
• 2711-ND5 – Touch-screen replacement kit
• 2711PC-T6C20D9 – Same terminal with full Windows CE (Office viewer)
• 2711PC-T10C20D8 – 10-inch version for more screen real estate
All products are factory-sealed, carry full manufacturer warranty, and ship the same day from PLC Autocontroller.
