About MPL-B220T-VJ74AA

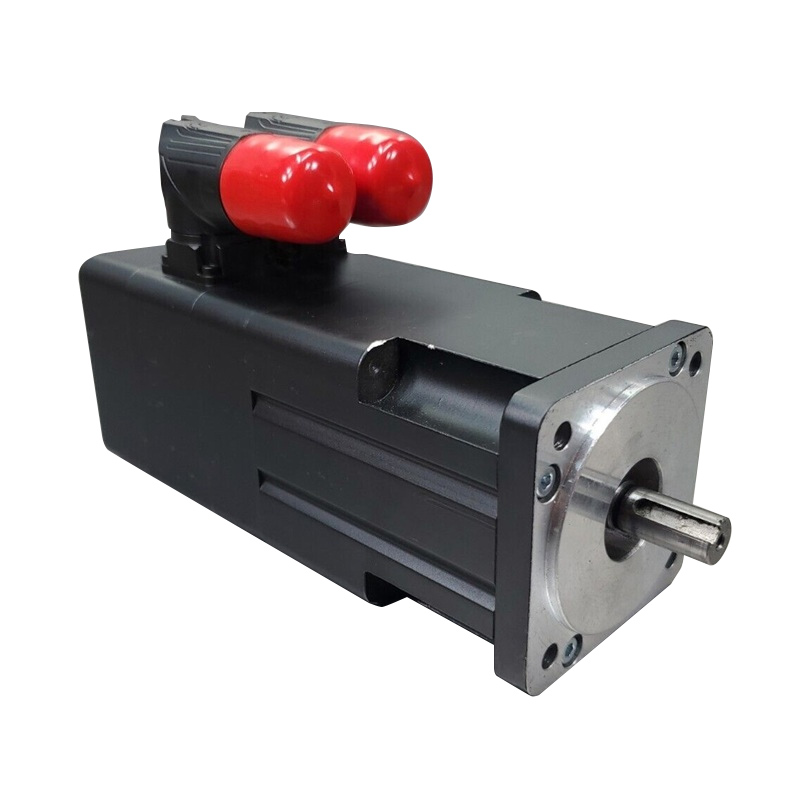

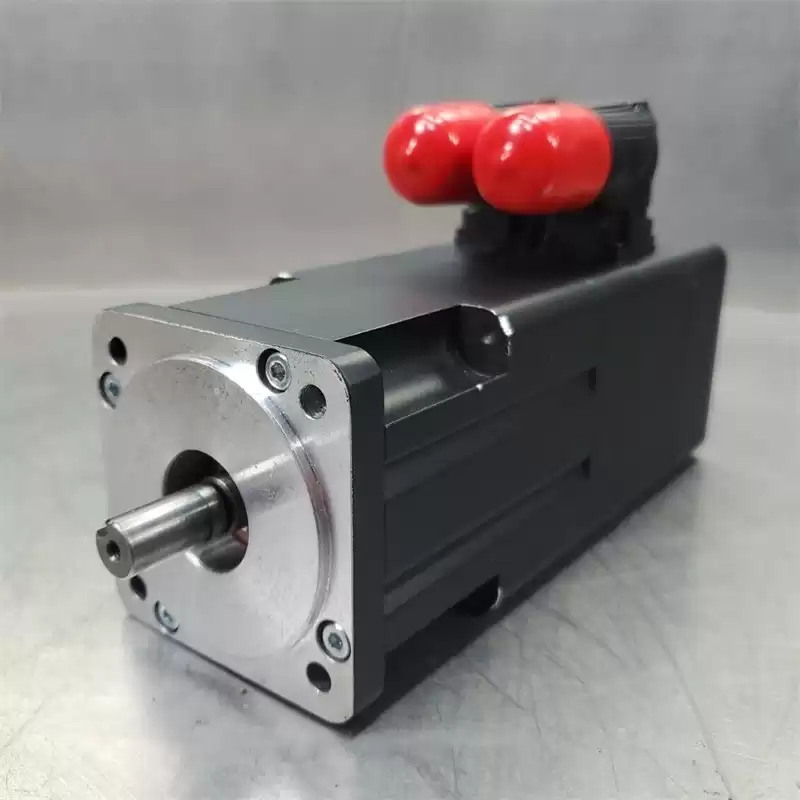

  * The MPL-B220T-VJ74AA AC servo motor is a low-inertia type of servo motor manufactured by Allen-Bradley. This 400 Volts AC class servo motor is built with improved winding insulation materials and its rotor is composed of rare earth magnets. This makes it possible for this drive to deliver high torques in a small housing. The dimensions of the housing are only 70 millimeters by 70 millimeters by 163 millimeters and the motor weight is about 2 kilograms (4.4 pounds). This small device makes a peak stall torque of 42 pounds on an inch. This is around 40% more than the rating of a conventional servo motor. The MPL-B220T-VJ74AA servo motor has an integrated multi-turn high-resolution encoder that tracks the position, direction, and the speed of the motor, and the speed can be up to 6000 rpm.

  * The Allen-Bradley MPL-B220T-VJ74AA servo motor features a 75 millimeters frame size, and it is equipped with a 24 Volts DC holding brake. It is electrically connected to other devices over the DIN SpeedTEC connectors. The MPL-B220T-VJ74AA servo motor’s operating temperature range is from 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit).
