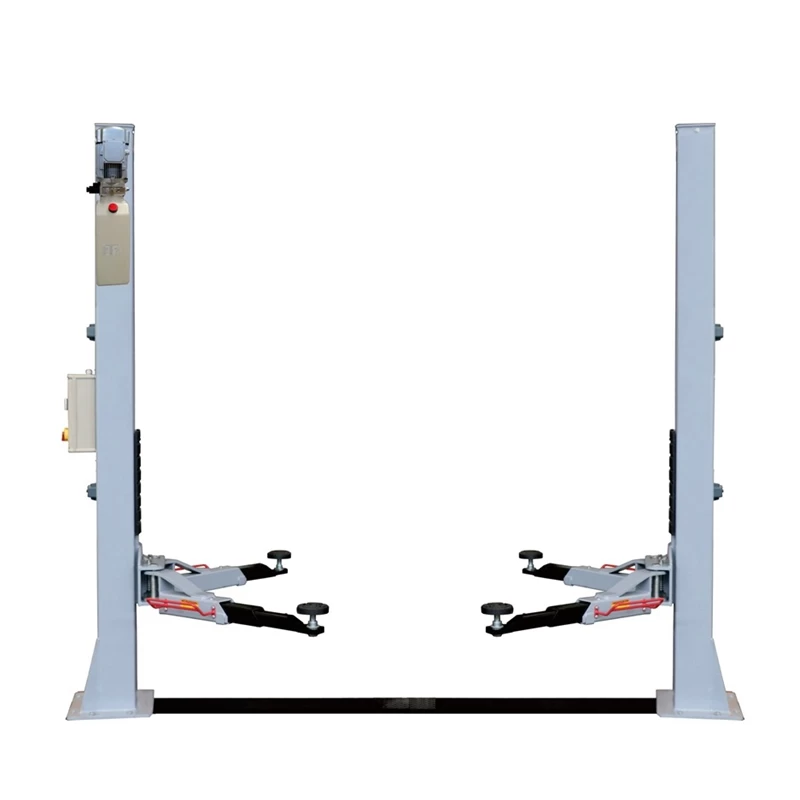

ALT-240SBA Electrical Base Floor Two Post Lift
ALT-240SBA Standard Configuration:

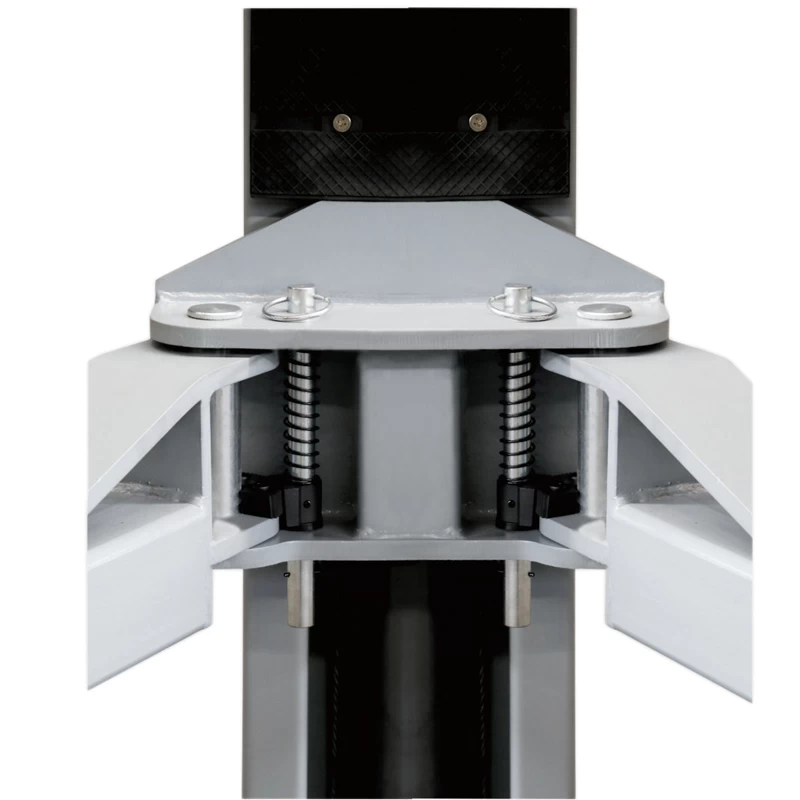

Supporting arms:2×2 stage Long Arms & 2×2stage Short Arms
Model : ALT-240SBA
Capacity:4000kg
Weight:625kg
A.Max. Lifting:1900mm
B.Overall height :2826mm
C.Overall Width:3384mm
D. Drive through clearance:2480mm
E. Supporting arm length front min :685mm
F. Supporting arm length front max:1100mm
G. Supporting arm length rear min: 845mm
H. Supporting arm length rear max: 1330mm
I. Adapter height min:110mm
J. Adapter height max:155mm
K. Clear size column spacing:2760mm
L. Switch offlevel:2700mm
Motor performance:2.2kw
Electrical connection:380-415V
(3 phases):50-60Hz
Electrical connection:215-240V
(1 phases):50-60Hz
Lifting time:≤60 sec
Lowering time:≥20 sec

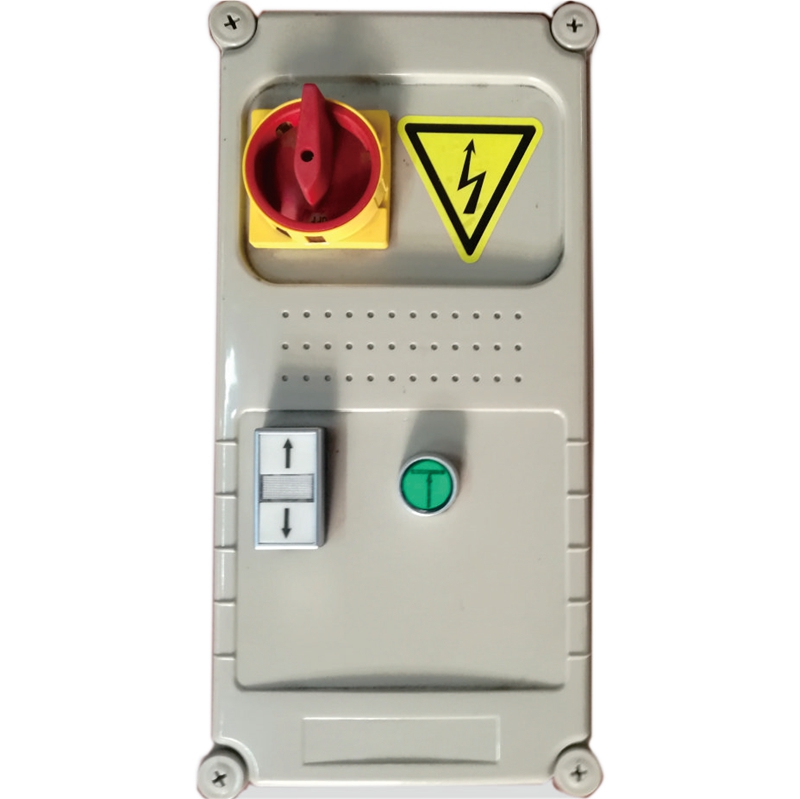

Automatic lock release:Electrical control
ALT-240SBA Optional:

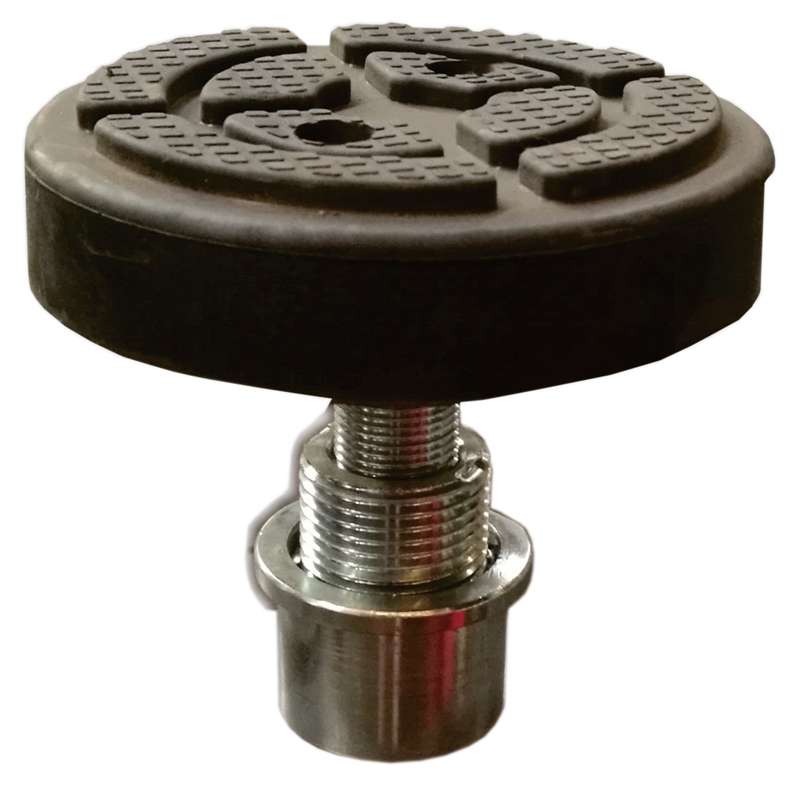

1.Extension Adapter 150mm & 80mm

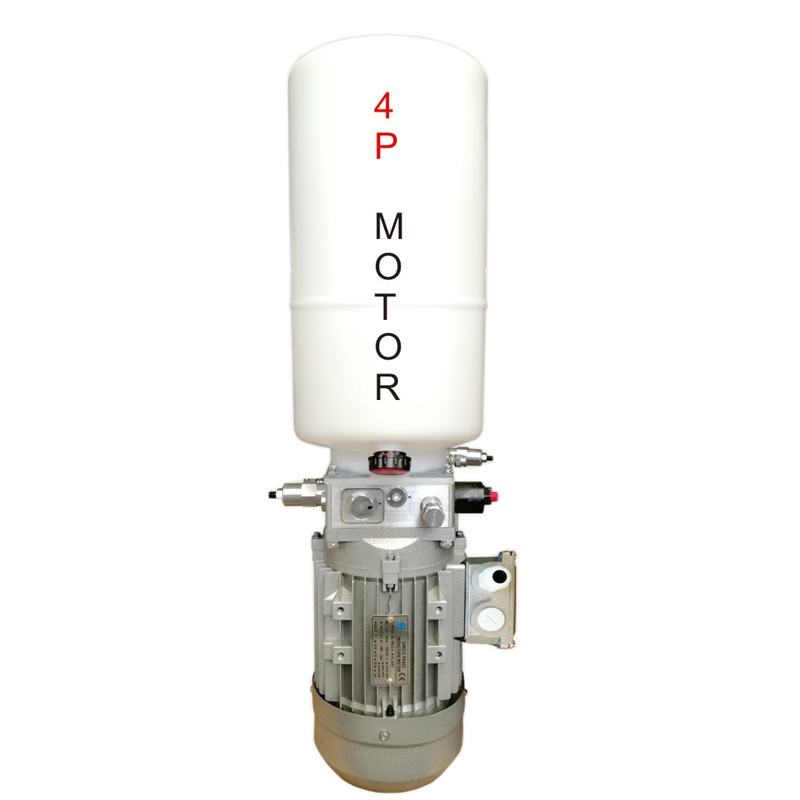

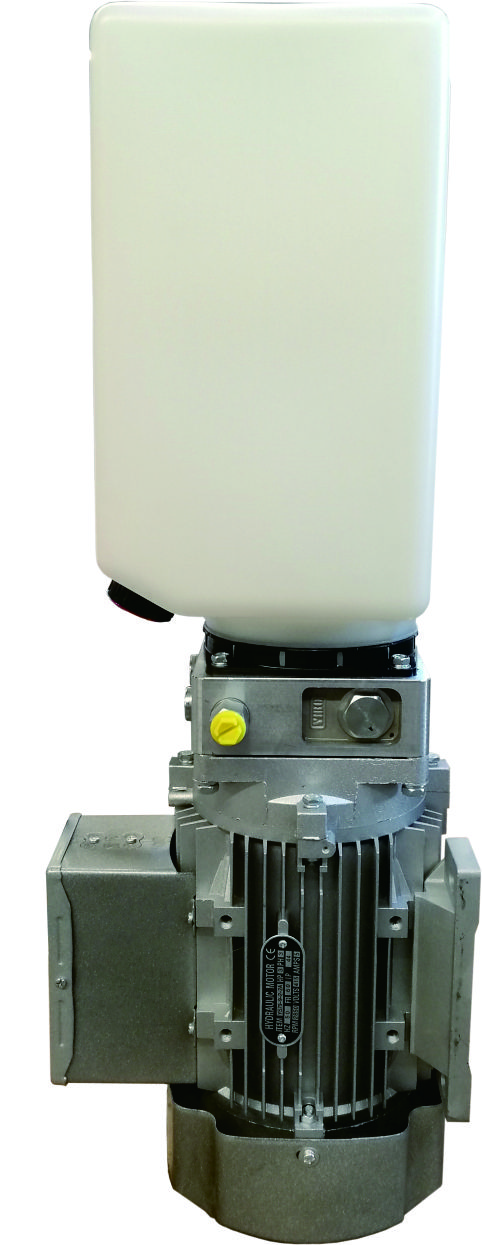

2.Eco-Alu-Shell Motor

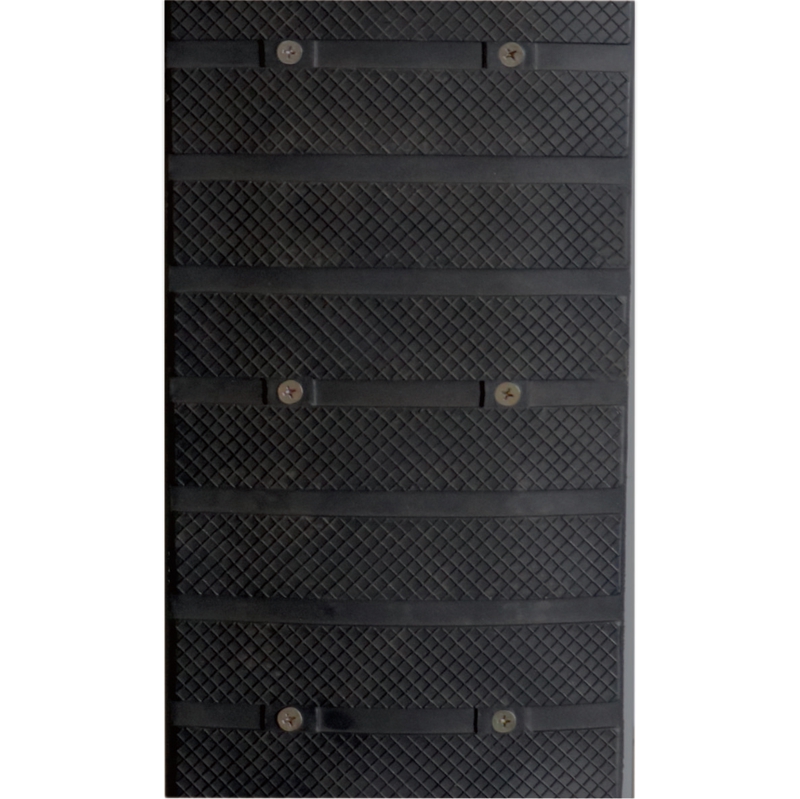

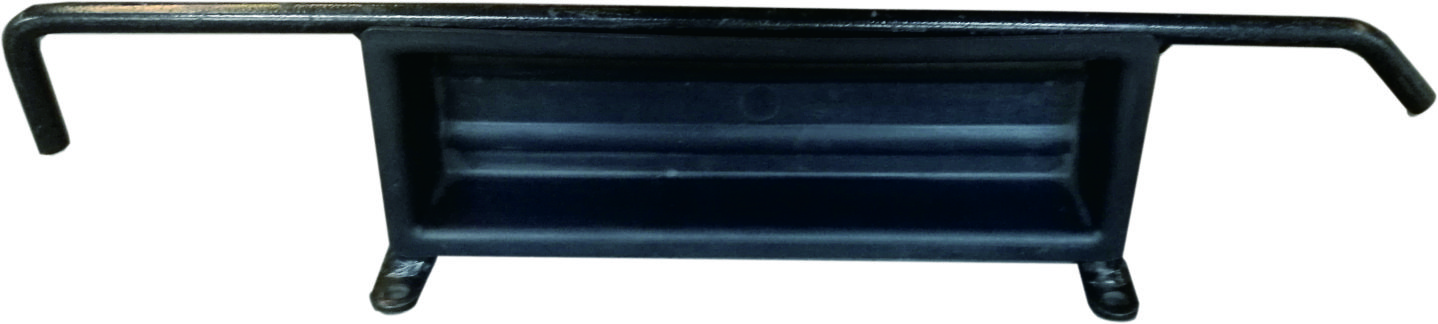

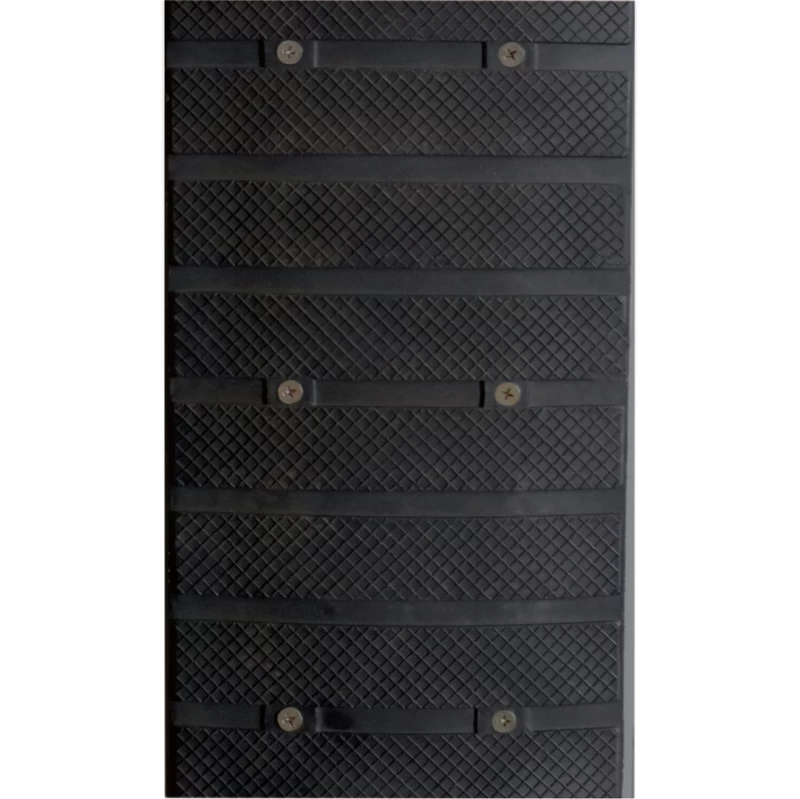

3.Foot Profetcions

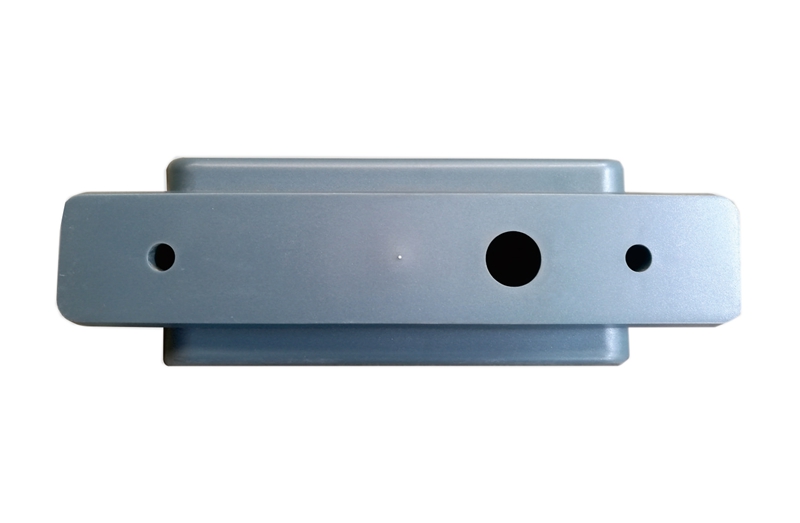

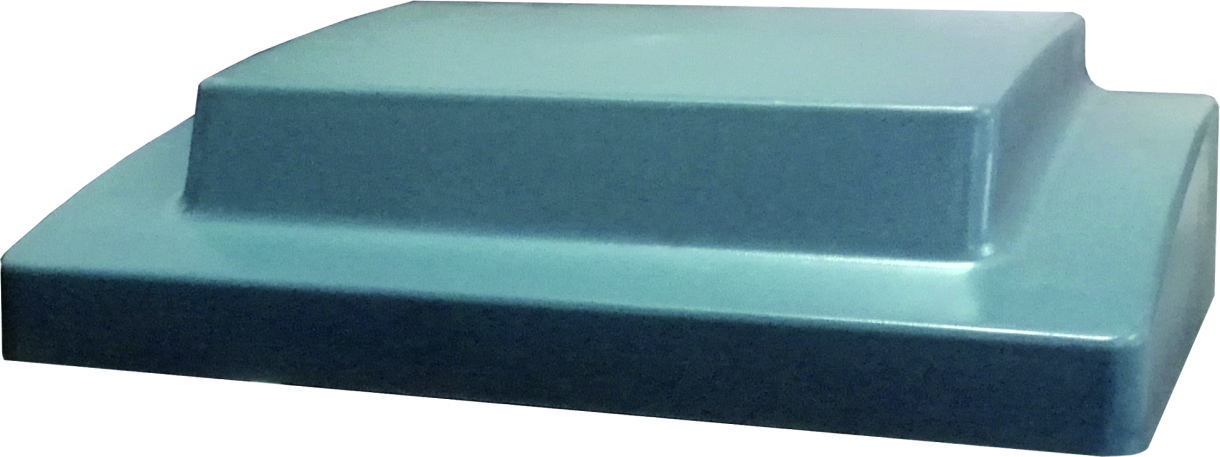

4.Post Caps

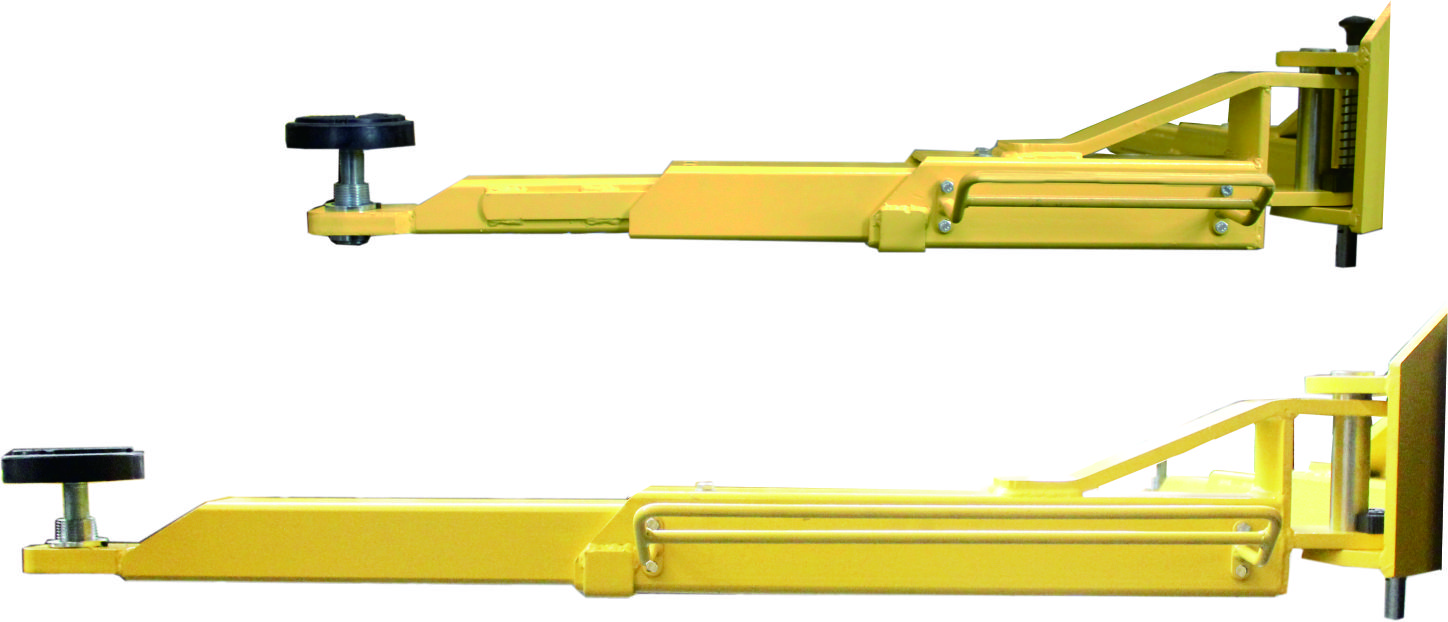

5.2×2 Stage Long Arms, 2×3 Stage Short Arms
