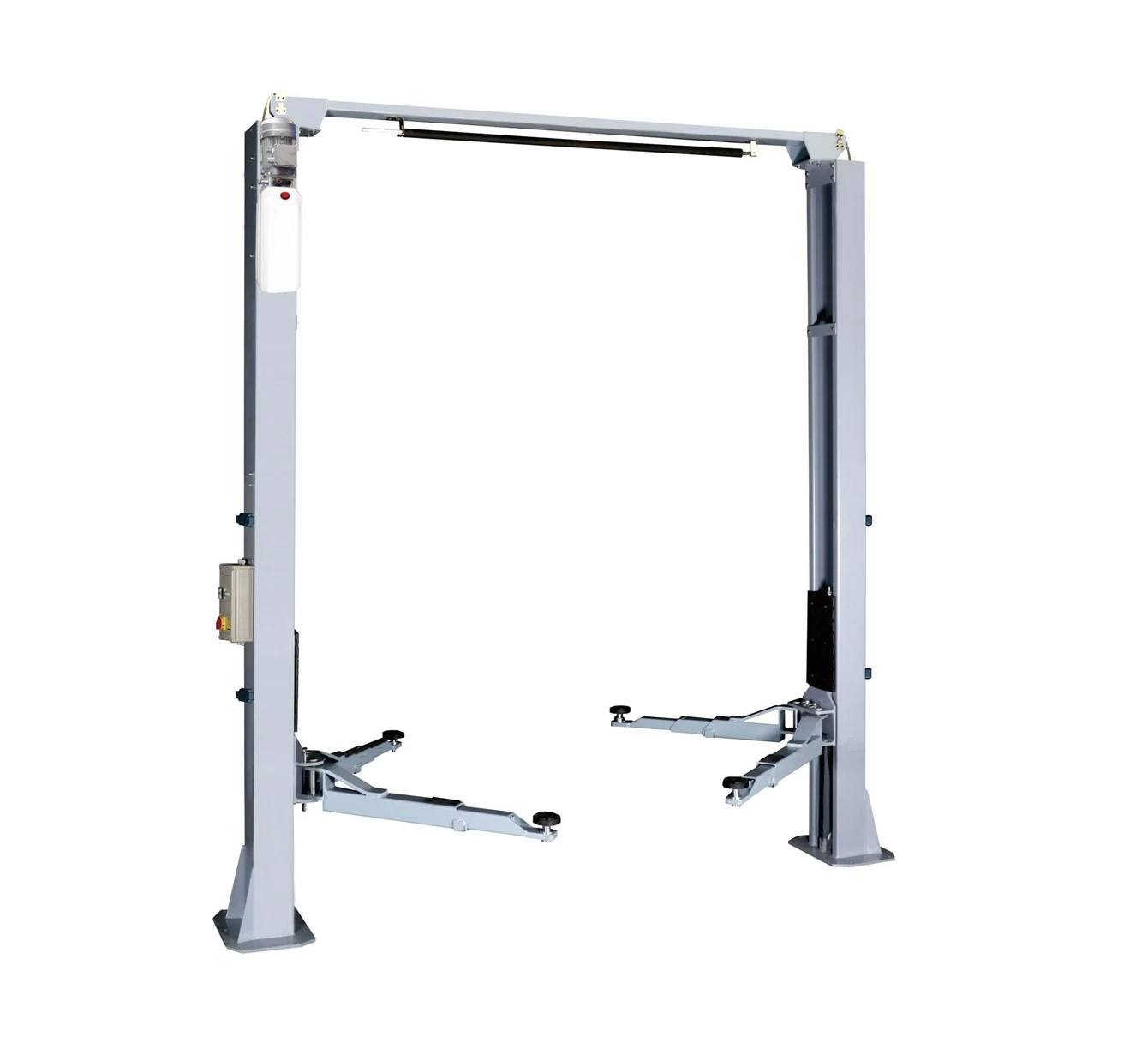

Ausland ALT-240SCA Electrical Clear Floor Two Post Lift
Standard Configuration:

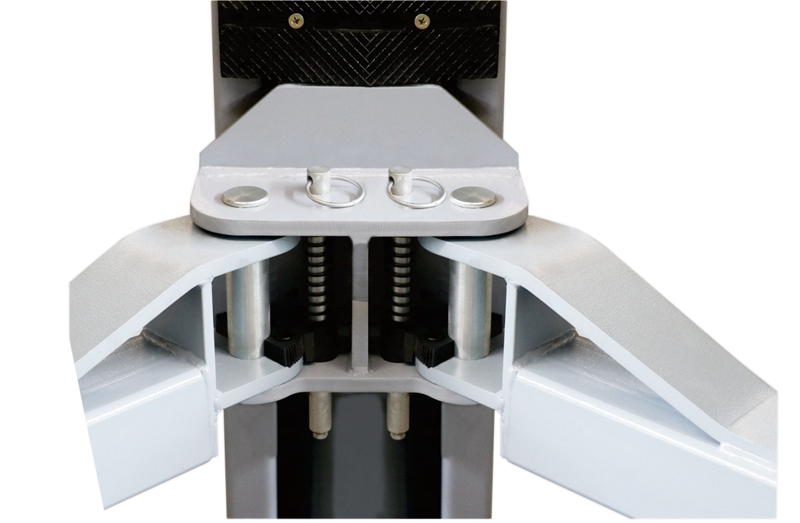

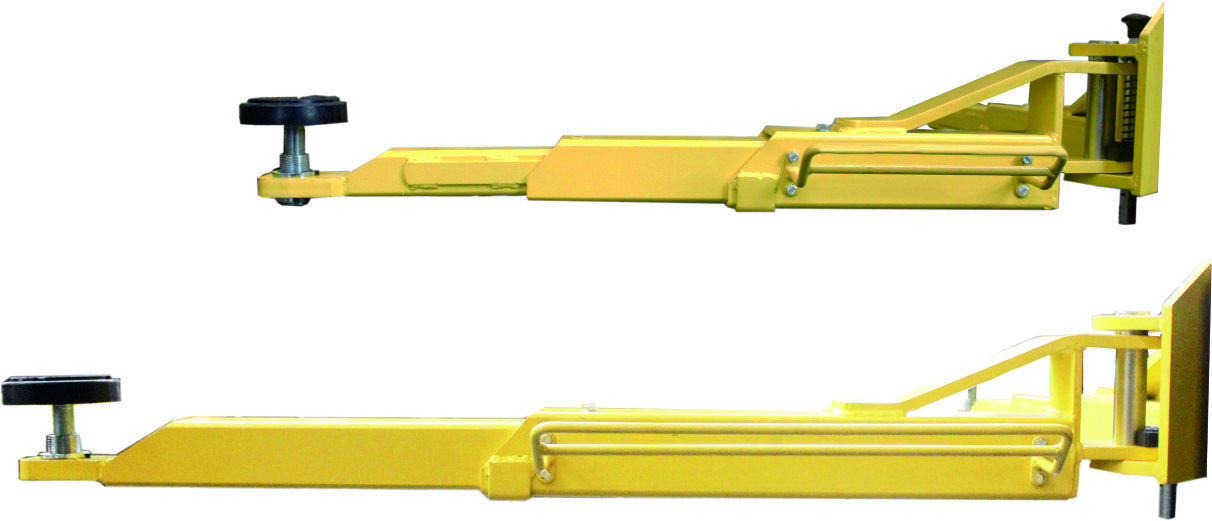

Supporting arms: 2×2 stage Long Arms & 2×2stage Short Arms
Model:ALT-240SCA
Capacity: 4000kg
Weight: 715kg
A. Max. lifting: 1900mm
B. Overall height: 3780mm
C. Overall width: 3400mm
D. Drive through clearance: 2480mm
E. Supporting arm length front min.: 685mm
F. Supporting arm length front max.: 1100mm
G. Supporting arm length rear min.: 845mm
H. Supporting arm length rear max.: 1330mm
I. Adapter height min.: 110mm
J. Adapter height max.: 155mm
K. Clear size column spacing: 2760mm
L. Switch off level: 2700mm

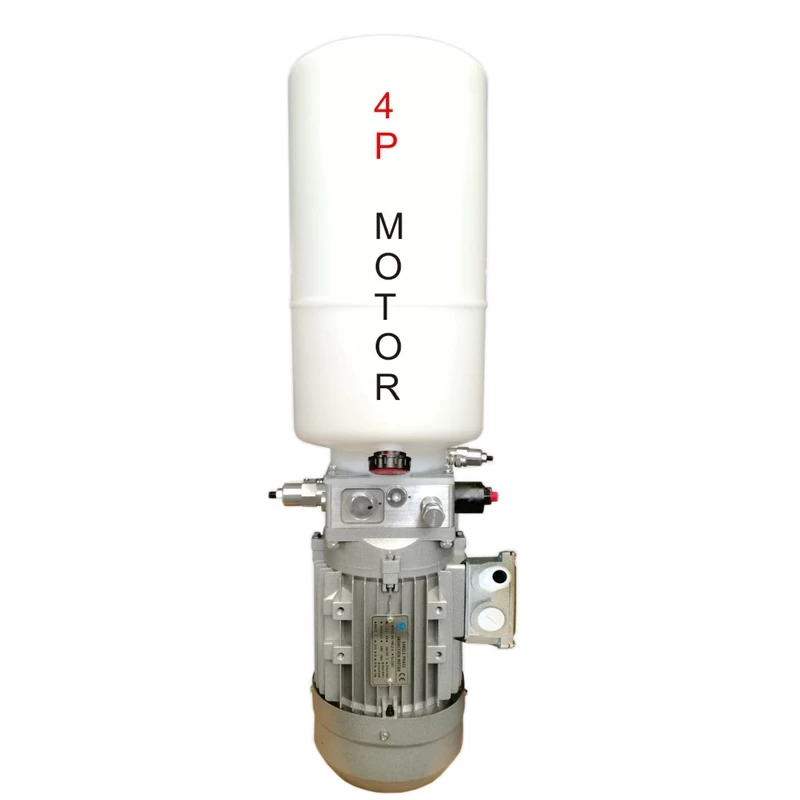

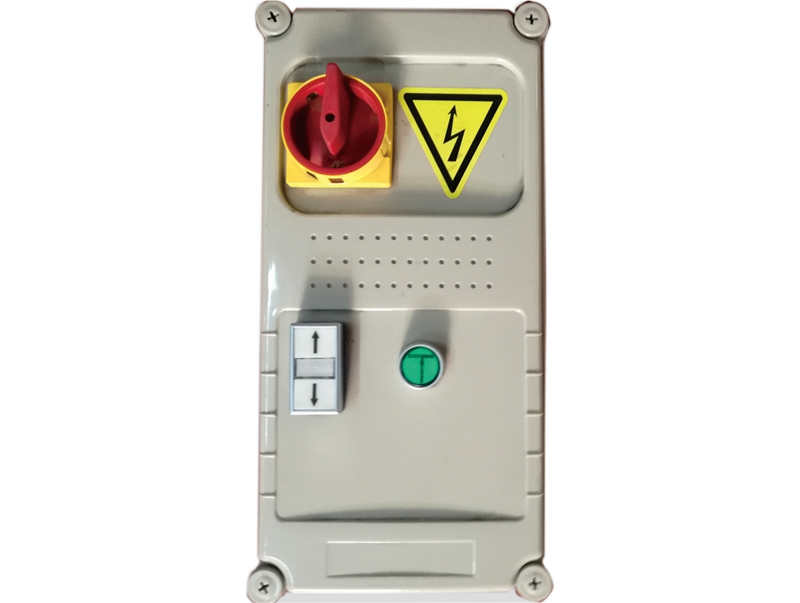

Motor performance: 2.2kw
Electrical connection: 380V-415V
(3 phases): 50-60Hz
Electrical connection: 215V-240V
(1 phases): 50-60Hz
Lifting time: ≤ 60sec
Lowering time: 20-60 sec

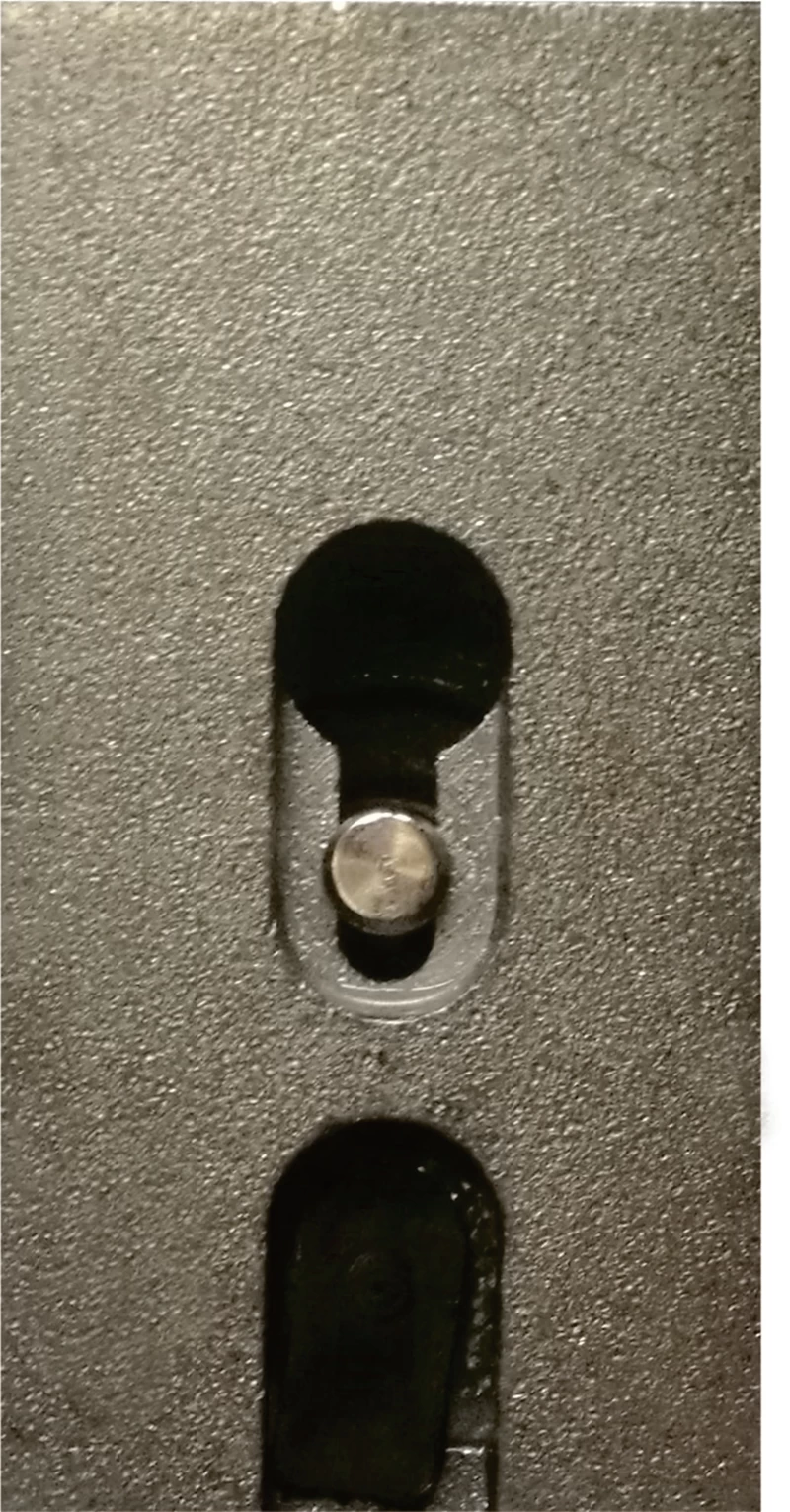

Automatic Lock Release
Optional:

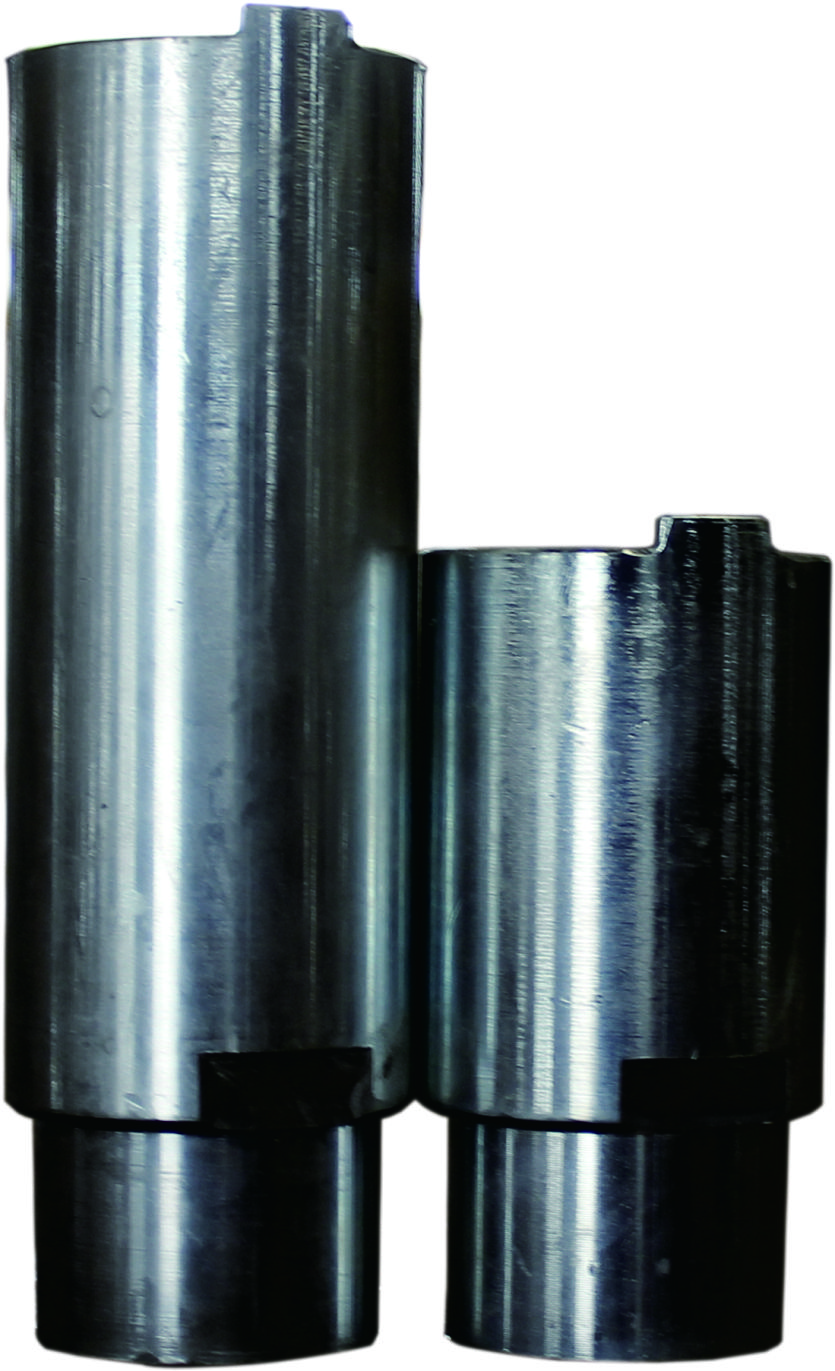

1. Extension Adapter 150mm & 80mm

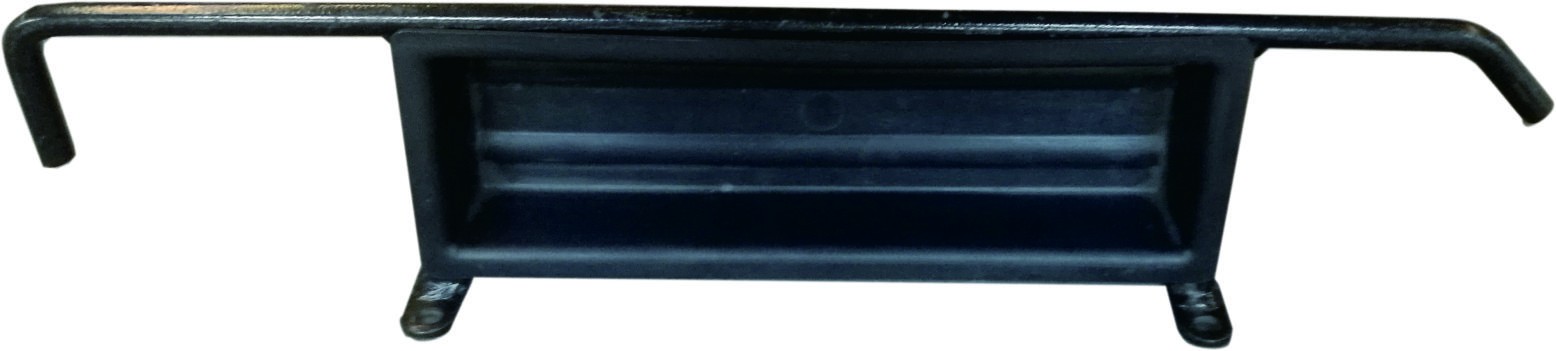

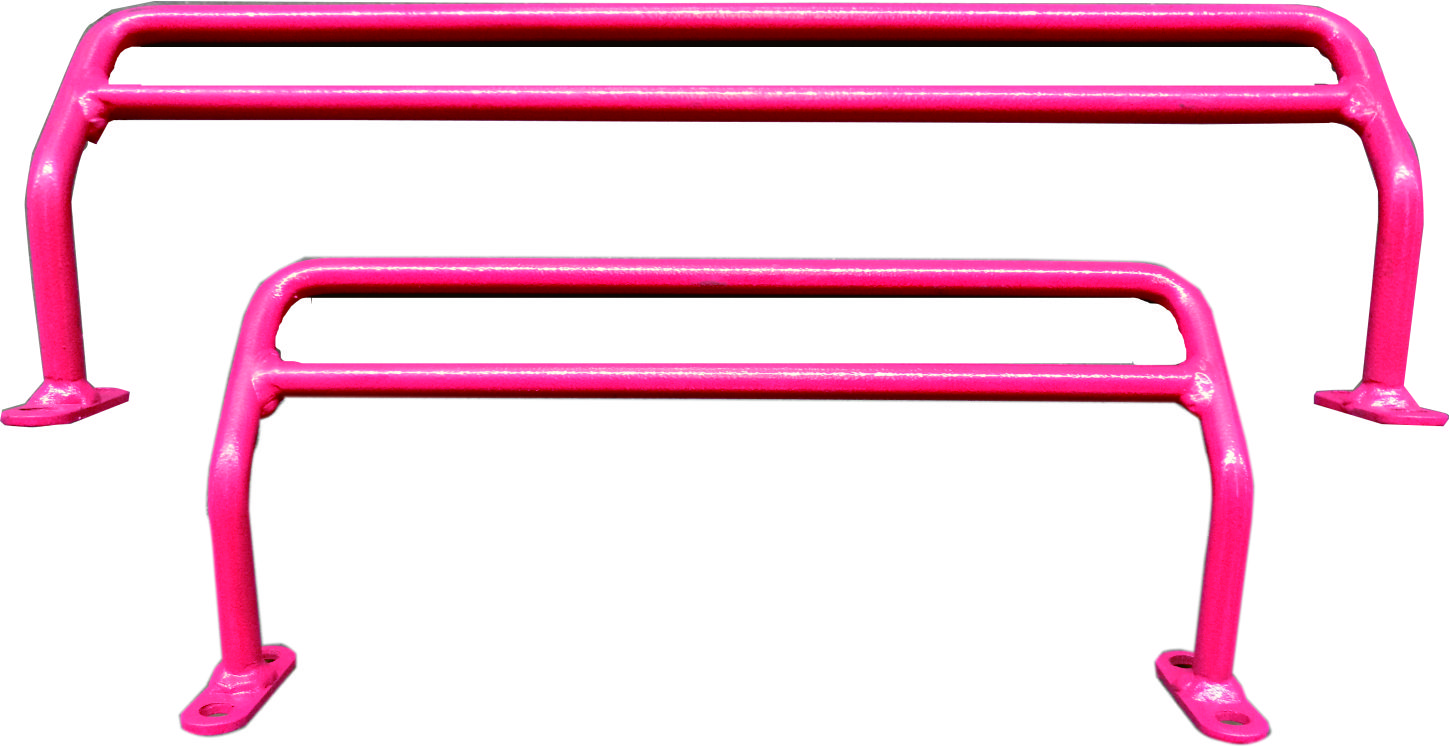

2. Foot Protections-01

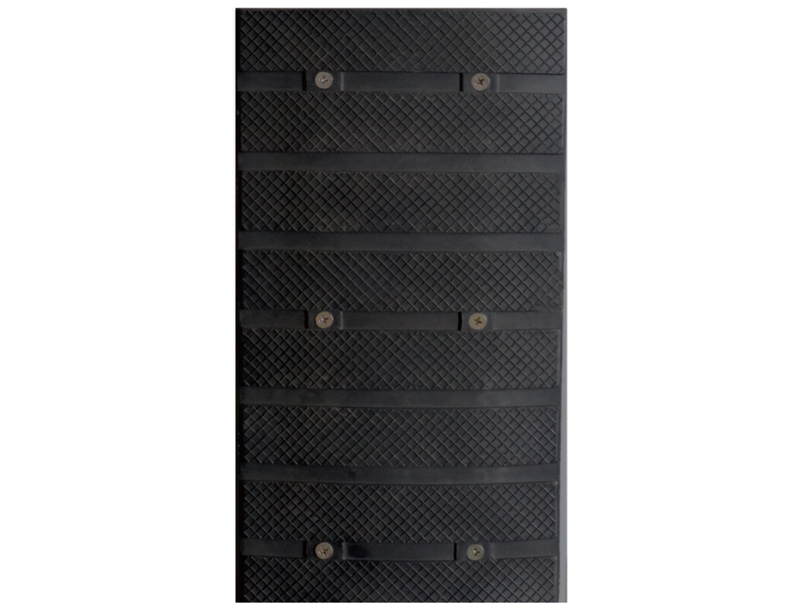

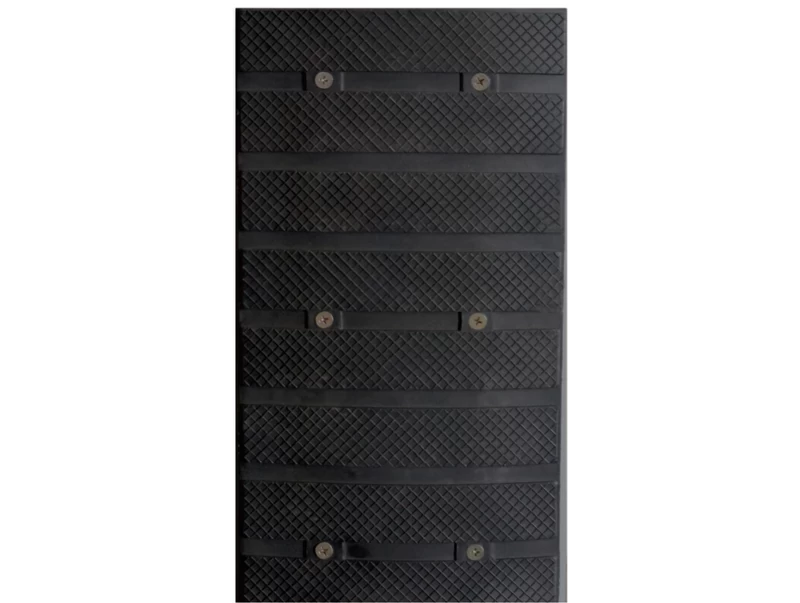

3.Foot Protections-02

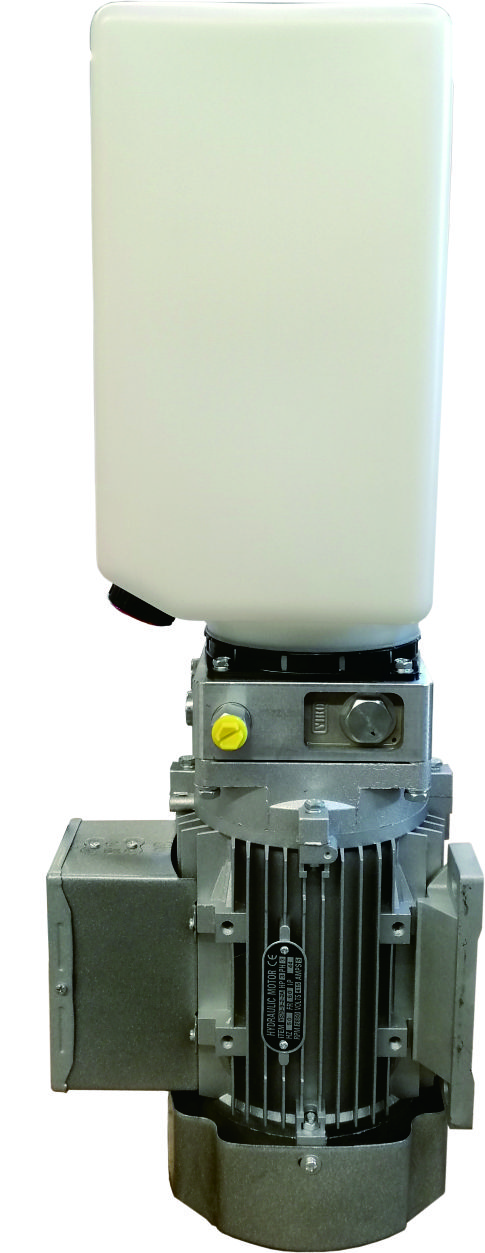

4.Eco-Alu-Shell Motor
5.2×2 Stage Long Arms, 2×3 Stage Short Arms
