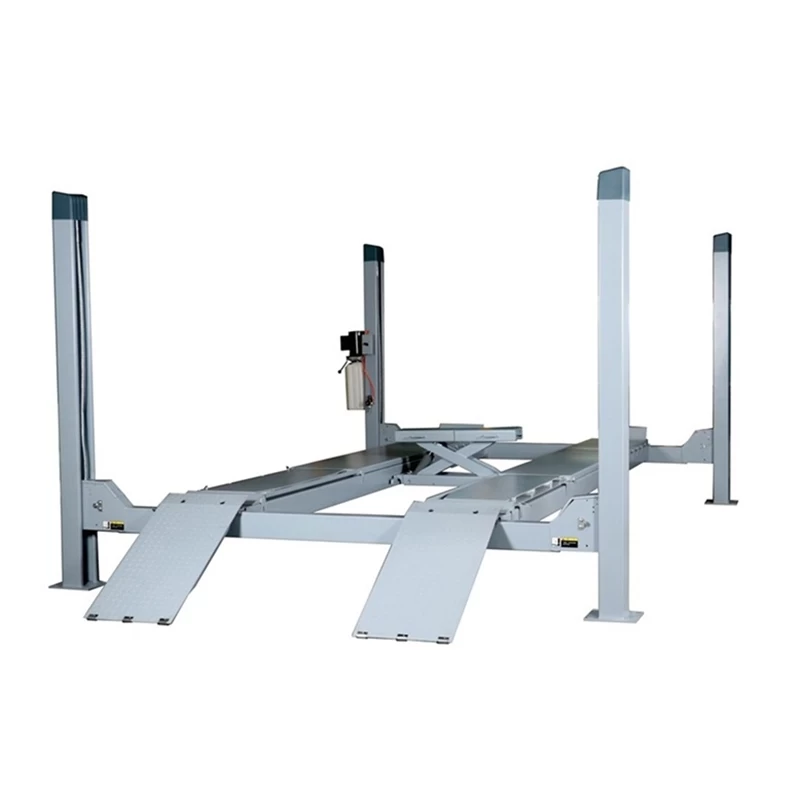

ALT-440EWP Four Post Lift Standard
Configuration
|
Model ALT-440EWP
|
|
|
Weight
|
1255kg
|
|
|
A. Max. lifting
|
1900mm
|
|
|
B. Length overall(incl. access)
|
5400mm/5880mm
|
|
|
C. Overall width
|
3430mm
|
|
|
D. Inside of columns
|
3040mm
|
|
|
E. Between columns
|
4150mm
|
|
|
F. Column height
|
2300mm
|
|
|
G. Width of runways
|
545mm
|
|
|
H. Height of runways
|
170mm
|
|
|
I. Width between runways
|
110mm
|
|
|
Min./Max.
|
900mm-1280mm
|
|
|
Lifting capacity
|
4000kg
|
|
|
Motor/Power
|
|
|
|
Electrical connection
|
380V-415V
|
|
|
(3
phases)
|
50-60HZ
|
|
|
Electrical connection
|
215V-240V
|
|
|
(1
phases)
|
50-60HZ
|
|
|
Time of full rise
|
≤60 sec
|
|
|
Lowering time
|
20-60 sec
|
|
|
Min
bay size
|
7000mm-4000mm
|
|
|
Pneumatic lock release
|
|
|
|
Electrical control
|
|
ALT-440EWP Four Post Lift Optional:
1.
Standard Control Box
2.
Eco-Alu-Shell Motor
3.
Adapter Pad 115×100×70
4.
Standard Runways
