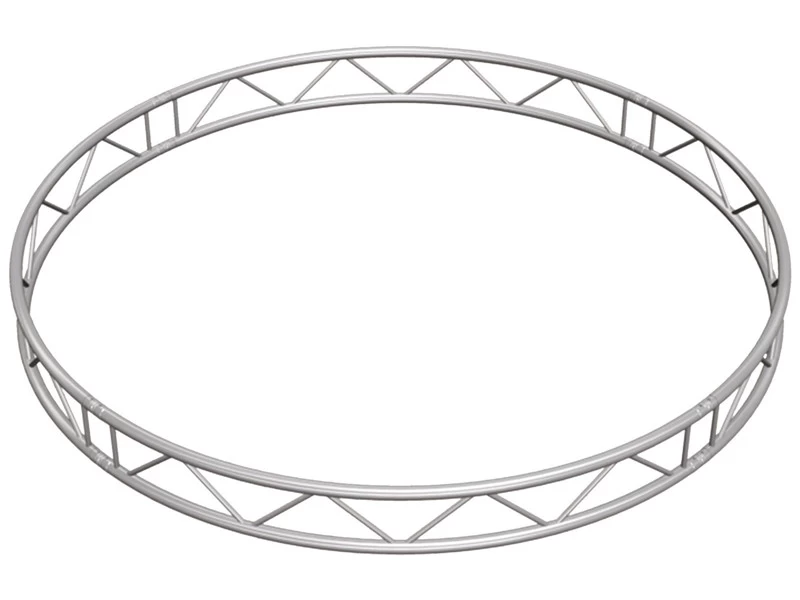

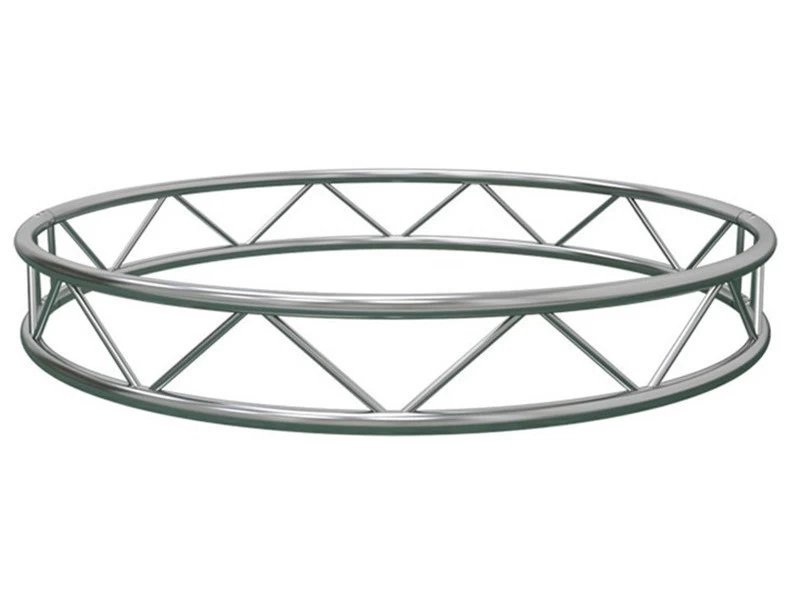

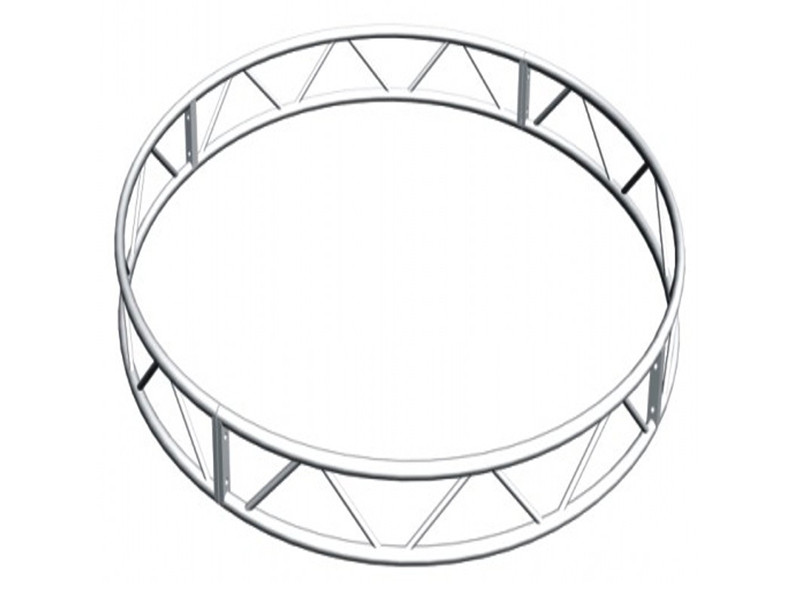

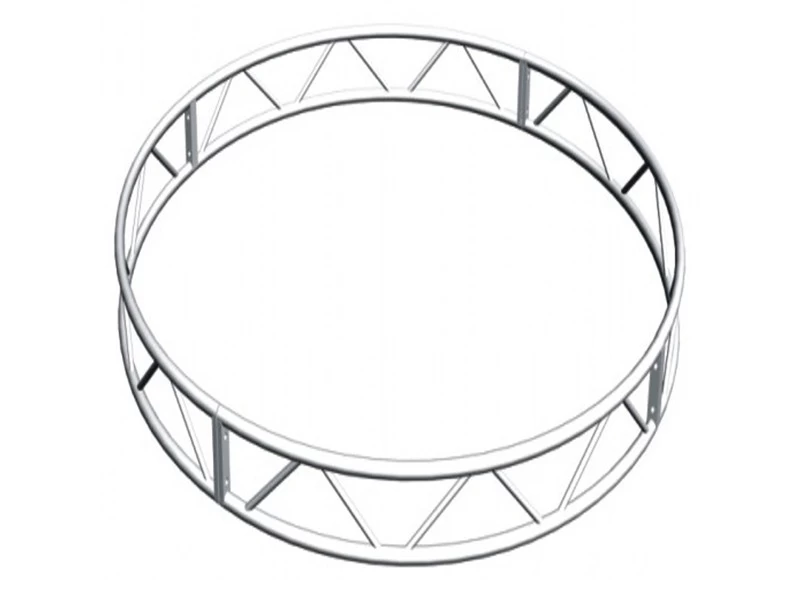

Alumimum Vertical Single Ladder Circular Truss:
The Stage Lights Circular Truss Vertical is configuarted with only the Flat Ladder Truss ITSC-CL29 and simply connected with the connical coupler connectors. It is stomized according to some JD truss kits requirements.
Features:
-
Mini and simple
-
TUV and SGS approved
-
Fool proof assemble
-
Any diameter customized
Specification:
|
Material
|
Aluminum Alloy 6061-T 6/ 6082-T 6
|
|
Types
|
Ladder Truss circle
|
|
Main tubes
|
50 x 2 mm
|
|
Bracing
|
20x2mm
|
|
Connection type
|
Conical couple system
|
Arc Lengths:
|
Diameter（m)
|
Arc
|
|
1.5 m
|
2 x 180 degree arcs
|
|
2 m
|
2 x 180 degree arcs
|
|
3 m
|
4 x 90 degree arcs
|
|
4 m
|
4 x 90 degree arcs
|
|
5 m
|
8 x 45 degree arcs
|
Other length can be custom on request.
