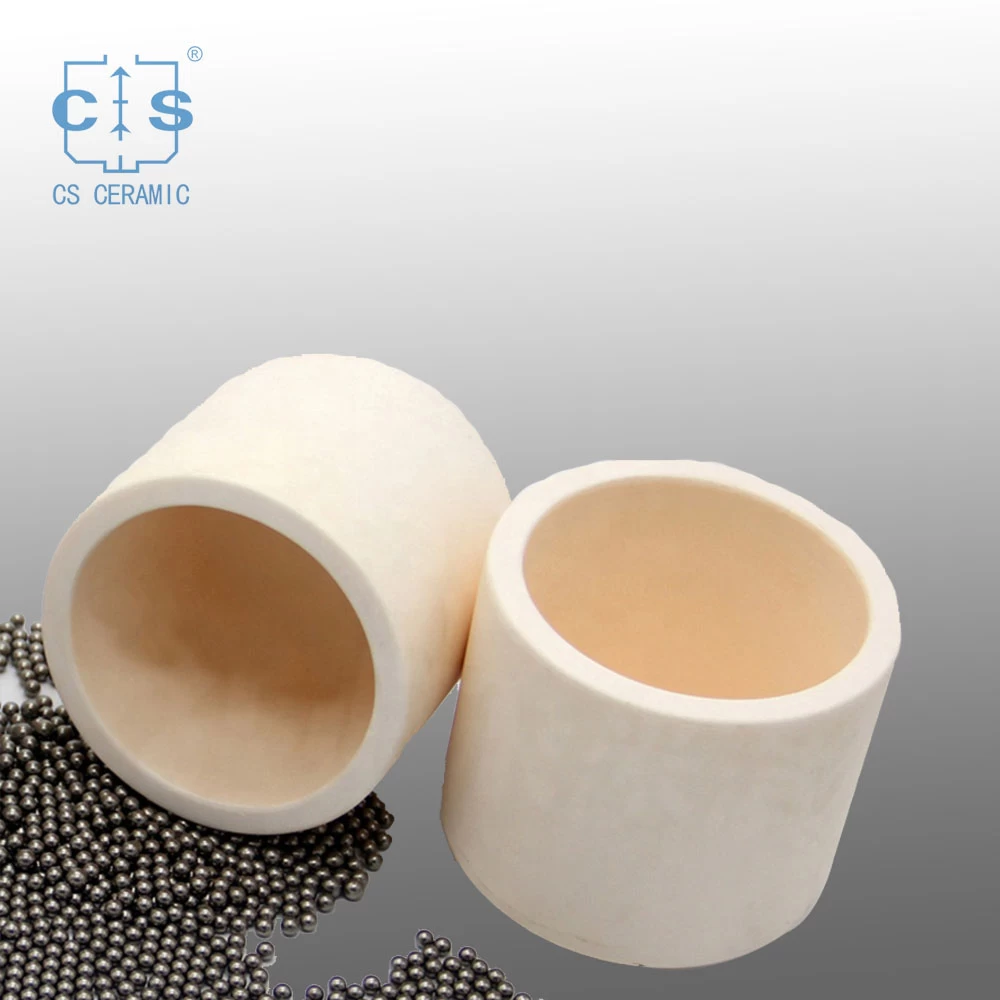

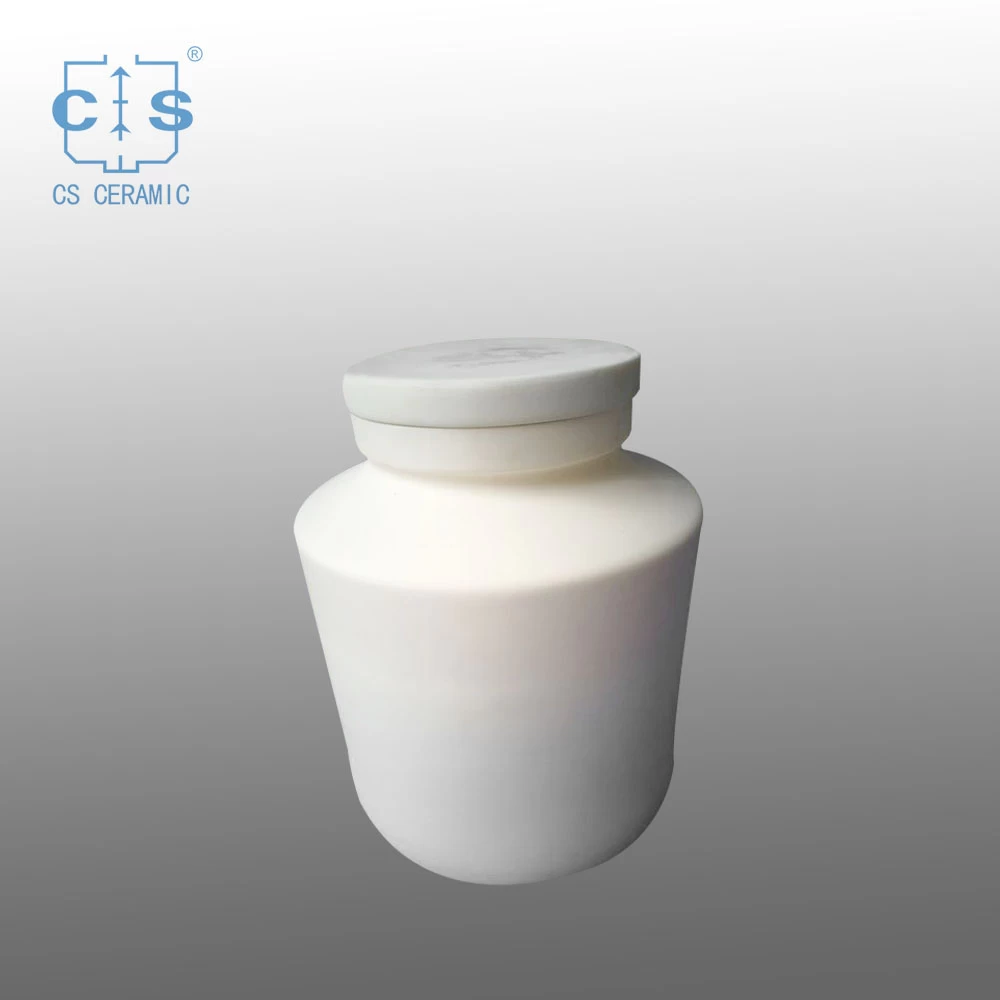

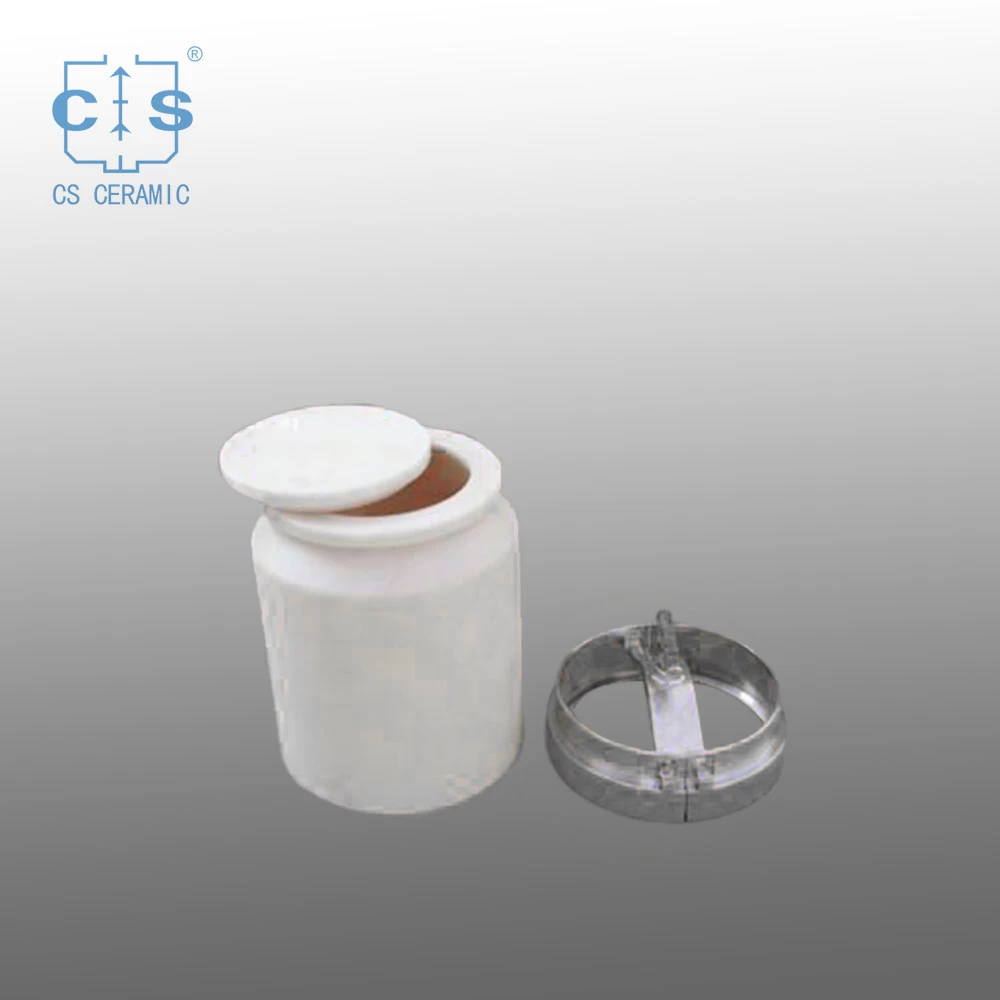

Product Item:Alumina Ceramic Mill Jar /Ball Mill Tank /Mill Pot with balls
Application:
Alumina ceramic ball mill tank is a highly wear-resistant grinding tank, it is the carrier in the planetary ball mill for sample grinding. Alumina ball mill tank has high purity, high hardness, impact resistance, strong acid and alkali resistance, resistance to various solvents, wear resistance, non-contamination of samples, long service life and high grinding efficiency. It can be applied to medical, metallurgy, electronics and materials, coatings, special cement, enamel glaze and other industries.

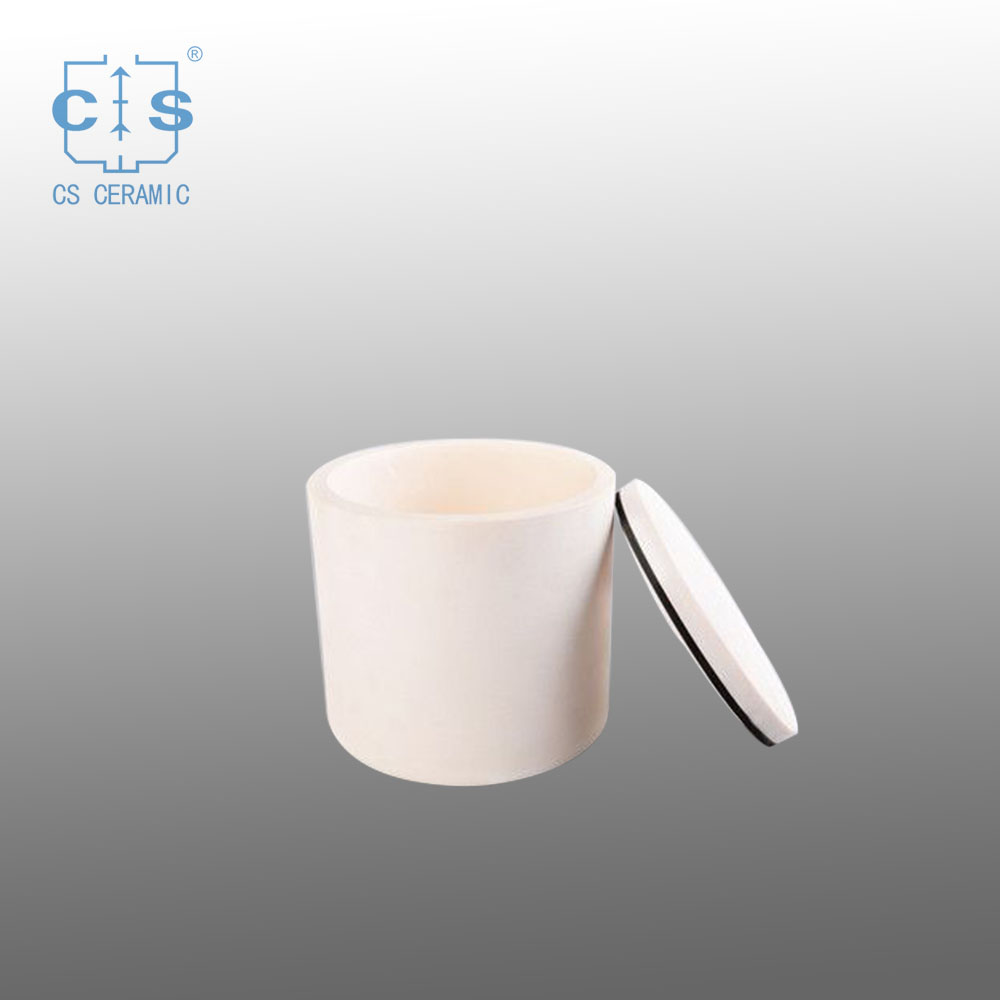

Each Jar set includes:
1.Grinding jar
2.Jar lid
3.Rubber sealing gasket

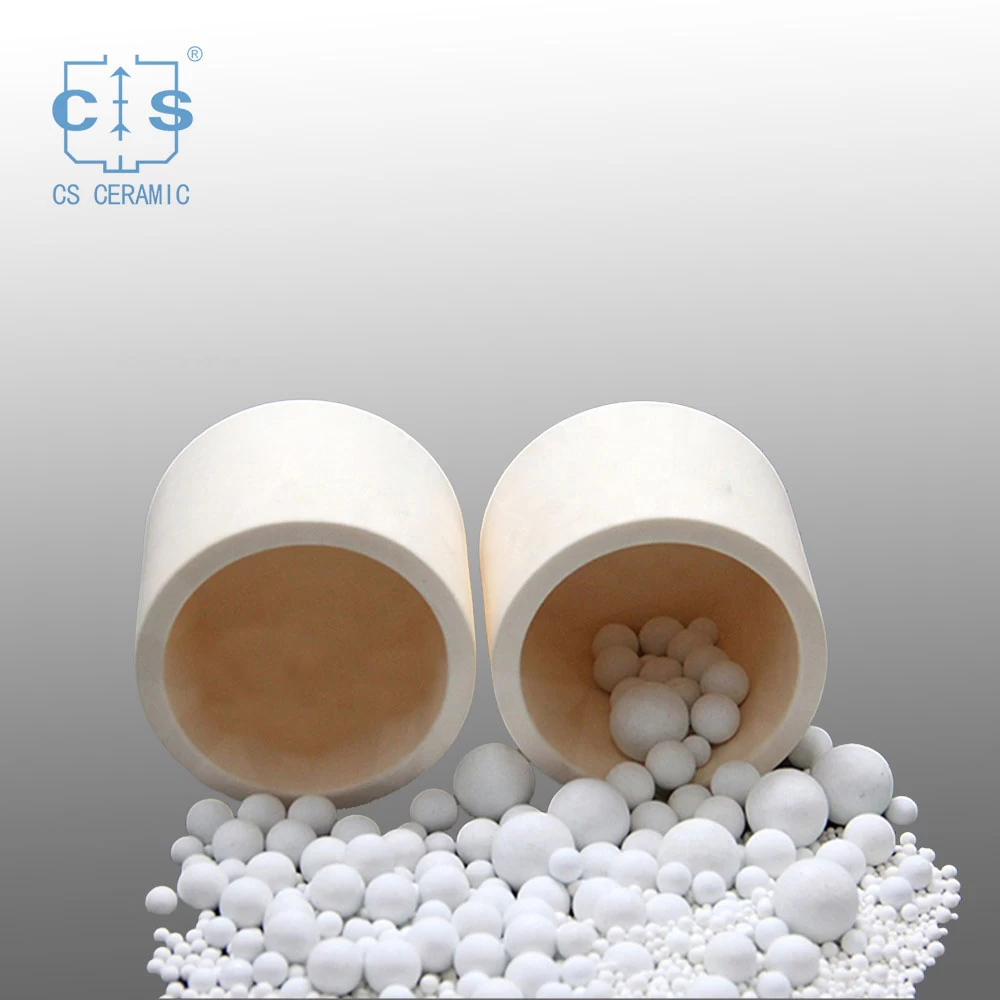

4. different sizes of mixed alumina ceramic grinding balls
Size :
|

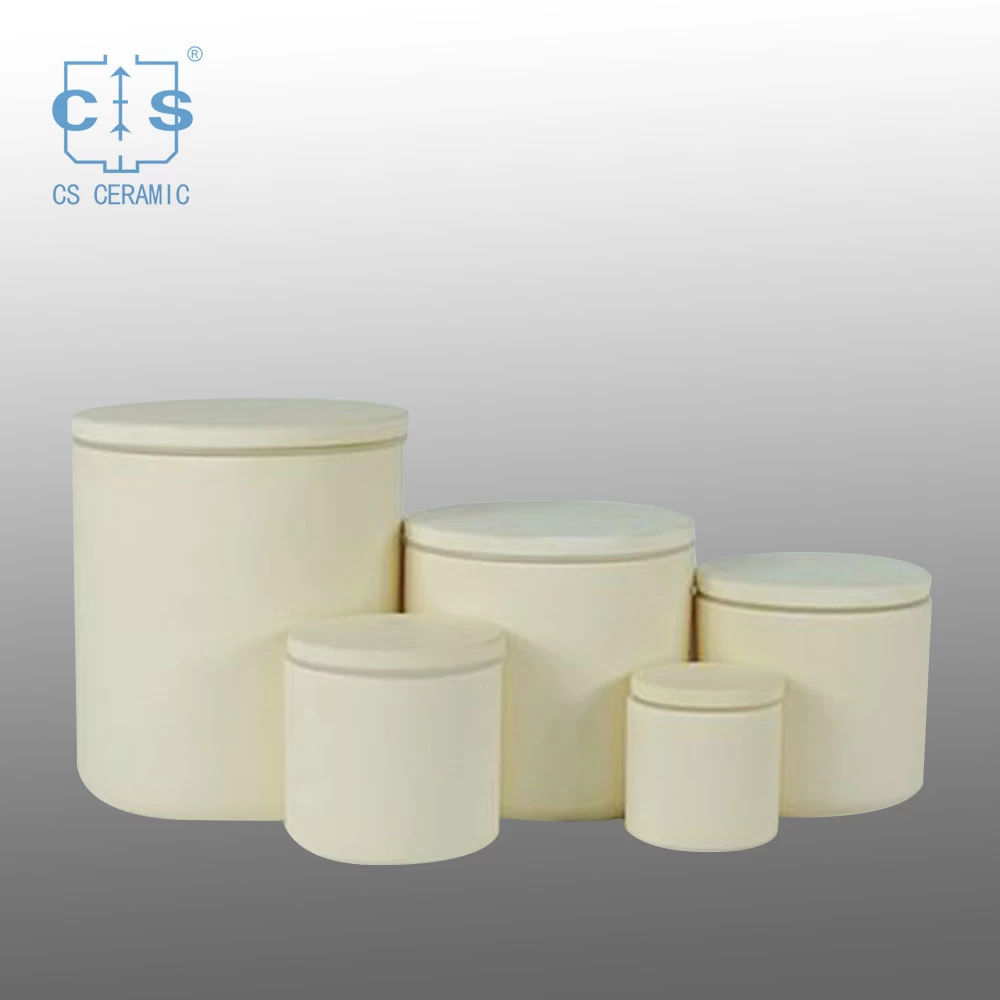

Vertical (Cylindrical )Alumina Ball Mill Jar
|
|
Item NO,
|
Jar Volume
|
OD (mm)
|
ID (mm)
|
Height without cover(mm)
|
Height of Cover
|
Total Height (mm)
|
Wall Thickness(mm)
|
|
CS-J-01
|
50ml
|
55
|
38
|
60
|
8
|
67
|
8
|
|
CS-J-02
|
100ml
|
65
|
50
|
66
|
8
|
75
|
8
|
|
CS-J-03
|
250ml
|
92
|
74
|
78
|
9
|
88
|
8
|
|
CS-J-04
|
500ml
|
100
|
84
|
108
|
9
|
118
|
9
|
|
CS-J-05
|
1L
|
128
|
108
|
117
|
10
|
150
|
10
|
|
CS-J-06
|
1.5L
|
132
|
112
|
158
|
10
|
175
|
10
|
|
CS-J-07
|
2.0L
|
158
|
138
|
151
|
12
|
162
|
10
|
|
CS-J-08
|
2.5
|
170
|
150
|
160
|
12
|
170
|
10
|
|
CS-J-09
|
3.0L
|
158
|
138
|
185
|
12
|
220
|
10
|
|
Horizontal alumina ball grinding tank
|
|
Item NO,
|
Jar Volume
|
OD (mm)
|
ID (mm)
|
Wall Thickness(mm)
|
|
CS-J-10
|
50ml
|
64
|
59
|
11
|
|
CS-J-11
|
100ml
|
66
|
69
|
9
|
|
CS-J-12
|
250ml
|
90
|
78
|
10
|
|
CS-J-13
|
500ml
|
106
|
99
|
10
|
|
CS-J-14
|
1L
|
133
|
126
|
12
|
|
CS-J-15
|
1.5L
|
152
|
172
|
12
|
|
CS-J-16
|
2.0L
|
168
|
210
|
12
|
|
CS-J-17
|
3.0L
|
200
|
265
|
12
|
Technical parameters:
|
Technical parameters of Alumina Ball Mill Jar
|
|
Capacity
|
50ml,100ml, 250ml, 500ml,1L, 2L, 3L, 5L
|
|
Alumina content
|
99%
|
|
Mohs hardness
|
9.2
|
|
Density
|
3.7 g.cm-3
|
|
Refractoriness
|
≥ 1850 ° C
|
|
Water absorption
|
≤ 0.005
|
|
Wear resistance g .(kg.h) -1
|
≤0.005
|
|
Specific Gravity
|
≥ 60.2
|
|
|
|
Grinding mode
|
Dry grinding/wet grinding
|
Configurationsurations:
|
Grinding Jar Volume
|
100ml
|
250ml
|
500ml
|
1000ml
|
|
Compatible Ball Weight
|
66g
|
165g
|
330g
|
660g
|
|
Φ5mm grinding balls (0.25 g/pc)
|
106 pcs
|
300 pcs
|
|
|
|
Φ10mm grinding balls (1.99 g/pc)
|
20 pcs
|
76 pcs
|
50 pcs
|
100 pcs
|
|
Φ15mm grinding balls (6.72 g/pc)
|
|
4 pcs
|
30 pcs
|
59 pcs
|
|
Φ20mm grinding balls (15.92 g/pc)
|
|
|
3 pcs
|
5 pcs
|
|
These values are just clues: the number of balls should be determined experimentally if necessary.
|
Why choose CS CERAMIC
6 Steps Inspection Processes
15+ Years Oversea Market experience
30+ Years Manufacturer
300+ Members Professional Team
8000+ Kinds of alumina ceramic parts in Stock
Shipping：We do international shipping .
OEM : All sizes can be customized,Can be made into various of complex shapes, high dimension accuracy.
Please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
