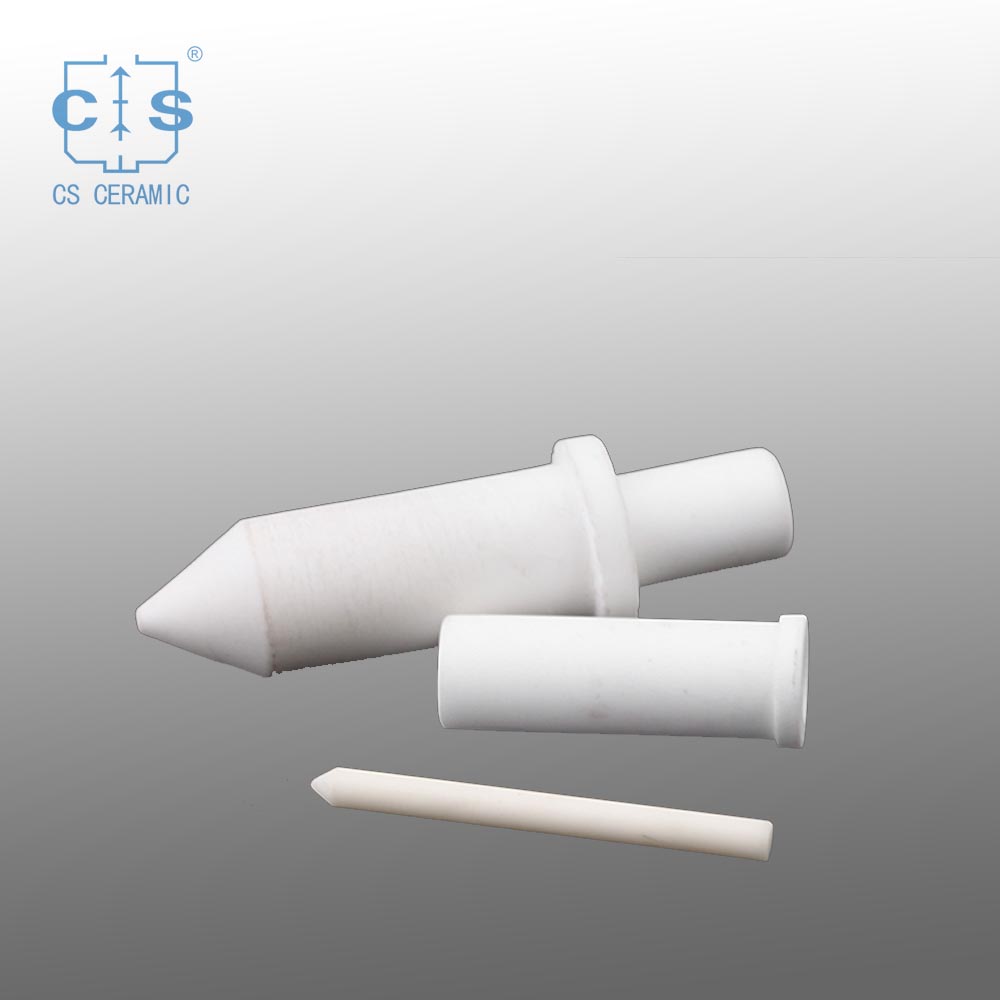

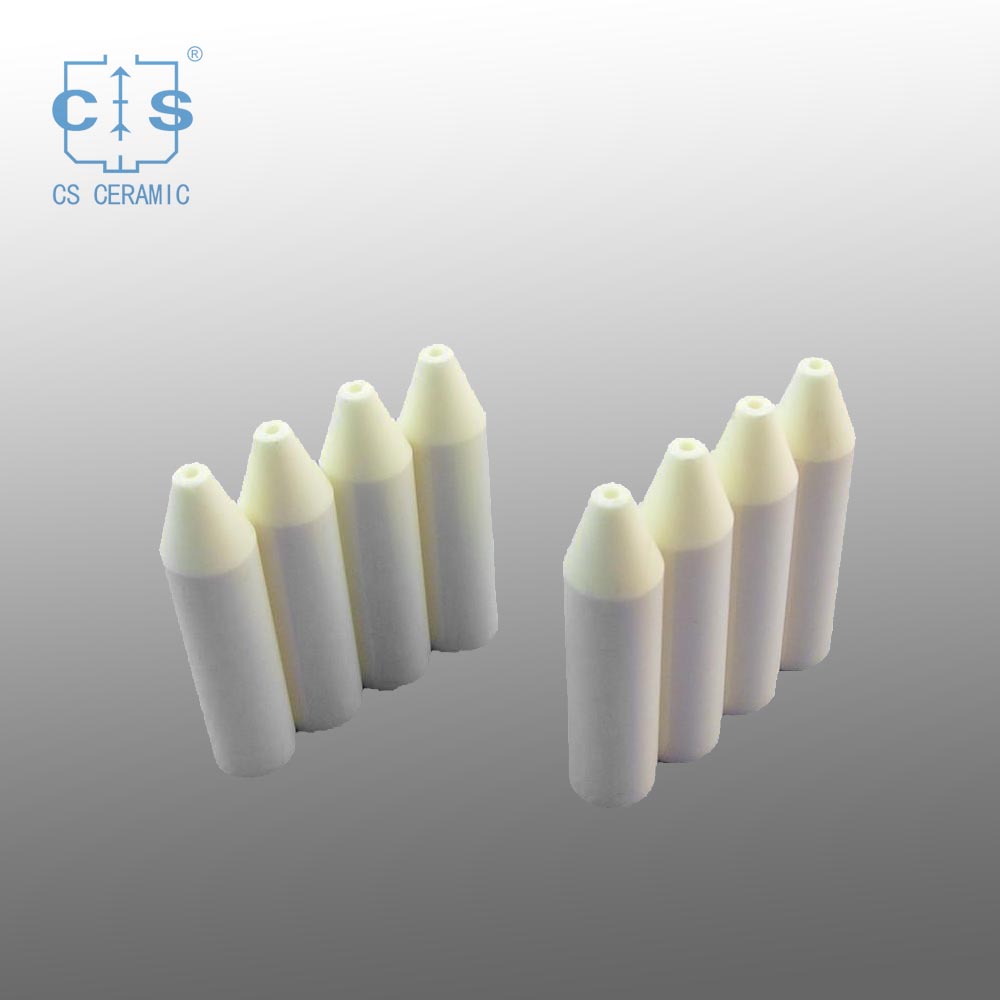

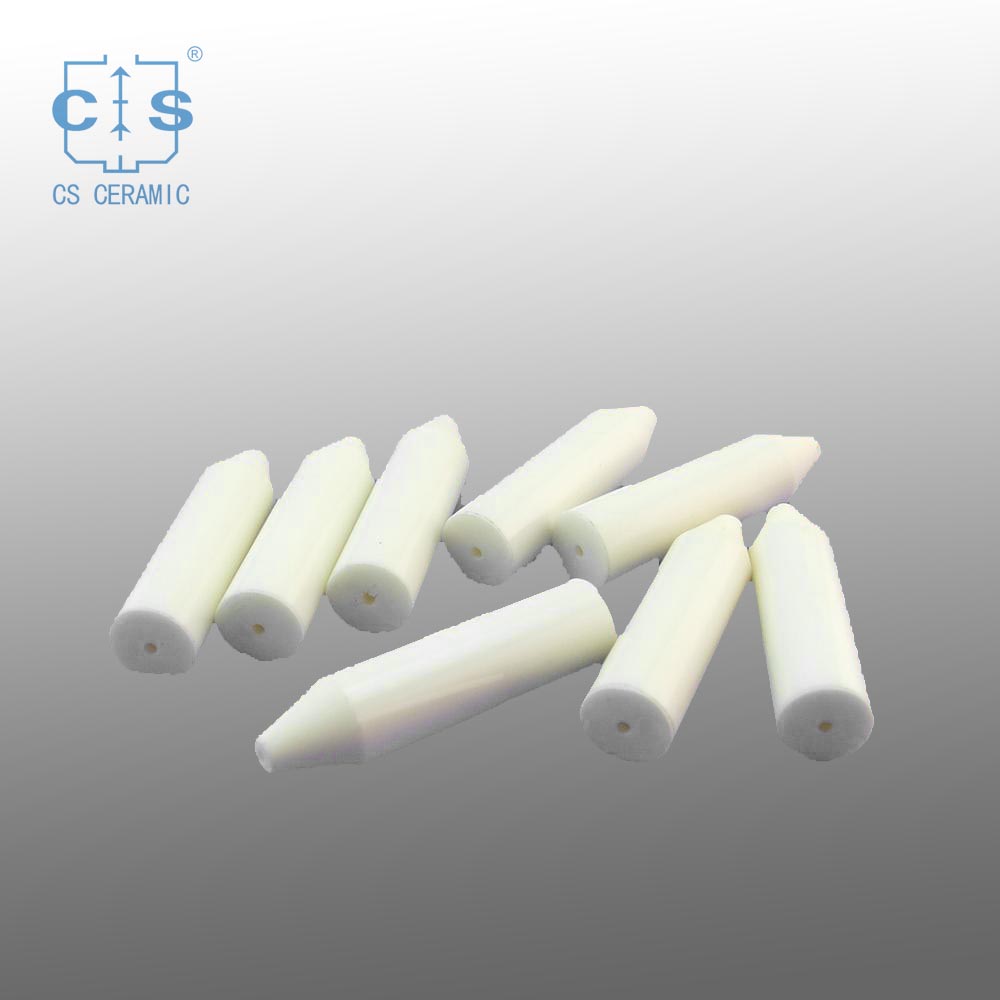

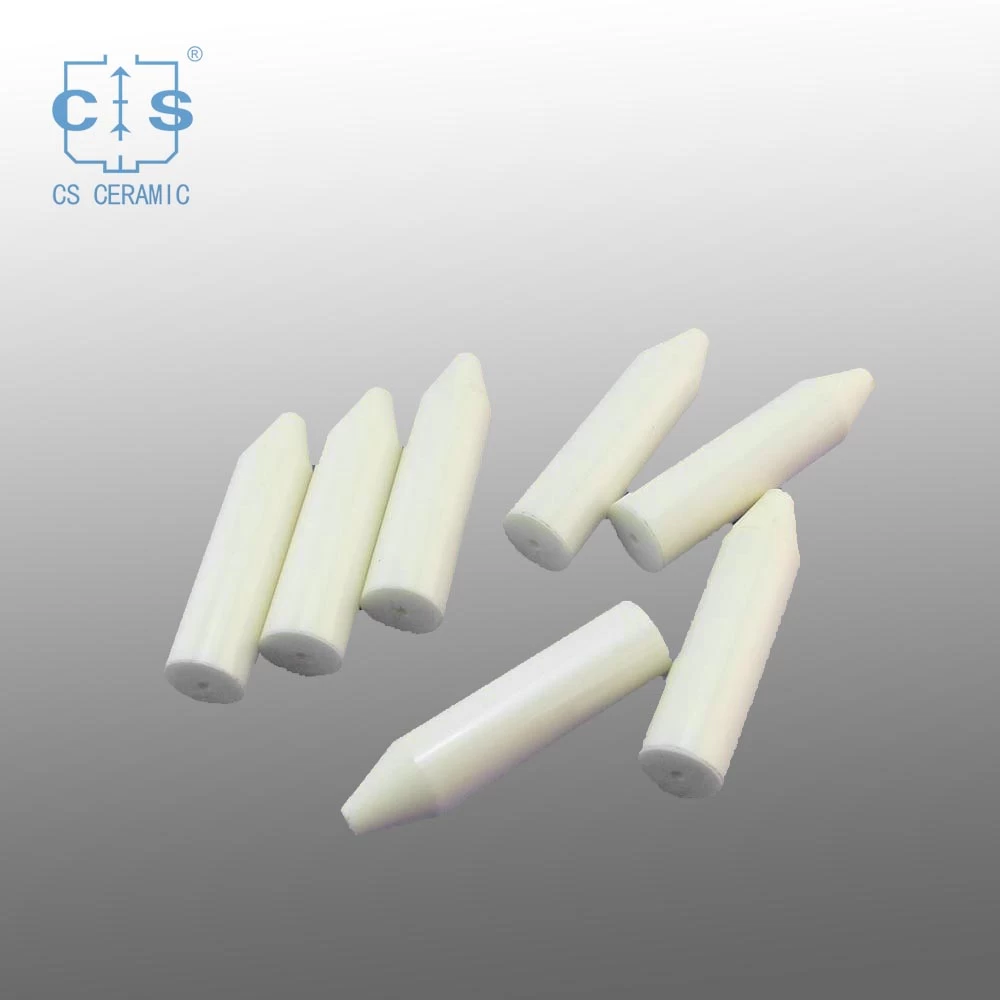

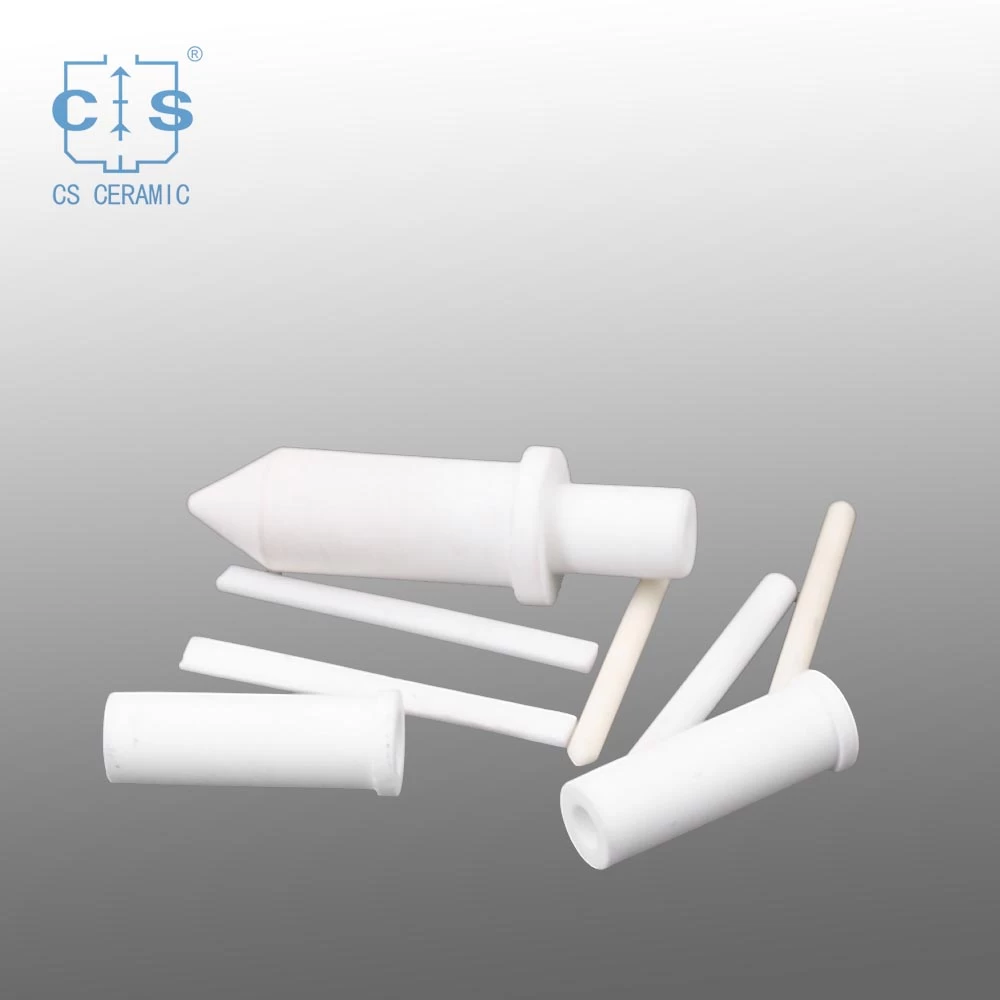

Product Item:Alumina Ceramic pin
Usage:
|
welding pin
|
guide pin
|
|
|
positioning pin
|
ceramic pin gauge
|
|
|
optical fiber connector ferrule
|
|
|
Material for choose
|
Zirconia(ZrO2)
|
95%--99.95% Alumina(Al2O3)
|
|
Silicon carbide
|
Silicon notride ceramic
|
Ceramic Pin Type
|
Customized Manufacturing Alumina Ceramic Pin
|
|
CS-P1
|
Straight Dowel
|
Straight dowel pins are cylindrical pins that join two pieces together to prevent motion or slippage.
|
|
CS-P2
|
Oversize Dowel
|
Oversized dowel pins are manufactured slightly over the nominal size.
|
|
CS-P3
|
Undersize Dowel
|
Undersized dowel pins are manufactured slightly under the nominal size.
|
|
CS-P4
|
Pull Dowel Pin
|
Pull dowel pins have a threaded hole in one end so that a screw can be inserted to help remove the pin from a blind hole.
|
|
CS-P5
|
Groove Pin
|
Grooved pins are cylindrical pins with longitudinal grooves. They are used to join two components. Grooves provide greater surface area for adhesive, and offer improved holding power.
|
|
CS-P6
|
Knurled Pin
|
Knurled pins are straight pins with a knurled surface. They provide a better grip than a smooth dowel pin.
|
|
CS-P7
|
Parallel Pin
|
Parallel pins are cylindrical dowel pins that have the ends machined to two different tolerances.
|
|
CS-P8
|
Spiral Groove Pin
|
Spiral groove pins are cylindrical pins with longitudinal grooves. They are used to join two components. Grooves provide greater surface area for adhesive, and offer improved holding power.
|
|
CS-P9
|
Stepped Dowel Pin
|
Stepped dowel pins have two different body diameters.
|
|
CS-P10
|
Taper Pin, Nonthreaded
|
Nonthreaded taper pins are solid pins with a taper at a rate of 1/4" per foot from the larger end to the smaller.
|
|
CS-P11
|
Taper Pin, Threaded
|
Threaded taper pins have the same dimensions as standard taper pins with the addition of a threaded section, usually at the smaller end. Threaded taper pins are used when removal may be required.
|
|
CS-P12
|
Drive Pin
|
Drive pins have an interference fit and must be driven into place. They are commonly used to assemble components in rotary or other moving applications.
|
|
CS-P13
|
Escutcheon Pin
|
Escutcheon pins are used for light fastening jobs such as attaching nameplates. Escutcheon pins have a semispherical head at one end and a long cone at the other. Usually, these pins are hammered into place by hand.
|
Our ceramic pin is a high precision product with a tolerance requirement of +/- 0.001 to mm.
Properties :
Extreme hardness and flexural strength
High thermal shock resistance
Electrical insulation
Temperature resistance
High tensile strength and compressive strength
Fewer cold welds
High Corrosion and Wear Resistance.
Why choose CS CERAMIC
6 Steps Inspection Processes
15+ Years Oversea Market experience
30+ Years Manufacturer
300+ Members Professional Team
300+ Kinds of alumina pins in Stock
Shipping：We do international shipping .
OEM : All sizes can be customized,Can be made into various of complex shapes, high dimension accuracy.
Please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
