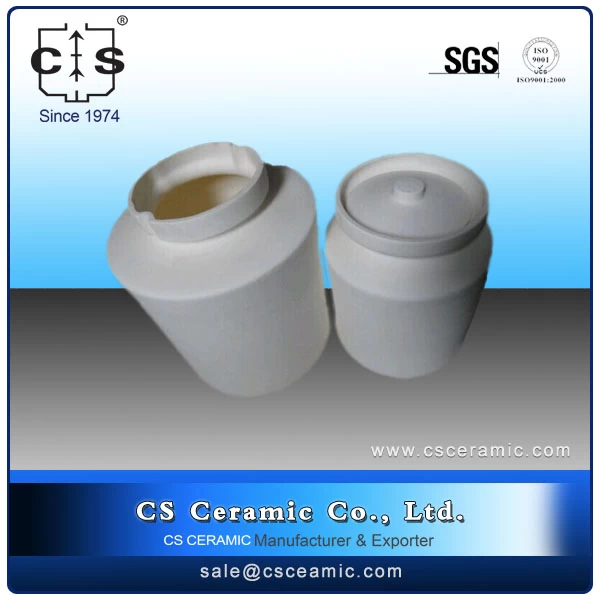

Product Item: Alumina Ceramic Pots Mill Grinding Jar
Features:
1.Ultra-high fired ceramic body composed primarily of high-grade aluminum oxide.
2.Extremely high abrasion resistance, long service life, negligible contamination factor.
3.Recommended where silica contamination must be held to an absolute minimum
4.Polyurethane-coated body minimizes breakage.
Specification table of ceramic grinding pot:
|
Item
|
Model &
Specification
|
Capacity
|
Outer size:diameter x height
|
Appro.net weight
(in kgs)
|
|
Ceramic grinding pot
|
CS
|
30-40L
|
400*600
|
|
|
XL size
|
18-18.5
|
300*400
|
18
|
|
L size
|
15-16
|
300*330
|
14~15
|
|
One-size
|
10-14
|
270*320
|
11
|
|
Two-size
|
5-6.5
|
220*260
|
9
|
|
Three-size
|
3-5
|
180*250
|
6
|
|
Four-size
|
1.5
|
150*180
|
|
|
Five-size
|
1
|
130*170
|
5
|
Application:
Electrical ceramic,magnetic material,pigment and dope,special cement, porcelain enamel and glaze ect industrial line.
Used in material crush,one part of ball grinding mill.
If need open new mould, please send us detail specification and design drawing firstly, we'll reply you in 24 hours. Contact email: info@csceramic.com
