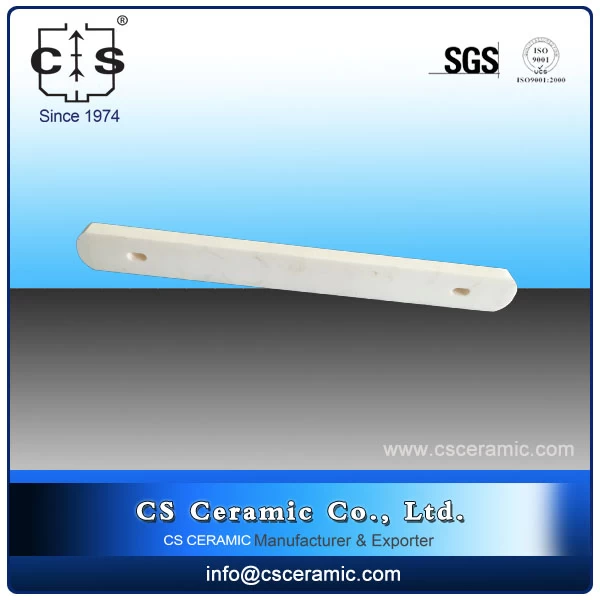

Product Item: Alumina Ceramic Shelf

Features:

1) Material: 99% Al2O3 (alumina)

2) Density: 3.8g/cm

3) Hardness: HRA 88

4) Bending strength: >350MPa

5) Compressive strength: >3,900MPa

6) Fracture toughness: 3.0-4.0MPam 1/2

7) Thermal conductivity: 30W/mk

8) Young's modulus: 380GPa

9) Maximum using temperature: 1,800 deg.C

10) Dimensions: O.D. 15-160mm, height 15-300mm, thickness>3mm

11) Available in various types: round bottom, curve, square, cylindrical

12) Designed for high temperature fusion and incineration in an oven or

furnace, made from glazed ceramic material.

Special offer: Most of our goods are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
