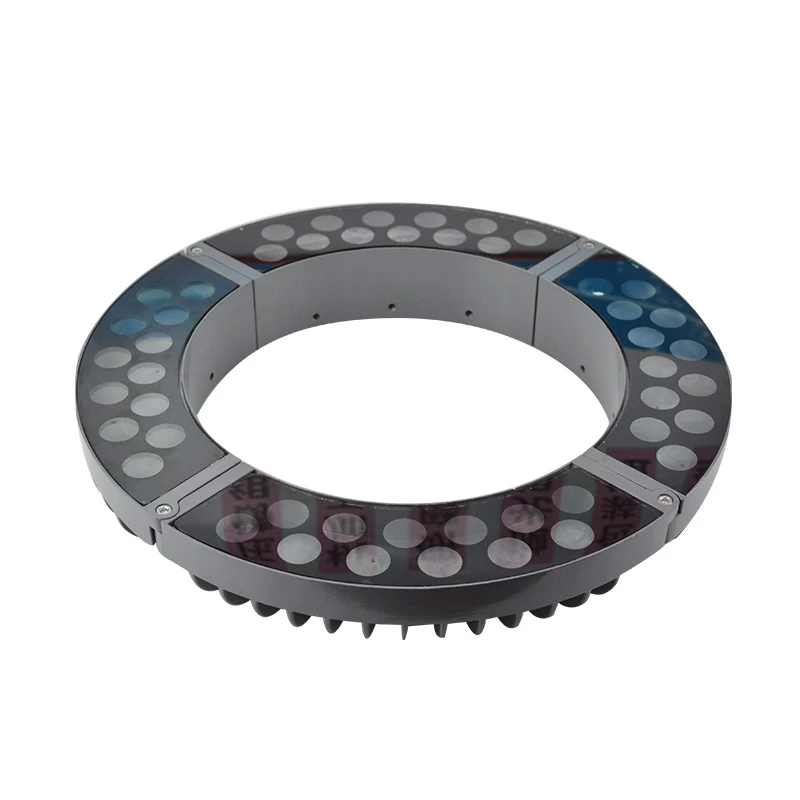

The improvement of our led housing FL06
1. Concealed screw on surface.
2. Gear type heat sink.
3. Protruding stage to protect painted surface.
4. Perfect drainage system with gutter inside.
|
Detailed data
|
|
Item No.
|
MSL-FL06
|
Glass material
|
Tempered clear glass
|
|
Type
|
Aluminium Led Lamp Housing Garden Landscape Led Housing
|
Luminousness(Glass)
|
95%
|
|
Brand
|
Mansolo
|
Lens material
|
PMMA
|
|
Lampshade material
|
Aluminum alloy
|
Luminousness(Lens)
|
92%
|
|
Surface treatment
|
Powder coating
|
Power scope
|
12W or Custom
|
|
Standard color
|
Black, dark grey, light grey
|
IP rate
|
IP67
|
|
Warranty(housing)
|
5 years
|
Salt spray
|
3000 hours
|
|
Fixture Parts
|
Surface cover/Lamp coeur/Fixed plate for lens/Heat sink body/Waterproof power box/Stents
|
Housing Net weight
|
0.75KG
|
Production process
(housing)
|
Die casting/Machining/CNC/
polishing/powder coating
|
Housing size
|
L29*W6.5*H6
|
Features for the products:
1. The shell adopts the high quality of lams and lanterns aviation aluminum die-casting, surface after polishing, nano electrostatic spraying, introduced large lamp plate heat dissipation design, greatly improve the effect of light and heat dissipation problems, effectively ensure the service life of light source and power supply in the bad environment.
2. The lamp body adopts toughened glass and silica gel seal to meet the IP67 standard, and the excellent waterproof, dust-proof and anti-corrosion design can be used in rainy or cold areas for a long time.
Application scope:
Those products are widely used in highway, railway, subway, tunnel and other underground places, underground parking garage workshop, large warehouse, sports venues and construction site, also can be used in the urban landscape, billboard, building facade illumination etc.
