Product feature and purpose:

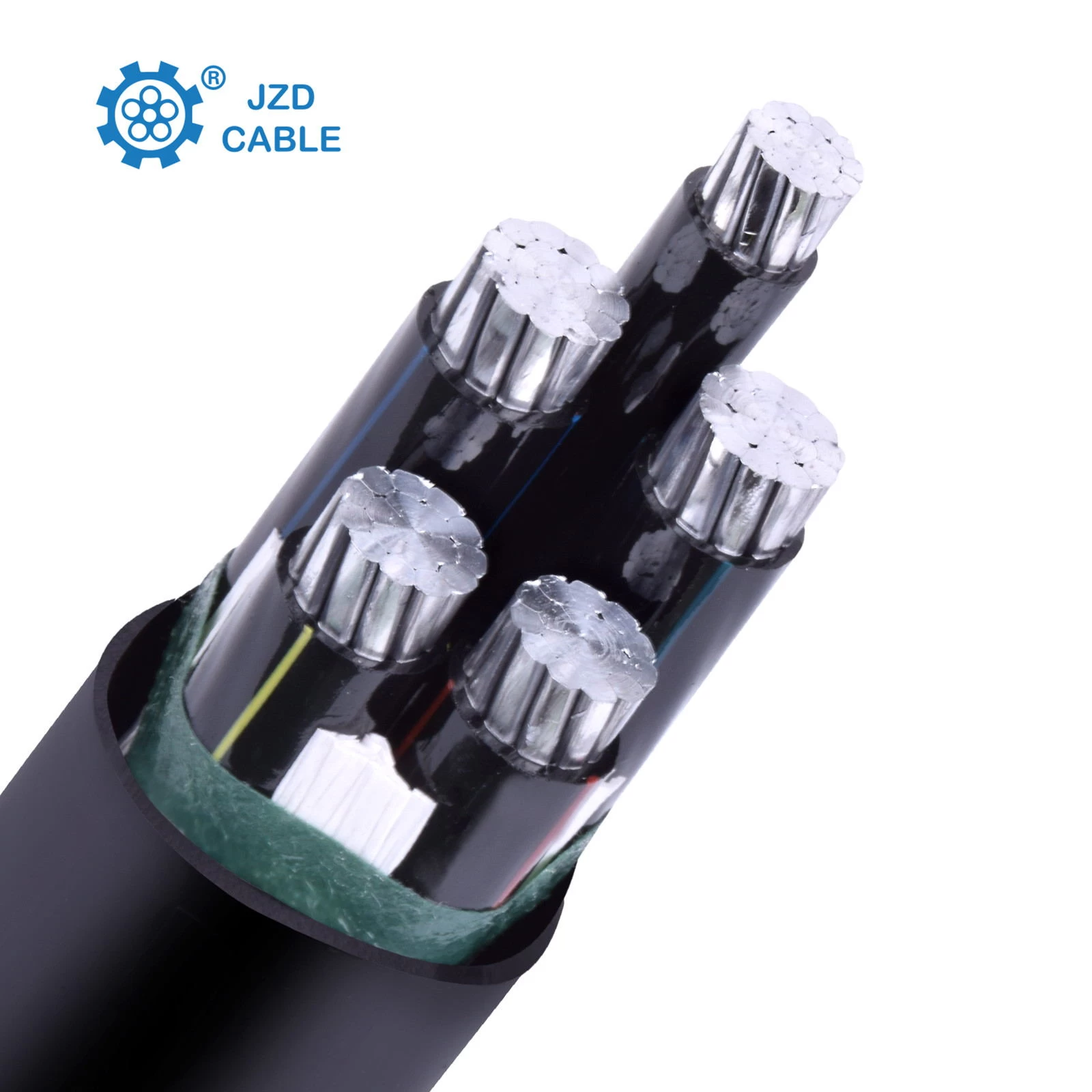

Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental stress,excellent electrical properties ,powerful resistance to
chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.In terms
of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large
industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.
Operative standard:
GB/T 12706,IEC 60502 and relevant domestic and international standard.For example,BS,VDE,JIS,AEIC,and so on.
Operational performance:
The maximum allowable operating temperature of the cable conductor:90 C in normal condition and 250 C in case of short circuit (maximum duration of short circuit is 5s).
NO.of cores×section
(mm²)
|
Normal insulation
thickness(mm)
|
Normal thickness of
oversheath
|
Approximate overall
diameter of cable(mm)
|
Approximate weight
of cable(kg/km)
|
|
Cu
|
AL
|
|
Unarmoured
|
Armoured
|
Unarmoured
|
Armoured
|
YJV
|
YJV22
|
YJLV
|
YJLV22
|
|
4×4
|
0.7
|
1.8
|
1.8
|
12.5
|
18.1
|
282
|
430
|
/
|
/
|
|
4×6
|
0.7
|
1.8
|
1.8
|
14.7
|
17
|
383
|
545
|
/
|
/
|
|
4×10
|
0.7
|
1.8
|
1.8
|
16.9
|
19.1
|
565
|
752
|
390
|
517
|
|
4×16
|
0.7
|
1.8
|
1.8
|
19.3
|
21.6
|
783
|
1020
|
416
|
663
|
|
4×25
|
0.9
|
1.8
|
1.8
|
23.5
|
25.7
|
1241
|
1502
|
593
|
902
|
|
4×35
|
0.9
|
1.8
|
1.8
|
26.7
|
28.7
|
1631
|
1957
|
776
|
1096
|
|
4×50
|
1.0
|
1.8
|
1.9
|
28.0
|
32.6
|
2080
|
2812
|
961
|
1770
|
|
4×70
|
1.1
|
2.0
|
2.1
|
33.2
|
37.5
|
2952
|
3796
|
1302
|
2222
|
|
4×95
|
1.1
|
2.1
|
2.3
|
38.0
|
42.6
|
3970
|
4962
|
1693
|
2757
|
|
4×120
|
1.2
|
2.3
|
2.4
|
40.9
|
46.4
|
4894
|
5913
|
2077
|
3363
|
|
4×150
|
1.4
|
2.4
|
2.6
|
46.0
|
51.3
|
5980
|
7170
|
2852
|
3878
|
|
4×185
|
1.6
|
2.6
|
2.7
|
52.5
|
57.8
|
7442
|
8802
|
3173
|
4618
|
|
4×240
|
1.7
|
2.8
|
3.0
|
59.4
|
64.6
|
9764
|
11289
|
4032
|
5782
|
|
4×300
|
1.8
|
3.0
|
3.1
|
66.2
|
71.6
|
12122
|
13856
|
4924
|
6735
|
|
4×400
|
2.0
|
3.3
|
3.4
|
73.8
|
80.3
|
15624
|
18407
|
6272
|
9313
|
|
4×500
|
2.2
|
3.5
|
3.7
|
89.3
|
96
|
19877
|
23264
|
7667
|
11062
|
|
4×630
|
2.4
|
3.8
|
4.0
|
99.6
|
106.3
|
25124
|
28895
|
9514
|
13293
|
Our customers are located all over the world including China, Singapore, Malaysia, Indonesia, Korea, India, USA and many countries in Europe as well as Africa and South America.
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
