Description

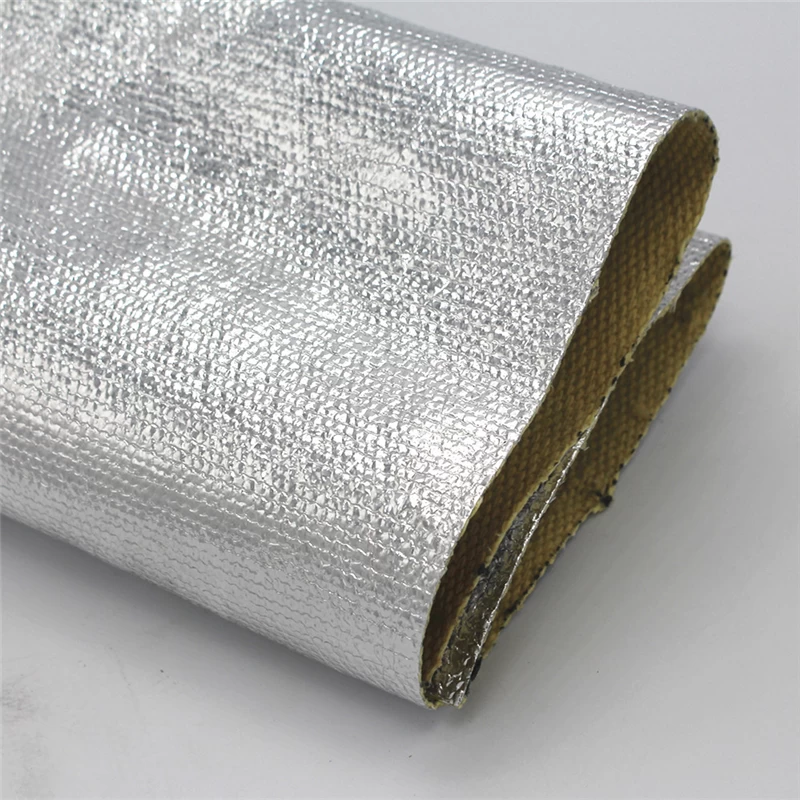

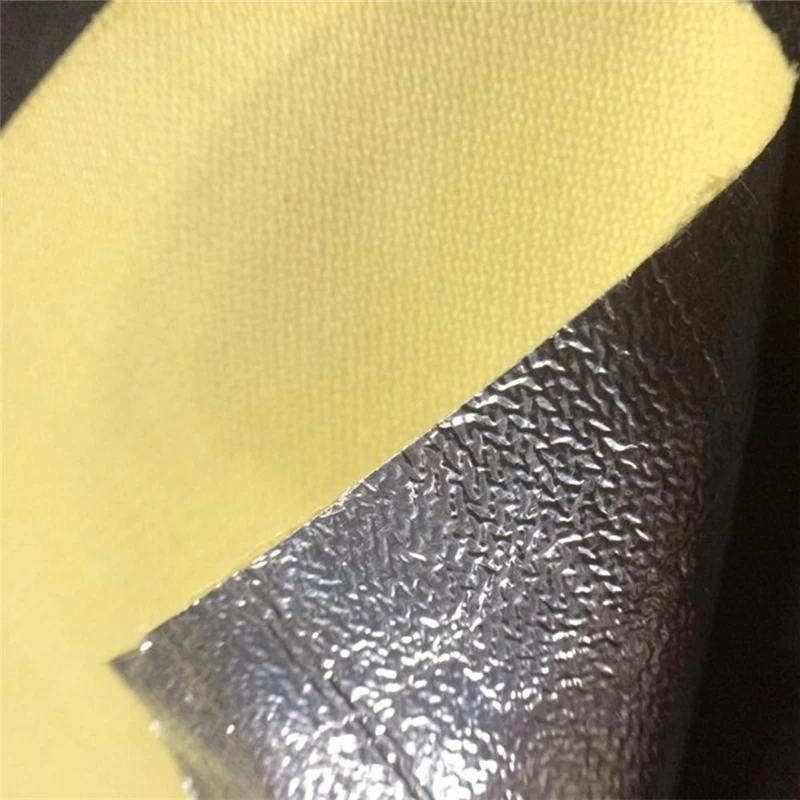

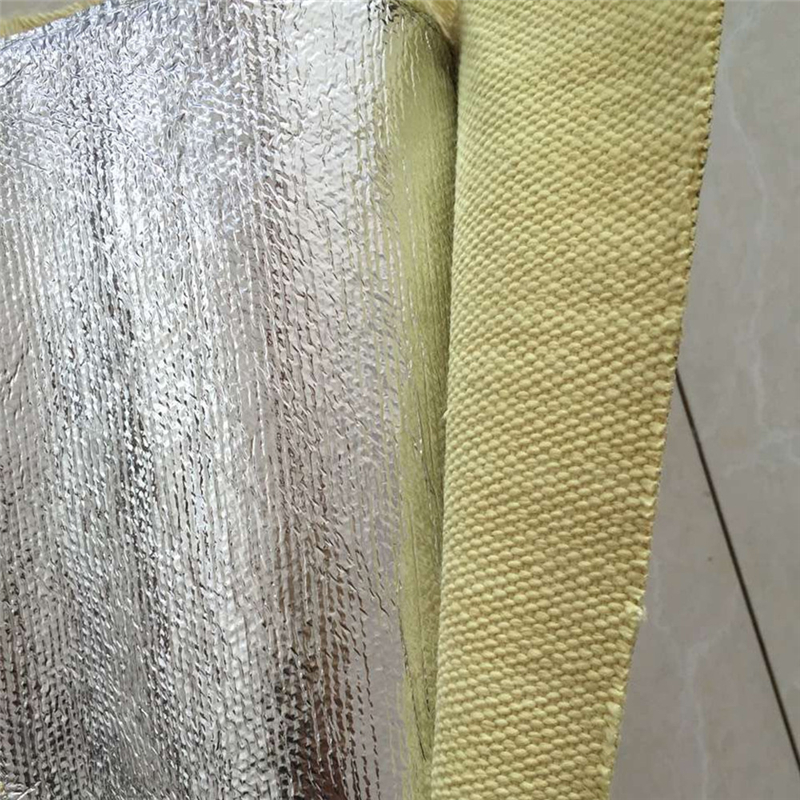

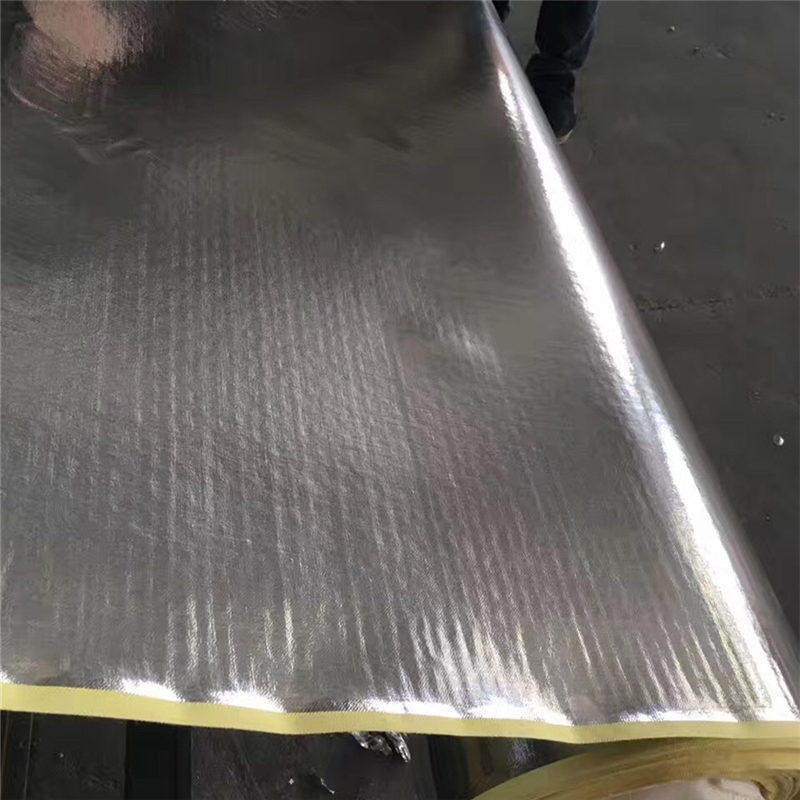

ARF-AL heat reflective Aluminized Kevlar Aramid Fabric is made by heat reflective aluminum and pure aramid fiber.
Features
Aramid fiber can be sued on bulletproof products, protection and other possibility. It is strong fiber, has the advantages of high strength, high tensils and low density. The aluminum coated will reflect heat.
Application
It is excellent for use in the construction of removable insulation pads where more severe conditions exist. Also used in weld spatter protection of equipment and personnel, heat shield and splash curtains.
Specifications
|
DATASHEET
|
|
Part Number
|
Yarn
|
Density(10mm)
|
style
|
Thickness
|
Width
|
Length
|
weight
|
|
Wrap
|
Fill
|
mm
|
cm
|
m
|
g/sqm
|
|
ARF-AL-9101
|
1100dtex
|
7
|
7
|
Plain
|
0.2
|
100
|
100
|
154
|
|
ARF-AL-9102
|
1100dtex
|
8
|
8
|
Plain
|
0.22
|
100
|
100
|
178
|
|
ARF-AL-9103
|
1100dtex
|
9
|
9
|
Plain
|
0.25
|
100
|
100
|
200
|
|
ARF-AL-S9103
|
1210dtex
|
7.5
|
7.5
|
Plain
|
0.25
|
100
|
100
|
200
|
|
ARF-AL-9104
|
1670dtex
|
5.5
|
5.5
|
Plain
|
0.23
|
100
|
100
|
185
|
|
ARF-AL-9105
|
1670dtex
|
6
|
6
|
Plain
|
0.24
|
100
|
100
|
200
|
|
ARF-AL-9106
|
1670dtex
|
7
|
7
|
Plain
|
0.26
|
100
|
100
|
235
|
|
ARF-AL-S9106
|
1670dtex
|
5.5
|
5.5
|
Plain
|
0.24
|
100
|
100
|
200
|
|
ARF-AL-9107
|
2200dtex
|
6
|
6
|
Plain
|
0.29
|
100
|
50/100
|
265
|
|
ARF-AL-9108
|
2200dtex
|
6.8
|
6.8
|
Plain
|
0.35
|
100
|
50/100
|
300
|
|
ARF-AL-9109
|
3360dtex
|
4.5
|
4.5
|
Plain
|
0.35
|
100
|
50/100
|
305
|
|
ARF-AL-9110
|
3360dtex
|
6.1
|
6.1
|
Plain
|
0.51
|
100
|
50/100
|
410
|
|
ARF-AL-9111
|
3360dtex
|
6.8
|
6.8
|
Plain
|
0.56
|
100
|
50/100
|
460
|
|
ARF-AL-S9111
|
3360dtex
|
6
|
6
|
Plain
|
0.54
|
100
|
50/100
|
450
|
|
ARF-AL-9201
|
1100dtex
|
8
|
8
|
Twill
|
0.22
|
100
|
100
|
178
|
|
ARF-AL-9202
|
1100dtex
|
9
|
9
|
Twill
|
0.25
|
100
|
100
|
200
|
|
ARF-AL-S9202A
|
1210dtex
|
10
|
10
|
Twill
|
0.34
|
100
|
100
|
270
|
|
ARF-AL-S9202A
|
1210dtex
|
13
|
13
|
Twill
|
0.44
|
100
|
100
|
350
|
|
ARF-AL-9203
|
1670dtex
|
6
|
6
|
Twill
|
0.24
|
100
|
100
|
200
|
|
ARF-AL-9204
|
1670dtex
|
7
|
7
|
Twill
|
0.26
|
100
|
100
|
235
|
|
ARF-AL-S9204
|
1670dtex
|
11.5
|
11.5
|
Twill
|
0.51
|
100
|
50/100
|
410
|
|
ARF-AL-9205
|
2200dtex
|
6
|
6
|
Twill
|
0.29
|
100
|
50/100
|
265
|
|
ARF-AL-9206
|
2200dtex
|
6.8
|
6.8
|
Twill
|
0.35
|
100
|
50/100
|
300
|
|
ARF-AL-9207
|
3360dtex
|
6.1
|
6.1
|
Twill
|
0.51
|
100
|
50/100
|
410
|
|
ARF-AL-9208
|
3360dtex
|
6.8
|
6.8
|
Twill
|
0.56
|
100
|
50/100
|
460
|
|
ARF-AL-S9208
|
3360dtex
|
8
|
8
|
Twill
|
0.7
|
100
|
50/100
|
600
|
|
Technical Datasheet
|
|
Material
|
Aramid, aluminum
|
|
Working temperature
|
-196℃ - +204℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+537℃
|
|
Standard Color
|
Yellow
|
|
MOQ
|
100 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness upon request
Special length or packing upon request.
