Description

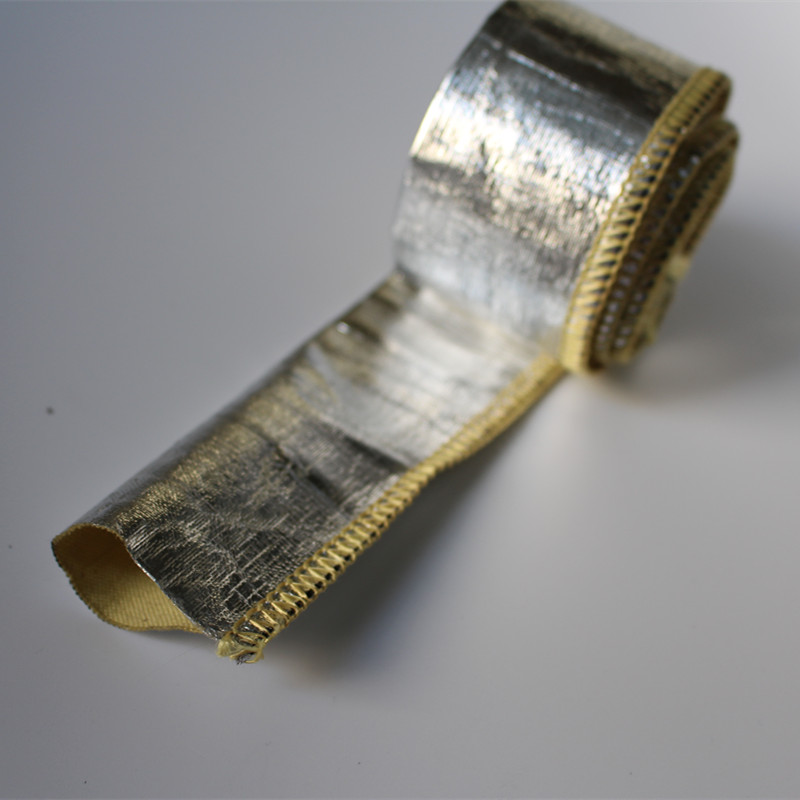

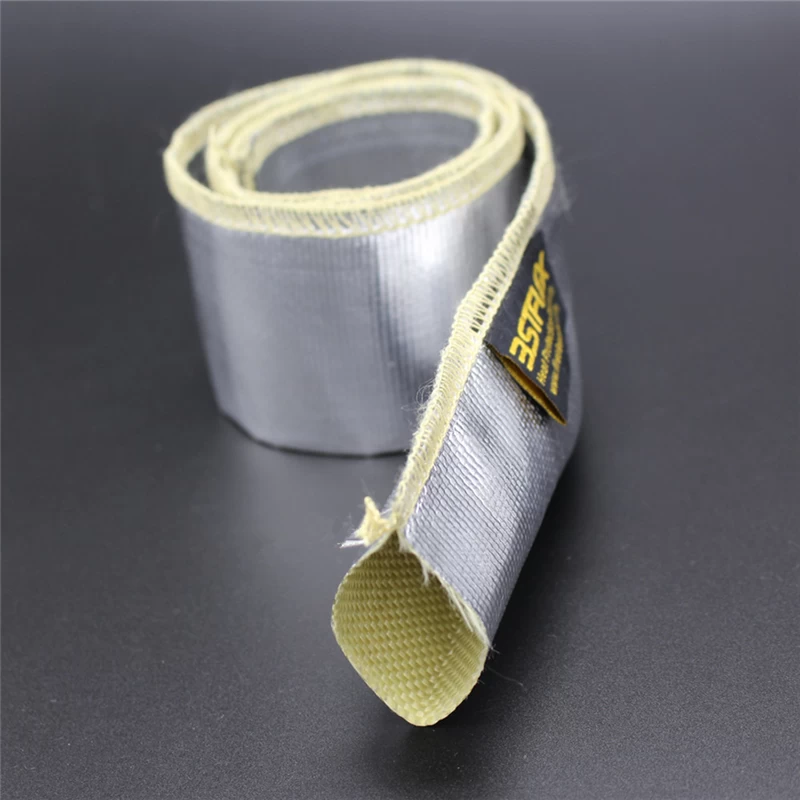

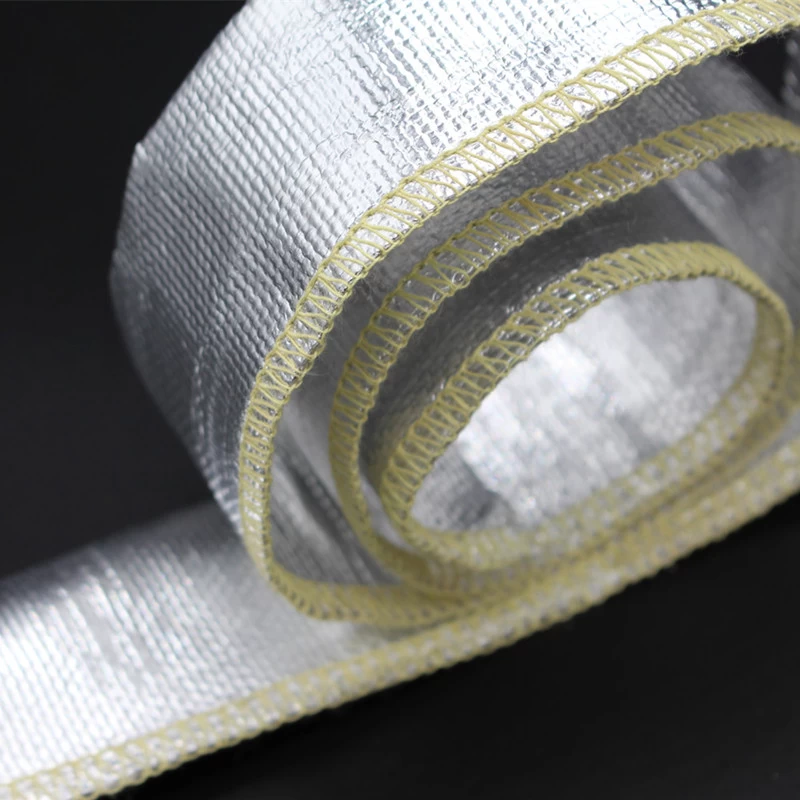

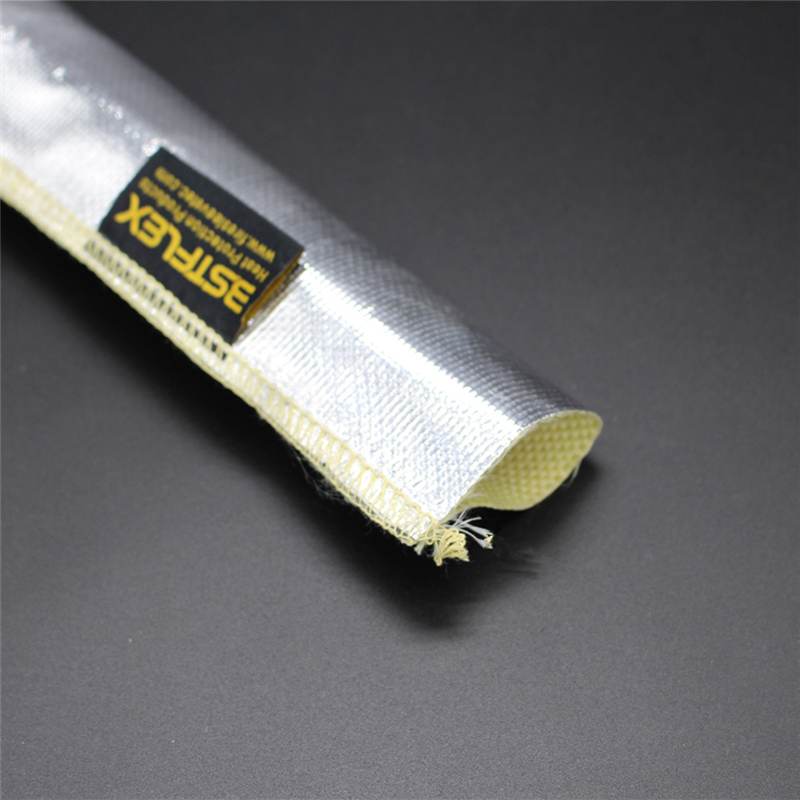

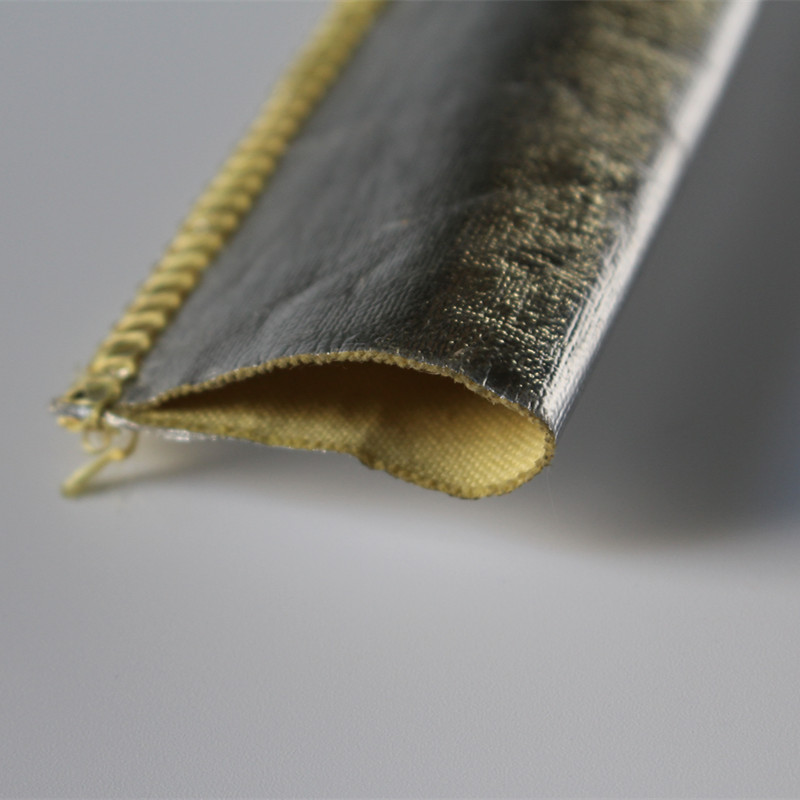

SEALAS is aluminum coated aramid fiber heat reflective sleeve sewn type and reflects more then 95% radiant heat. Aramid fiber is 5 times stronger than stainless steel.
Features
This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.
Application
It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.
Specifications
|
DATASHEET
|
|
Part Number
|
Normal Inside diameter
|
Meter for spool
|
|
Inches
|
mm
|
Dash #
|
Meter
|
|
SEALAS-13
|
1/2
|
13
|
-8
|
50
|
|
SEALAS-16
|
5/8
|
16
|
-10
|
50
|
|
SEALAS-19
|
3/4
|
19
|
-12
|
50
|
|
SEALAS-22
|
7/8
|
22
|
-14
|
50
|
|
SEALAS-25
|
1
|
25
|
-16
|
50
|
|
SEALAS-29
|
1 1/8
|
29
|
-18
|
50
|
|
SEALAS-32
|
1 1/4
|
32
|
-20
|
50
|
|
SEALAS-35
|
1 3/8
|
35
|
-22
|
50
|
|
SEALAS-38
|
1 1/2
|
38
|
-24
|
50
|
|
SEALAS-41
|
1 5/8
|
41
|
-26
|
50
|
|
SEALAS-44
|
1 3/4
|
44
|
-28
|
50
|
|
SEALAS-48
|
1 7/8
|
48
|
-30
|
50
|
|
SEALAS-51
|
2
|
51
|
-32
|
50
|
|
SEALAS-57
|
2 1/4
|
57
|
36
|
50
|
|
SEALAS-60
|
2 2/5
|
60
|
-38
|
50
|
|
SEALAS-64
|
2 1/2
|
64
|
-40
|
50
|
|
SEALAS-67
|
2 5/8
|
67
|
-42
|
50
|
|
SEALAS-70
|
2 3/4
|
70
|
-44
|
50
|
|
SEALAS-73
|
2 7/8
|
73
|
-46
|
50
|
|
SEALAS-76
|
3
|
76
|
-48
|
50
|
|
SEALAS-83
|
3 1/4
|
83
|
-52
|
50
|
|
SEALAS-89
|
3 1/2
|
89
|
-56
|
50
|
|
SEALAS-95
|
3 3/4
|
95
|
-60
|
50
|
|
SEALAS-102
|
4
|
102
|
-64
|
50
|
|
Technical Datasheet
|
|
Material
|
Aluminum, aramid
|
|
Working temperature
|
-40℃ - +343℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+537℃
|
|
Standard Color
|
Silver
|
|
Standard Thickness
|
0.45 mm
|
|
MOQ
|
50 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness upon request
Special length or packing upon request.
Special size upon request.
