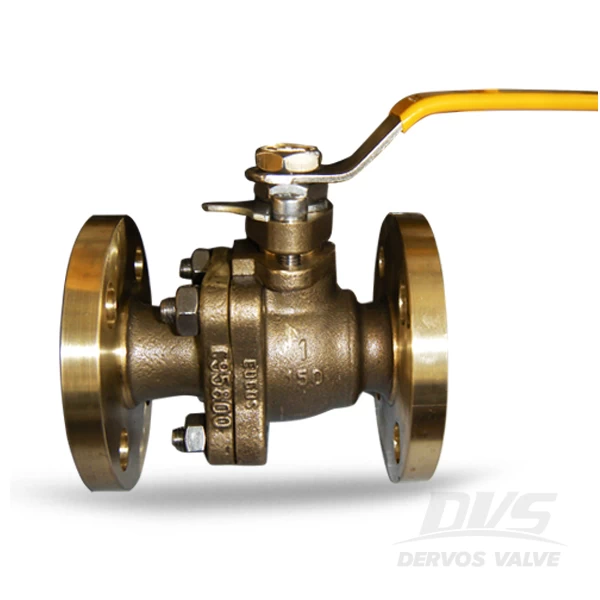

The 1 inch floating type ball valve is made of aluminum bronze C95800. The reduced bore ball valve has lever operation, RF flange, two piece type body.
Quick Detail
|
Type
|
Ball Valve
|
|
Size
|
1"
|
|
Pressure
|
ANSI 150
|
|
Construction
|
Floating
Ball, 2-Piece Body, Side Entry, Reduced Bore
|
|
Connection
|
Flanged
End
|
|
Operation
|
Lever
Operation
|
|
Body
Material
|
Aluminum
Bronze ASTM B148 C95800
|
|
Media
|
W.O.G
|
Available Modifications for Ball Valve
-Nominal Pressure
-Valve Size
-Reduced Port & Full Port
-Material of Body, Ball, Stem, Seat, Packing, Bolt and Nut
-Valve Operation (Lever, Gearbox, Pneumatic or Hydraulic or Electric Actuator)
-End Connection Type
-Available Extended Stem
-Customized Coating & Packaging
-Modifications of Drain Port
Dervos Packaging
Good packing means good first impression. Just imagine how do you feel differently when seeing two boxes below? And you will know the reason why in Dervos we value packaging so much.
In Dervos, we make sure-
1.Every valve is clean and dry. What do we do?
-Clean the valve before packing
-Add anti-rust oil
-Add flange cover
2.No damage to valves in delivery. How do we achieve this?
-Fix the valve with iron wire
-Separate the valve with soft material
-Layer the valve with plywood
3.Strong box and clear shipping mark
