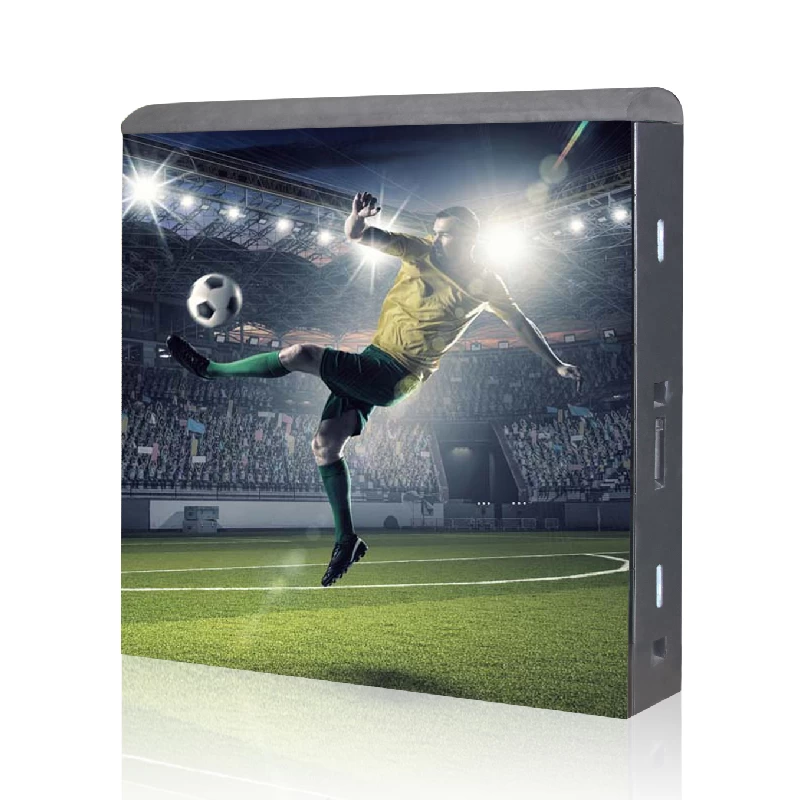

Sports Venue LED Equipment P12 Football Fence Screen with Soft Mask
Features of 960x960mm cabinet size outdoor rental screen P12:

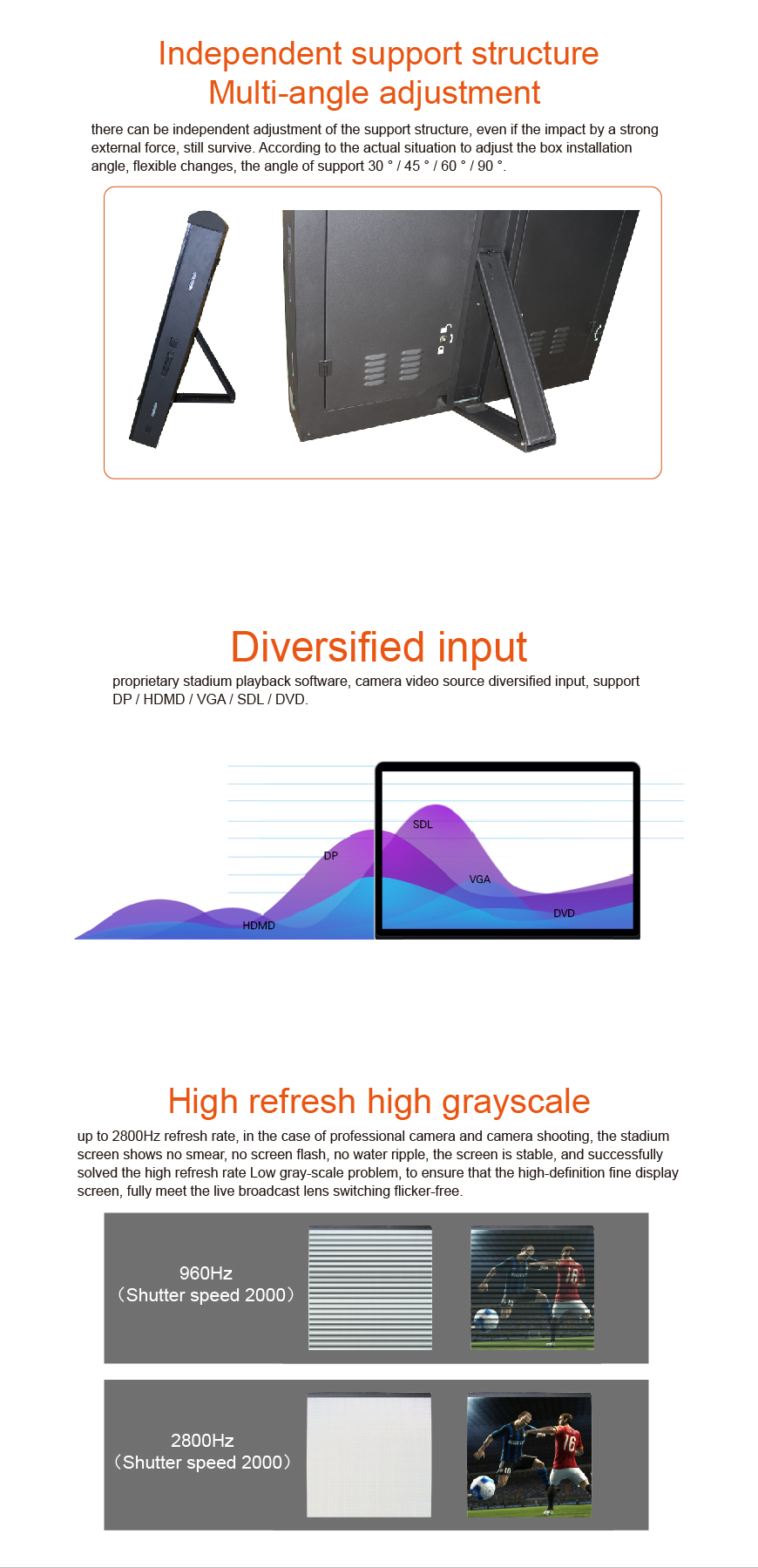

1. LCF stadium led display adopts special design with adjustable angle 75-90°according to the customer’s needs, so that could let all the audiences to view the display contents.

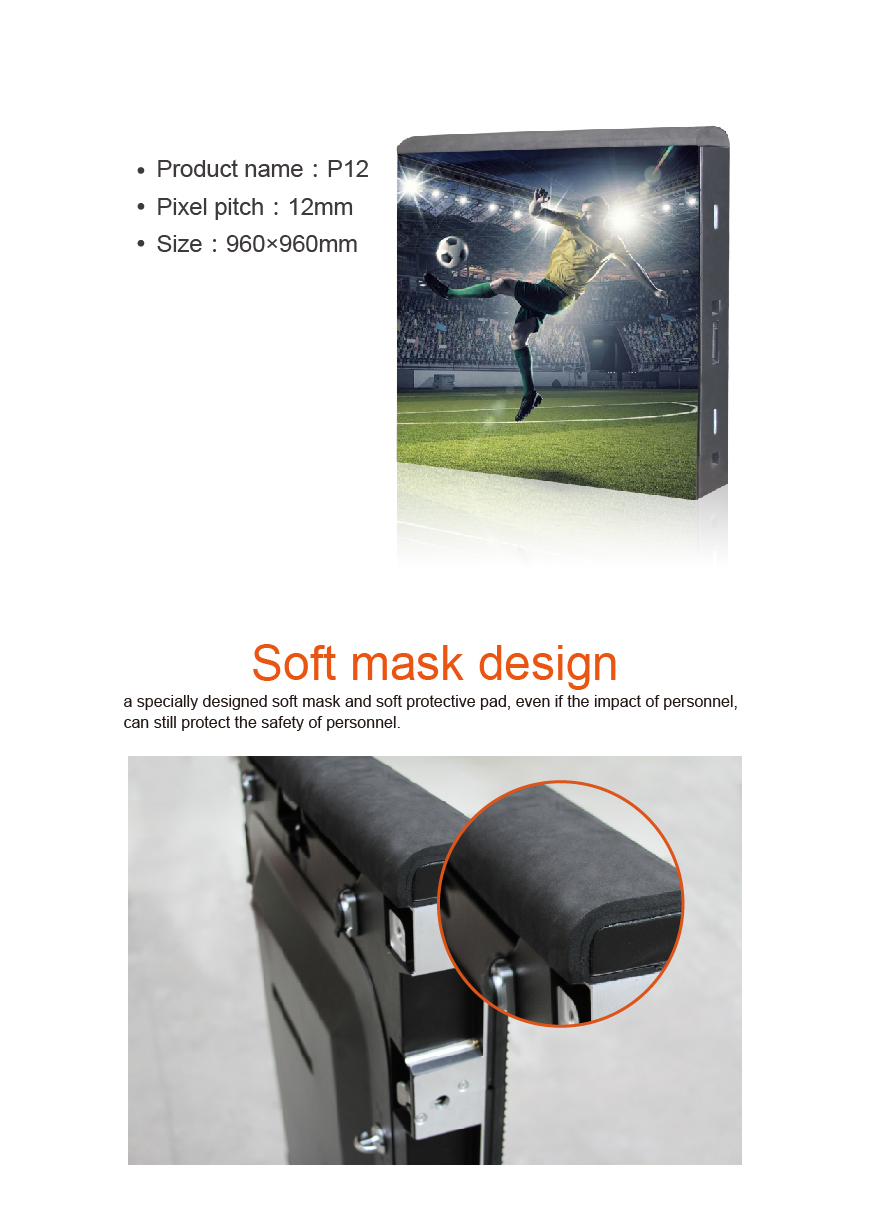

2. All our outdoor stadium led screen are adopts soft mask and coves the soft materials on the screen, to protect the LED Lamp and also avoid to hurt because of colliding the screen for the players. Safety is first, LCF will consider that at first.
3. With fiber-optical transmission system for LCF LED Screen, reducing the phenomenon of delay signal because of the long distance of the football field, to ensure the image consistency.
4. With IP65 waterproof design, ensure that the screen can still work in the raining day.
SPECS
Pixel Pitch
|
12mm
|
LED Package
|
SMD3535
|
Pixel Density
|
6,944 dots/㎡
|
Color Configuration
|
1R1G1B
|
Brightness
|
Up to 6500cd/㎡ @ white color
|
Refresh Rate
|
Up to 1920Hz/s, could be adjusted
|
Gray Scale
|
16.7M color (Synchronized)
|
View Angle
|
H:140°, V:120°
|
Module Size
|
192x192mm
|
Cabinet Size
|
960x960mm
|
Cabinet Material
|
Iron/Aluminum
|
Viewing Distance
|
12-100M
|
Drive Mode
|
1/2 scan
|
|
Power Supply
|
AC220V/110V/50 Hz, or manual switch
|
|
Lifespan
|
100,000 hours
|
|
Trouble Free Time
|
10,000 hours
|
|
Working Temperature
|
-20°C + 65°C
|
|
Environment Humidity
|
10% ~ 95%
|
Control System
|
Linsn/Nova
|
